Превосходное качество порты Poe 10/100/1000 Мбит/с управляемый или неуправляемый Промышленный Коммутатор
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Hio,Link,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 48.6 $* | 50.27 $* |
| Aug-19-2025 | 47.73 $* | 49.91 $* |
| Jul-19-2025 | 40.29 $* | 42.41 $* |
| Jun-19-2025 | 46.72 $* | 48.53 $* |
| May-19-2025 | 40.33 $* | 42.88 $* |
| Apr-19-2025 | 46.61 $* | 48.87 $* |
| Mar-19-2025 | 45.27 $* | 47.23 $* |
| Feb-19-2025 | 45.13 $* | 47.91 $* |
| Jan-19-2025 | 44.85 $* | 46.34 $* |
Характеристики
Products Description
Overview

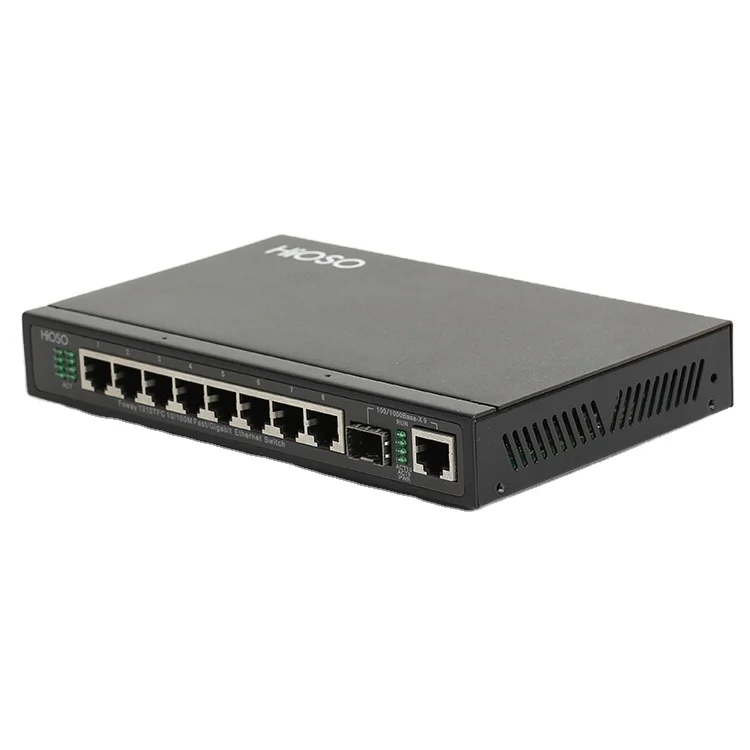

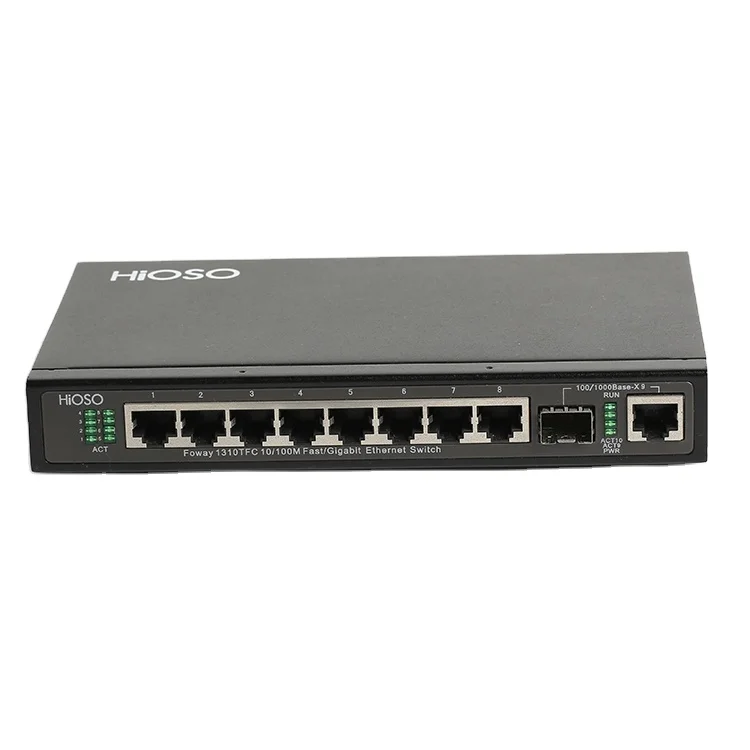

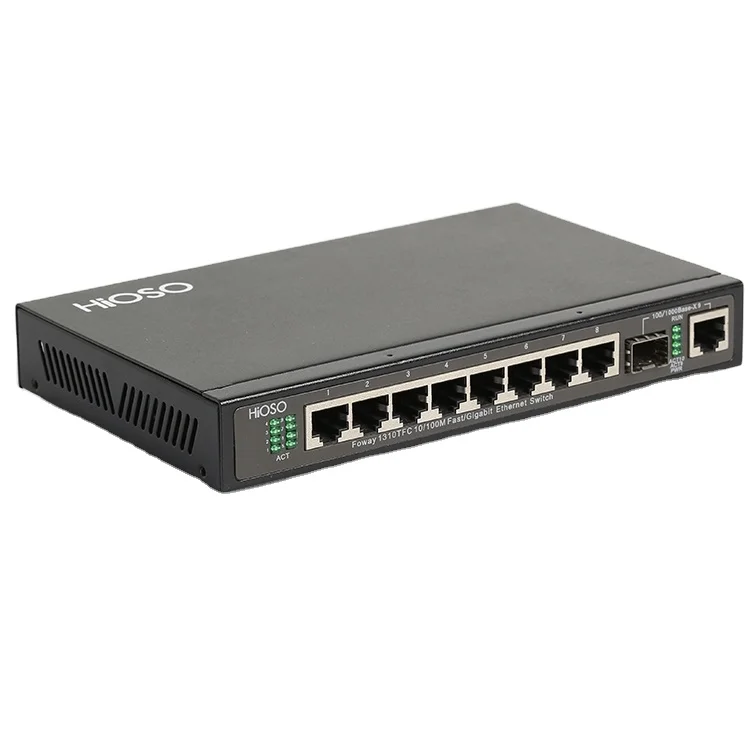

HiLink FOWAY1310TFC is our ten port Ethernet switch with 8 10/100M RJ45 Ethernet ports and 2 100M/000M combo uplink port . It can be
either Managed or non managed through web/SNMP (optional). FOWAY1310TFC is widely used in transmitting HD videos with strict requirements in security, power and traffic system.
Feature
8 10/100M RJ45 ports and 2 100/1000M Combo uplink port
support Full rate, full-duplex non-blocking forwarding
Support RSR(Rapid Super Ring）tech (optional)
8K MAC learning, 1Mbit storage of forward cache space,7.6G back plane bandwidth
Optional to Support Web,CLI ,SNMP management
Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.
(Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
(Optional) Wall-mounted hanger, better for installation
Metal casing better for heat dissipating
Optional to choose wide range temperature circuit design
Technical Specification
Parameter | Specification |
Standard | IIEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
Transmission distance | RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) / 550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km |
Port | 8 10/100M RJ45 ports ;2 1000M Combo uplink port: |
MAC address table | 8K |
Buffer space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
Power | DC12V/1A |
Power consumption | 3.8W |
Working temperature | -10~60°C |
Storage temperature | -40~80°C |
Humidity | 5%~90% non-condensing |
Dimensions | 28mm (H)×193mm(W)×119mm (D) (external power) |
Order information
NO | Type | NMS | Ports | Power |
1 | FOWAY1310TFC | NO | 8 10/100M RJ45 +1 1000M Combo uplink | DC12V |
2 | FOWAY1310TFCM | WEB | 8 10/100M RJ45 +1 1000M Combo uplink | DC12V |
