Электродвигатель шпинделя с водяным охлаждением 2 кВт ER20 инвертором насосом кронштейном цангой комплектом
- Категория: Machine Tools Accessories >>>
- Поставщик: Suzhou,Penny,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.25 $* | 0.25 $* |
| Aug-19-2025 | 0.17 $* | 0.93 $* |
| Jul-19-2025 | 0.14 $* | 0.48 $* |
| Jun-19-2025 | 0.68 $* | 0.97 $* |
| May-19-2025 | 0.98 $* | 0.58 $* |
| Apr-19-2025 | 0.82 $* | 0.97 $* |
| Mar-19-2025 | 0.66 $* | 0.64 $* |
| Feb-19-2025 | 0.8 $* | 0.96 $* |
| Jan-19-2025 | 0.29 $* | 0.53 $* |
Характеристики
Product Description
1 pcs & 220vAC 2.2kw CNC Water Cooled Spindle Motor 80x230mm ER20 4 bearings
1 pcs & 220vAC 2.2kw CNC HY Inverter
1 pcs & 80mm Clamping Bracket
1 pcs & 220v 75w Wtaer Pump 3200L/H with 5m Tube
1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)
1 pcs & 220vAC 2.2kw CNC HY Inverter
1 pcs & 80mm Clamping Bracket
1 pcs & 220v 75w Wtaer Pump 3200L/H with 5m Tube
1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)

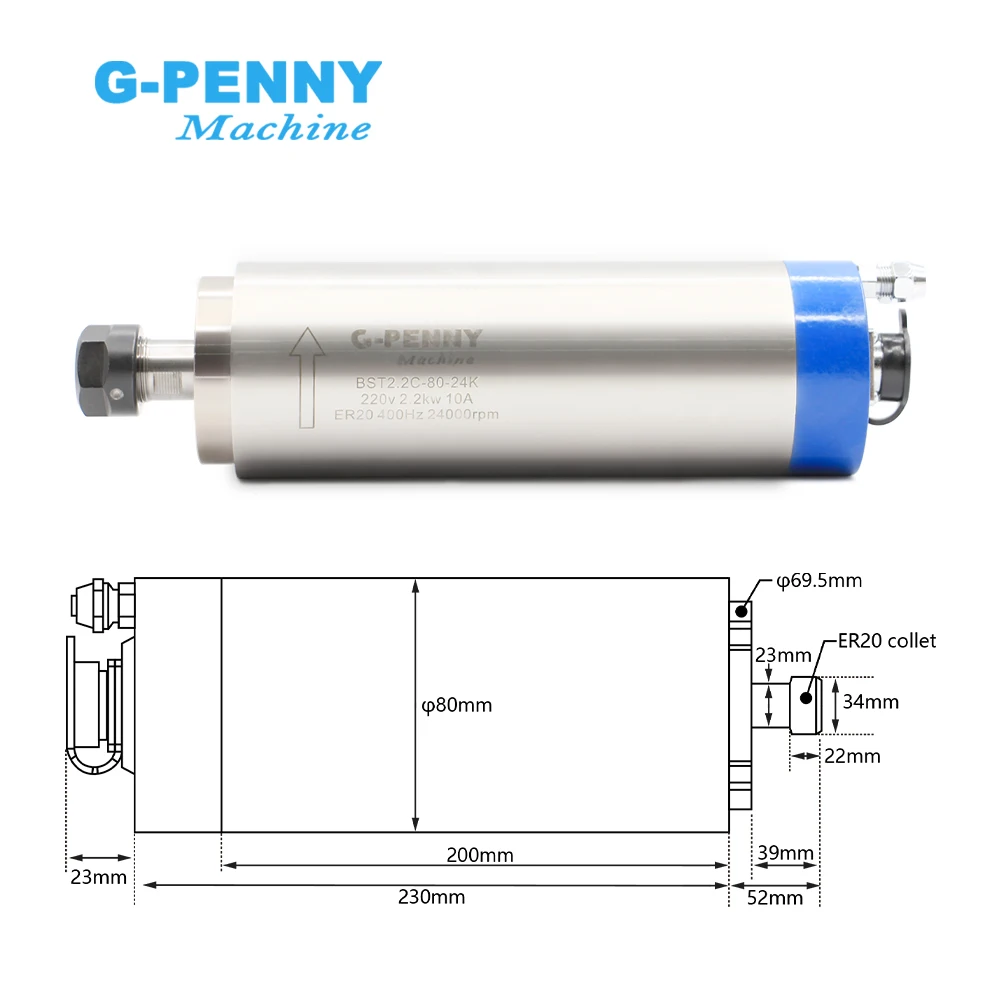

* Size:80x230mm(Middle body diameter:80mmxLength:230mm)
* Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Water cooling
* Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
* Power:2.2kw
* Voltage:220v
* Current:10A
* Frequency:0-400Hz
* Speed: 0-24000rpm
* Runout Off:Less than 0.01mm
* Diameter(mm): 80
* Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT
* 4pcs fully sealed angular contact bearings
* Collet: ER20
* Clip Knife diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
* Water Cooling ER20 collet chunk
* Grease Lubrication
* Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
* Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Water cooling
* Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
* Power:2.2kw
* Voltage:220v
* Current:10A
* Frequency:0-400Hz
* Speed: 0-24000rpm
* Runout Off:Less than 0.01mm
* Diameter(mm): 80
* Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT
* 4pcs fully sealed angular contact bearings
* Collet: ER20
* Clip Knife diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
* Water Cooling ER20 collet chunk
* Grease Lubrication
* Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
Size | Power | Voltage | Frequency | Speed |
80x230mm | 2.2kw | 220V | 400Hz | 0-24000rpm |
Bearing Type | Cooling Type | Lubrication | Collet | |
2×7005 P4 DT & 2 ×7002 P4 DT | Water cooled | Grease | ER20 |
P4 fully sealed angular contact bearings ,2×7005 P4 DT &2×7002 P4 DT,increase spindle life .(We also have 4 pcs ceramic ball bearings type spindle)
Longer length make the torque bigger,more powerful.
Carefull assembly make the spindle more precisional.
Precision 0.01mm.Coaxial degree less than 0.0025mm.
Longer length make the torque bigger,more powerful.
Carefull assembly make the spindle more precisional.
Precision 0.01mm.Coaxial degree less than 0.0025mm.
1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

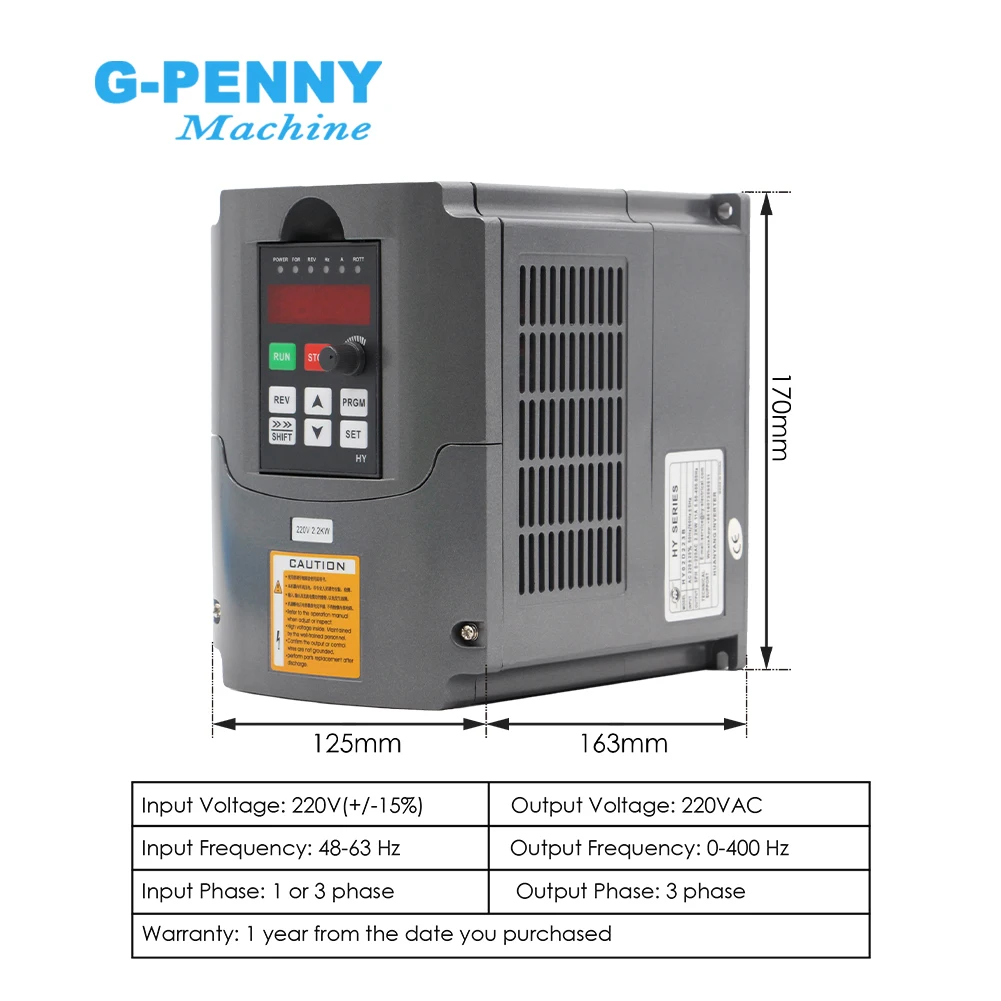

* Inverter Type:220v 2.2kw
* Input Voltage:220V(+/-15%)
* Output Voltage:220vAC
* Input Frequency:48-63 Hz
* Output Frequency:0-400 Hz
* Input Phase: 1 or 3 phase
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
* Input Voltage:220V(+/-15%)
* Output Voltage:220vAC
* Input Frequency:48-63 Hz
* Output Frequency:0-400 Hz
* Input Phase: 1 or 3 phase
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
Easy PLC function can realize 16 legs of speed and inverter control function;
RS485 communication port, adopting standard international MODBUS main circuit control;
With extremely strong anti-jamming capability
Low output ratting torque0.5HZ-150%, low speed running ability;
Carrier adjustable by 16KHZ, completely soundless working environment;
Broad voltage working area, normal running in 304V-456V;
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing
brakes;
With perfect error protection and short circuit starting protection capability;
Some Qusetions about Inverter
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
Easy PLC function can realize 16 legs of speed and inverter control function;
RS485 communication port, adopting standard international MODBUS main circuit control;
With extremely strong anti-jamming capability
Low output ratting torque0.5HZ-150%, low speed running ability;
Carrier adjustable by 16KHZ, completely soundless working environment;
Broad voltage working area, normal running in 304V-456V;
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing
brakes;
With perfect error protection and short circuit starting protection capability;
Some Qusetions about Inverter
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.

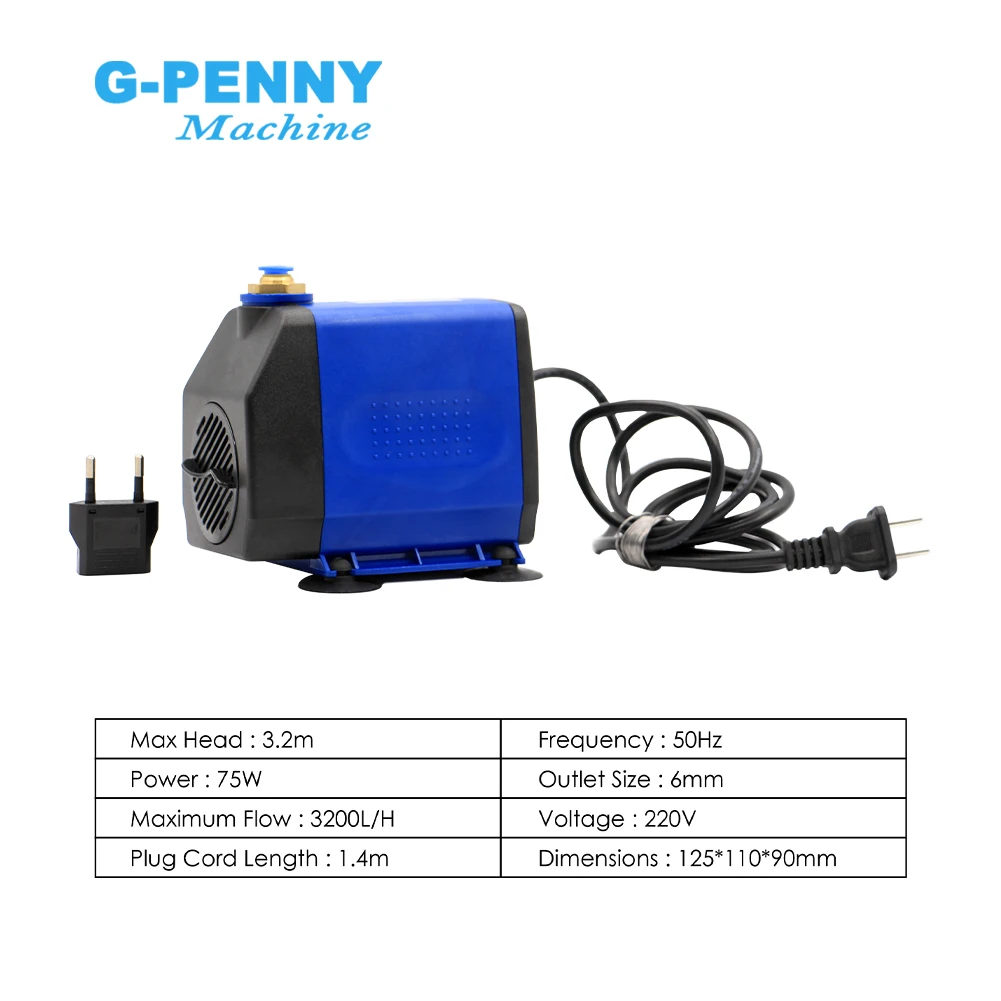

Max Head: 3.2 m;
Power: 75w;
Maximum flow: 3200L / H
Plug Cord Length: 1.4m
Voltage: 220V;
Frequency: 50 HZ
Outlet size: 4 and 6 mm;
Dimensions: 145 * 110 * 90 mm
Advantage
High Lift , Large Flow Rate , Highly Durable , Excellent Insulation , Can cool the machine quickly , Good quality and long life ,
Large inventory , Big strong power
Features
The shell is made of high quality plastic, which is anti corrosive and high durable.
Pumps have excellent insulation thanks to the motor bearing completely sealed.
Pumps combione pumping, filtered,oxygen and fountains in one.
Note
Must be used in the water.
Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.
Power: 75w;
Maximum flow: 3200L / H
Plug Cord Length: 1.4m
Voltage: 220V;
Frequency: 50 HZ
Outlet size: 4 and 6 mm;
Dimensions: 145 * 110 * 90 mm
Advantage
High Lift , Large Flow Rate , Highly Durable , Excellent Insulation , Can cool the machine quickly , Good quality and long life ,
Large inventory , Big strong power
Features
The shell is made of high quality plastic, which is anti corrosive and high durable.
Pumps have excellent insulation thanks to the motor bearing completely sealed.
Pumps combione pumping, filtered,oxygen and fountains in one.
Note
Must be used in the water.
Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.

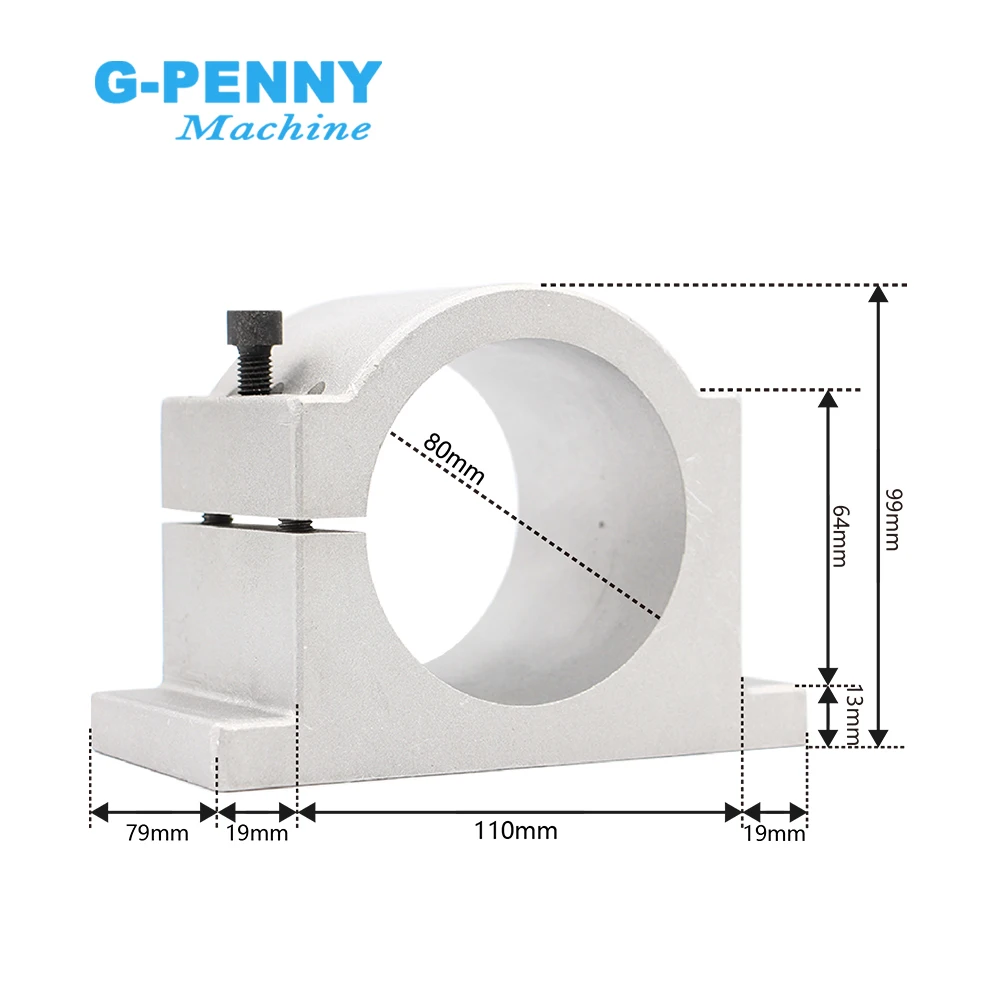

Diameter: 80mm
Material: Cast Aluminium
Features
Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth,.
Cast aluminium fixture is much heavier than aluminium profile fixture
Product Description
Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary
aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.
Usage
Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and
ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.
Material: Cast Aluminium
Features
Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth,.
Cast aluminium fixture is much heavier than aluminium profile fixture
Product Description
Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary
aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.
Usage
Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and
ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.

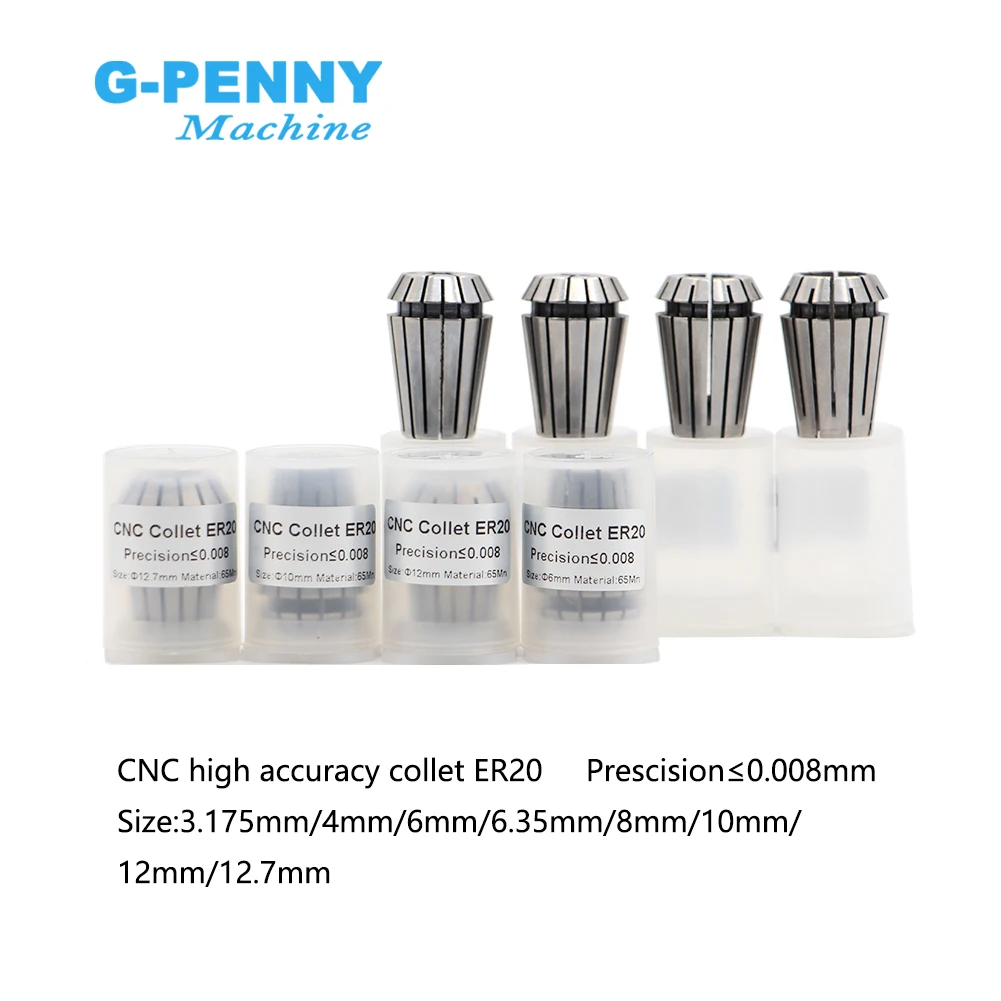

Type: ER20 High accuracy collet
