FOORIR система подсчета людей торговый центр Footfall счетчик датчик автоматические
- Категория: Counters >>>
- Поставщик: Chengdu,Huaxin,Zhiyun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 355.66 $* | 373.53 $* |
| Aug-19-2025 | 352.46 $* | 370.98 $* |
| Jul-19-2025 | 295.86 $* | 310.1 $* |
| Jun-19-2025 | 346.55 $* | 363.64 $* |
| May-19-2025 | 301.50 $* | 316.60 $* |
| Apr-19-2025 | 340.96 $* | 357.89 $* |
| Mar-19-2025 | 337.48 $* | 354.62 $* |
| Feb-19-2025 | 334.42 $* | 351.32 $* |
| Jan-19-2025 | 331.56 $* | 348.36 $* |
Характеристики

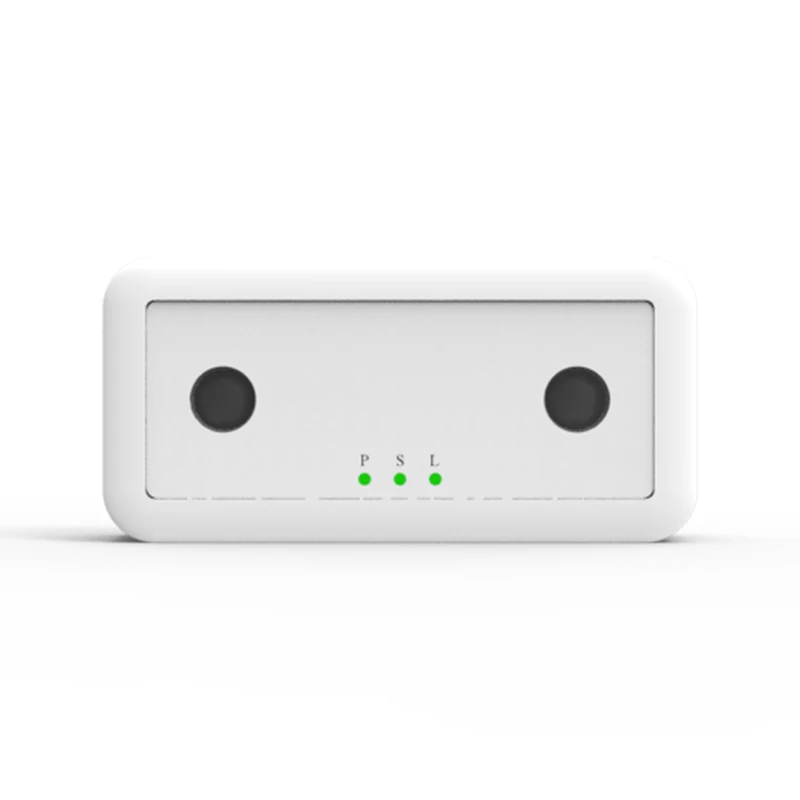

WiFi 3D Binocular Passenger People Footfall Counter | ||
Viewing Angle | Horizontal 100°，Vertical 70° | |
Depth map resolution | 640*400@0～3.5m；1280*800@3.5m～6m | |
The output frame rate | 640*400@25fps | |
accuracy | ≥98% | |
Height range | 2.2~6.0m | |
coverage | 1.2~5.5m | |
Filter out highly | 0.5~1.2m | |
power | 3.2W~3.6W | |
The power supply mode | POE（802.3af/at）/DC12V | |
Ethernet cable | 5 classes | |
Networking way | Wired network/Wi-Fi | |
Addressing | Static IP/DHCP | |
Offline caching | 90 days | |
Data uploading method | HTTP POST | |
Working temperature | 0°C~45 °C | |
Working humidity | 20~80 % | |
Storage temperature | -20°C~50 °C | |
Store humidity | 20~80 % | |
Size | 21*20.5*10cm | |
Weight | 800g | |
Installation | Top mounting/hoisting | |
material | Aluminum alloy | |
Passenger flow control，screen display
Know the passenger flow information in the area, warning of excessive number of people, more quickly to do personnel control，Provide customized large screen display service, if you need to customize, please contact us.
Sales countries
We have sold to Italy, Australia, France, Russia, Japan, Greece, Spain and other countries, users praise
Device configuration debugging
On the same network segment, enter the debugging interface through the website we provided. It can link corresponding device to view passenger flow data in real-time, can view device information, modify device settings, installation height, filter height,rotation angle, detection direction, network parameters,etc., and also display the number of people enter/leave/pass through/stay on in real-time. It can also export a set time of the passenger flow data.
We can provide you with a free website platform to monitor and analyze data. The platform supports both Chinese and English modes. If you need to customize other languages, please contact us for more details
Tilt installed
The filter height of each device is 0.5m, and the installation height is 2.2~6M. It can be installed at 45° tilt and has a large field Angle of 100°
Multiple device can be spliced
Support 6 devices spliced, the Max covering range is 30M(3-4 devices are recommended), a complete video picture can be formed after multiple device spliced.

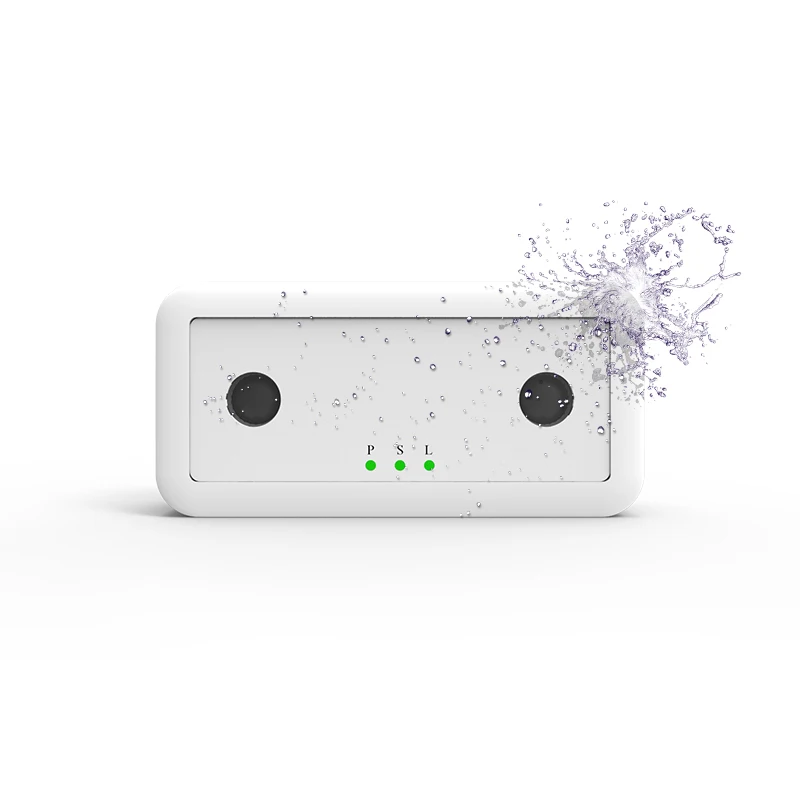

IP65 waterproof
It has passed IP65 waterproof certification

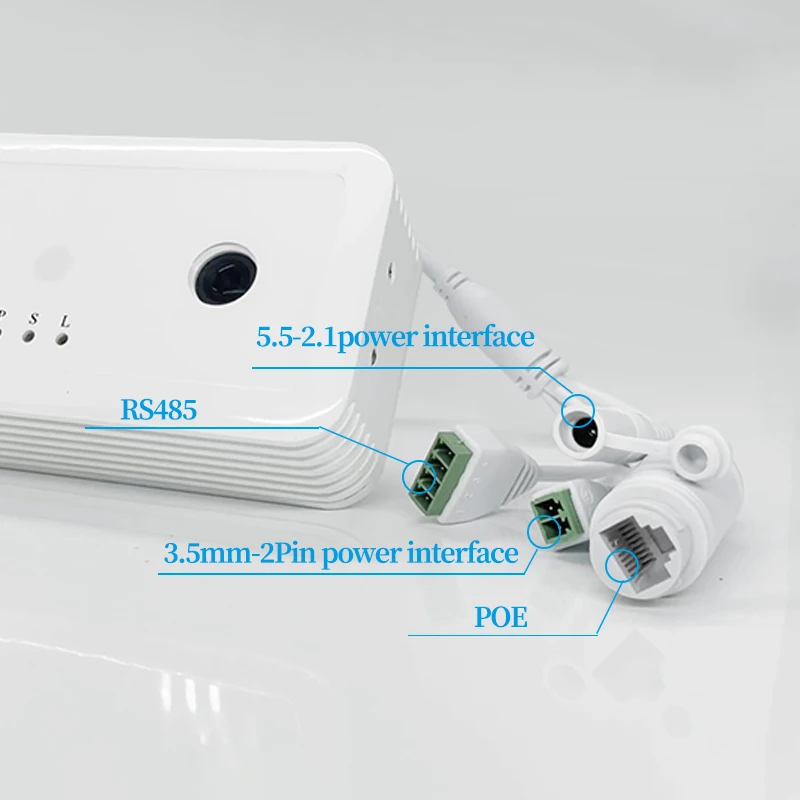

Three kinds of network and two kinds of power supply
1. Three types of networking: WIFI; RS485; RJ45.
2. Two power supply modes: DC or POE
2. Two power supply modes: DC or POE
Company Profile
About us
1.Chengdu Huaxin Zhiyun Technology Co., Ltd. founded in 2011 with a history of 10 years.
2.All products passed the newest ce,fcc,rohs certificate.
3.Brand "huaxin", res: to be the most responsible enterprise; to be most professional in thermometer.
Packing&Shipping
FAQ
1: What’s your advantage?
A: we have 10 years experience on people counter business. Thanks for our R&D department, We can always grasp the latest market trends. Our staffs are all well trained, our efficiency and technology will help you saving money and time. You can trust our strong technical support and fast mass production service.
2: Do you have certifications for your product?
A: yes, we have certifications of CE, FCC, ROHS, and so on.
3. Can accept OEM?
A: Yes, we can accept customize products according to your requirement.
4: How long will it take to prepare the products and how long will the warranty be?
A: Ordinary express takes 3-6 days, air express takes 2-3 days, sea takes 20-30 days, the warranty period of each product is different, you can contact us to negotiate.
5: Whether remote access devices are support?
A: sorry, the device does not support remote access.
6: Can I use my own server?
A: Yes, we can provide data upload protocol for you to connect the device with your server.
7: What are the computer operation and system requirements?
A: Operate our debugging software client need win7, win8, win10, win11.
