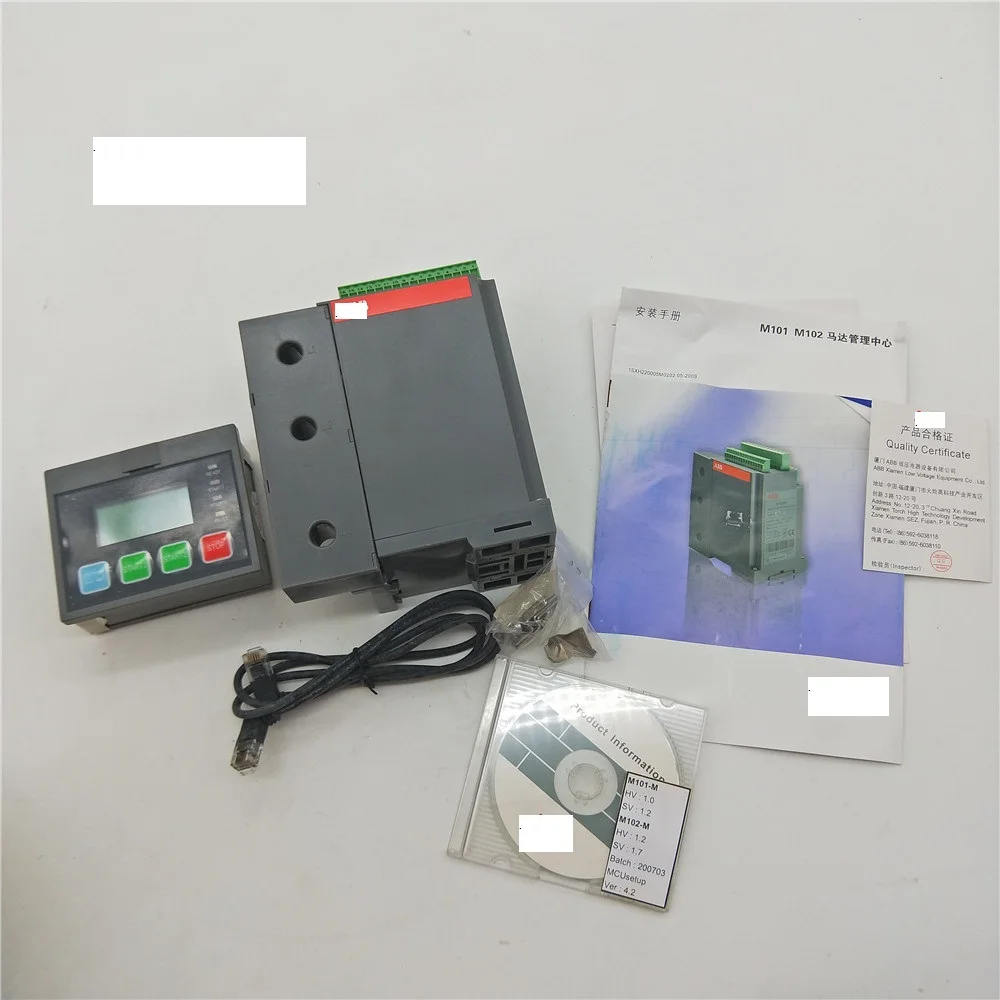

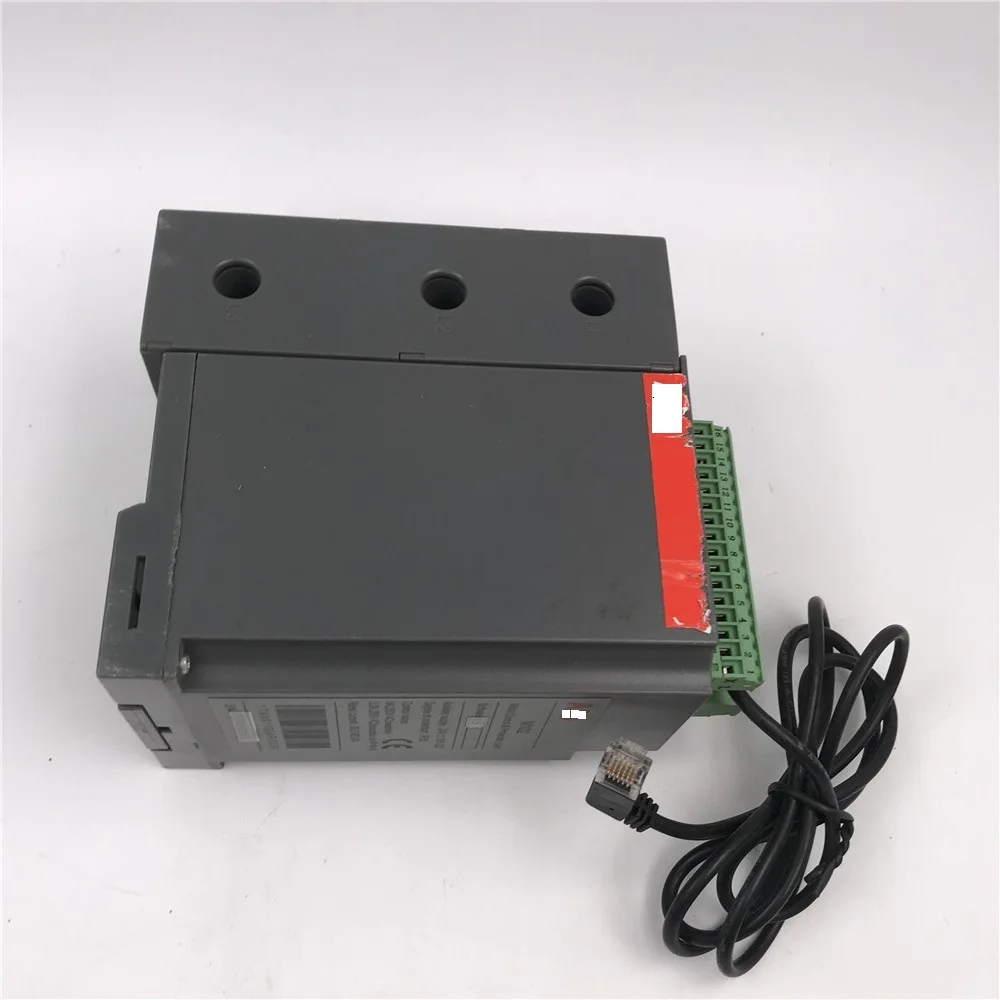

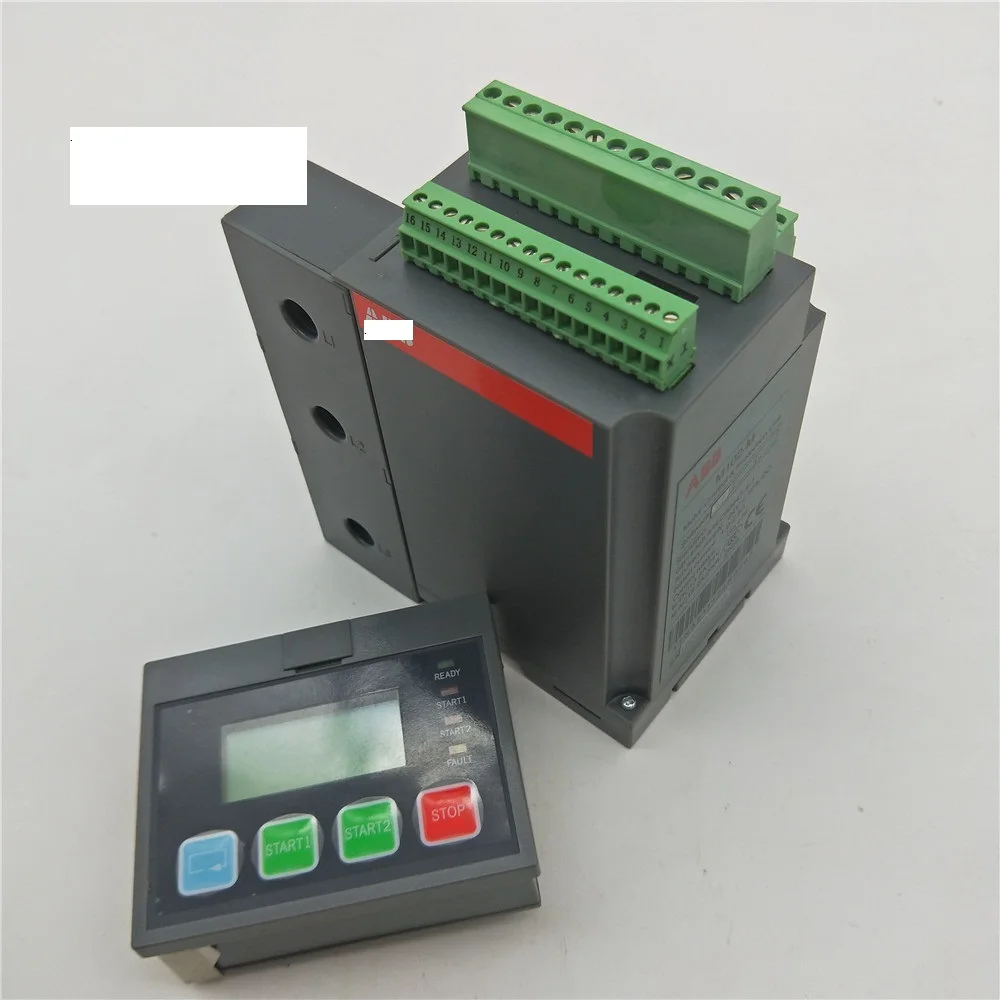

Simply Smart Low Voltage System Motor Control Center with Motor Control and Protection Unit M10x

Main unit M10x Power circuit Rated operation voltage (Ue) up to 400/690 V AC 346/600 V AC(UL) Rated insulation voltage (Ui) 690 V AC 600 V AC(UL) Rated frequency 50/60 Hz Motor current rating (Ie) 0.08-63 A (integrated CT) For 63 A above, external CT is required. Starter coodination Refer to product coordination table Control circuit Rated operational voltage (Ue) 24 V DC, 110 or 240 V AC Rated operational current (Ie) for contactor control relay output 2A/24 V DC (DC-13), 240 V AC (AC-15) Trip rating 115% of TFLC Inputs and outputs Digital inputs (configurable) 13 inputs (DC ) or 9 inputs (AC) PTC input 1 channel PTC input (M102 only) RCT (earth fault CT input) 1 channel RCT input Digital outputs 5 outputs (M102) or 3 outputs (M101)





M102-M with MD21 24VDC

M102-M with MD31 24VDC

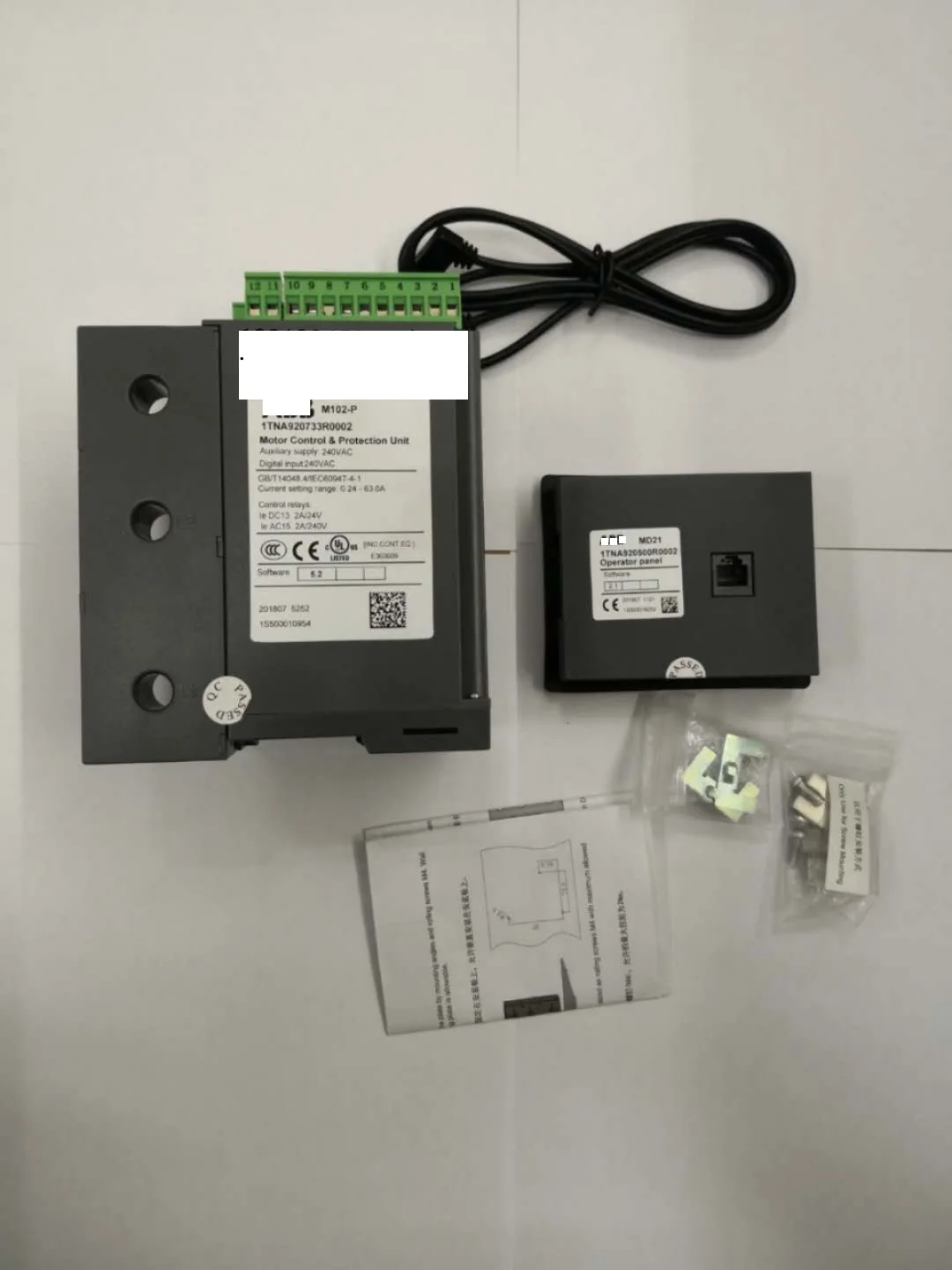

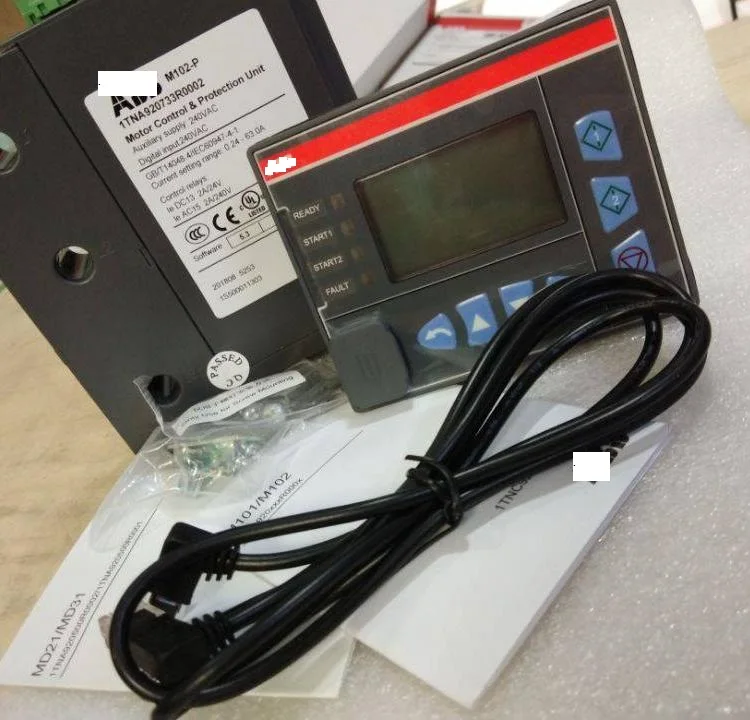

M102-P with MD21 24VDC

M102-P with MD31 24VDC

M102-M with MD21 110VAC

M102-M with MD21 240VAC

M102-M with MD31 110VAC

M102-M with MD31 240VAC

M102-P with MD21 110VAC

M102-P with MD21 240VAC

M102-P with MD31 110VAC

M102-P with MD31 240VAC

M102-P 12.5-30.0A w/ MD2 24VDC

M102-P 30.0-63.0A w/ MD2 24VDC

M101-M with MD21 24VDC

M101-M with MD31 24VDC

M101-P with MD21 24VDC

M101-P with MD31 24VDC

M101-M with MD21 110VAC

M101-M with MD21 240VAC

M101-M with MD31 110VAC

M101-M with MD31 240VAC

M101-P with MD21 110VAC

M101-P with MD21 240VAC

M101-P with MD31 110VAC

M101-P with MD31 240VAC

M101-P  1.0-2.5 with MD2

M101-P  5.0-12.5 with MD2

M101-P  12.5-30.0 with MD2

M101-P  30.0-63.0 with MD2

M101-M 24VDC  without MD & 1.2M cable

M101-P 24VDC   without MD & 1.2M cable
