ISO сертифицированный 30 на 3 горячеоцинкованный антикоррозийный строительный материал напольная платформа стальная

Описание и отзывы

Трекер стоимости

Характеристики

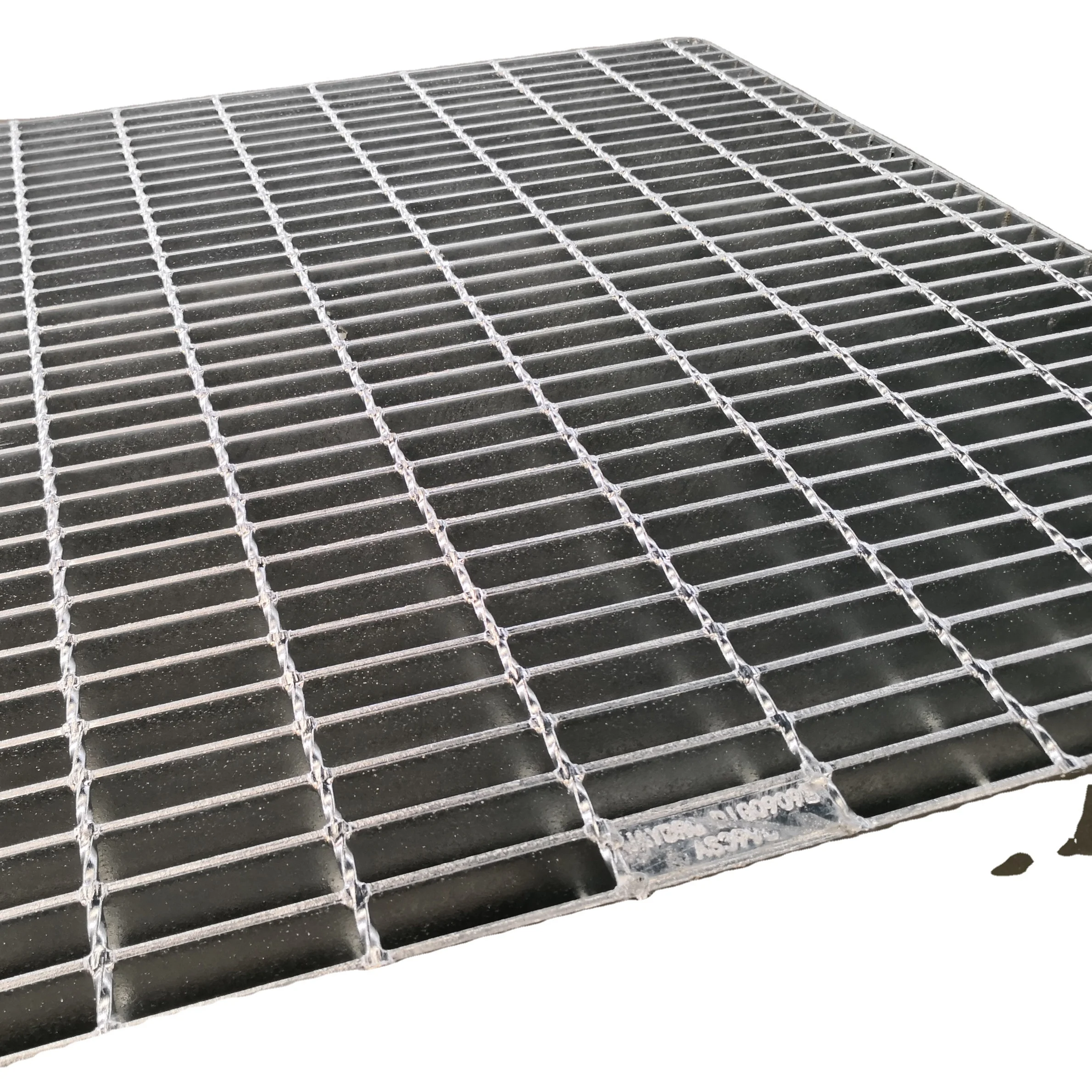

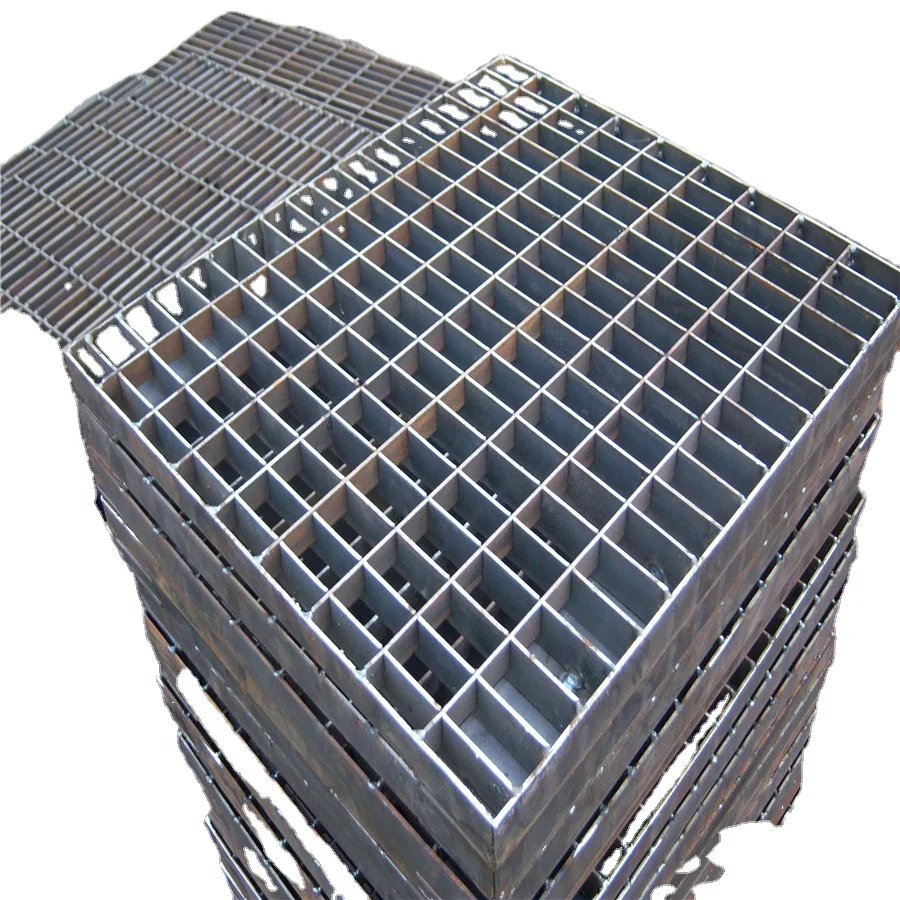

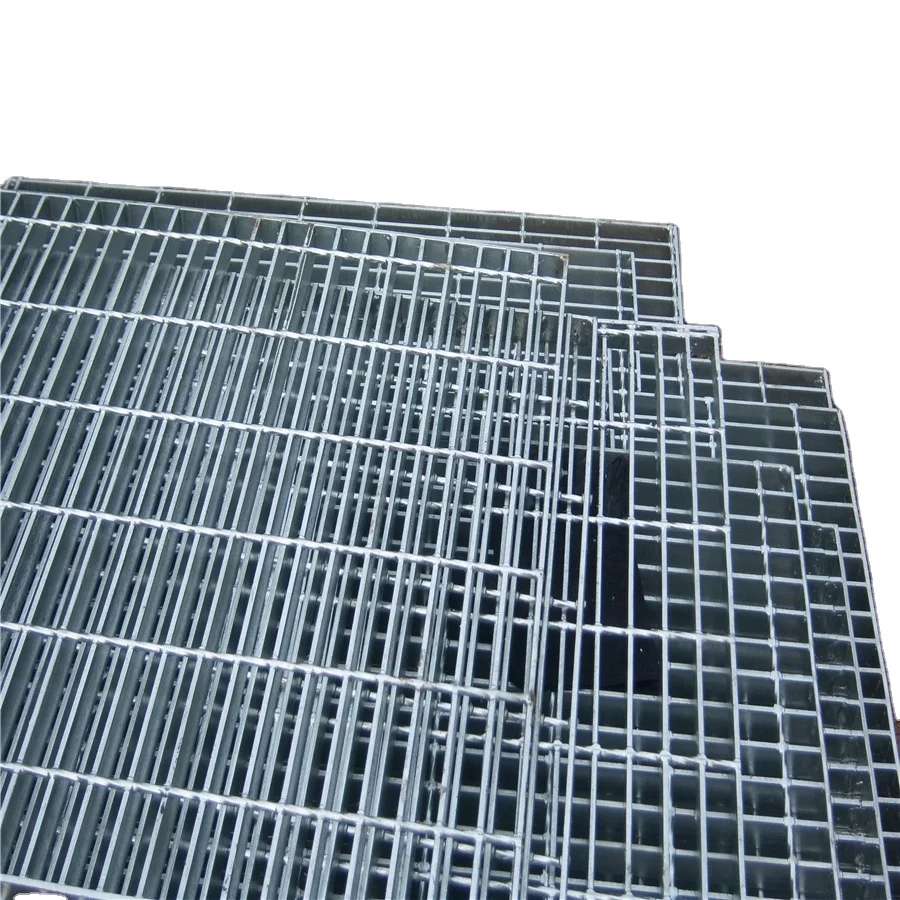

Steel Bar Grating, also known as Welded Steel Bar Grate, is made by Carbon or mild steel of certain sizes through the processing of grooving, lock-pressure, welding, finishing and other treatment. Industrial bar gratings can be actually made from copper, aluminum and other materials, while galvanized steel grating is the mostly used one due to its economic cost and good property. And it is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel bar grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements. Available in either smooth top or serrated for slip resistance.

2. The application of steel gratings:

Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and light chemical industry, Petrol-chemistry, Machinery industry, Textile chemistry, Port engineering, Oil and grease chemistry, Agriculture husbandry, Horticulture, Steel industry, Waste disposal, Food processing, Aquatic breeding, Fertilizer industry, Pharmaceutical industry, Parking lots, Cement plants, Oil refinery, Mining and refinery, Power plants, Public utility, Marine engineering, Shipbuilding, Construction material industry, Defense projects, Airport projects, Water plants, Sewage disposal, Paper and pulp industry, Construction industry, Transportation industry, Automotive industry



3. Steel grating mark:

A. grating, hot dip galvanized, 30*100, 6000*1000*35*5 mm, this means the bearing bar depth is 35mm, thickness is 5mm, and the bearing bar pitch is 30mm, cross bar pitch is 100mm, the length (the bearing bar direction) is 6 meter, the width (the cross bar direction) is 1m. And the surface is hot dip galvanized.



B..  G 355/30/100 W F G - 6*1m

G-----grating (this can be omitted)

355-----the bearing bar depth * thickness

30-----bearing bar pitch center to center

100----cross bar pitch center to center

W-----welded, L-----Locked, (joint method)

F-----flat, P-----plain, S-----serrated (bearing bar type)

G-----hot dip galvanized, U-----untreated, P-----painted(surface treatment)

6*1m--- the length is 6 meter, the width is 1 meter.

4. The manufacturing process of our products:

5. The inspection of our products:

6. As for logo, it can be in different forms, see the pic for reference.

7. The package of our products:

For LCL shipping, it’s packed with wooden pallet with steel belts and then with stretch film, or packed with wooden box, also we can do as customer need.



For FCL shipping, it’s packed with steel belts and plywood put at the bottom, or as customer’s need.

8. Our company and advantages:

Hebei Jiuwang Metal Wire Mesh Co., Ltd, originally called Jintai Wire Mesh Co., Ltd, was founded in 1992, has been in this line for over 20 years, we are the top 3  manufacturer in Hebei province of galvanized metal steel grating, and other galvanization products. And our factory covers an area of 40000 square meters. There is about 120 stuff in our company.



Our galvanization factory is green and environmentally friendly, with no dust, and good quality. And we are factory, we can deliver the goods at fastest time and take good control of quality. We can provide most reasonable price and best service for all clients.



Our Services

1.We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.

2.OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’ projects, and make products according to customers’ drawing.

3.Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.

FAQ



1. What is the application of steel grating?

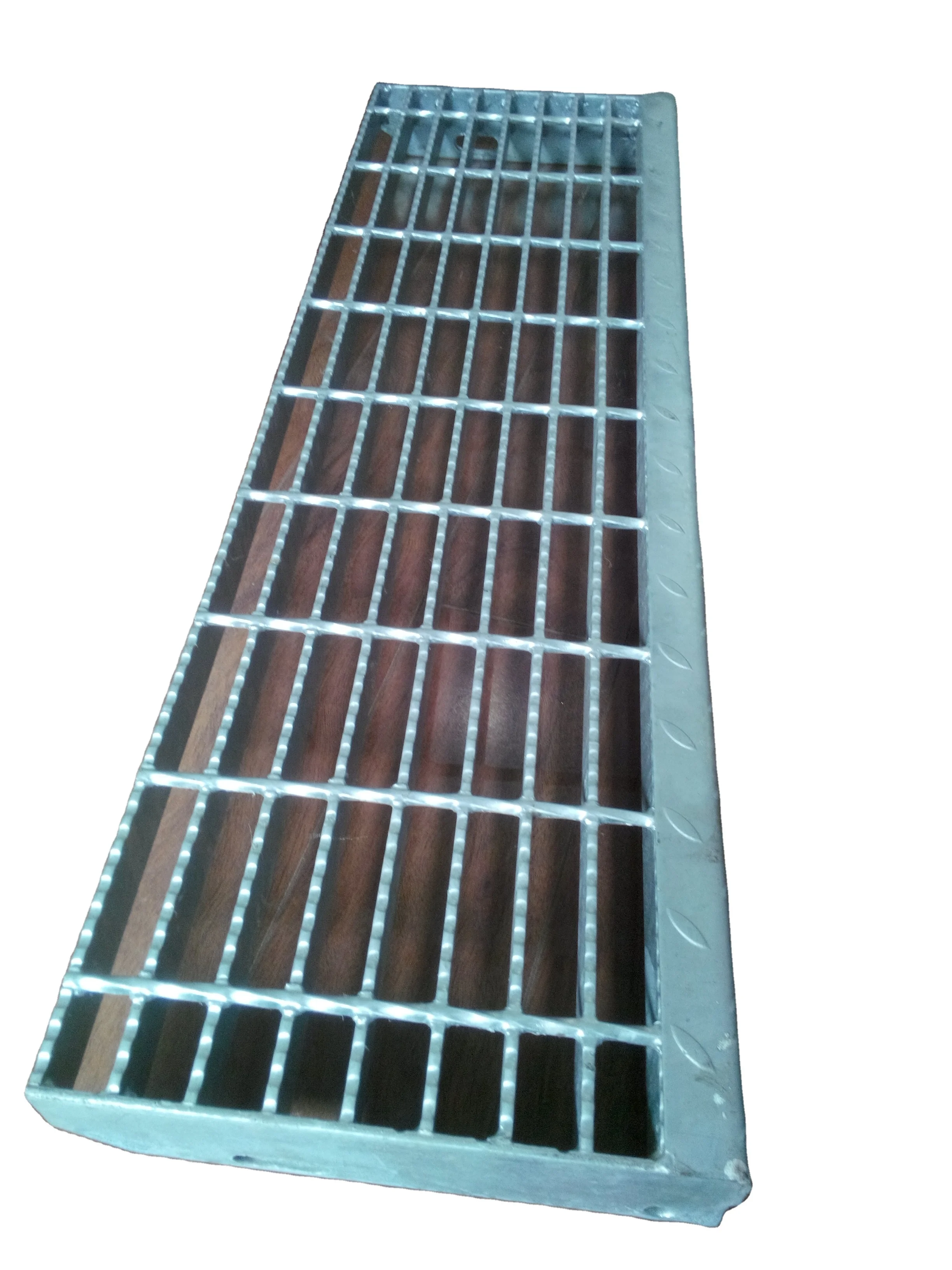

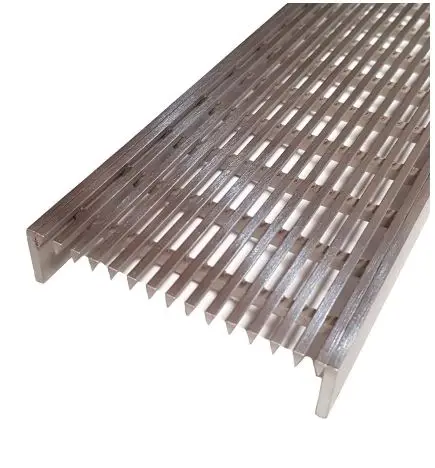

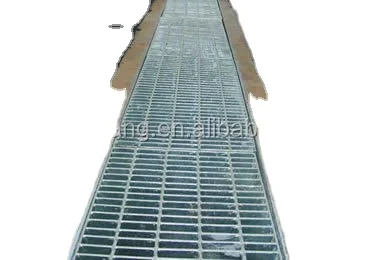

The main usage can be divided to 4 kinds: platform, flooring, stair treads and drainage cover.

See the above pic for reference.

2. what is the quantity of galvanization? And how long will it last?

We do our galvanization as American standard, it is usually 460g per square meter that is 60-80 microns per square meter.And it can last at least 50 years. For thicker one, we can also make it.



3. Which standard can your products meet?

We can produce as customer's need. Here are most popular standard:

China: YB/T4001.1-2007

UK: BS4592-1-1995

USA: ANSI/NAAMM(MBG531-88)

Australia: AS1657-1985



4. Do you provide design?

Yes, we can provide CAD design for customers, as long as you can tell us your requirements.
