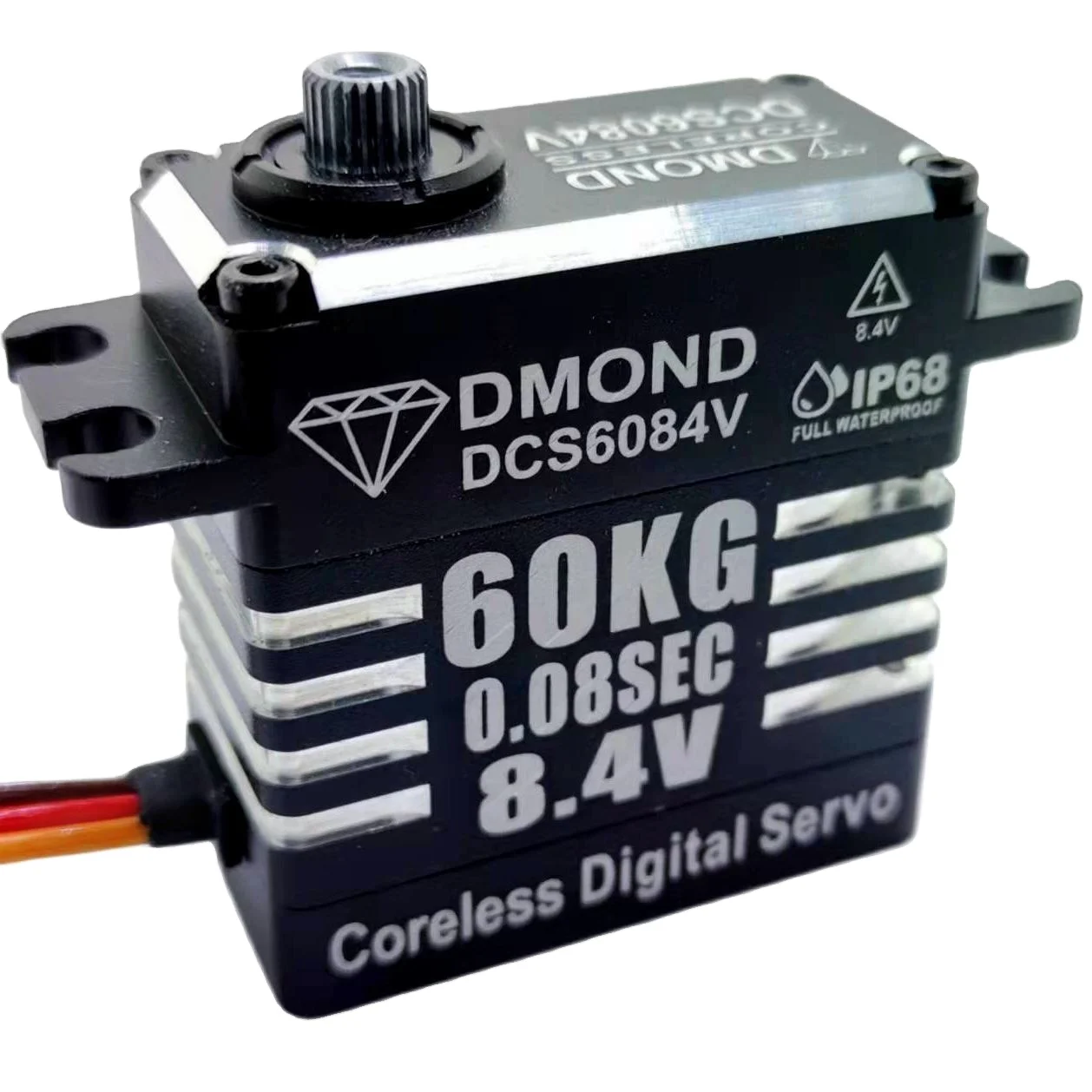

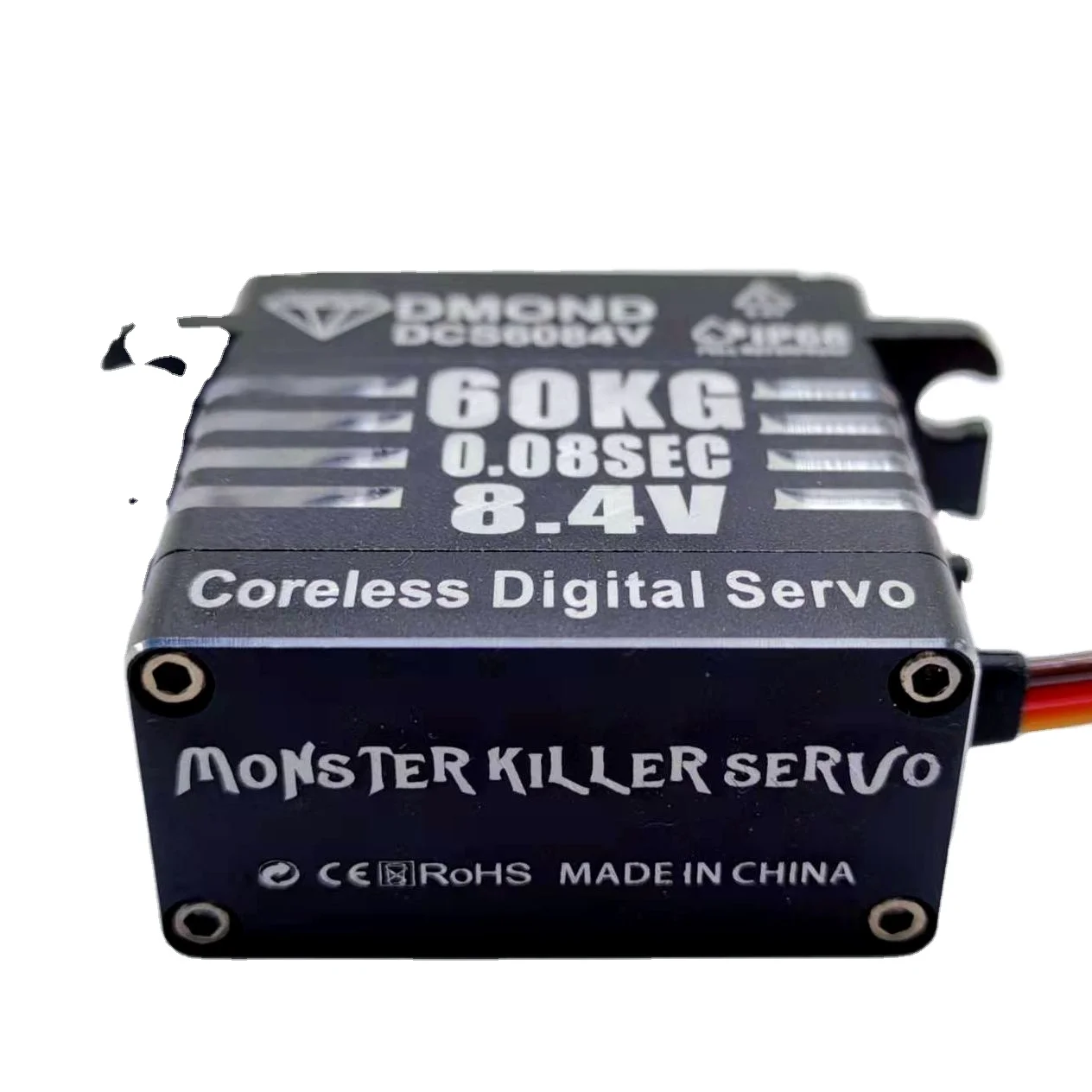

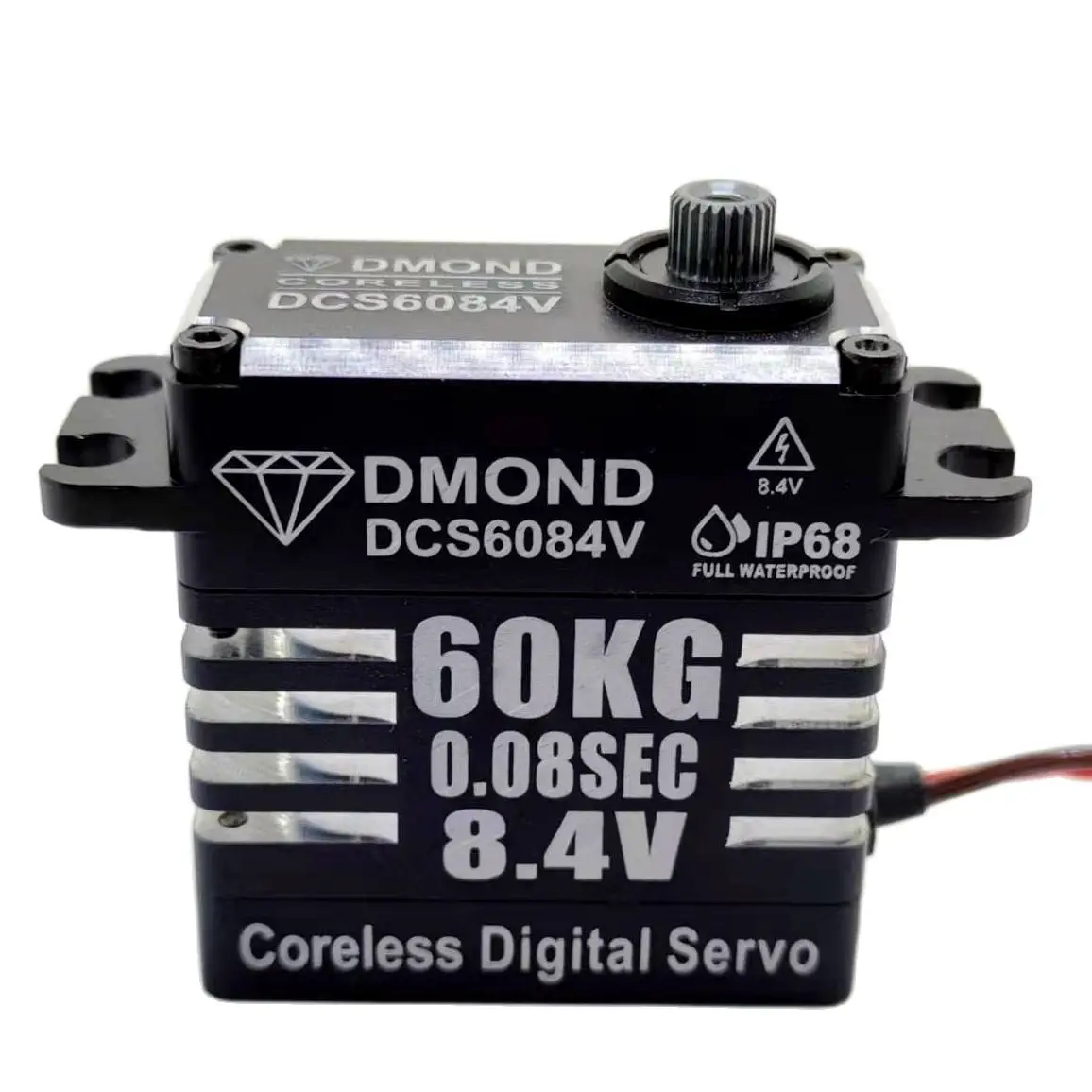

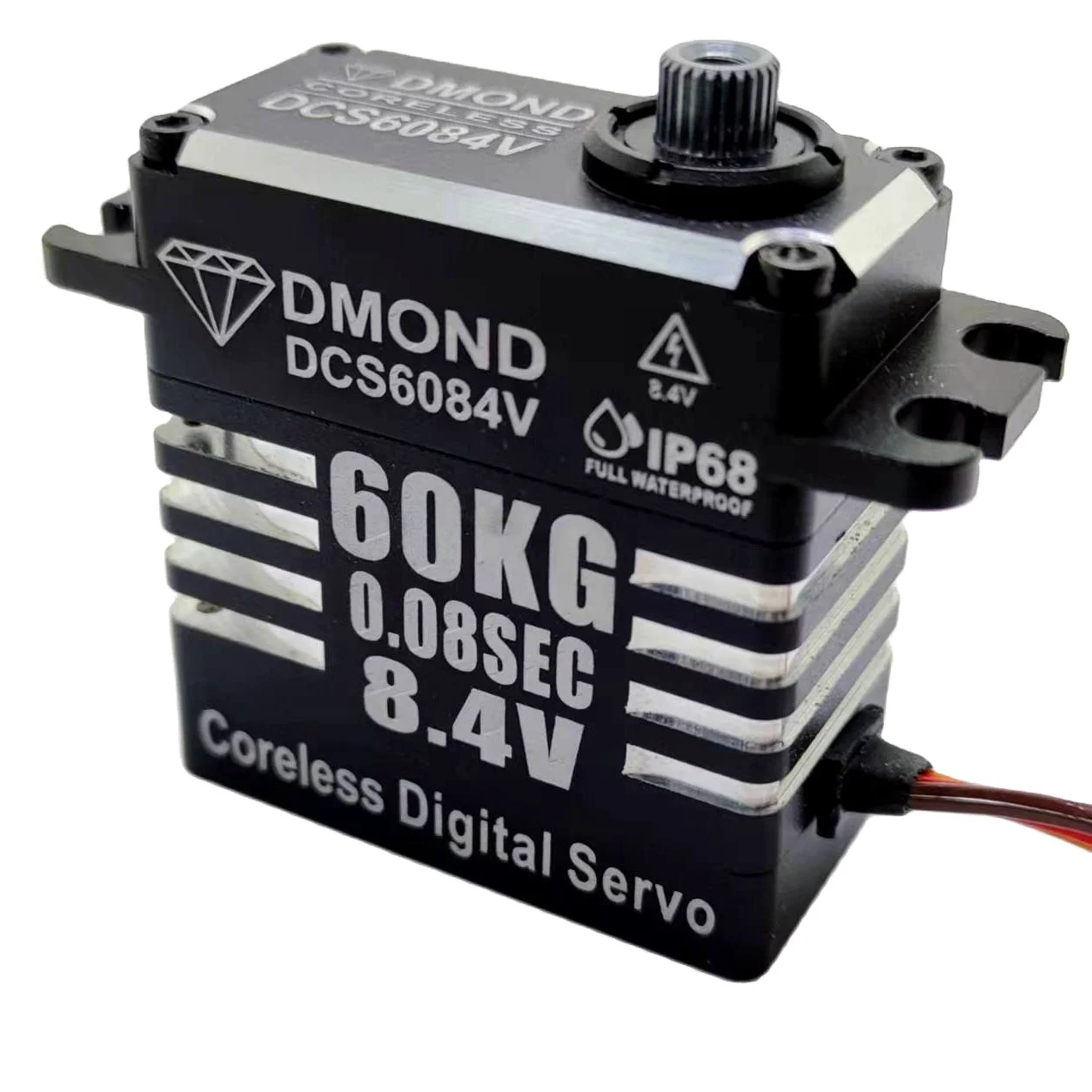

DMOND DCS6084V 60 кг 8 4 сек в без сердечника цифровой водонепроницаемый сервопривод MONSTER KILLER SB2292SG
- Категория: RC Parts & Accs >>>
- Поставщик: Superior,E-Commerce,Co.,Ltd.Superior,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6120.45 $* | 6242.71 $* |
| Jul-16-2025 | 4964.2 $* | 5063.20 $* |
| Jun-16-2025 | 6024.6 $* | 6144.79 $* |
| May-16-2025 | 5976.8 $* | 6096.2 $* |
| Apr-16-2025 | 4771.37 $* | 4866.60 $* |
| Mar-16-2025 | 5879.24 $* | 5997.74 $* |
| Feb-16-2025 | 5831.17 $* | 5948.53 $* |
| Jan-16-2025 | 5783.16 $* | 5899.50 $* |
Характеристики
Product Description
DCS6084V (IP68 FULL WATERPROOF)
Operating Voltage: 4.8-8.4V
Operating speed: 0.11sec/60° @ 6V
Operating speed: 0.1sec/60° @ 7.4V
Operating speed: 0.08sec/60° @ 8.4V
Stall Torque: 45 kg-cm (625 oz-in) @ 6V
Stall Torque: 55 kg-cm (765 oz-in) @ 7.4V
Stall Torque: 60 kg-cm (833 oz-in) @ 8.4V
Coreless Digital Motor Max Angle:180°
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Lifetime: >50000 times without load
Size: 40X20X43mm Weight:80g
Ball Bearing 2BB Stainless steel Gear
Aluminum Case Wire length : 260mm
Wire plug type: JR plug 26AWG
Operating Voltage: 4.8-8.4V
Operating speed: 0.11sec/60° @ 6V
Operating speed: 0.1sec/60° @ 7.4V
Operating speed: 0.08sec/60° @ 8.4V
Stall Torque: 45 kg-cm (625 oz-in) @ 6V
Stall Torque: 55 kg-cm (765 oz-in) @ 7.4V
Stall Torque: 60 kg-cm (833 oz-in) @ 8.4V
Coreless Digital Motor Max Angle:180°
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Lifetime: >50000 times without load
Size: 40X20X43mm Weight:80g
Ball Bearing 2BB Stainless steel Gear
Aluminum Case Wire length : 260mm
Wire plug type: JR plug 26AWG
