Детали для тяжелого режима работы в виде пистолетной рукояткой круглое отверстие тонкий пояс который крепится на заказ пневматический Дырокол инструменты за ваше специфическое

Описание и отзывы

Трекер стоимости

Характеристики

MODEL	TY17264H
MODEL NUMBERING DESIGNATION	1, Drilling Tools 7, Punchers 2, Hole punchers 64, Punched Hole Size (6.4mm) H, Heavy Duty
CAPACITY	6 Gauge (5.0mm) Aluminum 11 Gauge (3.0mm) Mild Steel 13 Gauge (2.3mm) Stainless Steel
DISTANCE BETWEEN UPPER AND LOWER DIE	7.0mm (9/32 in.)
MARGIN TO HOLE DISTANCE(MAX)	25mm(1”)
AIR CONSUMPTION	6 CFM @ 90PSI
WEIGHT	2.3 kg (5.0 lb)
PUNCHED HOLE DIAMETER	6.4 mm (1/4 in.)
GRIP	PISTOL
SKU	770070
AIR INLET	1/4 in.
REC AIR HOSE	3/8 in.
LENGTH W/O DIE	160mm (6.3 in.)
LENGTH W/ DIE	260mm (10.2 in.)
HEIGHT	240mm (9.4 in.)
CURRENT	Pneumatic



.

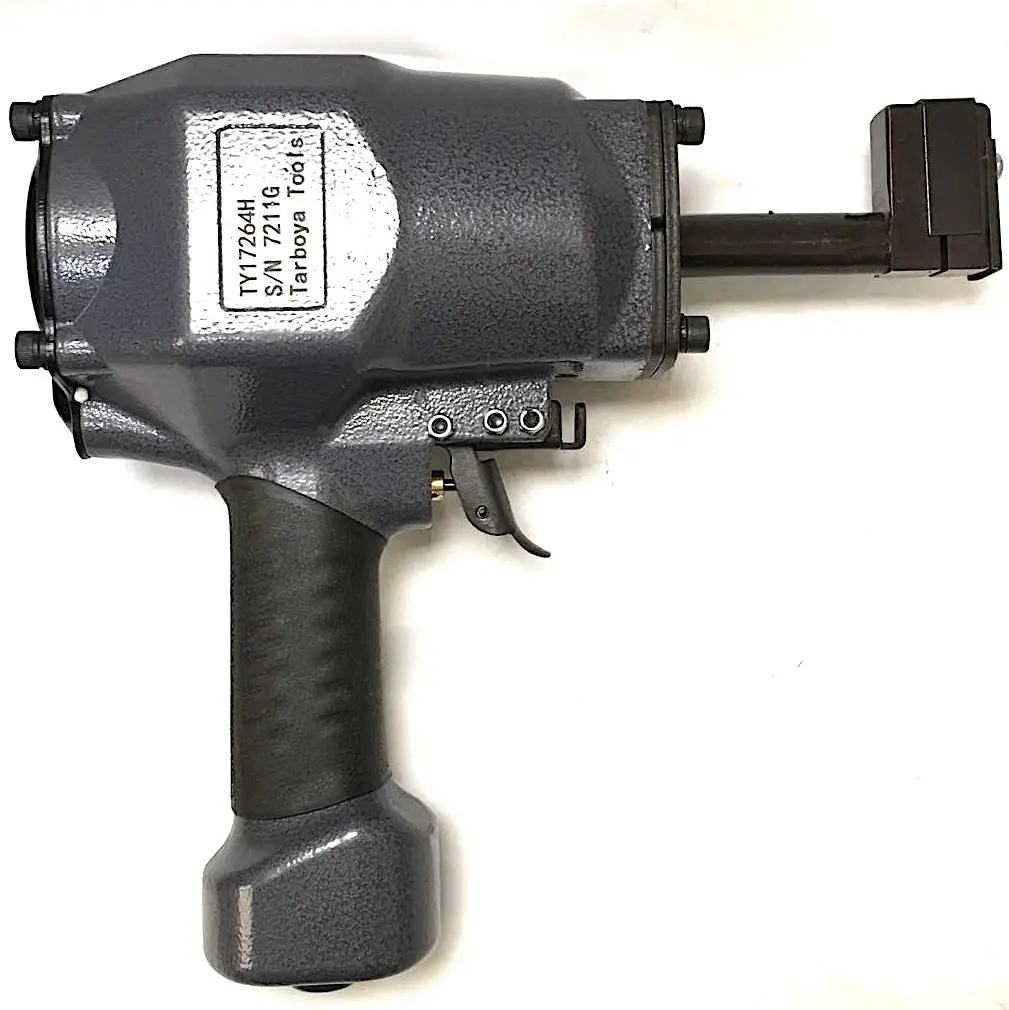

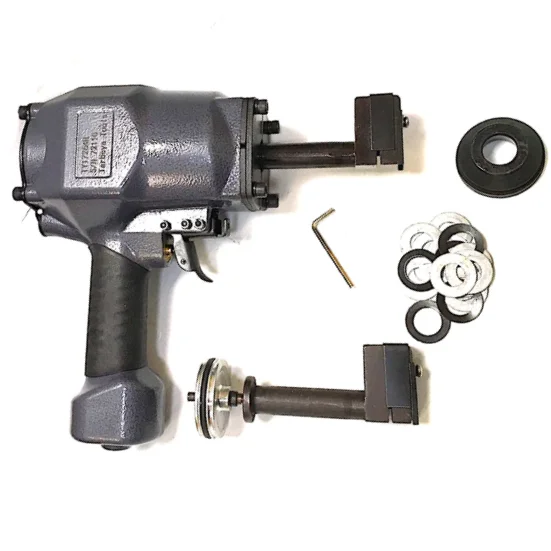

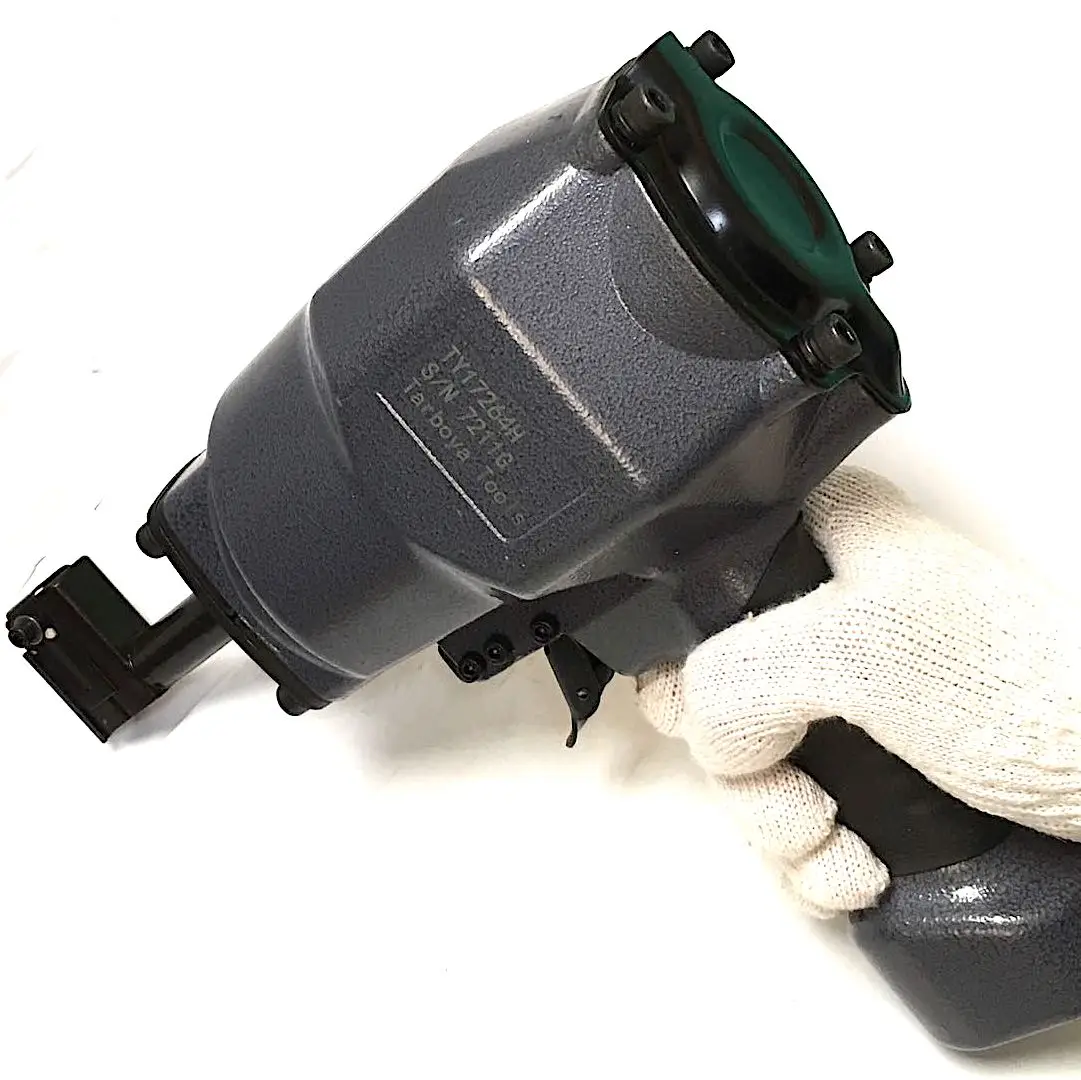

TY17264H Pneumatic Puncher

• Head rotates 360° for easy operation


• The convenient hole punch feature provides clean, burr-free 6.4mm(1/4") holes


•


  6 Gauge (5.0mm) Aluminum, 11 Gauge (3.0mm) Mild Steel, 13 Gauge (2.3mm) Stainless Steel punching.





• Max Hole to Margin : 25mm


• Industrial Maintenance and production


• Non Slip Grip


• Lightweight and durable

Other Models and its Capacity



MODEL	PUNCH CAPACITY	PUNCHED HOLE DIAMETER
TY17232L TY17232RL TY17242L TY17205L	16 Gauge (1.5mm) Aluminium 19 Gauge (1.0mm) Mild Steel 21 Gauge (0.8mm) Stainless Steel	3.2mm (1/8”) 3.2mm (1/8”) 4.2mm (0.17”) 5mm (0.19”)
TY17232 TY17242 TY17205 TY17206 TY17207 TY17208 TY17209 TY17210	13 Gauge (2.2mm) Aluminium 14 Gauge (2.0mm) Mild Steel 17 Gauge (1.5mm) Stainless Steel	3.2mm (1/8”) 4.2mm (0.17”) 5mm (0.19”) 6mm(0.24”) 7mm(0.28”) 8mm(0.32”) 9mm (0.35”) 10mm (3/8”)
TY17232H TY17242H TY17205H TY17206H TY17207H TY17208H TY17209H TY17210H	6 Gauge (5.0mm) Aluminum 11 Gauge (3.0mm) Mild Steel 13 Gauge (2.3mm) Stainless Steel	3.2mm (1/8”) 4.2mm (0.17”) 5mm (0.19”) 6mm(0.24”) 7mm(9/32”) 8mm(5/16”) 9mm (0.35”) 10mm (3/8”)

At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.
