Вставьте опорный подшипник с корпусом UCFB Опорный Подшипник UCP UC UCFL UCPA 203 204 205 206 207 208 209 210 211 212

Описание и отзывы

Трекер стоимости

Характеристики

UCFB UCF UCP UC UCFL UCPA 203 204 205 206 207 208 209 210 211 212 Mounted Bearings



1,Better service
2,Low price
3,High quality,support custom made
4,Own factory

5,Faster delivery

6,Low price







Item No	UCP208
Size	40x49.2x186mm
Material	UC: chrome steel; housing: cast iron
Main size	Shaft Dia: 35mm
Housing Color	Green or as per customer required
Customized	OEM are welcome

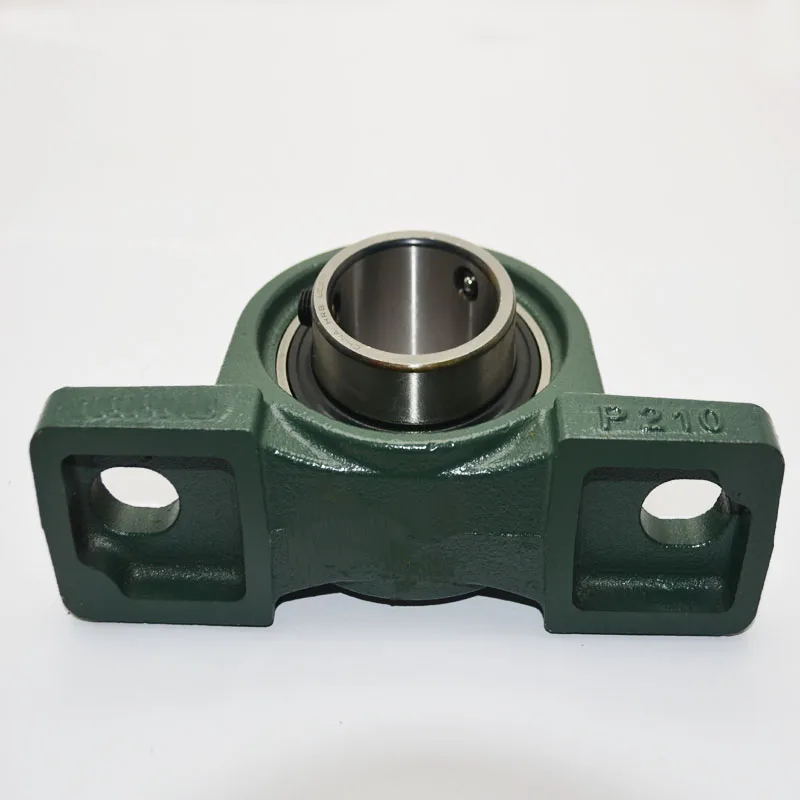

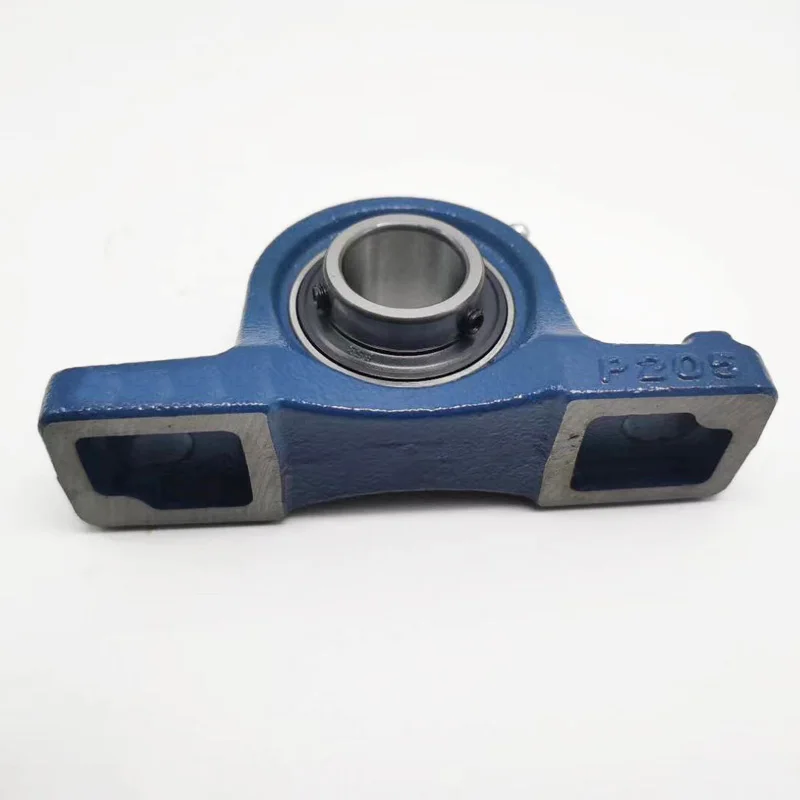

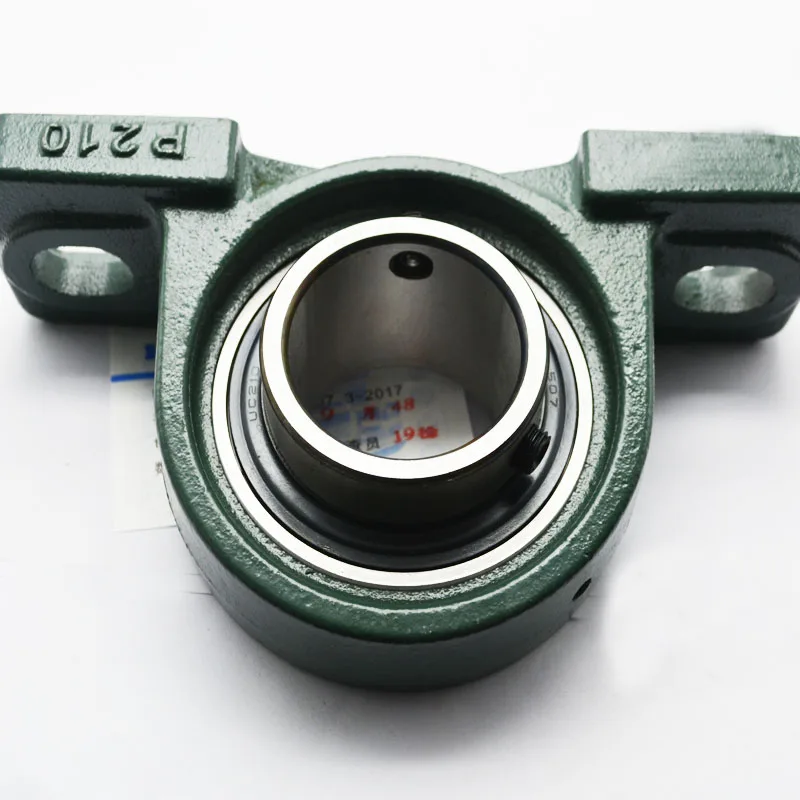

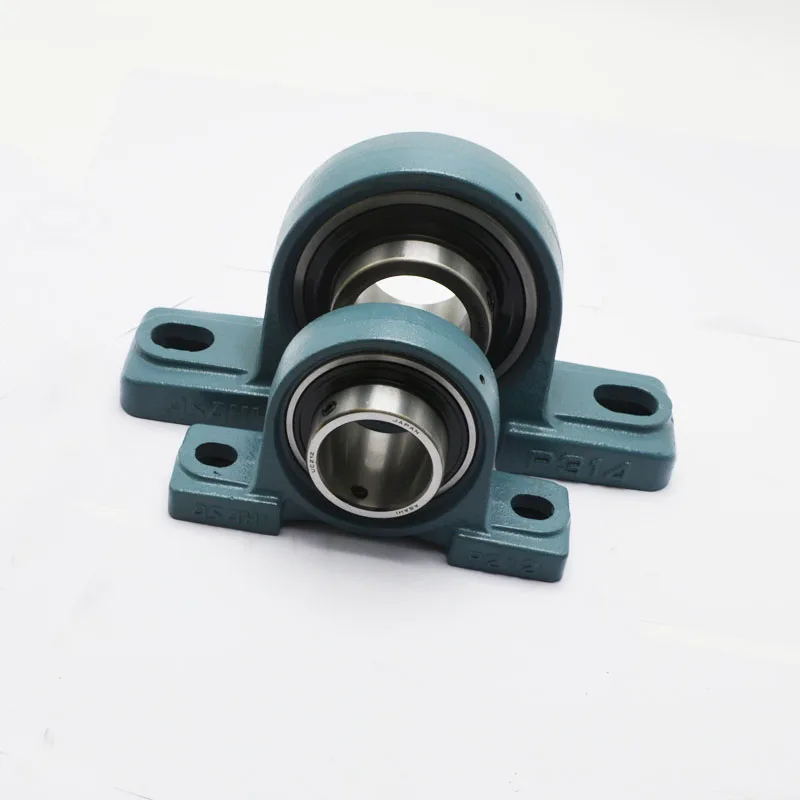

Pillow Block Bearing UCP 208 Series Specifications



Pillow block bearing are a form of mounted bearing used to provide load support for a rotating shaft. Selection of the appropriate bearings can be accomplished based on the shaf t size and the radial and thrust load requirements. Pillow block bearings are designed to support a shaft: the mounting surface is on a parallel line with the axis of the shaft. Elongated bolt holes in the base or feet of the unit allow for some adjustment and easy mounting of the pillow block bearing.





1. PRODUCT INFORMATION



Model	ucp 205
Brand	LBR
Type	Pillow Block Bearing
Material	chrome steel , stainless steel
Cage material	iron
Clearance	C0
Vibration	Z1V1
Precison rating	P0
Grease	No.2 lithium Grease
Number of Row	Single row
Gurantee	one year
Application	Agriculture, textile, mining, chemical food, transport machinery
Certification	ISO9001:2008
Place of Orgin	Xingtai, Hebei, China
MOQ	100 pcs
Service	1. Prompt delivery 2. OEM 3. Good after-sales service offered
Payment terms	30% paid in advance, balance after the copy of B/L by T/T
Port	Guangzhou, SHANGHAI, or ur requirement
Details	fast delivery, competitive price, and high quality





2. SHIPPING & PAYMENT



MOQ	100PCS
Sample	sample lead time:5-7 working day
	free sample,air freight should be paid by buyer
Packing	plastic bag+HS color box+ HS carton,5 pcs per carton
Delivery Time	3-20days after deposit paid
Port of export	Guangzhou Port
Terms of payment	TT, LC at sight,Western Union,Paypal
Supply ability	100000pcs per month
Stock	large



3. APPLICATION



Insert ball bearing unit is consisted of a double sealed, single row bearing and one of housings(cast iron housing, stamping steel housing, stainless steel housing, engineering plastic housing, nodular cast iron housing, nickel plating housing, zinc alloy housing, etc). They are widely used inagricultural machinery, construction machinery, textile machinery, foodstuff machinery and conveying devices, etc. Including ucp bearing ,ucf bearing, ucfl bearing ,ucpa bearing and so on.



Bearing Unit No.	Shaftr Dia d (mm)	Dimensions (mm)										Bolt Used (mm)	Bearing No.	Housing No.	Weight (kg)
		h	a	e	b	S2	S1	g	w	Bi	n
UCP305	25	45	175	132	45	20	17	16	85	38	15	M14	UCP305	P 305	1.6
UCP306	30	50	180	140	50	20	17	18	95	43	17	M14	UCP306	P 306	2.1
UCP307	35	56	210	160	56	25	17	20	106	48	19	M14	UCP307	P 307	2.8
UCP308	40	60	220	170	60	27	17	22	116	52	19	M14	UCP308	P 308	3.6
UCP309	45	67	245	190	67	30	20	24	129	57	22	M16	UCP309	P 309	4.7
UCP310	50	75	275	212	75	35	20	27	143	61	22	M16	UCP310	P 310	6.4
UCP311	55	80	310	236	80	38	20	30	154	66	25	M16	UCP311	P 311	7.8
UCP312	60	85	330	250	85	38	25	32	165	71	26	M20	UCP312	P 312	9.4
UCP313	65	90	340	260	90	38	25	35	176	75	30	M20	UCP313	P 313	10.3
UCP314	70	95	360	280	90	40	27	35	187	78	33	M22	UCP314	P 314	11.9
UCP315	75	100	380	290	100	40	27	35	198	82	32	M22	UCP315	P 315	14.5
UCP316	80	106	400	300	110	40	27	40	210	86	34	M22	UCP316	P 316	17.1
UCP317	85	112	420	320	110	45	33	40	220	96	40	M27	UCP317	P 317	19.2
UCP318	90	118	430	330	110	45	33	45	235	96	40	M27	UCP318	P 318	21.1
UCP319	95	125	470	360	120	50	36	45	250	103	41	M30	UCP319	P 319	28.2
UCP320	100	140	490	380	120	50	36	50	275	108	42	M30	UCP320	P 320	34.8
UCP322	110	150	520	400	140	55	40	50	296	117	46	M33	UCP322	P 322	43.2
UCP324	120	160	570	450	140	55	40	50	316	126	51	M33	UCP324	P 324	54
UCP326	130	180	600	480	140	55	40	50	355	135	54	M33	UCP326	P 326	72.1
UCP328	140	200	620	500	140	55	40	60	393	145	59



4. FEATURES:



a.Rational Self-alignment;

b.Large load capacity;

c.Long life service;

d.Efficient sealing;

e.Bearing can be locked on the shaft easily;

f.Easy installation.

g.4 bolt flange assembly bearings
h.High rotation,Low noise,Long service life
i.High loading capability
j.Heavy duty

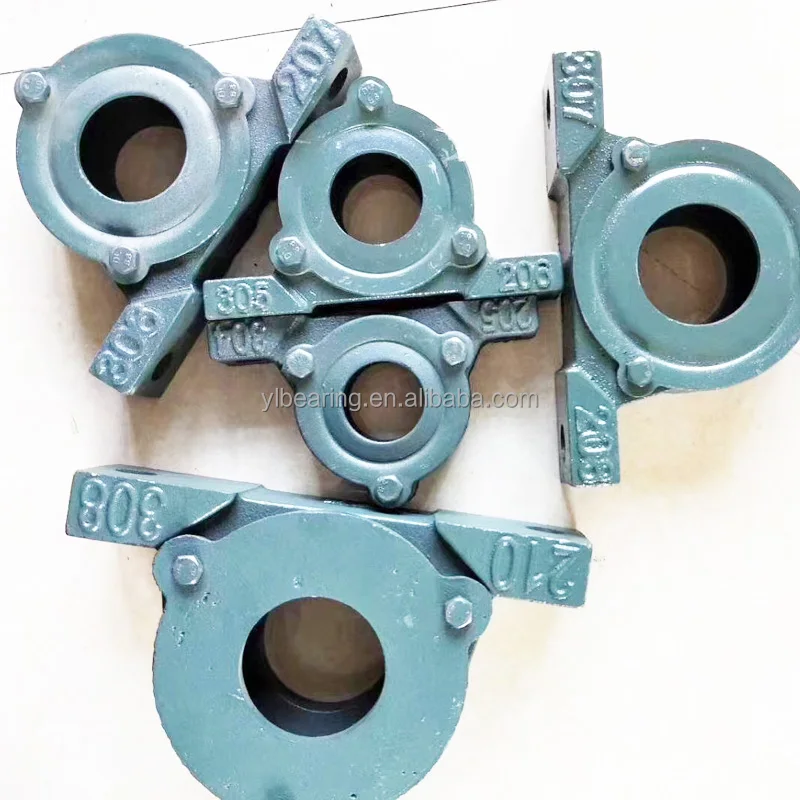

Production Show:
