Характеристики
Products Description

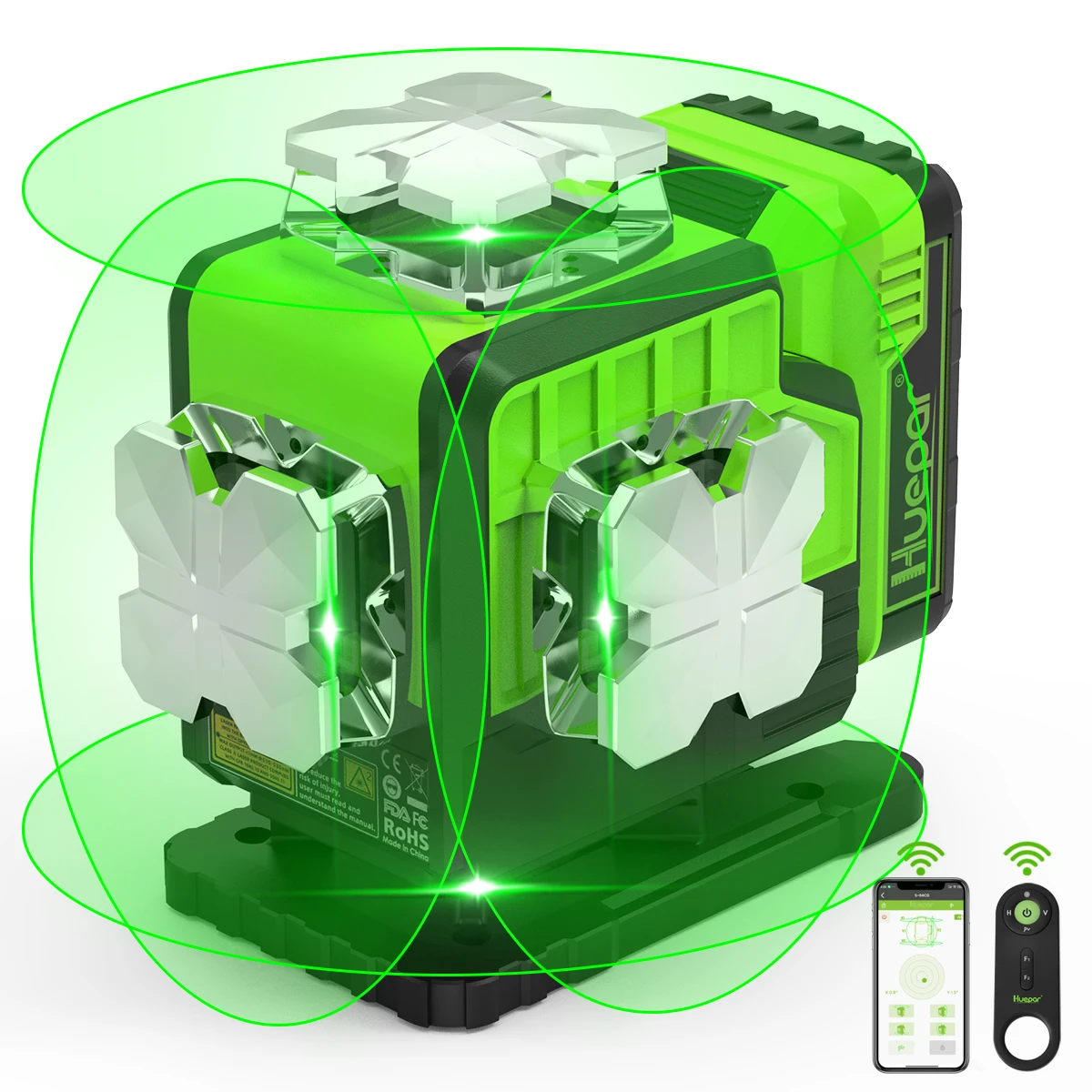

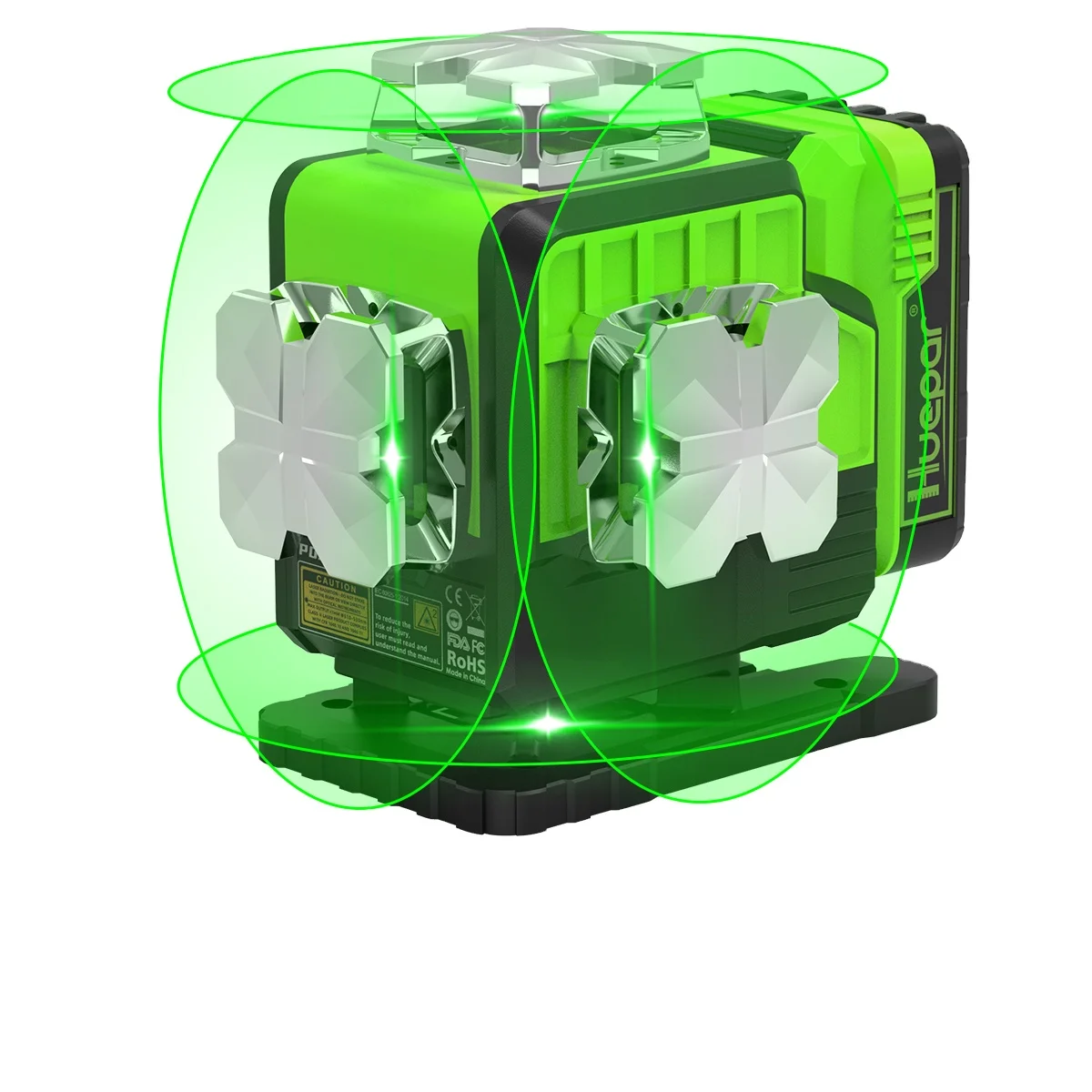

Huepar P04CG 16 Lines 4D Green Laser Level Specifications:
● Laser Beam: Green Beam ● Projection: 12 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 510nm-530nm
● Horizontal / Vertical Accuracy: ±3mm/10m, ±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥40m, ≥80m with detector
●Working Time: About 9 hours with li-ion battery,
● Power Source: 10.8V / 2600mAh Li-ion battery
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 510nm-530nm
● Horizontal / Vertical Accuracy: ±3mm/10m, ±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥40m, ≥80m with detector
●Working Time: About 9 hours with li-ion battery,
● Power Source: 10.8V / 2600mAh Li-ion battery
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
Line Switching:
Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
The laser lines can be selected separately according to job requirements.
The laser lines can be selected separately according to job requirements.
Pulse Mode:
Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver. It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver. It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.
360° Strong Magnetic Pivoting Bracket
Allows for attachment to metal surfaces and enables to turn the laser level around at 360 degree. The bracket offers ability to mount to any object up to 0.47" thick. * The fine-tuning knob with lock on the bracket help adjust and lock the height within 3.74". * 1/4"-20 and 5/8"-11 female thread on the laser tool as well as the 5/8"-11 mounting thread on the bracket to suit for standard tripod or laser mounting pole.
Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
Quick Release Battery Button
2600mAh Li-ion battery quick release battery button,battery power display
DUAL POWER METHODS:
This laser tool utilizes the large capacity li-ion battery which is compatible with Samsung SB-L110 battery. + An extra battery is included in the package for backup. The level tool can be used at job site by plugged in directly when take out the battery.Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter. + With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger,etc.
Specification
item | value |
Warranty | 2 years |
Dot Numbers | 0 |
Customized support | OEM, ODM |
Place of Origin | Jiangsu |
Model Number | P04CG |
Size | 20cm |
Precision | ±3mm/10m |
Wavelength | 510-530nm |
Battery | 10.8V(12.6V Max)/2600mAh |
Working time | around 9 hours |
Charging time | around 3.5 hours |
Charge power | 5V 3A |
Charging method | Type-c |
Machine weight | 616g |
Battery weight | 216g |
Self-leveling time | ≤3s |
Leveling angle | 3°±1° |
Acceptable working range | 80 meters |
Working temperature | -10℃ ~ +50℃ |
Storage tempertature | -20℃ ~ +70℃ |
Packing & Delivery

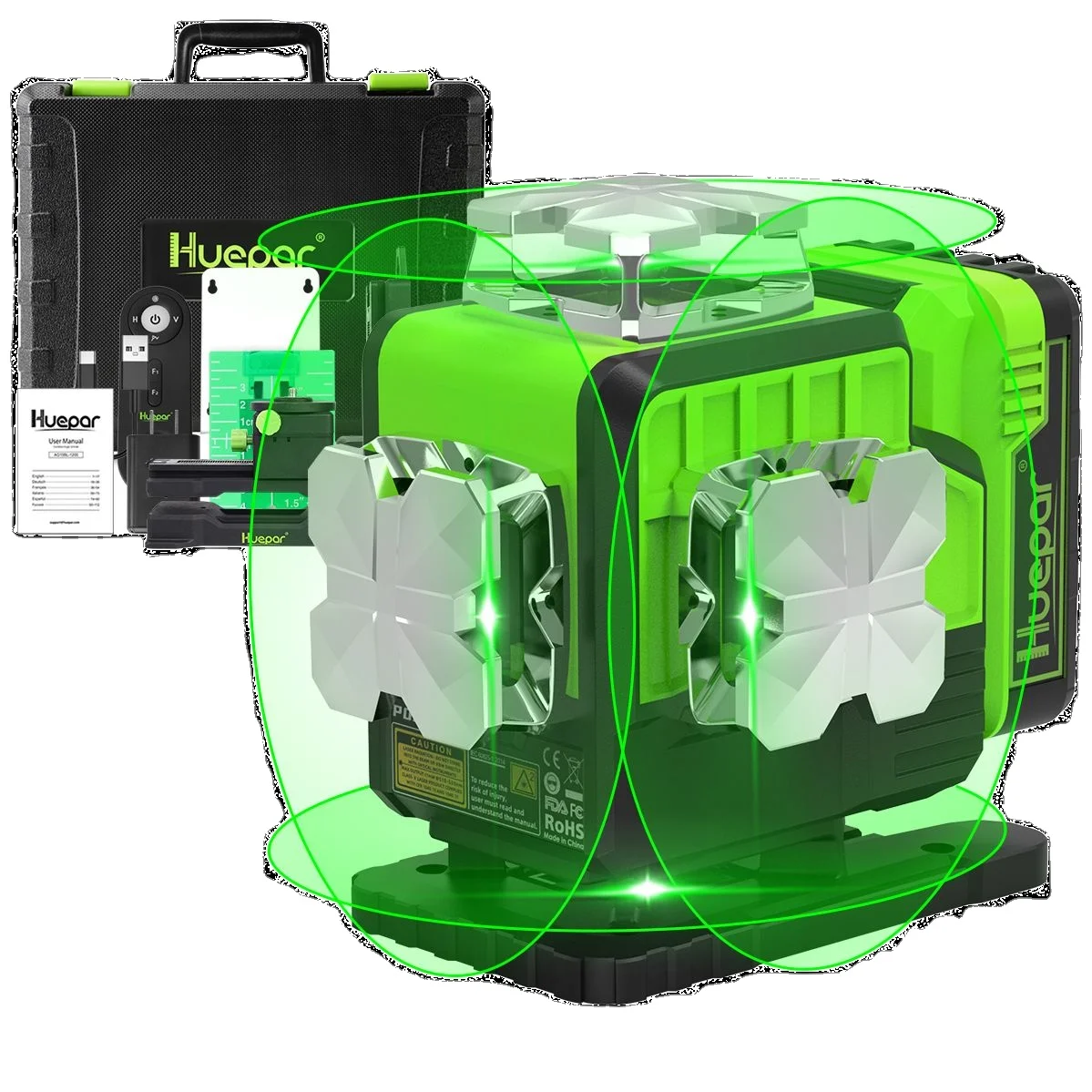

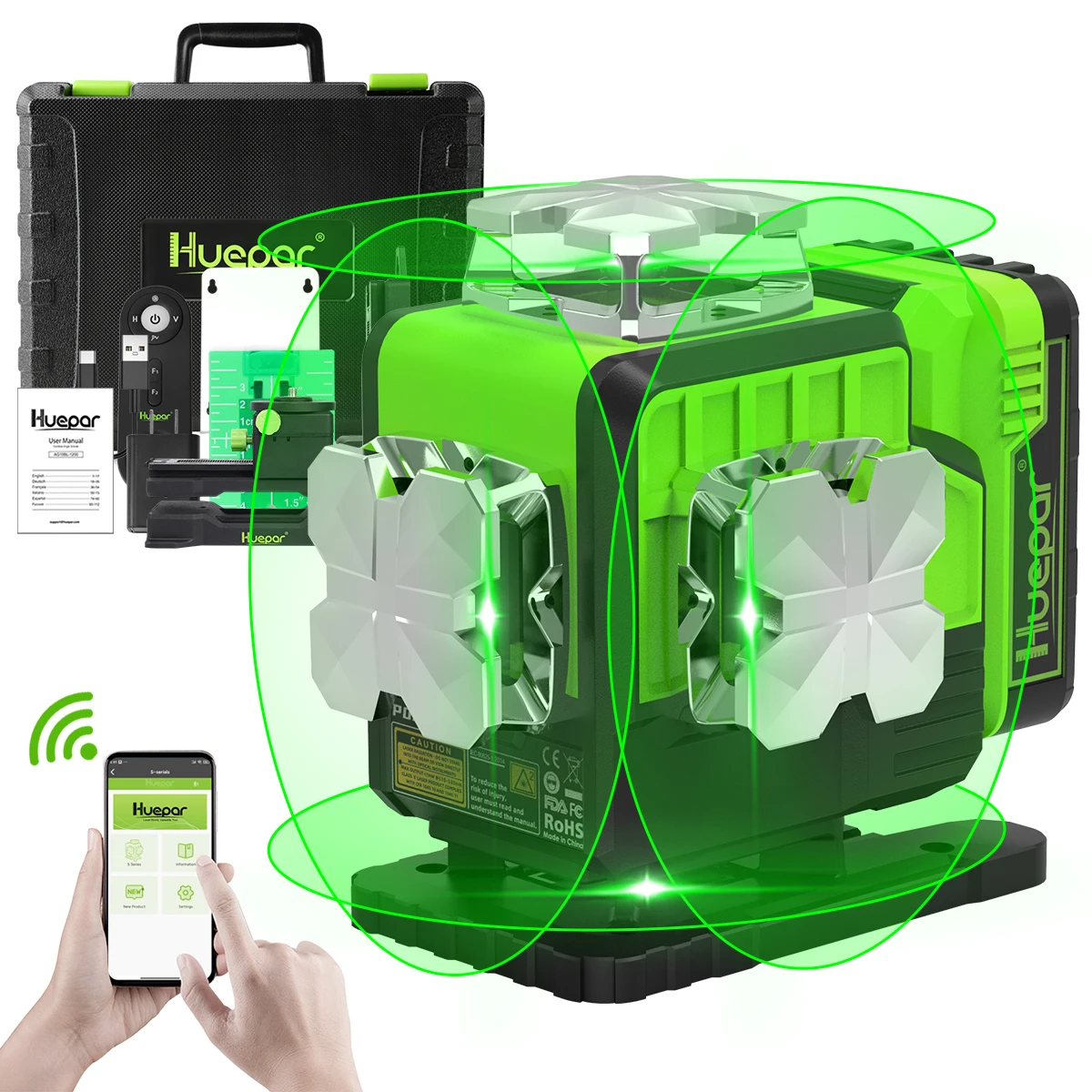

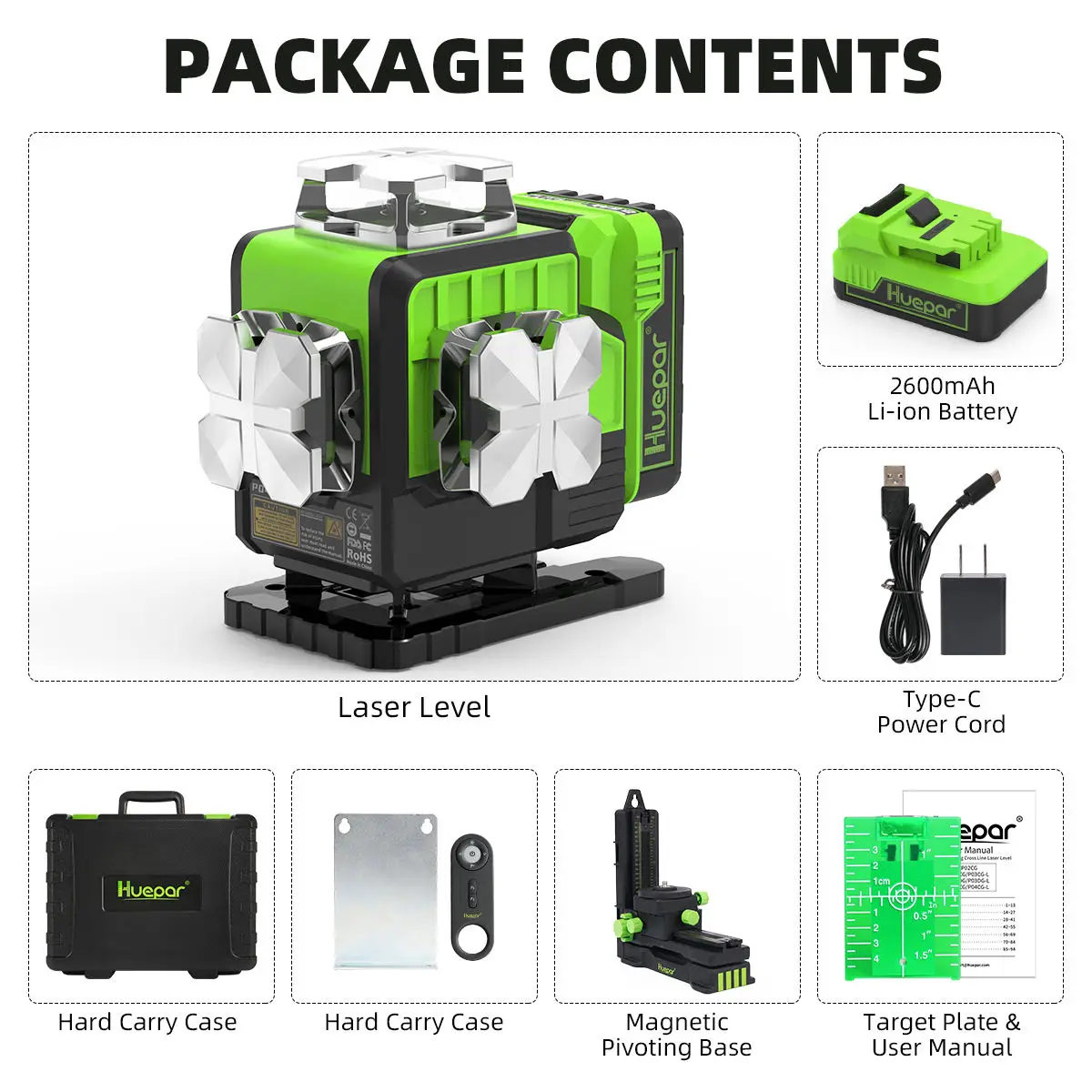

Pakaging Content:
1.P04CG Laser Levels
2.Lithium battery pack 2600 mAh 3. Data cable 1.2m 5V 3A
4. Trget Plate & User Manual
5. Magnetic Pivoting Base
6. Lifting Base
7. Remote Controller
8. Hard Carry Case
2.Lithium battery pack 2600 mAh 3. Data cable 1.2m 5V 3A
4. Trget Plate & User Manual
5. Magnetic Pivoting Base
6. Lifting Base
7. Remote Controller
8. Hard Carry Case
