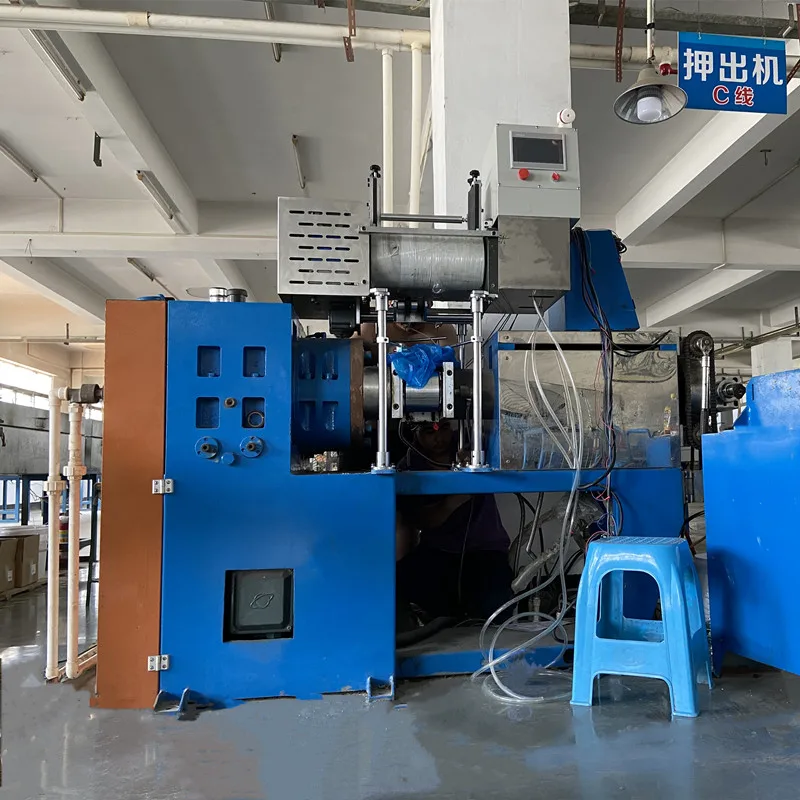

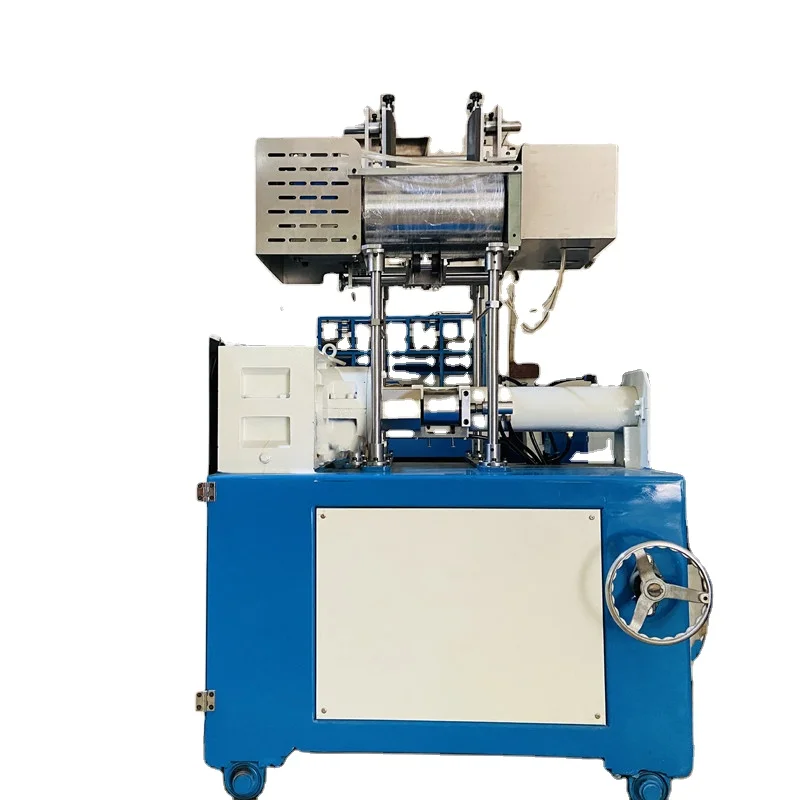

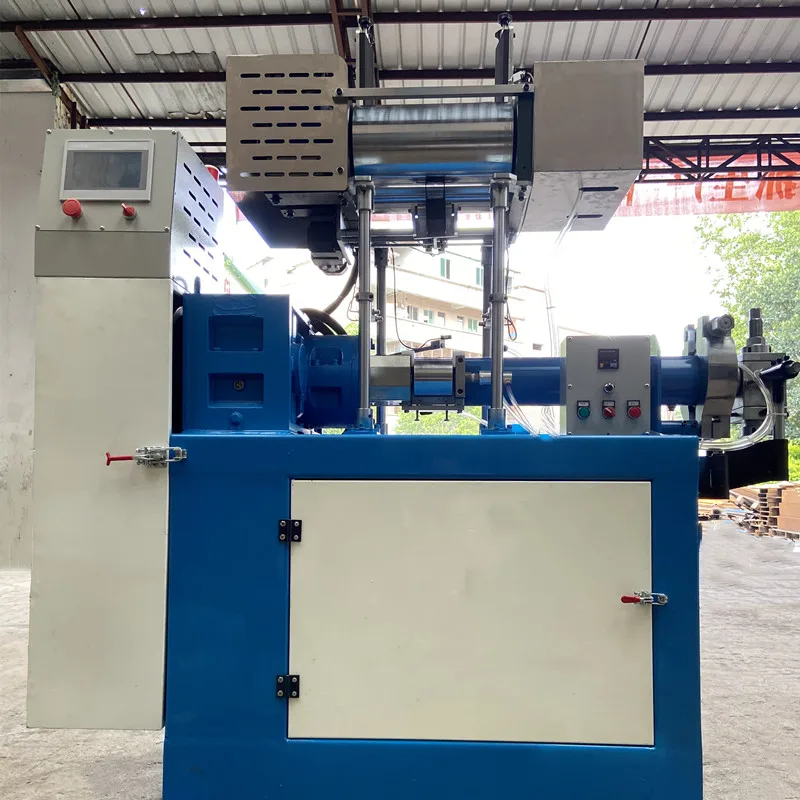

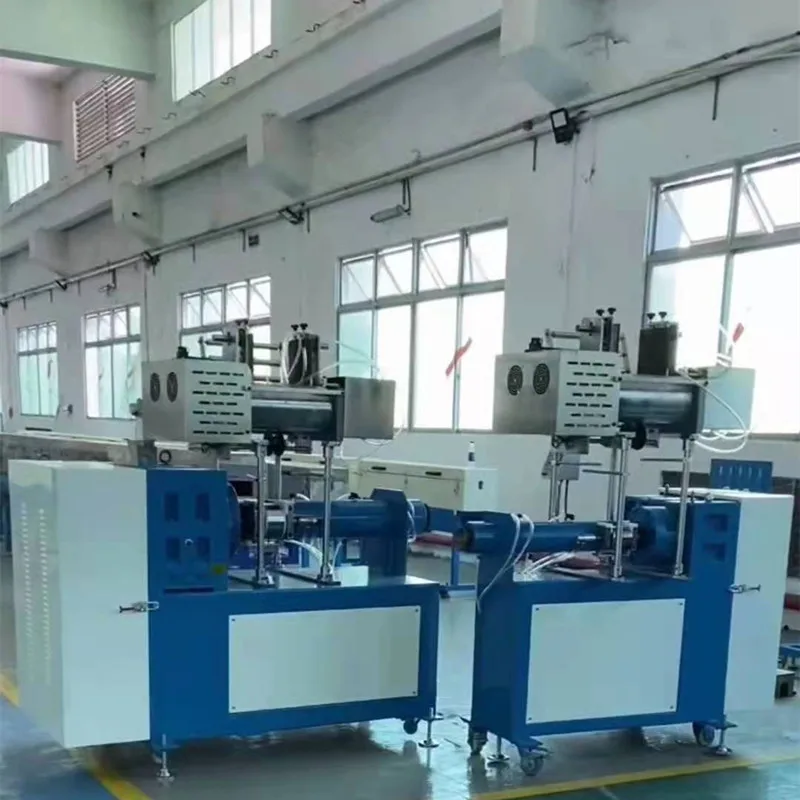

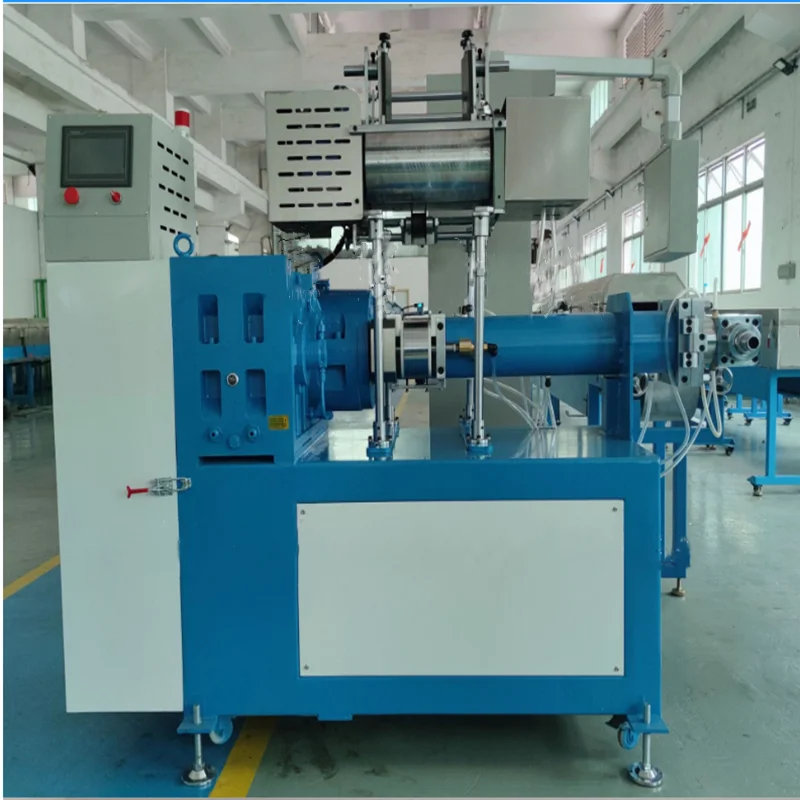

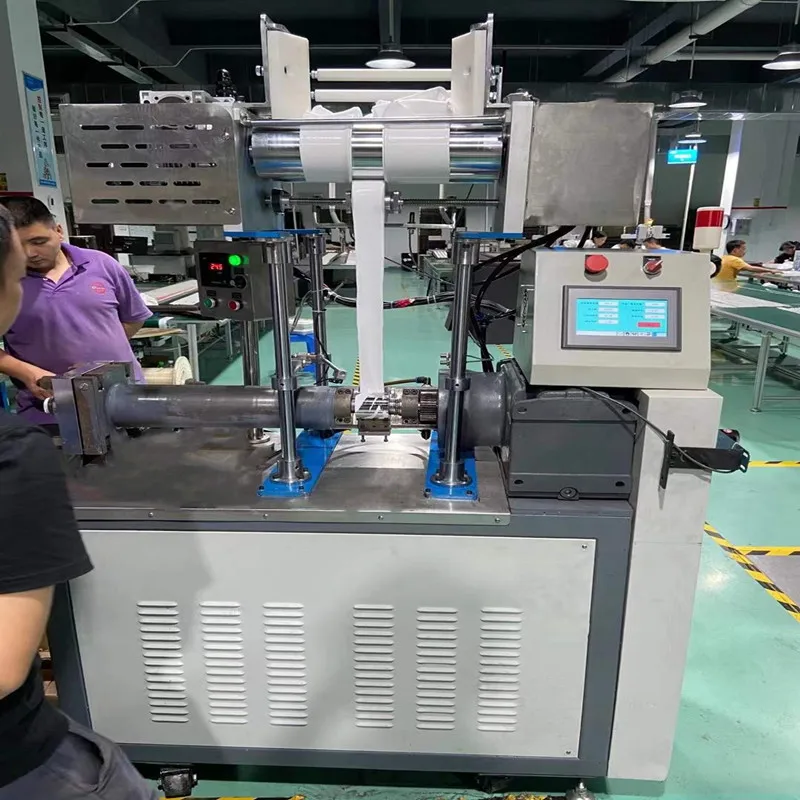

Factory price automatic feeding machine used with silicone cable hose strip extruder



1. Application: suitable for feeding silicone product extruders. After mixing silicone material in a mixing mill, the silicone material is put into an automatic feeder, and the stable conveying is maintained by sensing the running speed of the extruder, which greatly saves labor and ensures the stable production of the extruder. 10-15KG silicone material can be put in one time. Material shortage alarm prompt.
2. Drive: servo driver plus servo motor to drive, power 4.3KW.
3. Electric control: man-machine interface touch screen control, easy installation and elegant appearance.
4. Roller: the surface is plated with hard chrome and glossy, not sticking to silicone, not sticking to ash, keeping the silicone material clean. A cooling circulating water pipe is installed on the side of the roller, which is directly connected to the water pipe of the extruder (a chiller is required).

5. Unique design of Dinglong machinery:

1). The length diameter ratio of the screw of the silicone tube extruder is 12:1 and the compression ratio is 3.0:1. The screw is a floating type with unequal distance and depth, which can be easily pushed out by hand. There is no waste and pollution of rubber in the production of rubber of different colors or cleaning, This screw barrel is specially designed by our company, processed and manufactured by Zhejiang Zhoushan production base, and processed after 25 days of boiler desalination.

2). The front of the screw is provided with a rubber filter plate, which can place a filter screen to filter out the impurities of the rubber material, and can make the rubber material move in a straight line, which greatly improves the uniformity and fluidity of the rubber material.

3). The barrel and cooling water tank are integrated, and the external spiral channel cooling mode is adopted. The cooling device has five sections, with excellent cooling effect and working temperature lower than 40 ºC.

4). It is equipped with a feeding roller rotating synchronously with the screw, which can automatically feed the rubber strip to realize uniform feeding and stable feeding.

5). All electrical appliances adopt variable frequency motor and are equipped with brand sinusoidal frequency converter. The minimum work difference can be positive or negative 0.01mm, and the product wall thickness can be less than 0.05mm. The extruders of our company have the functions of two-color and three-color extrusion. Multiple hosts form a pair of extrusion. The product shape is divided equally between the inner layer and the outer layer, or divided equally between the left and right or quartered. The extruders are equipped with automatic feeding device, stepless speed regulation, uniform and stable operation without manual operation, which completely solves the inconvenience of manual forced feeding to production operation and product size.

6). The two-stage curing oven completely solves the problems of indentation and roundness of products. The specification of the vertical high-temperature oven is 1.2m. After this shaping oven, the product is basically 6 times cooked, the temperature can reach 700 degrees, and the temperature of the horizontal vulcanization section (rear section) is 400 degrees. Under normal circumstances, the production speed of the drying channel can exceed 20m / min (depending on the product size).



FAQ
Q1: Can I customize products?
A1: Yes. Let me know the specific customization requirements and I will get back to you as soon as possible.
Q2: How long is the delivery time?
A2: It will take 20 days from the beginning to the end of the production.
It takes more than 30 business days to customize complex mechanical equipment.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single set of machine.
We have seperate QC, delivery, sales and after-sales departments.
Also strict management process from pre-sales to after-sales.
Q4: What is your after-sales service?
A4: 1 year warranty with many after-service engineers (after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi auto machine, Dinglong would send manual instruction and teaching video.
For complex operation , we will send the engineers overseas to help client installing, operating and training.

What services will we provide to our customers?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1. 1year for mechanical part.
2. 6 month for electrical part.
3. Offer lifetime consultation on problems occurred.

Dinglong Electrical Machinery Co., Ltd. is a high-tech manufacturer specialized in designing and manufacturing electrical machinery with ISO9001 certificates.
Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruder machines.
3. LED strip equipment series.
4. Rubber processing machines.
Since our company was founded, over the past 10 yeas, our products have been extensively imported from Africa, Southeast Asia, Latin America, Europe and other markets.
