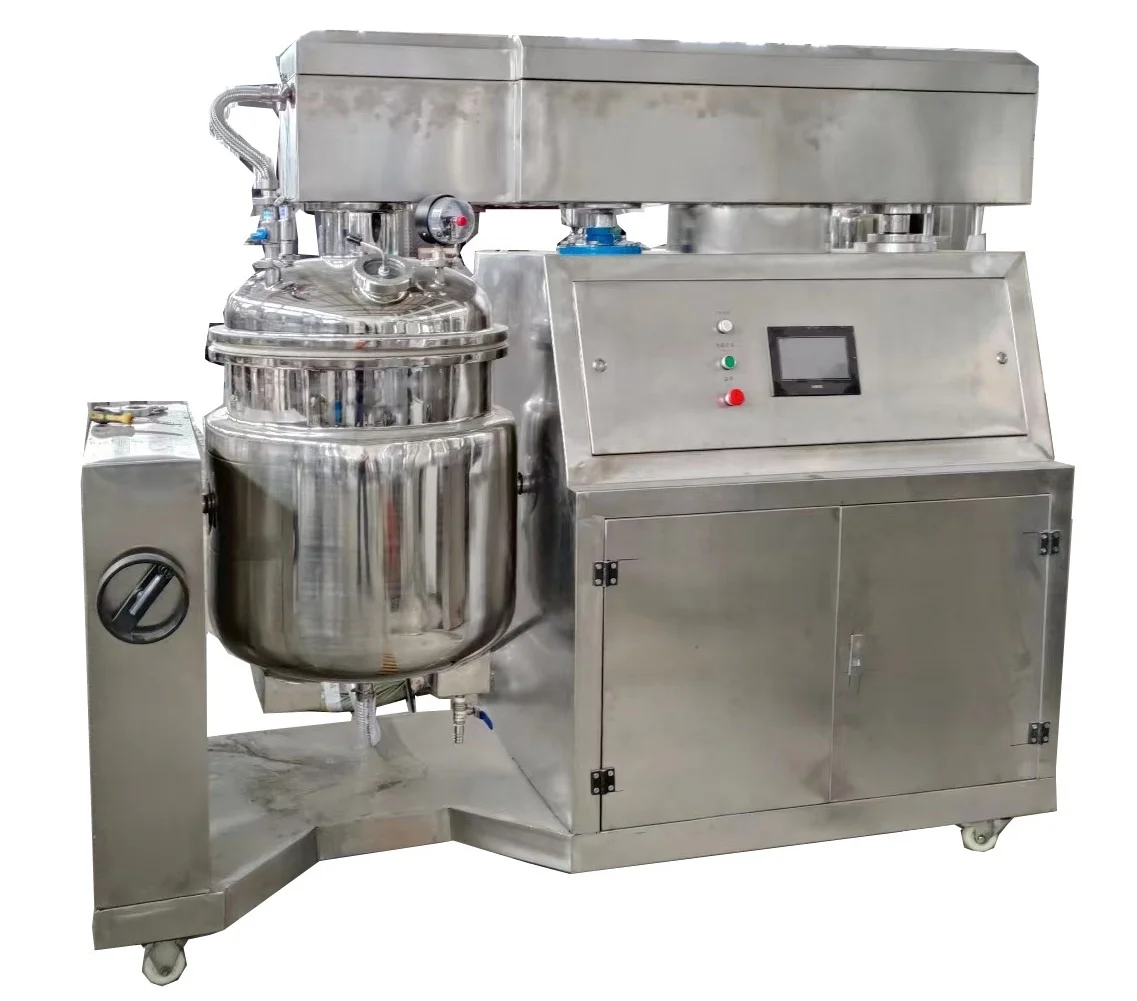

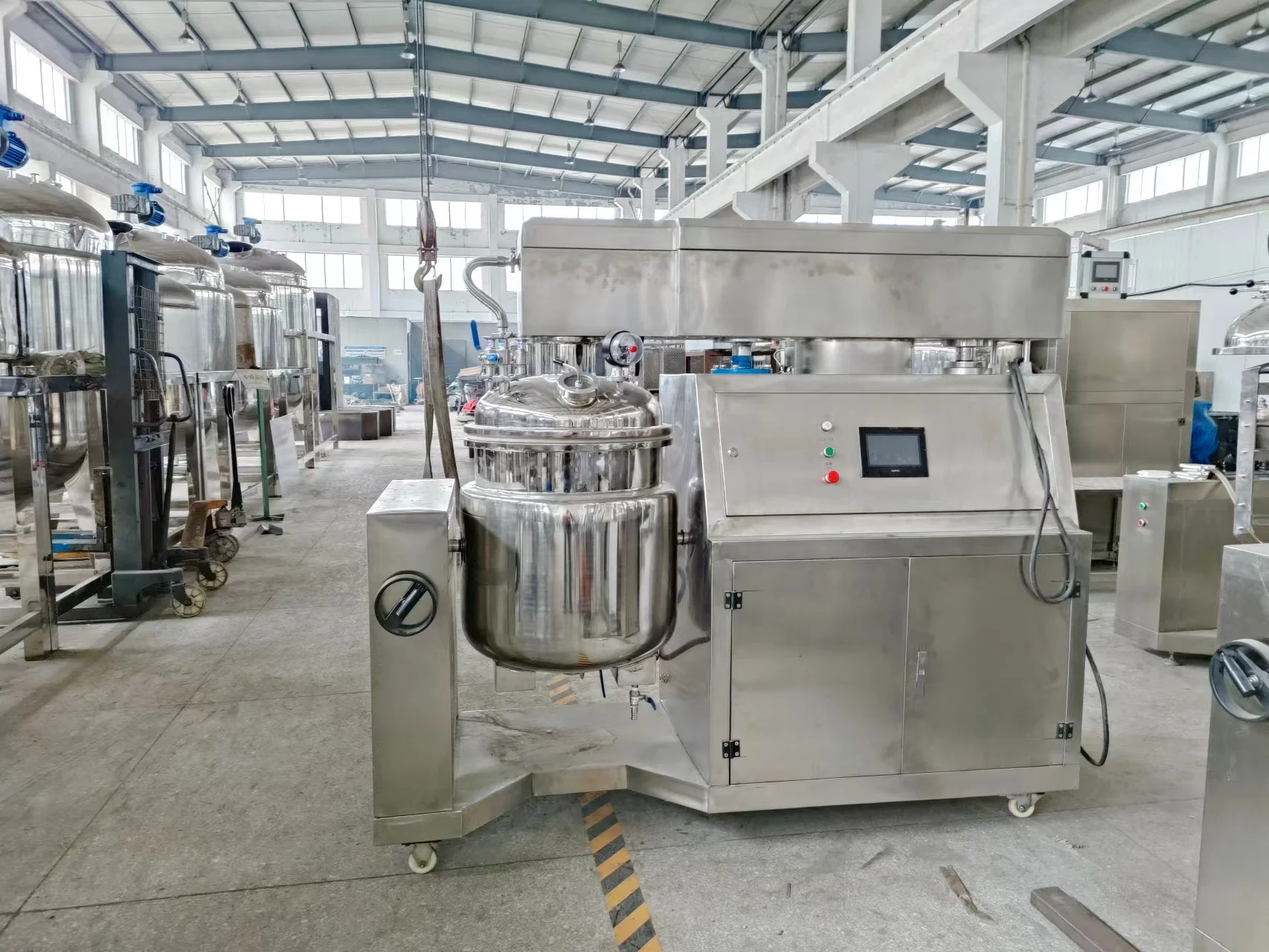

ZRJ-100 Vacuum Emulsifying Mixer



This unit consists of: vacuum homogenizing emulsifier, heating system, mixing system, vacuum system, hydraulic lifting system, operation control cabinet, pipeline system, it is the most suitable cream equipment for the production of high-end skin care products or products.

The external dimensions of the host: 2000mm×650mm×1700-2380mm (can be customized according to customer requirements),

 The material of this unit: the inner wall is 316L high-quality stainless steel, the jacket and the outer layer are 304 high-quality stainless steel. The inside and outside are finely polished, and the surface is specially brightened.

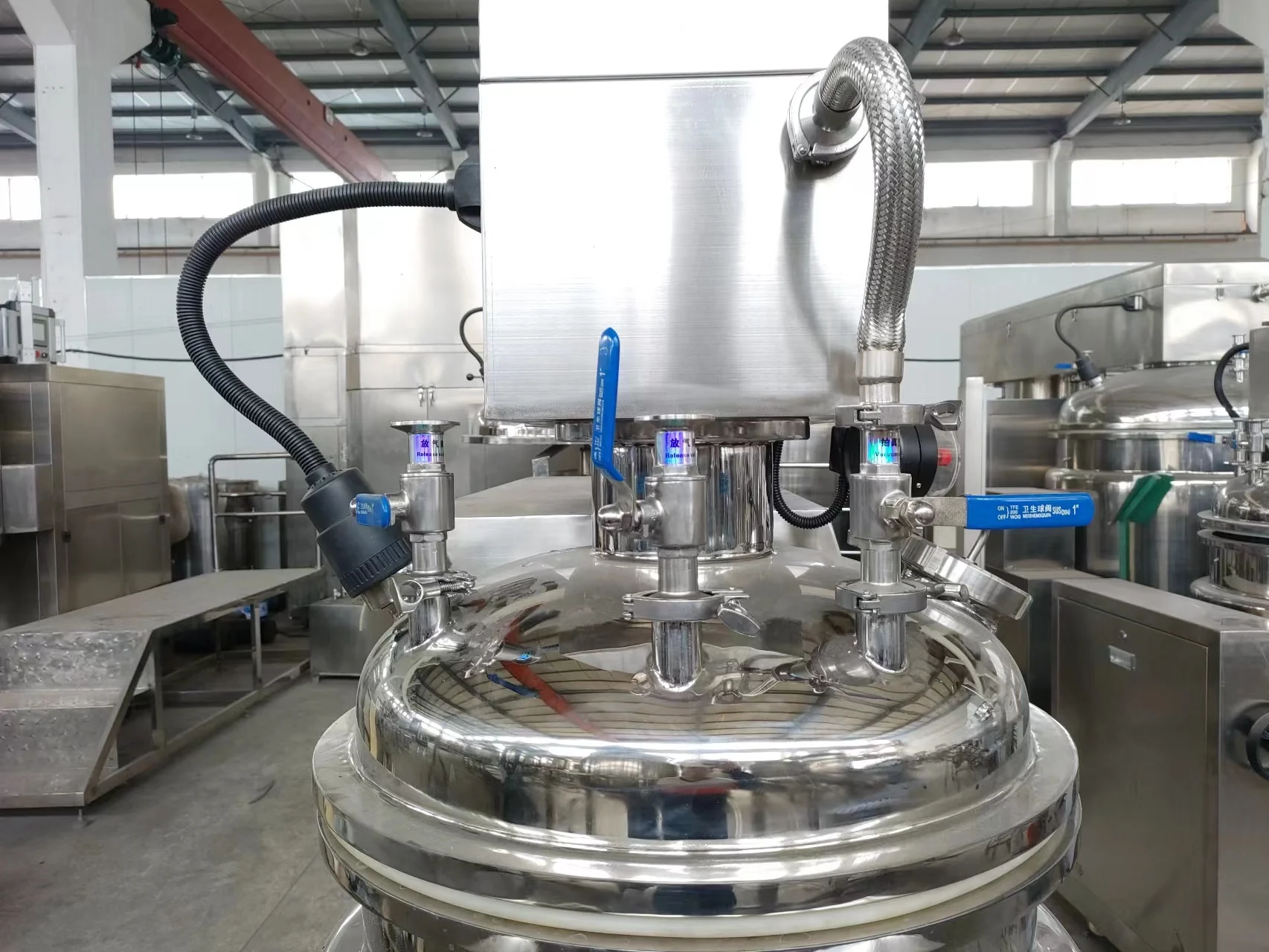

     Vacuum homogenizing emulsifying pot: It is made of three layers. The inner wall thickness is 4mm, the middle layer thickness is 4mm, the outer layer thickness is 3mm, and the special bright treatment. This machine adopts the upper homogenizer, and the homogenization time can be set according to different products. The voltage is 380V, The power is 3KW Siemens variable frequency motor, the maximum speed is 6000 rpm. The homogenizer is made of advanced German technology and has a unique structure. The material moves at high speed in the gap between the multilayer rotor and the stator, forming a strong hydraulic shear and dispersion The materials, at the same time, generate comprehensive forces such as centrifugal extrusion, milling, and collision, and finally make the materials fully mixed, stirred, and refined to meet the ideal requirements. The lid is equipped with an illuminated observation hole to grasp the emulsification status of the product in the pot at any time. The trace material inlet is convenient for special flavor adding process. The operation is convenient for the bottom of the pot to discharge, and the pipe can directly enter the filling machine for sub-packing. At the same time, it also dumps the material for easy cleaning.

     Vacuum system: voltage 380V, power 0.37KW, vacuum suction, using Shanghai Borkang company's rotary vane vacuum pump defoaming treatment (tap water can be circulated and cooled) to improve the homogenization effect.

     Mixing system: equipped with transparent filter monitoring, frequency conversion speed regulation and wall scraping mixing, voltage 380V, power 2.2 KW, 0-120 revolutions per minute.

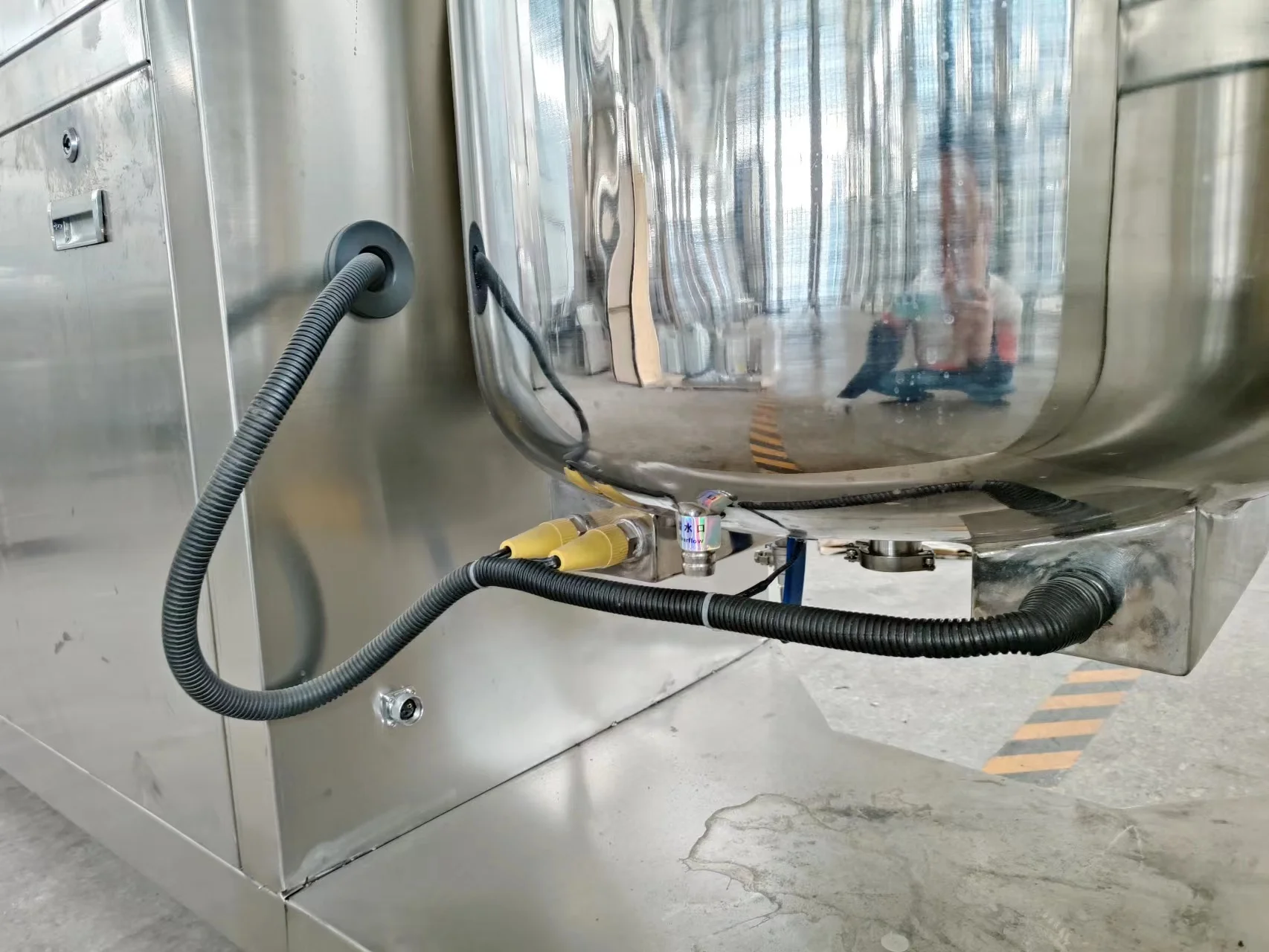

     Heating system: An electric heating device is attached to the bottom of the host as the host heating, with coil cooling.

     Hydraulic lifting system: voltage 380V, power 1.5KW, hydraulic lifting operation is convenient, which can effectively emulsify materials under closed conditions.

     Control system: The control system is controlled by PLC touch screen, so that the speed and working time of the homogenizer can be adjusted according to the process and characteristics of different products. The electrical control cabinet can turn all the power of the machine on and off, temperature display, control, voltage, and current As well as frequency conversion speed regulation, the homogenizer time settings are reasonably centralized. The operation is clear at a glance.

100L emulsifier configuration table



Equipment name	100L emulsifying pot
Production	Design capacity: 120L
	Working capacity: 100L
	Minimum working capacity: 30L
Material	Material contact part: 316L thickness: 4mm
	Interlayer: 304 Thickness: 4mm
	Shell: 304 Thickness: 3mm
Machine weight	1200kg
Dimensions	2000mm×650mm×1700-2380 mm
Service life	More than 10 years
Stirring method	Frame scraping wall mixing and fixed paddle
Vacuum motor power	0.37KW
Stirring motor power	1.1KW
Stirring motor speed	0-120r/min
Homogeneous method	Homogeneous
	Homogeneous motor power: 3KW
	Homogeneous motor speed: 3000
	Particle size: 0.2-0.6um
Opening method	Hydraulic lift
heating method	Electric heating
Feeding method	Inclined discharge and low valve discharge
Process parameters	Working pressure in the pot: -0.09
Wearing parts	Spare parts for 1 year. Spare parts
warranty period	1 year









Equipment name	100L water pot
Design capacity	Design capacity: 70L Working capacity: 60L
Stirring method	Dispersing wheel stirring
	Mixing power: 0.37KW
	Speed: 1400
Opening method	Activity opening
temperature display	Digital temperature
Feeding method	Bottom discharge
Material	Material contact part: 316L thickness: 4mm
	Shell: 304 Thickness: 4mm



Equipment name	100L oil phase pot
Design capacity	Design capacity: 50L Working capacity: 40L
Stirring method	Dispersing wheel stirring
	Stirring power: 0.37W
	Speed: 1400
Opening method	Activity opening
temperature display	Digital temperature
Feeding method	Bottom discharge
Material	Material contact part: 316L thickness: 4mm
	Shell: 304 Thickness: 4mm



Origin of the main configuration equipment (also can be configured according to customer requirements)

Frequency converter	Aodi Special (Shenzhen)
Motor	Jiang Tian (Zhejiang)
PLC touch screen	Xinjie (Wuxi)
Reducer	Qipeng (Wuxi)
Vacuum pump	Borkang (Shanghai)
Hydraulic Press	Guangdeyang (Wuxi)
Hydraulic cylinder	Guangdeyang (Wuxi)
316L 304 stainless steel	Taigang (Tianjin)
Main electrical components	Chint (Zhejiang)



(safety devices):

1. Electrically connected vacuum gauge: When the main pot is in a vacuum state, any operation function is prohibited.

2. Lifting lower limit function: When the main pot cover is out of the pot body (ie non-working state), the equipment only has lighting and

    Lift function, prohibit other running functions.

3. Lifting upper limit function: It can protect the equipment to lift safely within a certain stroke, and it is not reached when the equipment rises

    When lifting the upper limit position, it can limit the function of electric turning pot, which can protect the pot body and stirring when turning the pot.

    The mixing frame collided.

4. Pot body reset limit switch function: this function is prohibited when the pot body is discharged and returned, if it has not returned to the original position

    The lowering of the lid can protect the surface of the lid and protect the opening of the pot.

5. Homogenization and mixing overload protection: during the homogenization and mixing process, the motor will automatically power off when overloaded.
