Компактный набор для домашнего биогвартера

Компактный набор для домашнего биогвартера

Категория: Biogas >>>
Поставщик: Nanjing,Longyi,Technology,Co.,Ltd.

Цена:365,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	464.57 $*	473.73 $*
Jul-16-2025	376.82 $*	384.35 $*
Jun-16-2025	456.86 $*	465.60 $*
May-16-2025	453.76 $*	462.68 $*
Apr-16-2025	361.61 $*	368.27 $*
Mar-16-2025	445.51 $*	454.86 $*
Feb-16-2025	442.73 $*	451.3 $*
Jan-16-2025	438.6 $*	447.90 $*

Характеристики

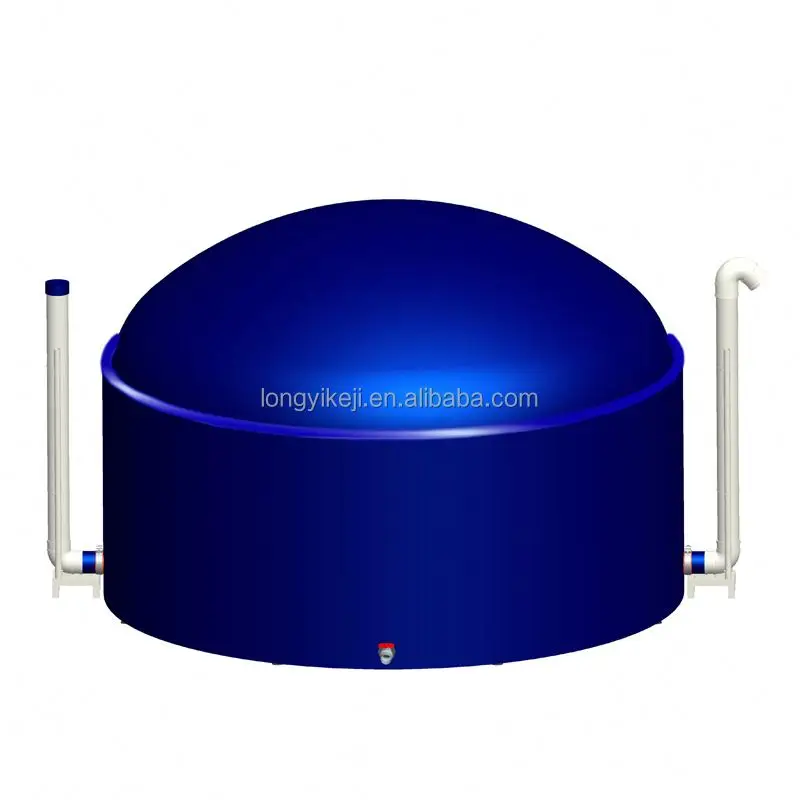

MINI DIY HOME BIOGAS DIGESTER.

What is biogas?

Biogas which is mainly methane, is a gas produced by anaerobic activity or fermentation of organic materials including: human and animal waste, domestic waste (household), biodegradable waste or any organic waste is biodegradable in anaerobic conditions. It is mainly composed of 60 to 70 percent methane, 30 to 40 percent carbon dioxide (CO2) and low amount of other gas.

Product Description

DIY Home Biogas system.

All the fittings we will provided for you with users’ manual.Biogas digeter,biogas pipe fittings,solar biogas pump(optional),biogas stove,biogas safety valve,biogas water separator will be in pacakage.Only needs several hours to install the biogas system.

Durable:

It is steel plate cover biogas digester,can be used for long time.

Change waste to energy.---WLY biogas digester

For a 4 cbm biogas system,it will digest about 50-80kgs(133lb) food waste or any other manure waste such as
cows,sheeps,pigs,chickens’ manure waste,some vegetable waste per day.You can use biogas for cooking meals for 2-3 persons per day or generate electricity.
The biogas slurry after fermentation can be used as organic fertilizer.

No need to build concrete biogas sytem---WLY anaerobic tank

The home biogas system is prefabricated,it contains steel framework,steel plate cover,PVC biogas digester,feeding inlet and outlet pipe,bottom slurry discharge system,etc.
You only needs to assemble all the fittings according to our users’manual or video,then add the prepared fermentation mixture into it.All the installation only needs 2-3 hours.
It can be putted in your garden,farm or semi-buried in your yard.
No need to build cement concrete biogas pond.

3 ways of installation for optional ---WLY bio-methane tank

SIMPLE WAY INSTALLATION:

The system can be installed inside a trench, meaning that it will be partially covered by the ground.

ECONOMICAL WAY INSTALLATION:

Only needs fermentation mixture pond and bottom slurry pond: The DIGESTER is 0.5m height buried in the ground.

BEST WAY INSTALLAION:

Better for feeding and discharging:The digester is buried 0.5m height and have to build feed inlet and outlet chamber

Specification

Mini Home biogas system
Capacity of digester.（m³）	*Product size（φH）(m)**	First feeding（kgs）	Suitable for persons(for references)	Electricity can be generated per day(KW)
2	1.3×1.5	1000	1-2	0.75-1
4	1.8×1.5	2000	2-3	1.5-2
6	2.3×1.5	3000	3-4	2.25-3
8	2.6×1.5	4000	4-5	3-3.5
10	2.9×1.5	5000	5-6	3.75-4.2
12	3.2×1.6	6000	6-7	4.5-5.0
14	3.2×1.8	7000	7-8	5.25-5.75

HOW IS THE BIOGAS DIGESTER OPERATING?!

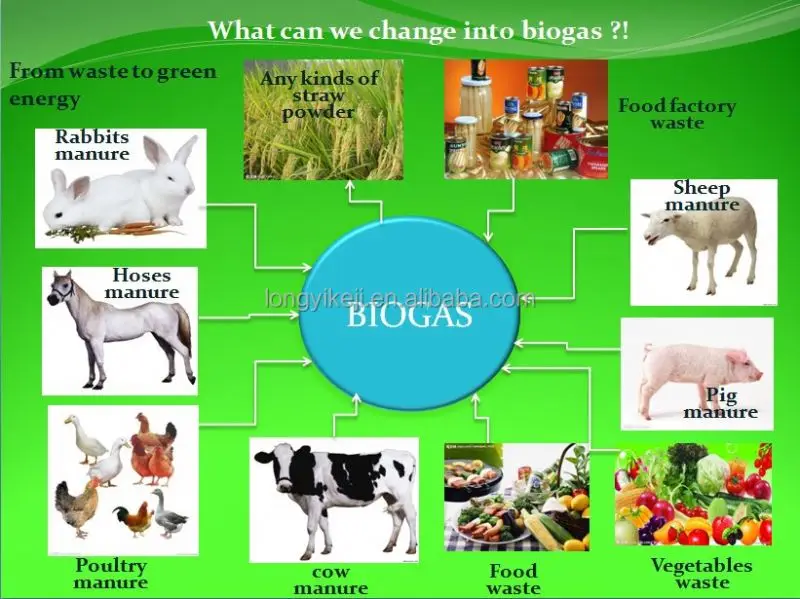

1.Feeding mixture:Please prepare fermentation mixture(the suitable concentration is:10-20%),it can be all kinds of manure waste such as cows' ,sheep's,pigs',chicken's or human manure waste,waste vegetables,food waste,straw powder,etc.

2.Adding fermentation mixture into the feed inlet chamber,it will enter into biogas digester via PVC feed inlet pipe.

3.After 3-7 days (temperature:20-35 degrees),the biogas will come out from top of biogas digester and enter into

biogas pipe.

4.Biogas safety:it is for release the pressure of biogas digester when the pressure in the digester is over 3kpa.It can be customized.

5.Biogas water separator:It is for getting rid of water in the biogas for making use biogas well.If you don't use it,the biogas pump,biogas stove or biogas generator maybe damaged very easily.

6.Biogas purifier(biogas desulfurizer):it is for getting rid of H₂S in the biogas.If you don't have it,the biogas can't use.

7.Biogas pump:It is for optional.It can pressure biogas for biogas stove,biogas generator.If you will use biogas to generate electricity,the biogas pump is needed.

8.Biogas pipe:our normal size of biogas pipe is 10-16mm diameter for optional.

9.Biogas stove:use biogas for cooking

10.Biogas generator:using biogas for generating electricity.

FAQ

1.What will be includes for a complete set?

It contains biogas digester,ground protect cover for digester,feed inlet and outlet PVC pipe,25m biogas pipe and pipe fittings,biogas single burner stove,biogas pump,biogas purifier,biogas safety valve,biogas water separator,users'manual.

You don't need to buy any other biogas fittings separately.

2.How long can I use the biogas digester?

Usually,it's 5-8 years,it based on how is the maintenace you do .

3.Can I use in my country where the temperature is lower than 0℃？

Yes,but please tell us in advance,it needs warm keeping material for the digester and needs to be build underground.

Of course,if the temperature is too low,there is no biogas output.But we can provide warm keeping material for digester when the temperature is 10-15℃.

4.If i have big livestock,can it is ok for my farm?

This type is for home use,if you have a farm,please also contact us for getting a data colleting table,our engineer will design the biogas system based on your information.

5.Does the biogas digester needs to build concrete pond ?

No,it is no need to build pond for holding it.But you need to dig a hole or trench.

6.Do i must use biogas pump for the biogas digester?

No,it is optional,But we recommend you had better to choose.If there is no electricity,you can choose solar charged biogas pump.Acutally,the biogas pump will make the biogas fire bigger.If the distance from kitchen to biogas digester is over 20-25m,or if the output of biogas is less in winter,you have to use biogas pump.
