LGP550/800/150/70 DPL-E Высокое качество исполнения бентонит подвеска цементный

LGP550/800/150/70 DPL-E Высокое качество исполнения бентонит подвеска цементный

Категория: Concrete Pumps >>>
Поставщик: Zhengzhou,Lead,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.46 $*	0.34 $*
Aug-16-2025	0.22 $*	0.92 $*
Jul-16-2025	0.55 $*	0.67 $*
Jun-16-2025	0.32 $*	0.7 $*
May-16-2025	0.48 $*	0.12 $*
Apr-16-2025	0.42 $*	0.74 $*
Mar-16-2025	0.64 $*	0.72 $*
Feb-16-2025	0.30 $*	0.11 $*
Jan-16-2025	0.86 $*	0.74 $*

Характеристики

Product Description

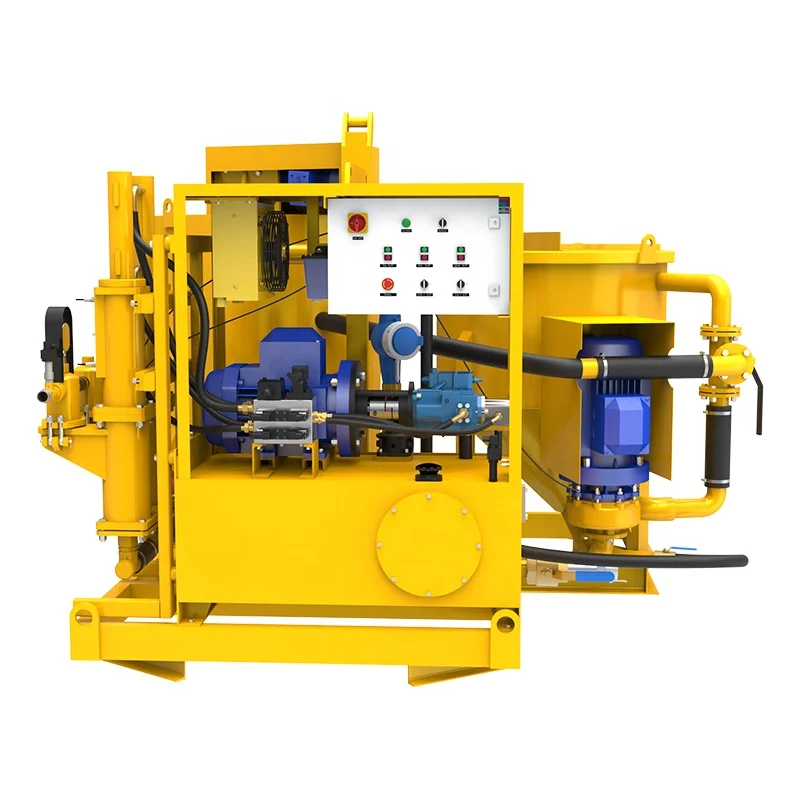

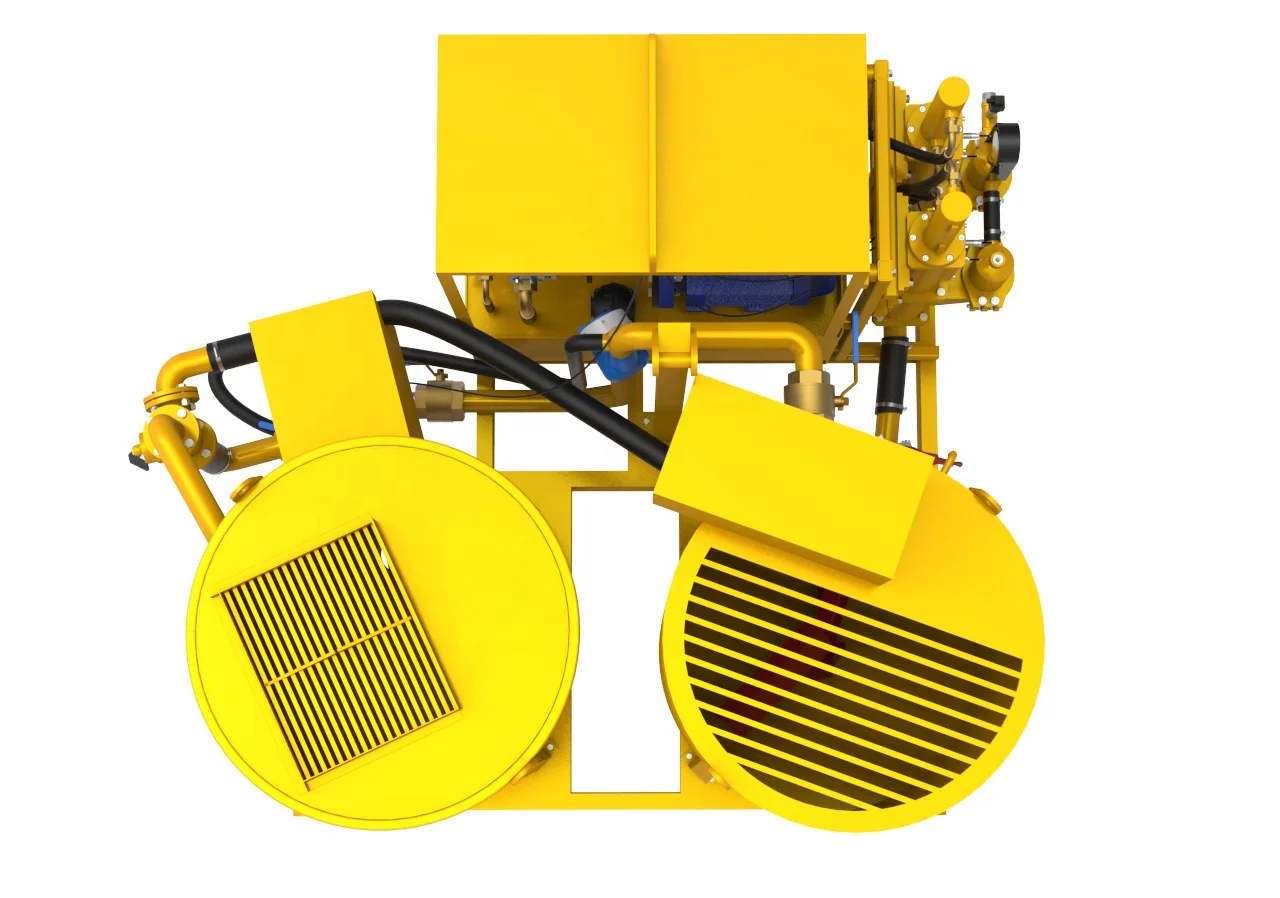

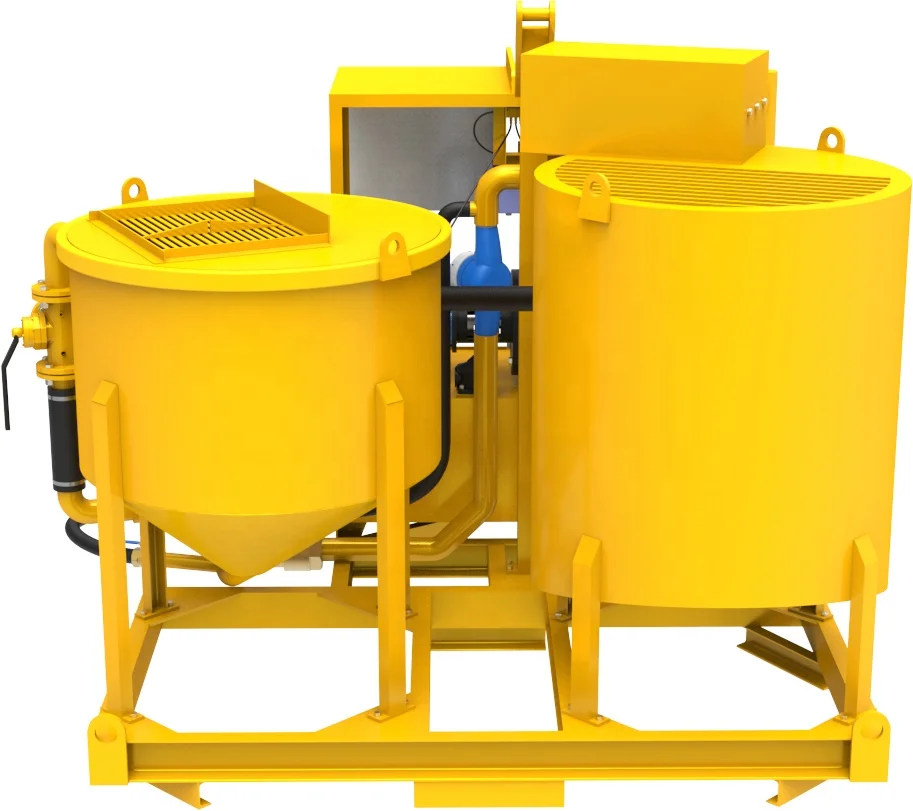

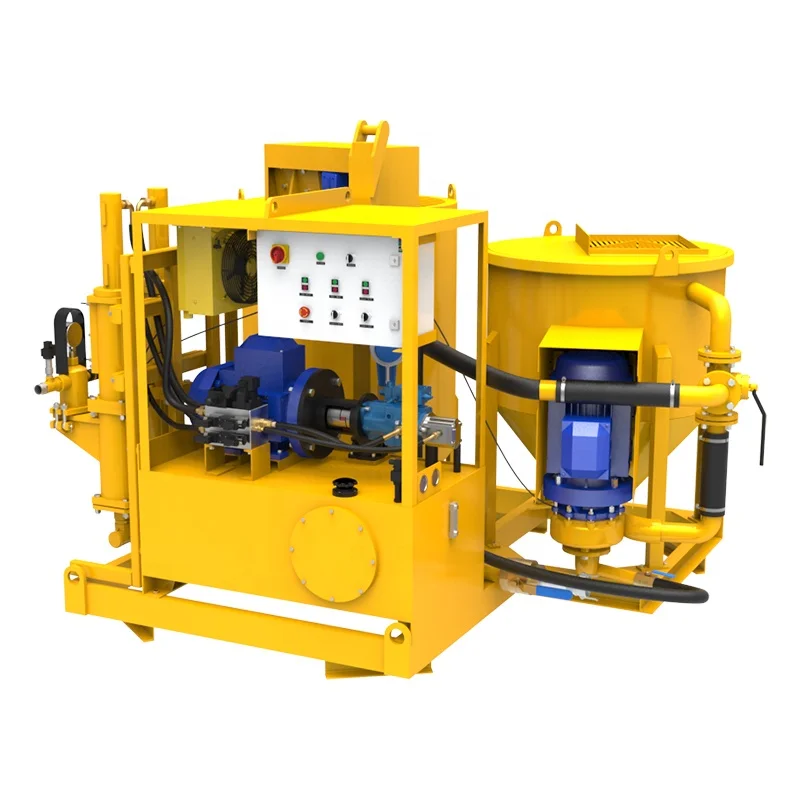

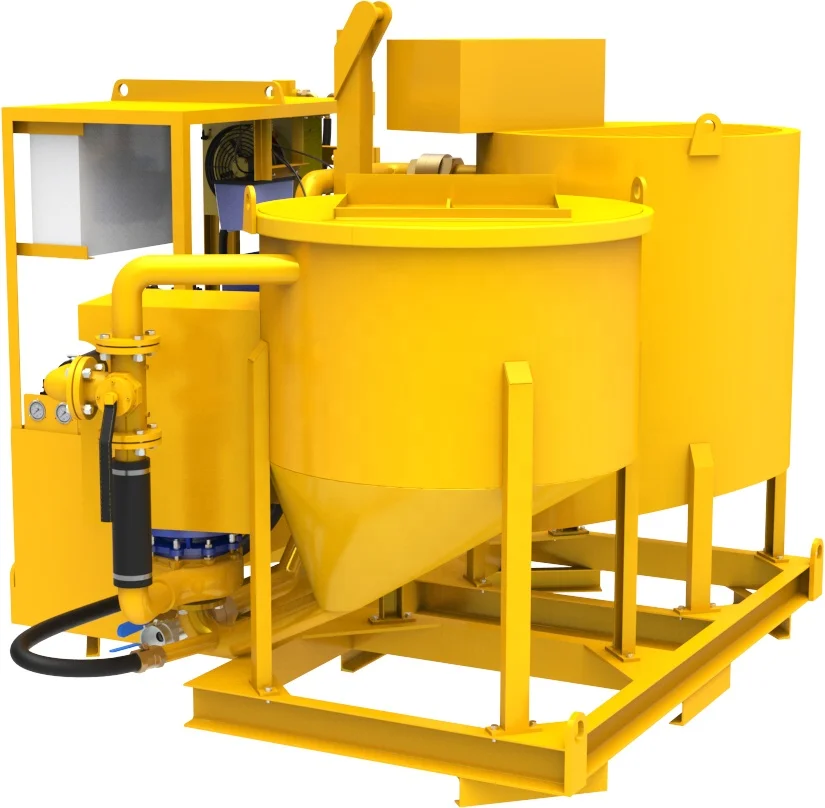

LGP550/800/150/70 DPL-E High quality manufacturers produce anchor grout mixer pump consists of a mixer, agitator, and grout pump.

This setup is suitable for a wide range of applications such as anchoring, sleeve pipe and back fill grouting. For higher outputs and increased quality control, the plants are also available in semi-automated and fully automated versions.

Technical parameters

Name	LGP550/800/150/70 DPL-E
Grout Pump	Output Capacity	9m3/h
		Max. Aggregate size	8mm
		Pressure and output	70bar,50L/min 20bar,150L/min
		Motor power	11Kw
		Voltage	380V, 50HZ, 3phase
		Hydraulic tank	140L
		Pump module	Double
		Cooling water flow rate	5~6L/min
		Cooling water connection	BSP1/2”
		Pressure connection	BSP2”
		Suction connection	BSP2 1/2”
Mixer	Capacity	600L
		Circulation Capacity	1400L/min
		Motor Power	11Kw
		W/C	>0.5
		Water Connection	BSP1”
Agitator	Capacity	800L
Agitator		Power	2.2Kw
Dimension	Weight	1650Kg
Dimension		Dimension	2100x2100x2250mm

Product Feature

1Extremely compact mixing and injection system with central lifting point for easy transport and minimum installation time.
2.High productivity due to ergonomically positioned operating elements.
3.High reliability and low-maintenance operation with good accessibility to the wear parts.
4.Automatically to lubricate the seals of grout pump plungers and mixer centrifugal pump.

Product Details

Application

Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting.
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;

Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement,

1.Grouting of anchors, soil nails, tension cable as well as for sleeve pipe, rock and contact injections.
2.Preparation and pumping of bentonite suspensions or pipe jacking and microtunneling.
