Product Description

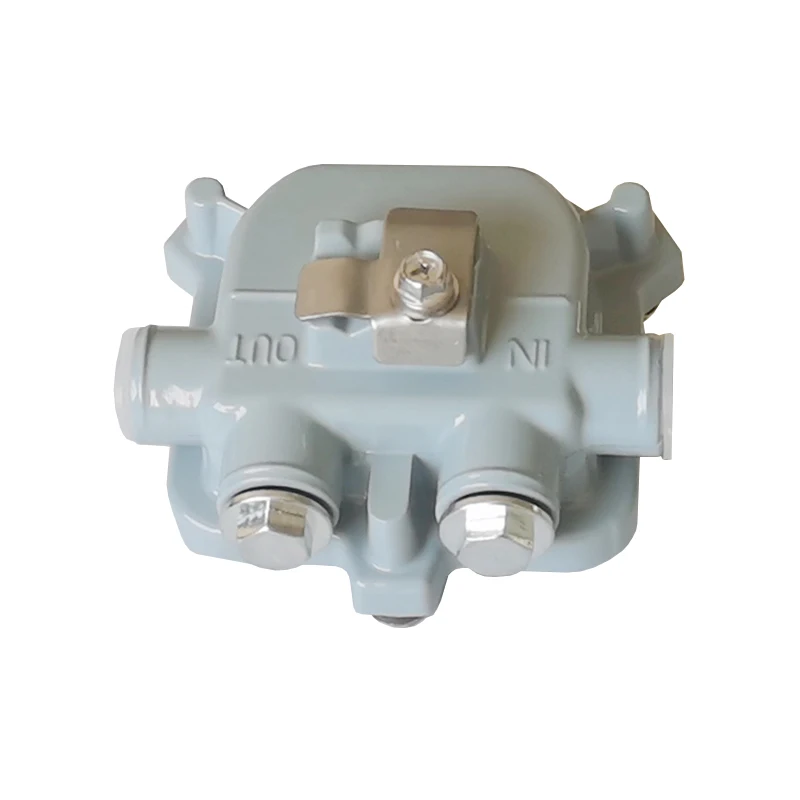

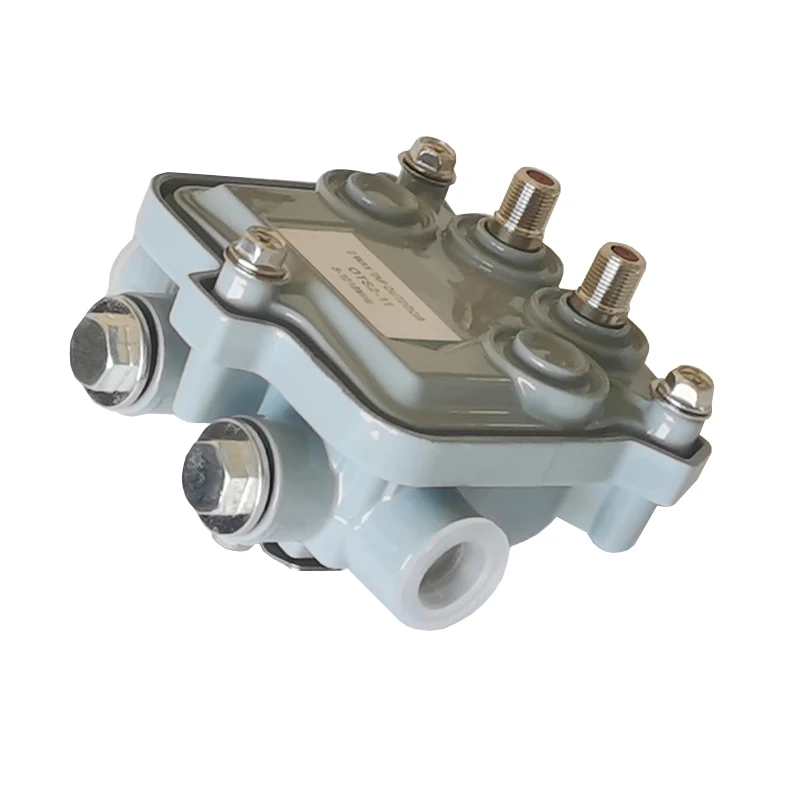

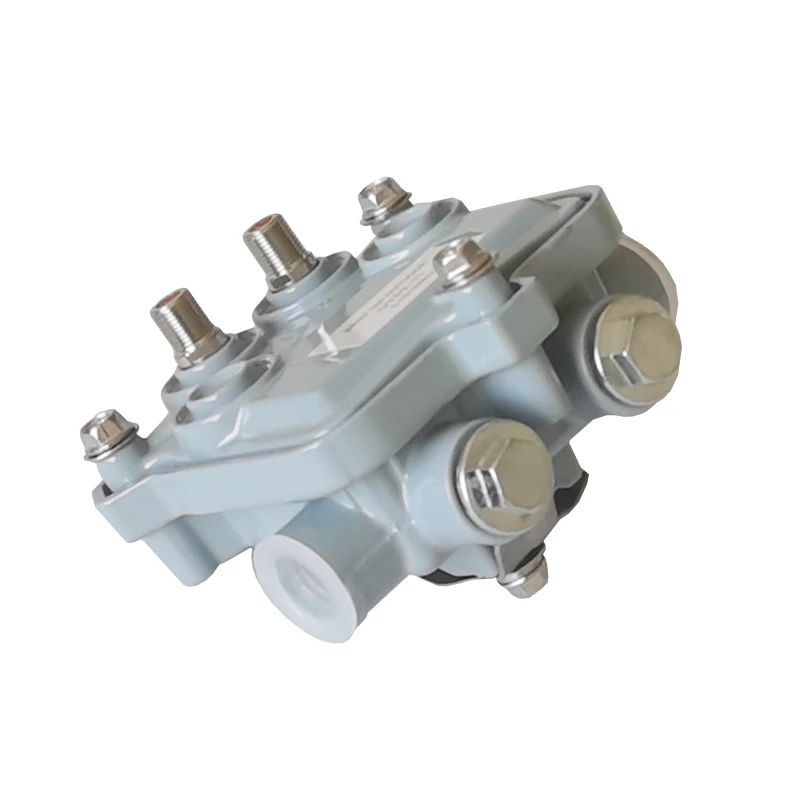

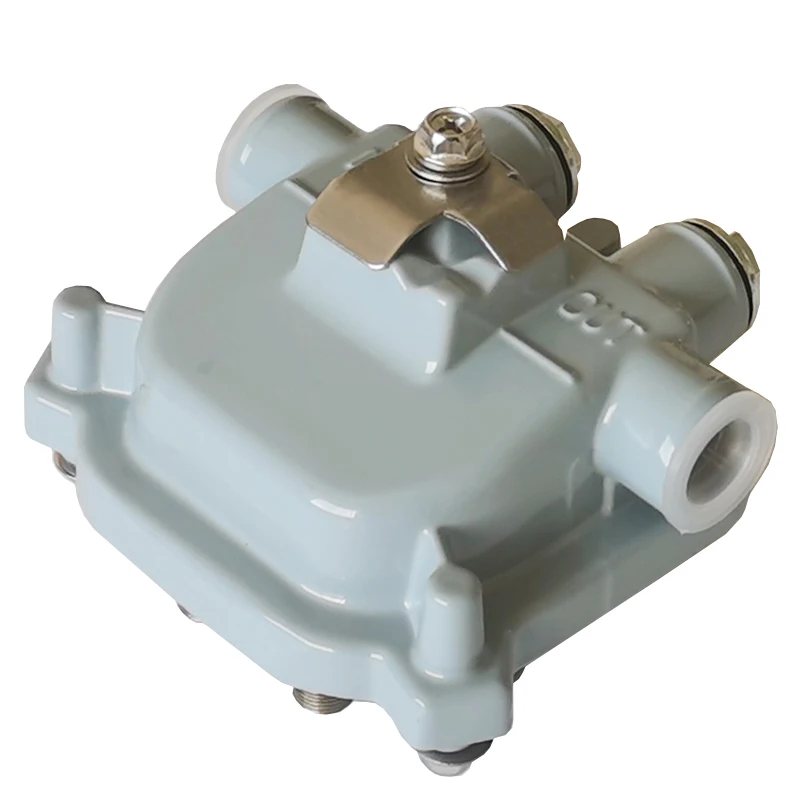

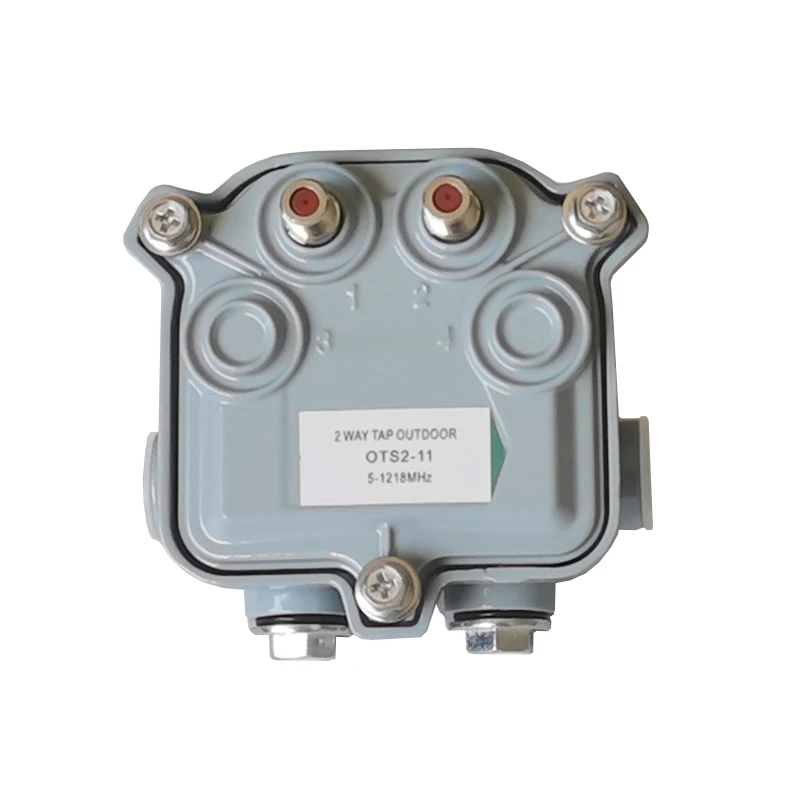

Hot Sale Factory Direct Cable Rf Tv Catv Outdoor Tap Softel
★Description
2 Way CATV Sub-trunk tap,4dB,8dB,11dB,14dB,17dB,20dB,23dB,26dB,29dB,32dB,35dB,(it is optional),5-1218Mhz,RFI>110dB,in-out ports power pass 10A,in&out UNEF 5/8" port, tap ports F female port.
Response All Ports: ±0.5dB
Current Capacity: 10Amps,90VAC
Impedence: 75Ω
★Electrical Performance
Item | Range (MHz) | 4 | 8 | 11 | 14 | 17 | 20 | 23 | 26 | 29 |
Insertion loss
| 5 – 40 | NA | ≤ 3.6 | ≤2.0 | ≤1.2 | ≤1.1 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
41 –250 | NA | ≤3.9 | ≤1.8 | ≤1.3 | ≤1.2 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | |
251– 550 | NA | ≤4.8 | ≤2.5 | ≤1.8 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | |
551 –750 | NA | ≤5.0 | ≤3.0 | ≤2.0 | ≤1.9 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | |
751 – 1000 | NA | ≤5.2 | ≤3.5 | ≤2.8 | ≤2.2 | ≤1.9 | ≤1.9 | ≤1.9 | ≤1.9 | |
1001–1218 | NA | ≤5.6 | ≤3.8 | ≤ 3.0 | ≤2.5 | ≤2.2 | ≤2.2 | ≤2.2 | ≤2.2 | |
TAP LOSS | 5 – 40 | 4±1.5 | 8±1.5 | 11±1.5 | 14±1.5 | 17±1.5 | 20±1.5 | 23±1.5 | 26±1.5 | 29±1.5 |
41-750 | 4±1.5 | 8±1.5 | 11±1.5 | 14±1.5 | 17±1.5 | 20±1.5 | 23±1.5 | 26±1.5 | 29±1.5 | |
751-1000 | 4±1.5 | 8.5±1.5 | 11±1.5 | 14±1.5 | 17±1.5 | 20±1.5 | 23±1.5 | 26±1.5 | 29±1.5 | |
1000-1218 | 4.5±1.5 | 9.0±1.5 | 11.5±1.5 | 14.5±1.5 | 17.5±1.5 | 20.5±1.5 | 23.5±1.5 | 26.5±1.5 | 29.5±1.5 | |
Isolation OUT-TAP | 5 – 40 | NA | ≥ 18 | ≥ 20 | ≥ 24 | ≥ 27 | ≥30 | ≥32 | ≥34 | ≥34 |
41 –250 | NA | ≥22 | ≥27 | ≥28 | ≥30 | ≥34 | ≥36 | ≥37 | ≥38 | |
251– 550 | NA | ≥20 | ≥27 | ≥ 28 | ≥30 | ≥ 34 | ≥ 36 | ≥37 | ≥38 | |
551 –750 | NA | ≥20 | ≥25 | ≥25 | ≥30 | ≥32 | ≥34 | ≥35 | ≥35 | |
751 – 1000 | NA | ≥ 20 | ≥ 22 | ≥ 22 | ≥ 24 | ≥ 26 | ≥30 | ≥34 | ≥35 | |
1001–1218 | NA | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 22 | ≥ 22 | ≥ 28 | ≥29 | ≥30 | |
Isolation TAP-TAP | 5 – 40 | ≥ 20 | ≥ 18 | ≥20 | ≥20 | ≥24 | ≥25 | ≥25 | ≥25 | ≥25 |
41 –250 | ≥ 25 | ≥ 22 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
251– 550 | ≥ 25 | ≥ 22 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | |
551 –750 | ≥ 25 | ≥ 20 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
751 – 1000 | ≥ 22 | ≥ 20 | ≥ 22 | ≥ 22 | ≥ 22 | ≥ 22 | ≥ 22 | ≥ 22 | ≥ 22 | |
1001–1218 | ≥ 22 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | |
RETURN LOSS IN/OUT | 5 – 40 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 |
41 –250 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
251– 550 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
551 –750 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
751 – 1000 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | |
1001–1218 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | |
RETURN LOSS TAP | 5 – 40 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 |
41 –250 | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | |
251– 550 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | |
551 –750 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
751 – 1000 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | |
1001–1218 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 |
