Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Низкая цена 150 м 200 300 глубоководная роторная буровая установка для бурения скважин DTH
- Категория: Mining Machinery >>>
- Поставщик: Beijing,Jincheng,Mining,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 32249.60 $* | 33861.55 $* |
| Aug-20-2025 | 31978.30 $* | 33577.83 $* |
| Jul-20-2025 | 26829.67 $* | 28170.60 $* |
| Jun-20-2025 | 31436.58 $* | 33008.29 $* |
| May-20-2025 | 27371.2 $* | 28740.93 $* |
| Apr-20-2025 | 30894.42 $* | 32439.94 $* |
| Mar-20-2025 | 30623.47 $* | 32154.55 $* |
| Feb-20-2025 | 30352.59 $* | 31870.52 $* |
| Jan-20-2025 | 30081.67 $* | 31585.48 $* |
Характеристики
Product Overview

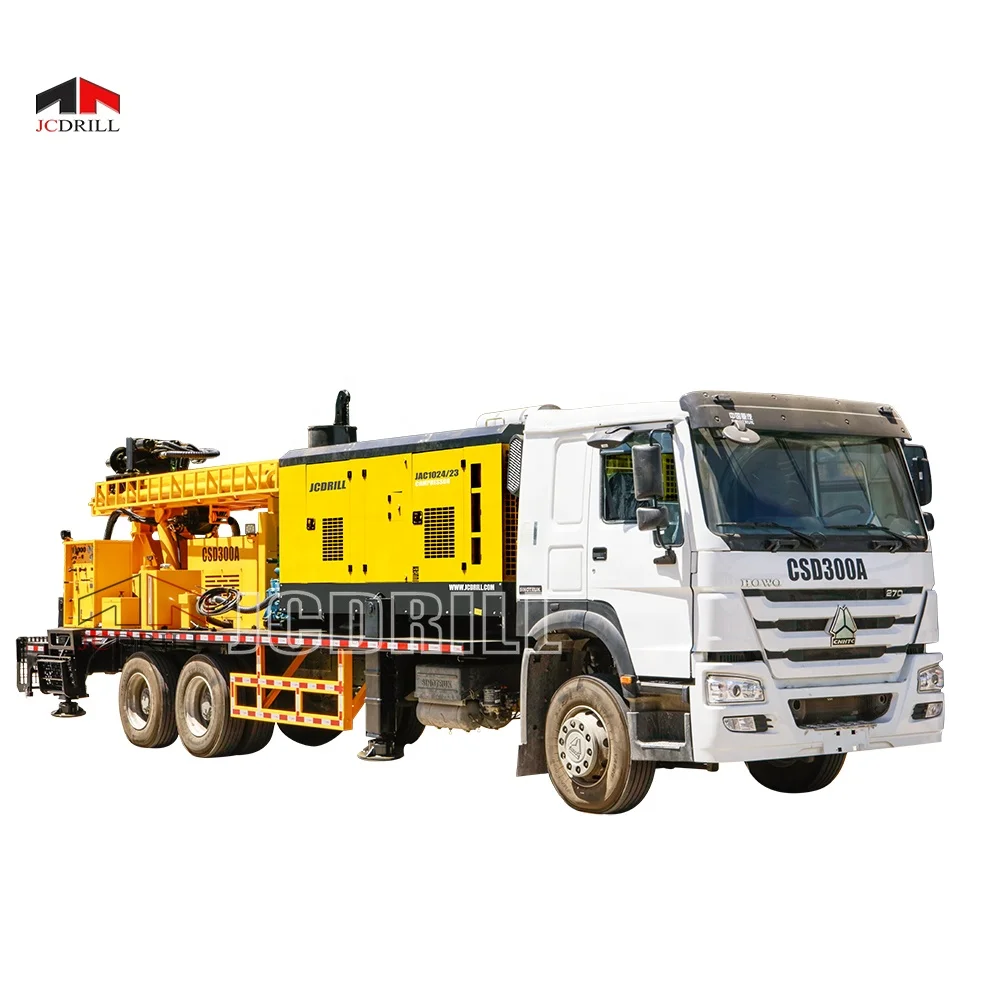

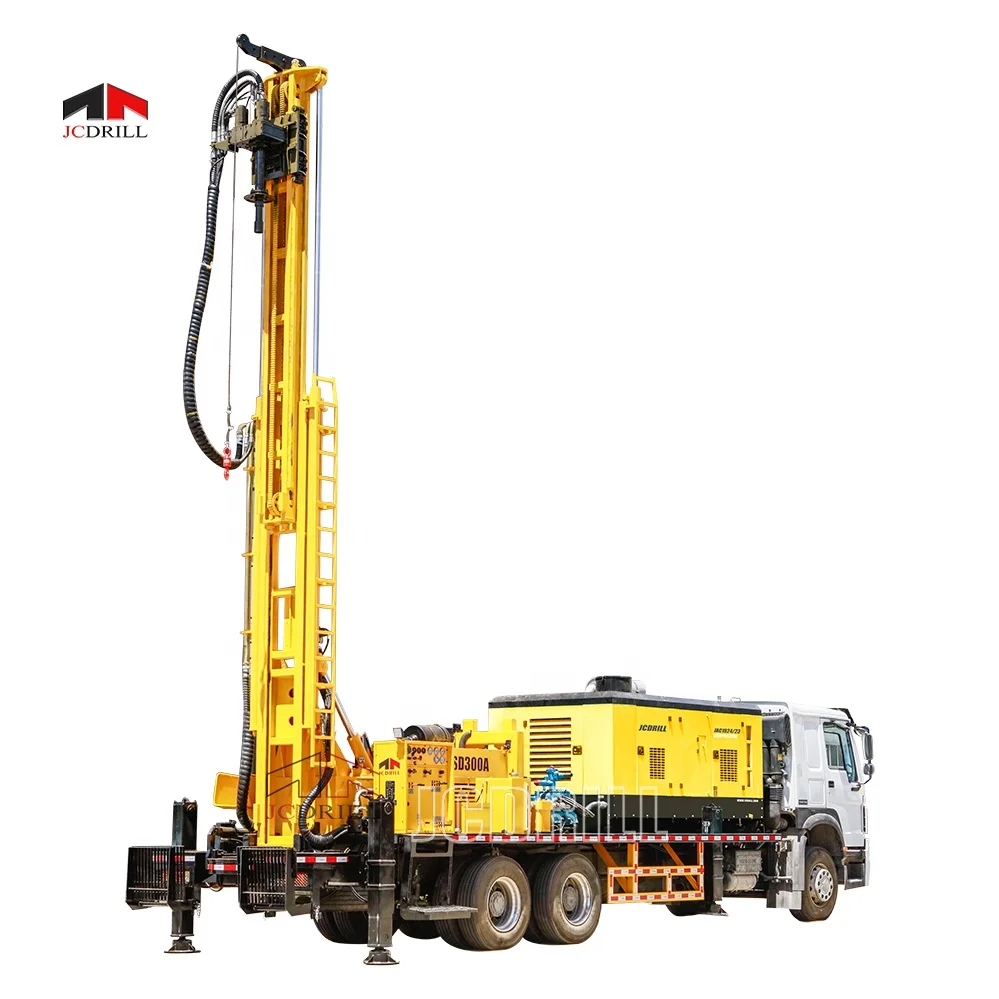

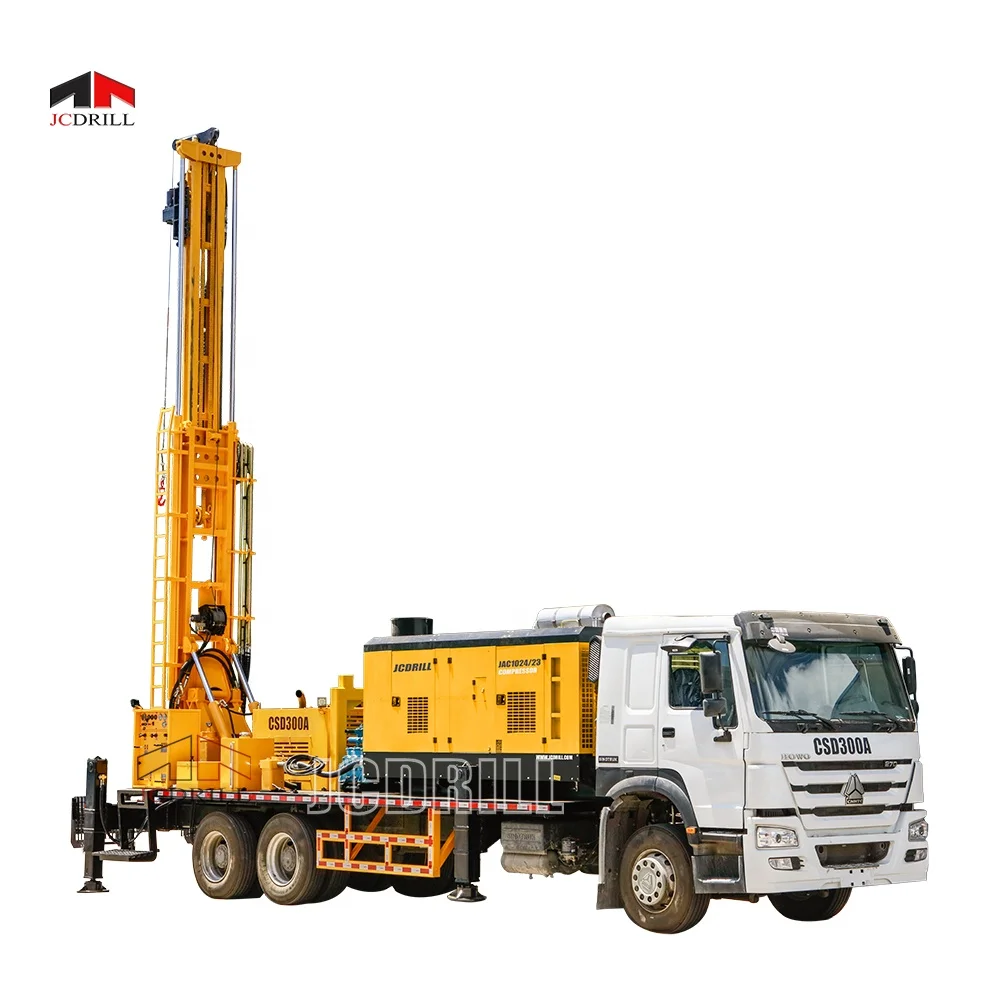

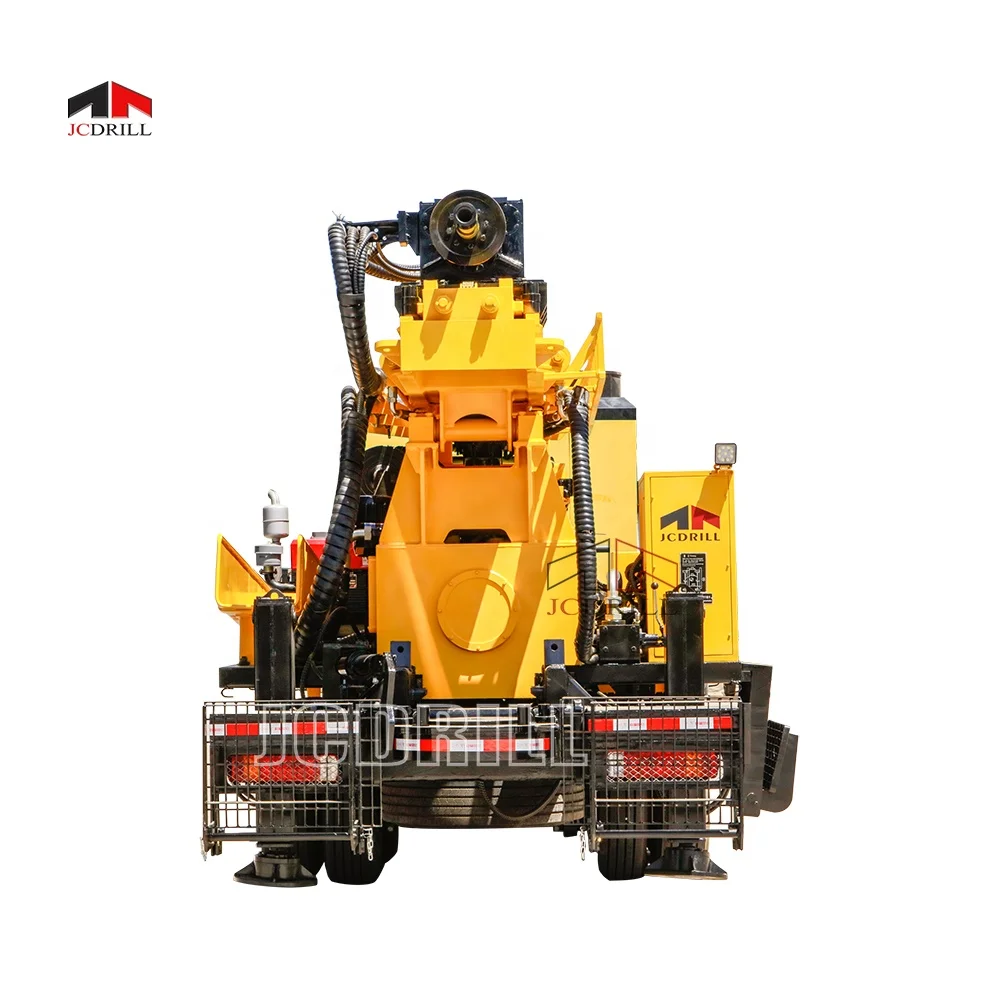

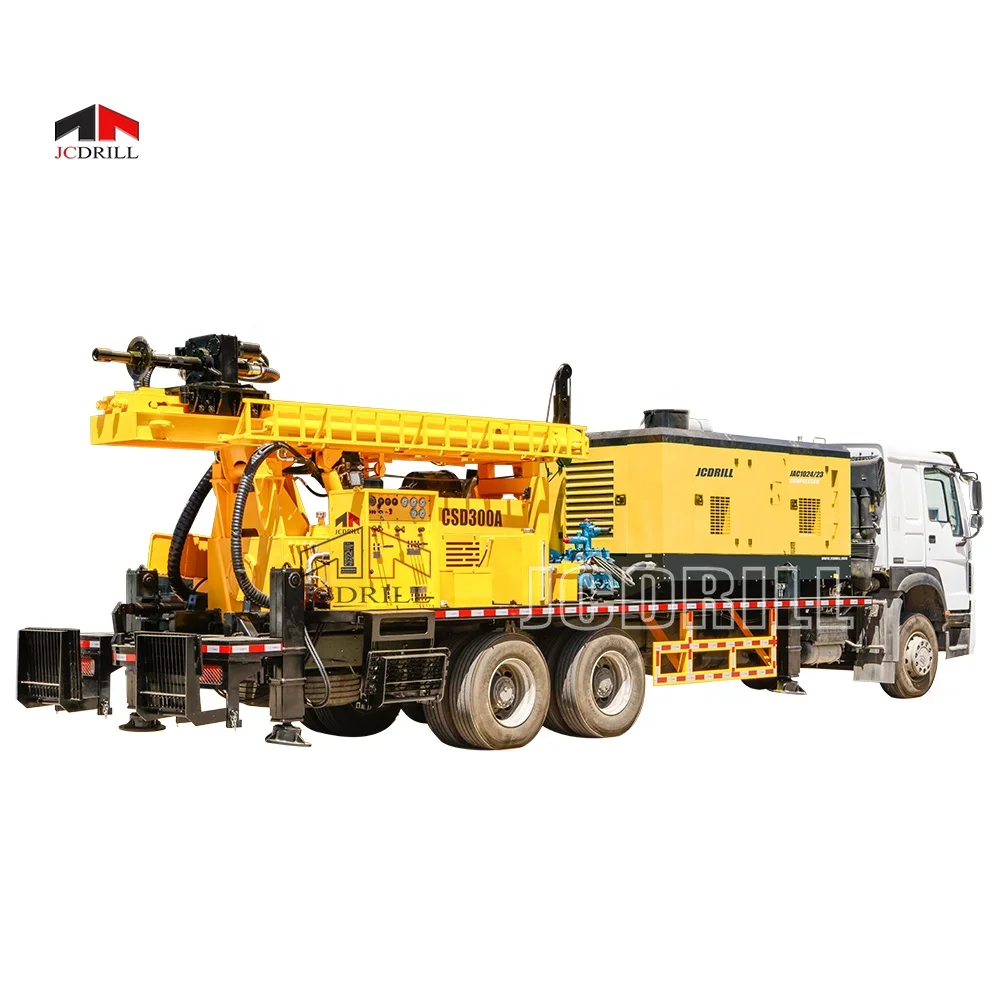

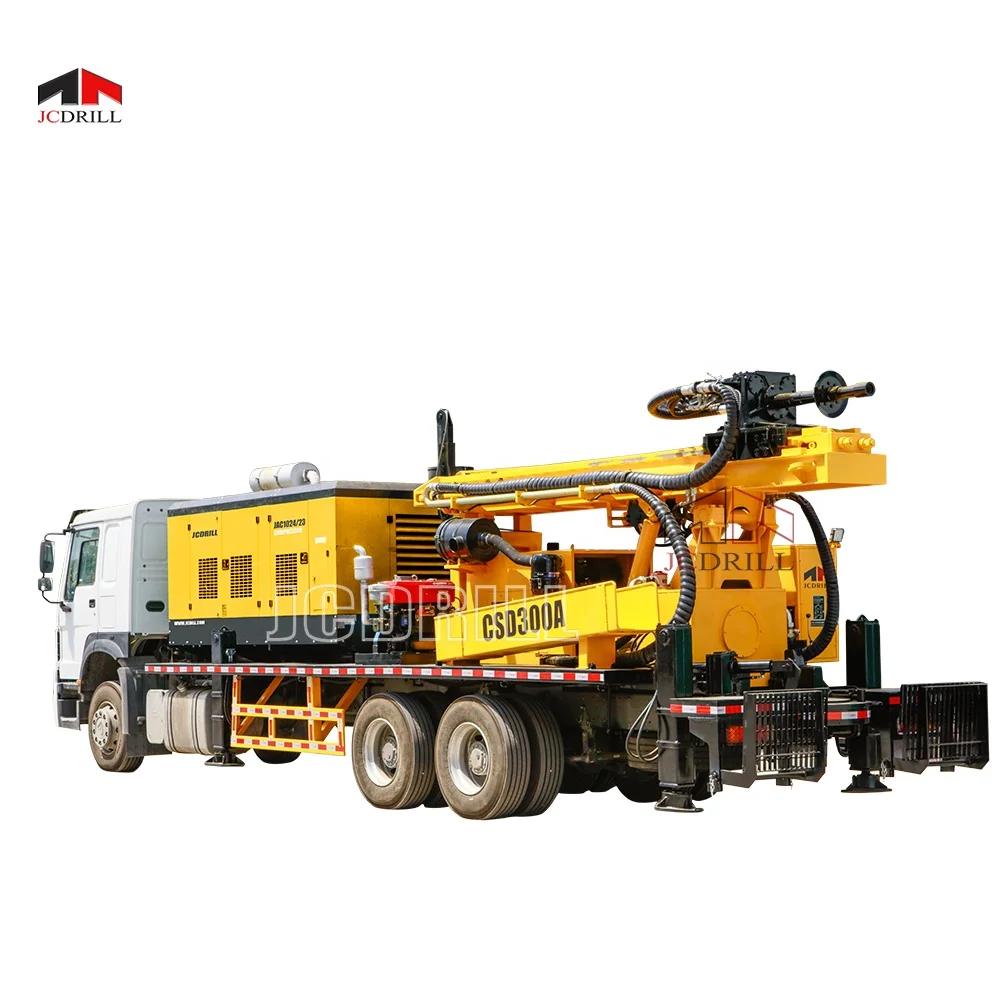

CSD300 Truck Mounted Water Well Drilling Rig
CSD300 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD300 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
PRODUCT SPECIFICATIONS
No. | Item | |||||
1 | Geology Drilled | All Kinds | ||||
2 | Drilling Type | DTH & Mud Rotary | ||||
3 | Drill System and Operation | Hydraulic | ||||
4 | Hole Diameter | mm | 140-450 | |||
5 | Hole Depth | m | 300 | |||
6 | Rotation Torque | Nm | 4800-6500 | |||
7 | Rotation Speed | rpm | 60-120 | |||
8 | Drill Pipe Diameter | mm | 89/114 | |||
9 | Drill Pipe Length | mm | 4000/4500 | |||
10 | Max.Push Down Capacity | T | 5 | |||
11 | Max.Pull Up Capacity | T | 16 | |||
Winch | ||||||
12 | Lifting Force of Main Winch(Optional) | T | 4 | |||
13 | Lifting Force of Hoist | T | 1.5 | |||
14 | Length of Steel Wire Rope(Tool Winch) | m | 100 | |||
15 | Lifting Height of Tool Winch | m | 8 | |||
Engine | ||||||
16 | Diesel Engine Type | YUCHAI | ||||
17 | Rated Horse Power | Kw | 70 | |||
18 | Electrical System | Volt | 24 | |||
Compressor Required | ||||||
19 | Compressor Type | Rotary Screw/Movable | ||||
20 | Pressure Required | Mpa | 1.05-4.5 | |||
21 | Air Consumption | M3/min | 16-60 | |||
Truck | ||||||
22 | Manufacturer | SINOTRUCK HOWO | ||||
23 | Model | ZZ1257M5847C | ||||
24 | Engine | WD615.93C | ||||
25 | Rated Horse Power | Hp | 290 | |||
26 | Discharge Standard | EU-2 | ||||
27 | Drive Type | 6*4 | ||||
28 | Max.Speed | Km/h | 102.9 | |||
29 | Steering Wheel | Left/Right(Optioanl) | ||||
Mud Pump | ||||||
30 | Power Type | Diesel Engine | ||||
31 | Model | BW450 | ||||
32 | Stroke | mm | 110 | |||
33 | Displacement | L/Min | 450 | |||
34 | Discharge Pressure | Mpa | 5 | |||
Dimension | ||||||
35 | Net Weight | T | 20 | |||
36 | Shipping Length | mm | 11200 | |||
37 | Shipping Width | mm | 2500 | |||
38 | Shipping Height | mm | 3200 | |||
39 | Working Size(L*W*H) | mm | 11000*2480*7147 | |||
PRODUCT CONFIGURATION
Mud Pump
Operation Panel
Radiator
Successful Project
CSD300 to Commeroon
CSD600A to Chile
CSD600 to Uruguay
Company Profile
Beijing Jincheng Mining Technology Co.,Ltd(JCDRILL) provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core
drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling
solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network,which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core
drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling
solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network,which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
Certification
FAQ
Q: Are you original manufacturer? | Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. | A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. | A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR,CIP. |
Q: How long will the delivery time take? | Q: How about after sales service? | Q: Spare Parts When You Need Them |
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. | A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." | A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week. |
