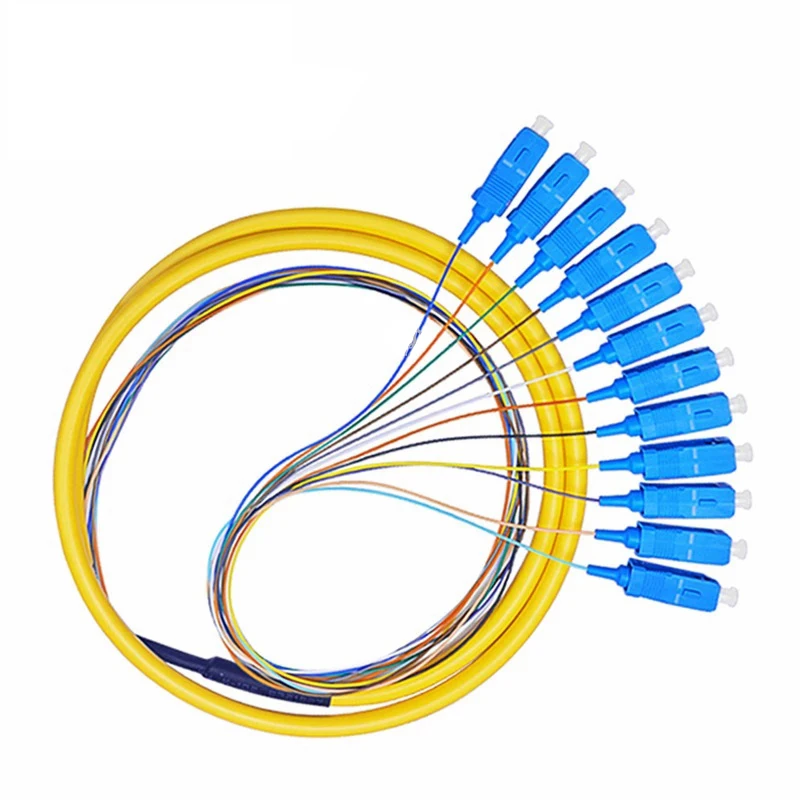

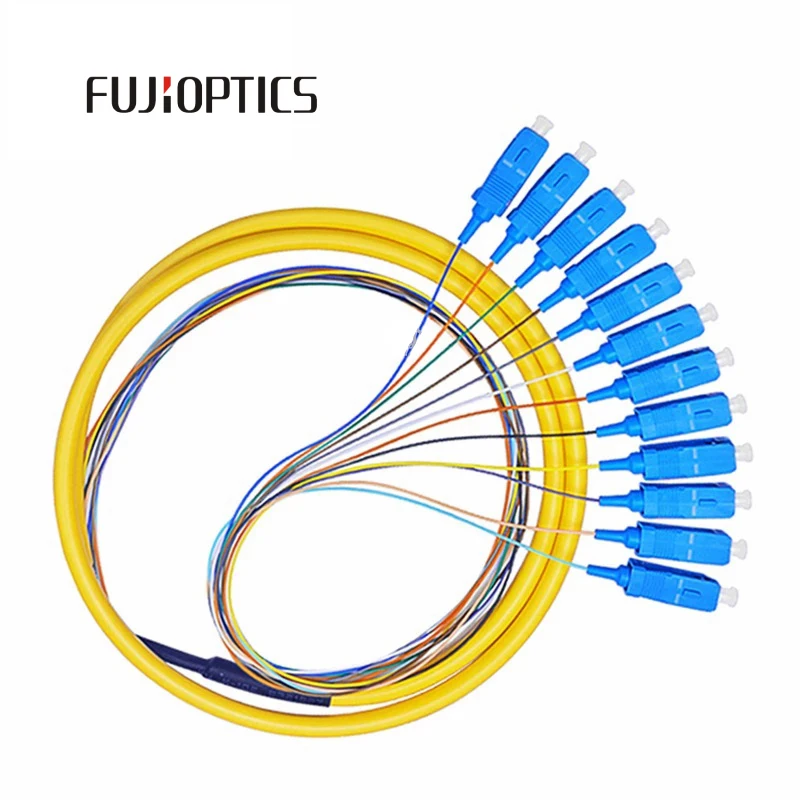

Разъем SC/UPC 12 ядро 0 9 мм волоконно-оптический комплект
- Категория: >>>
- Поставщик: Wuhan,Fujioptics,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.94 $* | 2.4 $* |
| Aug-16-2025 | 2.80 $* | 2.25 $* |
| Jul-16-2025 | 2.2 $* | 2.88 $* |
| Jun-16-2025 | 2.48 $* | 2.27 $* |
| May-16-2025 | 2.43 $* | 2.18 $* |
| Apr-16-2025 | 2.80 $* | 2.8 $* |
| Mar-16-2025 | 2.7 $* | 2.59 $* |
| Feb-16-2025 | 2.50 $* | 2.49 $* |
| Jan-16-2025 | 2.78 $* | 2.45 $* |
Характеристики
Product Description
Connector Type | Single Mode (UPC) | Single Mode (APC) | Multi Mode (UPC) | ||
Insertion Loss | ≤0.2dB or ≤0.15 dB | ≤0.2dB or ≤0.15 dB | ≤0.3dB or ≤0.15 dB | ||
Return Loss | UPC ≥50dB | APC ≥60dB | UPC≥30dB | ||
Test Wavelength | Attenuation at 1310 nm = 0.36 dB/km | 850nm | |||
Attenuation at 1550 nm = 0.22 dB/km | 1300nm | ||||
Ferrule Material | Zirconia Ceramic | ||||
Ferrule Concentricity | ≤0.5μ or ≤1μ | ≤1μ | |||
Jacket Material | PVC,LSZH,OFNR | ||||
Fiber Type | 9/125 G652D | 62.5/125-OM1 | |||
9/125 G657A1/G657A2 | 50/125-OM2 | ||||
9/125 G657B2/G657B3 | 50/125-OM3 | ||||
…… …… | 50/125-OM4 | ||||
50/125-OM5 | |||||
Cord Type | Simplex,Duplex,4 cores,6 cores,12 cores,24 cores …… | ||||
Cable Diameter | 0.9mm,2.0mm,3.0mm | ||||
Component | Yellow, green, light blue, beige, black,white,blue or customized | ||||
Length | 1m,2m,3m,5m or customized | ||||
Storage Temperature | -40°C~80°C | ||||
Operating Temperature | -40°C~75°C | ||||
ROHS2.0 | Yes or based on customized requirement | ||||

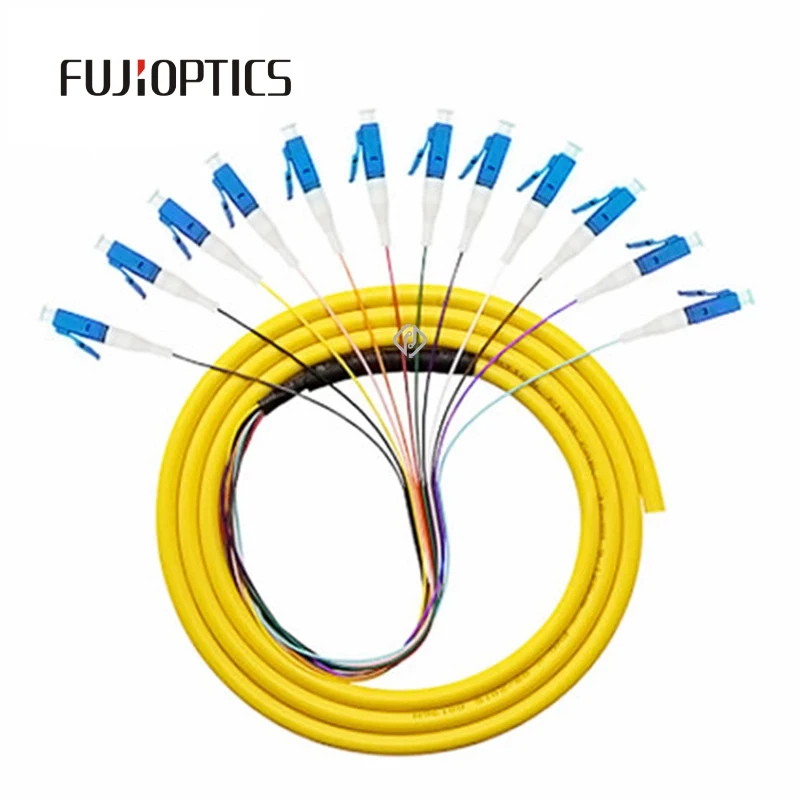

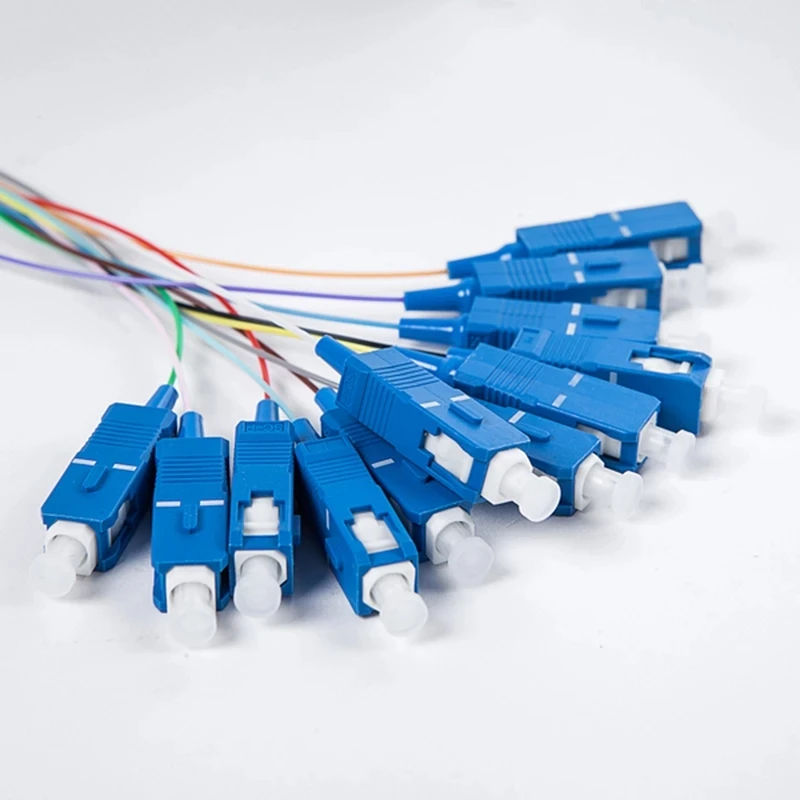

Product Display
Product Processing
Features & Application
Fiber module test equipment
Switch
Data center
Single mode fiber distance
Singlemode 9/125 up to 2KM using PSM4 transcever.
Single mode fiber distance
Fiber Type | Core Diameter | 1Gb Ethernet | 10 Gb Ethernet | 40 Gb Ethernet | 100 Gb Ethernet | |||
OM1 multimode | 62.5/125 | 275 m | 33 m | Not support | Not support | |||
OM2 multimode | 50/125 | 550 m | 82 m | Not support | Not support | |||
OM3 multimode | 50/125 | 550 m | 300 m | 100 m | 100 m | |||
OM4 multimode | 50/125 | 550 m | 400 m | 150 m | 150 m | |||
OM5 multimode | 50/125 | 550 m | 400 m | 150 m | 150 m | |||
Singlemode | 9/125 | up to 2KM using PSM4 transcever | ||||||
Fiber optic pigtail is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, other telecommunication equipment, FTTX, Security equipment（Video monitor）, Test equipment, LAN,WAN
About our factory
Our engineer
1 Engineers with 15 years of experience in the industry manage workshop production and strictly control quality and production
processes.2 Advanced JGR machine of fiber equipment
3 Million-level dust-free workshop
4 All raw materials come from formal channels, strictly control raw materials
5 ODM products can supported。 A team of more than 10 engineers, and senior engineers with more than 20 years of experience
6 Product production testing, there is a special testing team
7 Products should be tested and tested, product qualification rate reach 99.5%
processes.2 Advanced JGR machine of fiber equipment
3 Million-level dust-free workshop
4 All raw materials come from formal channels, strictly control raw materials
5 ODM products can supported。 A team of more than 10 engineers, and senior engineers with more than 20 years of experience
6 Product production testing, there is a special testing team
7 Products should be tested and tested, product qualification rate reach 99.5%
FAQ
1 When to use single mode fiber
A: The use of single mode fiber optical cable is the best way to get rid of modal dispersion over long distances. Therefore, it is very popular to use single mode fiber in backbone systems.
2 Multimode or single mode fiber cable ?
A: Single mode means the fiber enables one type of light mode to be propagated at a time. While multimode means the fiber can propagate multiple modes. The differences between single mode and multimode fiber optic cable mainly lie in fiber core diameter, wavelength & light source, bandwidth, color sheath, distance and cost.
3 Can I customize products?
A: Yes, we have over 10 engineers to support different ODM products, we have over 15 years optics fiber experience.
2 Multimode or single mode fiber cable ?
A: Single mode means the fiber enables one type of light mode to be propagated at a time. While multimode means the fiber can propagate multiple modes. The differences between single mode and multimode fiber optic cable mainly lie in fiber core diameter, wavelength & light source, bandwidth, color sheath, distance and cost.
3 Can I customize products?
A: Yes, we have over 10 engineers to support different ODM products, we have over 15 years optics fiber experience.
4 Do you a factory or trading company ? A: We're a manufacturer &trading combo, which specialized in optics fiber since 2007. our company have full experience in exporting it.
5 What is the maximum distance of single mode fiber smf ?
A:Single-mode fibre can go as far as 40 km or more without hurting the signal, making it ideal for long-haul applications.
5 What is the maximum distance of single mode fiber smf ?
A:Single-mode fibre can go as far as 40 km or more without hurting the signal, making it ideal for long-haul applications.
