Дешевый высококачественный промышленный тормозной барабанный дисковый токарный станок C9335A
- Категория: Other Vehicle Equipment >>>
- Поставщик: Jinan,Quality,CNC,Machinery,&,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1309.63 $* | 1374.64 $* |
| Aug-19-2025 | 1298.47 $* | 1363.83 $* |
| Jul-19-2025 | 1089.84 $* | 1143.93 $* |
| Jun-19-2025 | 1276.51 $* | 1340.34 $* |
| May-19-2025 | 1111.60 $* | 1167.0 $* |
| Apr-19-2025 | 1254.43 $* | 1317.59 $* |
| Mar-19-2025 | 1243.98 $* | 1305.21 $* |
| Feb-19-2025 | 1232.17 $* | 1294.96 $* |
| Jan-19-2025 | 1221.91 $* | 1282.95 $* |
Характеристики

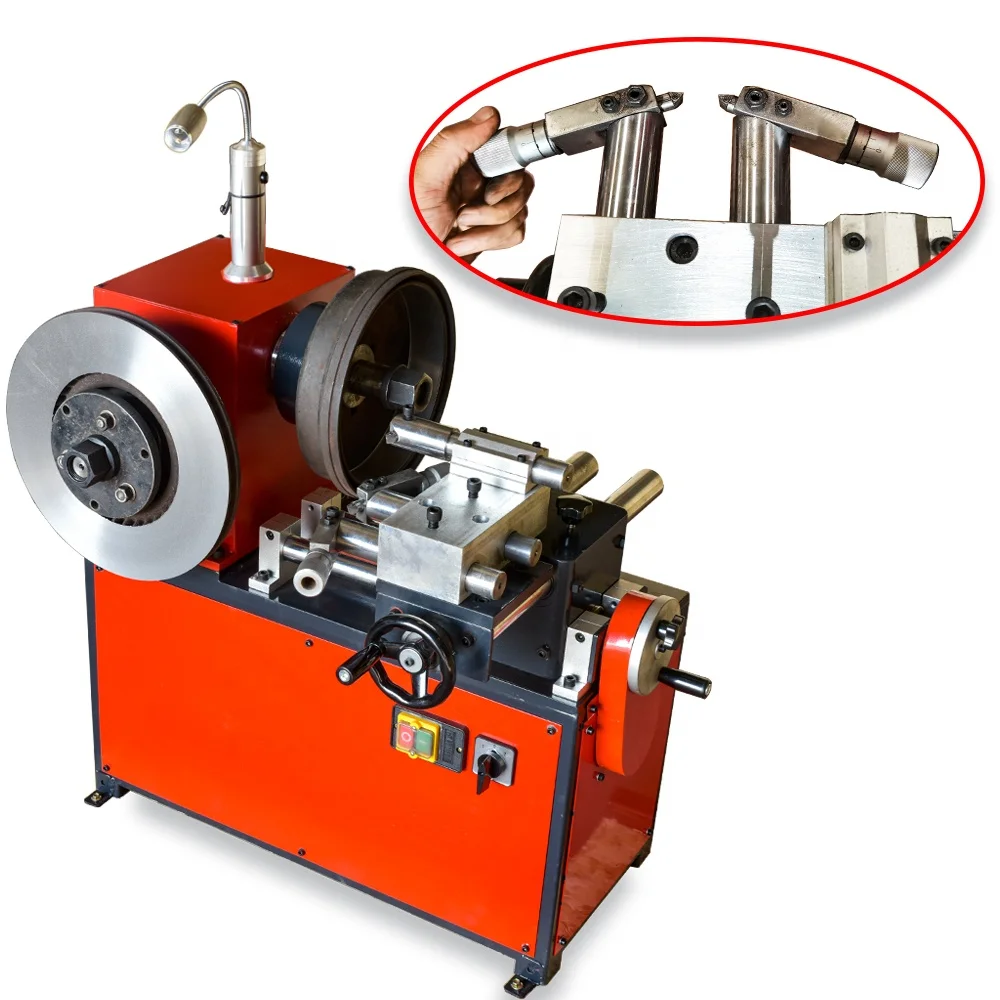

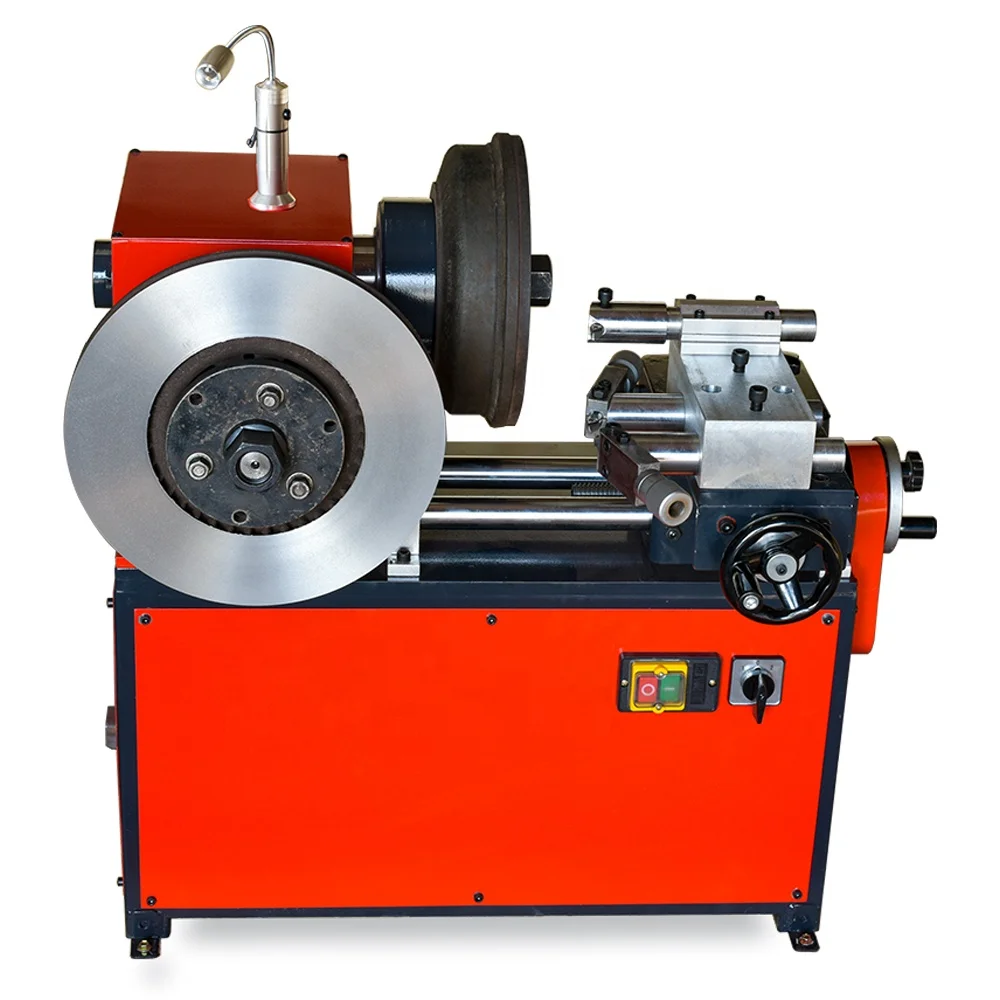

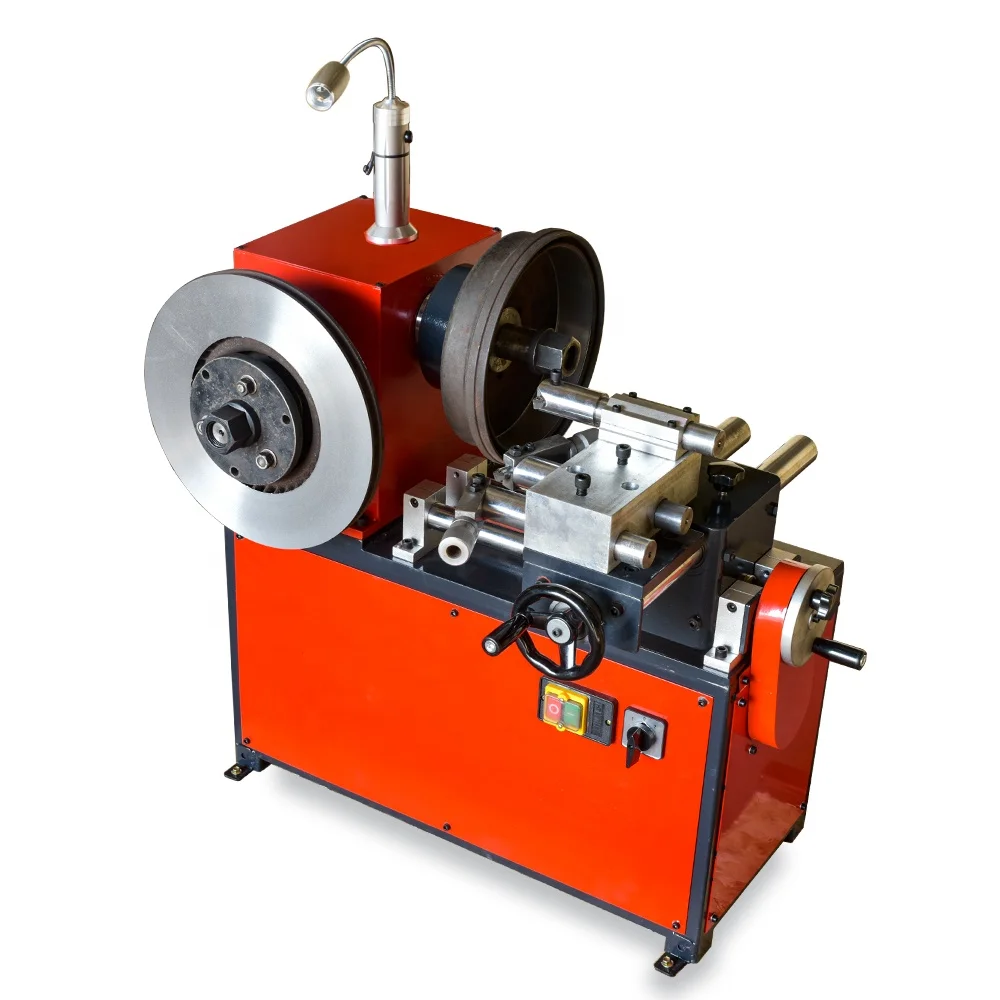

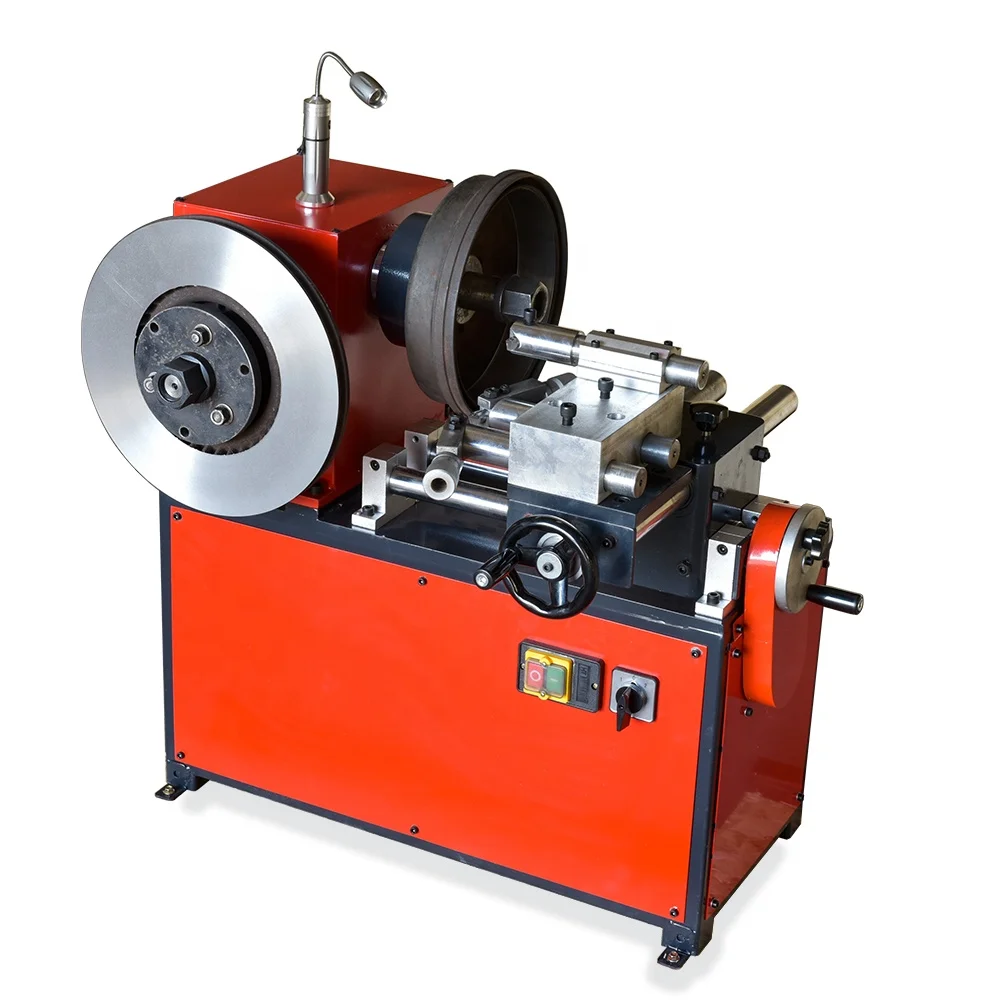

Brake Drum Lathe Machine Brake Disc Lathe Machine Brake Disc And Drum Lathe Machine
1. This brake disc and brake drum lathe machine C9335A is suitable for turning, repairing and cutting the brake discs and brake drums or hub for almost all cars and mini cars;
2. This brake disc and brake drum lathe machine C9335A has positive (forward) and negative (backward) automatic tool feeding;
3.We could connect the lathe machine with the brake disc or brake drum by using the screws and fixtures directly, and it has the features of convenient installation, high processing precision and one-time molding (no second processing).

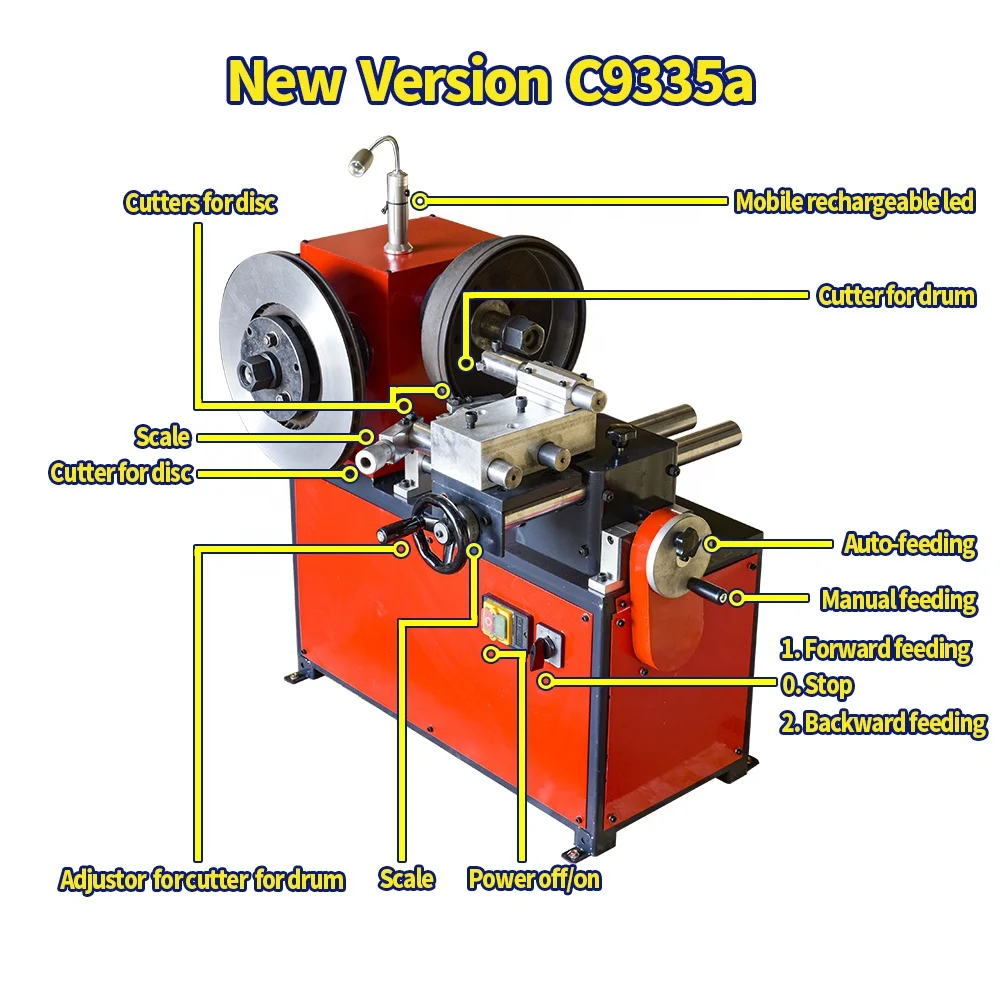

New improvements on the base of old model:

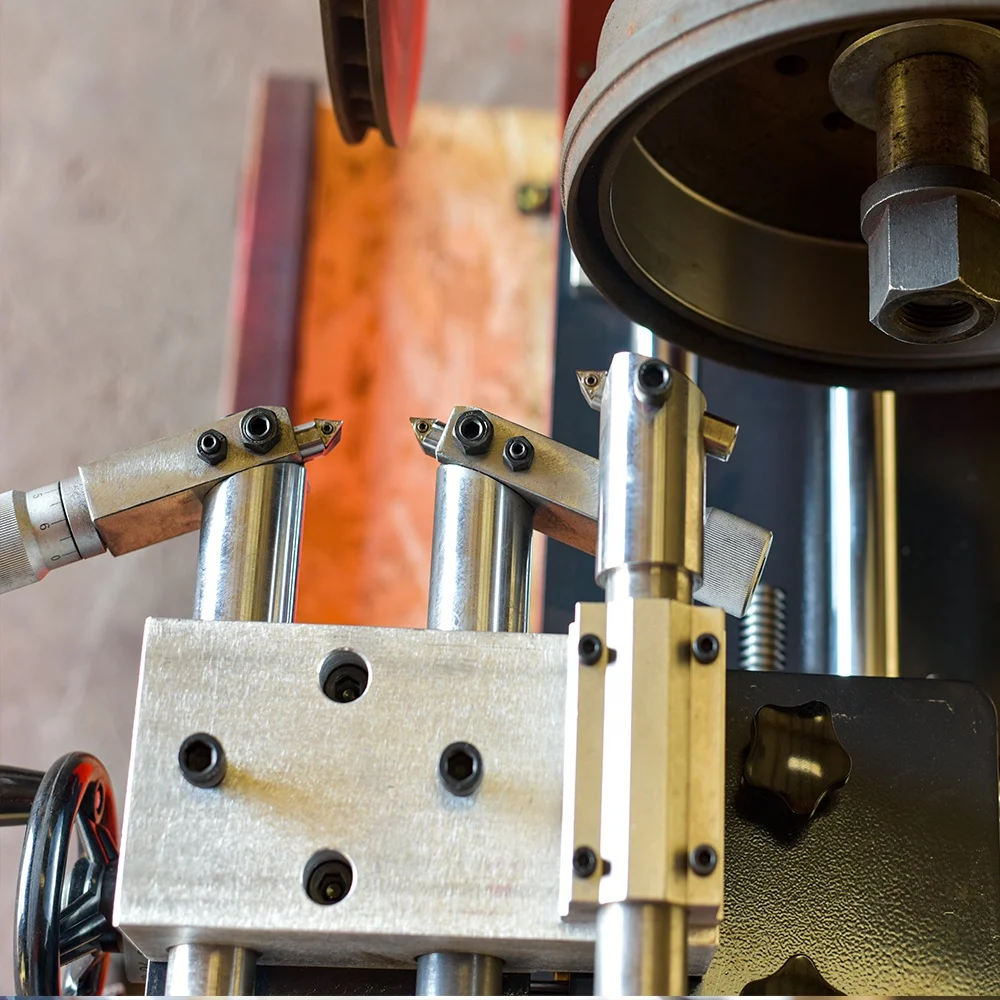

1. Adopts double tool - feedings and self - locking device, when cutting brake disc, the 2 cutters can be adjusted to move the surface of disc respectively, easy and saving time operating, high machining efficiency and fast cutting speed;
2. Adopts professional 220v 1 ph motor 750w with reducer, more powerful and stable;
3. Adopts industrial chain transmission instead of belt transmission, more precision and stable processing, and no need to change belt timely.
1 | Name | Brake Disc Brake Drum Lathe Machine for All Cars |
2 | Model | C9335a |
3 | Range cutting diameter | Brake disc: 180mm (Min diameter) - 400mm (Max diameter); Brake drum: 220mm (Min diameter) - 350mm (Max diameter) |
4 | Rotational speed | 93r/min |
5 | Axial travel of tool (max.) | For brake disc: 130mm; For brake drum: 100mm |
6 | Infinitely variable speed feed /feeding capacity | 0.075mm/r |
7 | Motor | 750w with reducer |
8 | Machine / Package size (L*W*H) | 775*575*770mm / 805*605*800mm |
9 | Net / Gross weight | 155kg / 185kg |
10 | Electrical Voltage | 220v ± 10% / single phase, 50hz/60hz |
11 | Producting time | 7-20 days |
12 | Warranty | 2 years (no man-made reasons) |
13 | Machine consumable / wear part | Cutter (one cutter can cut 200-300 pics brake disc) |
14 | Machine maintenance recommended | 1. Lubricating grease for main shaft gear (once every month); 2. Lubricating oil for transmission industrial chain (once every 2 months); 3. Change reducer gear oil (once every 6-8 months). |
