Трехфазный 20KW 380V до 220V RST-20000 электронные

Трехфазный 20KW 380V до 220V RST-20000 электронные

Категория: Other Tools >>>
Поставщик: Shantou,Rongtai,Packing,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.78 $*	0.29 $*
Aug-18-2025	0.98 $*	0.47 $*
Jul-18-2025	0.3 $*	0.43 $*
Jun-18-2025	0.74 $*	0.82 $*
May-18-2025	0.65 $*	0.49 $*
Apr-18-2025	0.52 $*	0.36 $*
Mar-18-2025	0.65 $*	0.69 $*
Feb-18-2025	0.96 $*	0.90 $*
Jan-18-2025	0.40 $*	0.86 $*

Характеристики

Product Description

RST-20000 Servo electronic transformer

Origin: China
Model: the RST
Manufacturer: Rongtai

Capacity: 0.5 KVA - 80 KVA
Input voltage: 3 380V (three phase four wire)
Output voltage: 3 200V OR 220V (three-phase three-wire)
Frequency: 50/60 hz
Efficiency: 99.8% or higher

Note: If the RST servo transformer you purchased needs to be connected with Yaskawa 7-Series products, please contact us, because the internal configuration of the RST servo transformer connected with Yaskawa 7-Series products needs to be changed.

Instructions:
This product is a ultra small volume three-phase servo electronic transformer designed specifically for the mismatch between the voltage required by China's power grid and ac servo motor. Changed the current traditional coil transformer cumbersome, heating, power consumption, installation of difficult problems; It is an ideal product to solve the problem of power adapter in industrial control system without causing pollution to power grid. It is different from power frequency transformer in essence and has a qualitative leap in performance.
This product adopts the most cutting-edge microwave devices, three-phase bridge switch resonance technology, SPWM modulation technology, completely eliminate EMI interference, widely used in Mitsubishi, Yaskawa, Panasonic, Sanyo, Delta, Towon, Fuji, Hitachi, Omron, AB, Farak, Schneider, Luster, Kobe, Lenz, Guangzhou... Such as all imported, domestic servo systems; The capacity of the transformer can range from 05KVA to 80KVA, satisfying the matching of all servo motor voltages

Product Features:
A. Intelligent, automatic adjustment of the current required by the servo system, the output current is not affected by the fluctuation of the grid voltage, so that the servo motor can play A better performance;
B. Beautiful appearance, small volume, light weight and convenient transportation;
C. It can be hung arbitrarily and used conveniently;
D. Low calorific value, no noise, anti-interference, good electromagnetic compatibility;
E. Strong instantaneous overload capacity, 3-5 times of rated current;
F. Safe and reliable, with a design life of over 20 years;
G. Superior performance, efficiency ≥99.8%;
H. Typical applications: CNC machine tools, testing machines, winding machines, teaching machines, packaging machinery, semiconductor machinery, printing machinery, textile equipment, automation equipment industry;

Environmental requirements
When the product is in use, its environmental requirements are as follows:
A. No water droplets, steam and oily dust
B. Non-corrosive, flammable, explosive gases and liquids
C. No floating dust or metal particles
D. Where there is no violent vibration or impact vibration
E. No more than 4500M above sea level
F. Good ventilation
G. Ambient temperature: Maximum temperature: +50℃

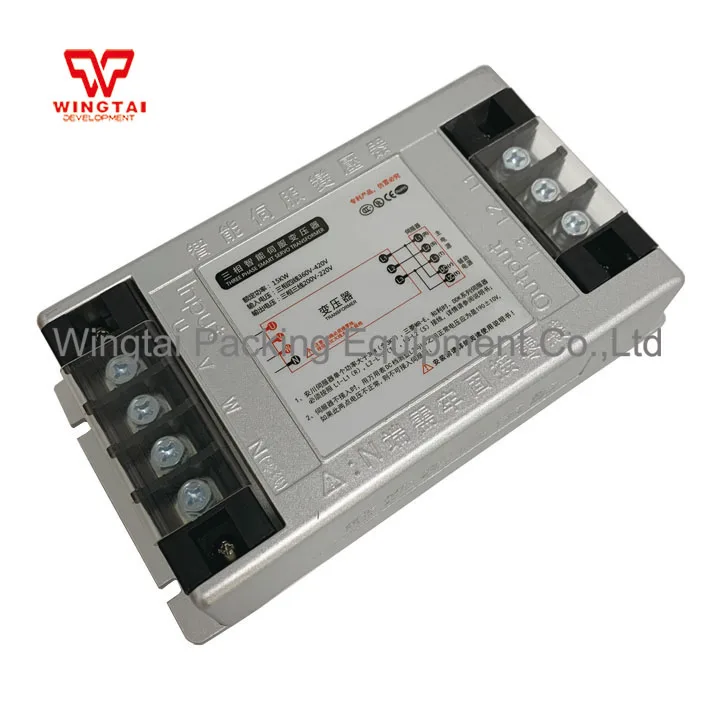

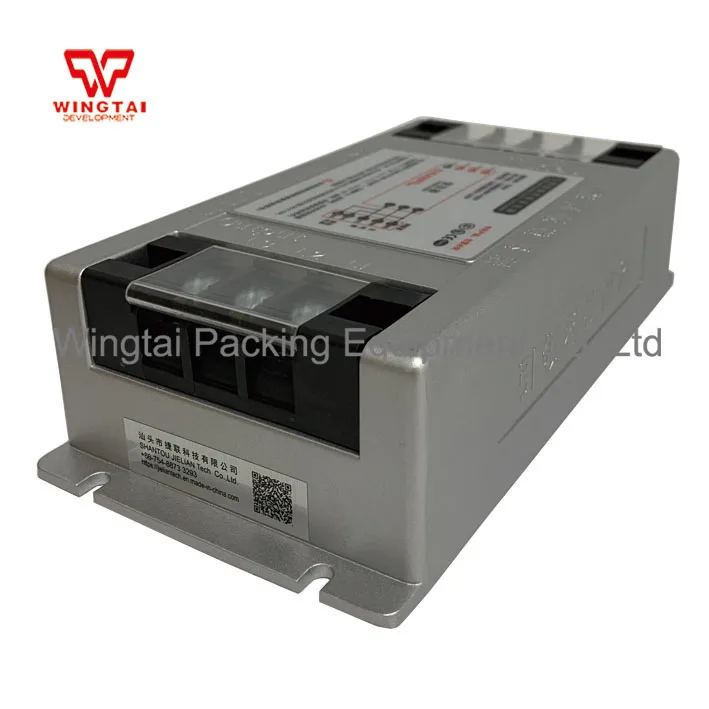

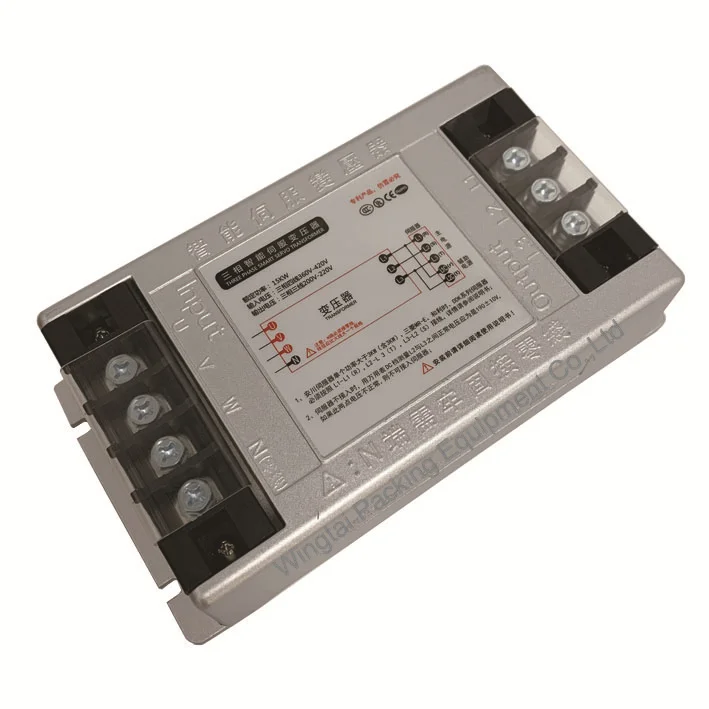

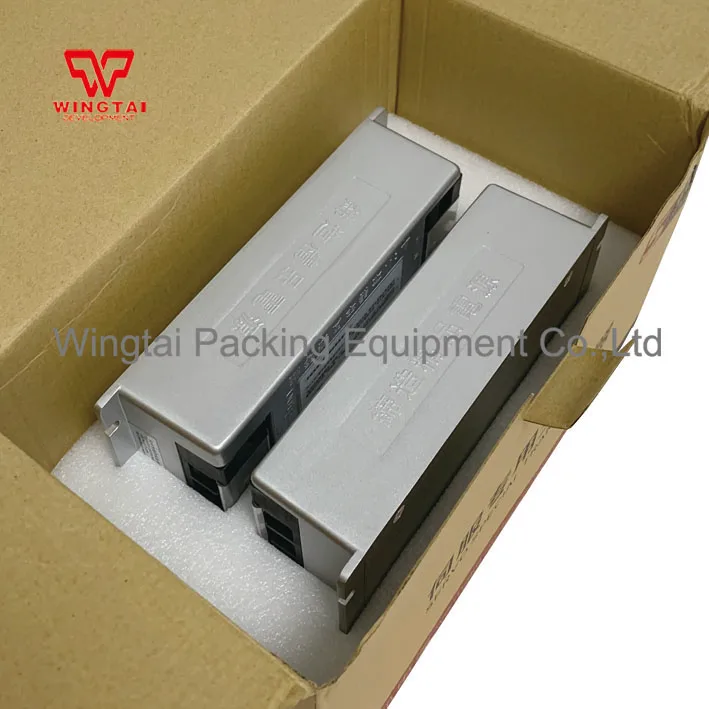

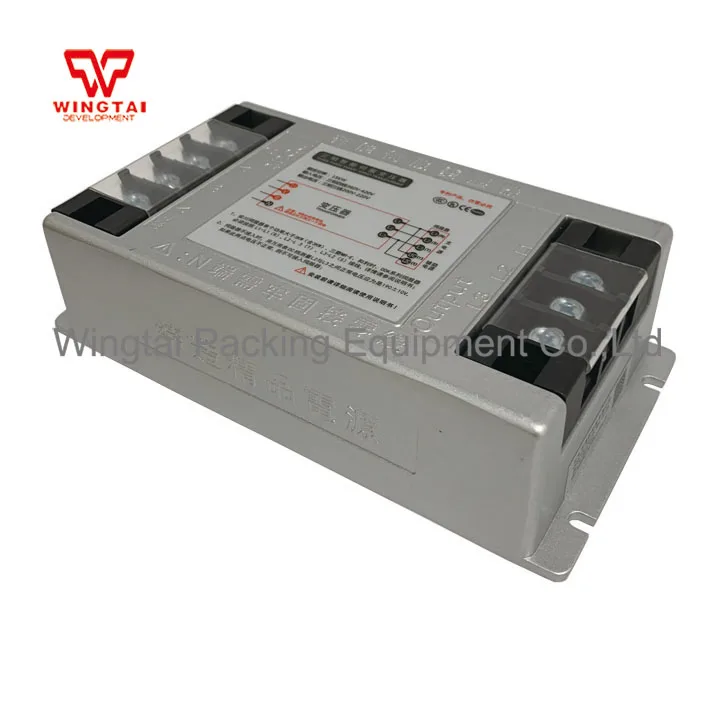

Product Images

Product Paramenters

Model	Rated Capacity（KW）	Contour Dimension（mm）	Weight（KG）	Servo motor capacity（KW）
RST-2000	2KW	142x76x46	0.5	The servo motor capacity should be less than 90% of the servo transformer capacity
RST-3000	3KW	142x76x46	0.6
RST-4500	4.5KW	142x76x46	0.7
RST-5500	5.5KW	213x76x46	0.9
RST-7500	7.5KW	213x76x46	1.0
RST-11000	11KW	215x105x55	1.3
RST-13000	13KW	215x105x55	1.4
RST-15000	15KW	215x105x55	1.6
RST-20000	20KW	253x115x128	2.5
RST-25000	25KW	253x115x128	2.7
RST-30000	30KW	253x115x128	2.9
RST-40000	40KW	253x115x128	3.2
RST-50000	50KW	...	...
RST-60000	60KW	...	...
RST-80000	80KW	...	...
