Color coating production machine continuous line with electrical transmission system
Product Description

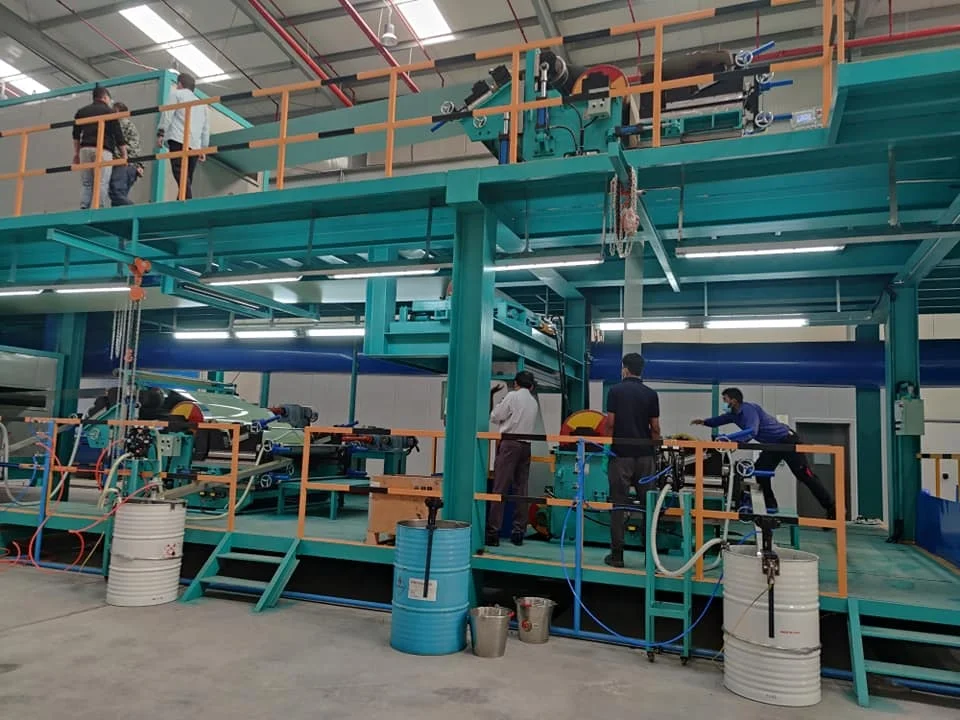

The printing production line of colored steel plate is a complete of production equipment for colored steel plate.The production line is composed of equipment of uncoiler, sewing machine,tension machine,storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc..
Processing Procedure
Decoiler------Gripper------Clipper------Sewing Machine------Burr Masher------Tension Machine------Entry Looped------Tension Machine------Soak Degreasing------Drying Machine------Defatted Liquid Spray------Brush Machine------Drying Machine------Drying Machine------Water Cleaning------Brush Machine------Drying Machine------Soak water------Steam dry oven------Passivating machine------Passivating dry oven------Rectify deviation machine------Tension Machine------Bottom coating machine------Primary coating dry oven------Recetify deviation machine------Tension machine------Printing machine------Finishing machine------finishing coating dry oven------cooling system------rectify deviation machine------water cooling------drying machine------Tension machine------Exits looped------Tension machine------Film covering machine------Clipper------Recoiler
Product Specification
Raw Material | Electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc. |
Thickness | 0.2 ~ 2.0mm |
Width | 800 ~ 1650mm |
Process Speed | 30 ~200m/min |
Production Capacity | 30,000 - 20,0000 tons / year |
Coating Thickness | 5-25μm for the single-layer dry film on the front face (regulated as required) 5-15μm for the single-layer dry film on the back face (regulated as required) |
Energy Type | Natural Gas, LPG, Electricity |
Product Grade | Construction plate, decoration plate and household appliance plate. |
Detail Image
Sewing Machine
Tensioner
Coating Machine
Plate Shear
1. Line Type: one coating and one baking, two coating and two baking, three coating and three baking.
2. Coating Type: epoxy resin, polyurethane, polyester, polypropylene, polyvinyl fluoride, silicon modified polyester
3. Chemical Coater: dual-head two-roll type (used in prime coating), three-roll type (used in finish coating front side), two-roll type (used in finish coating back side).
4. Catalytic Incineration System: RCO, RTO, DTO
5. We also provide Pattern Printing System to produce pattern color coated steel, like the wood grain, brick grain, stone grain, marble grain and so on.
Packing & Delivery
Standard sea worthy package in container.
