Used Tyre Recycling Machine Pyrolysis Plant Waste To Oil

Model of Waste Pyrolysis Plant Tyre And Plastic Pyrolysis To Oil Machine With Installation:



Model	Reactor size	Material	Handling capacity/batch	Seaworthy packing
LJ-8	2200*6000mm	Q245R /Q345R boiler steel ,16mm thickness	5 tons	2*40HQ
LJ-9	2200*6600mm		8tons
LJ-10	2600*6600mm		10tons	1*40FR+1*40HQ
LJ-12	2800*6600mm	Q245R/Q345R boiler steel ,18mm thickness	12tons
LJ-15	2800*7700mm		15tons

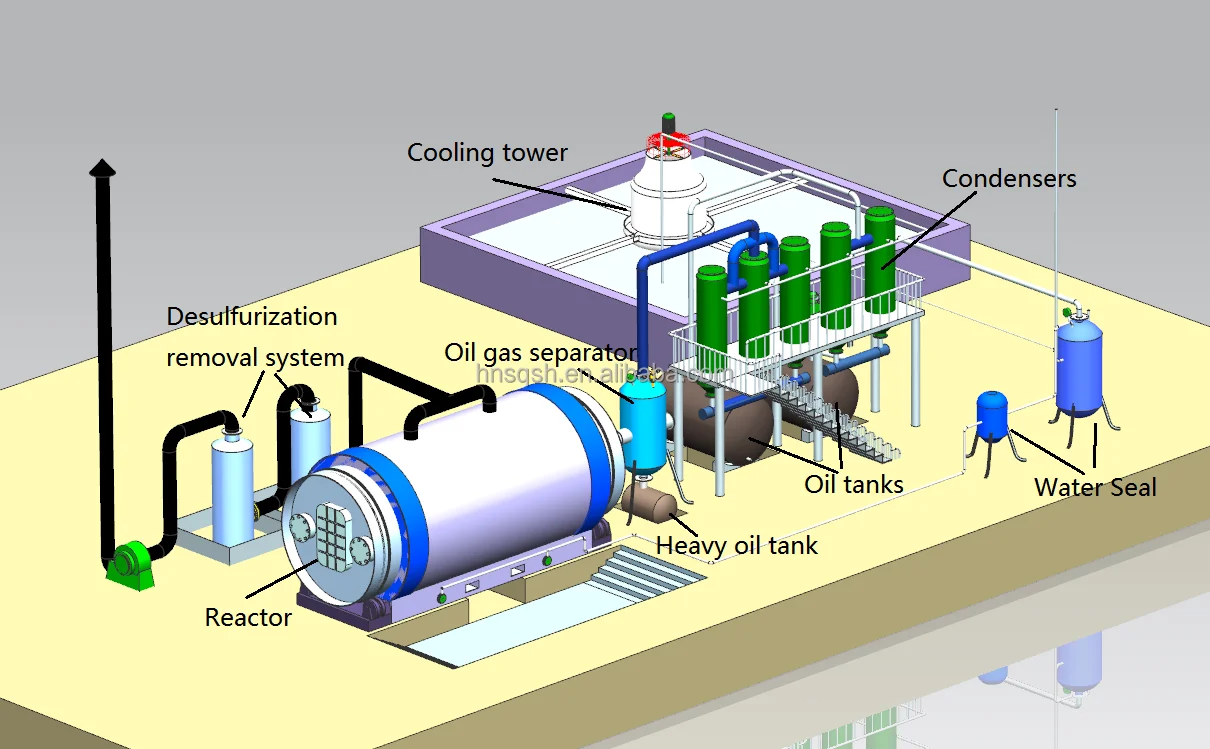

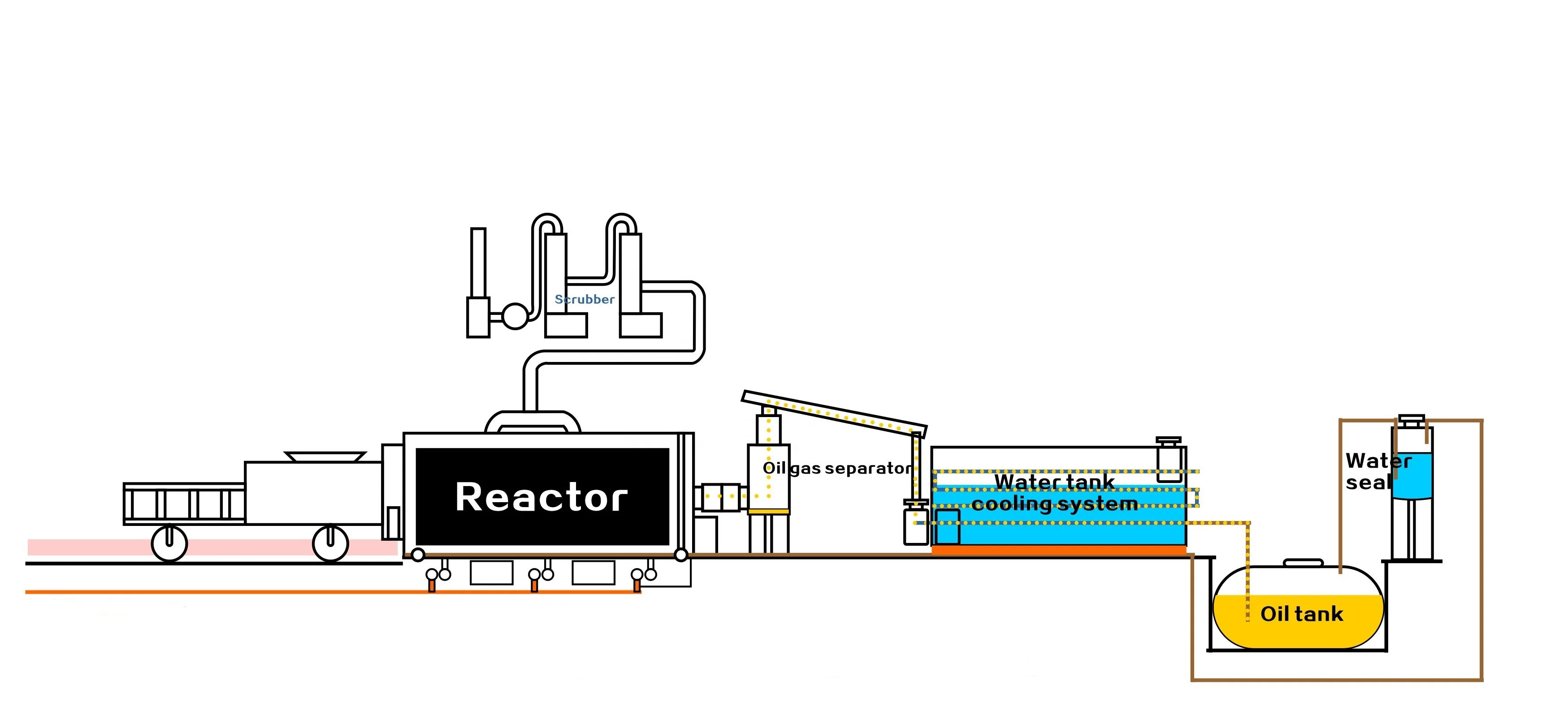

Working process of tire fuel oil plant:

First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.

End of Product from New Design Tire Recycling Equipment Pyrolysis Oil To Diesel Machine:

NO.	Name	Percentage	Usage
1	Tyre oil	40%~45%	* can be sold directly as fuel. * can be refine to diesel and gasoline by oil distillation plant
2	Carbon black	37%	* can be sold directly. * can be refined by carbon black processing machine to make it finer (1500mesh finer). *can be made into pellet by pellet machine
3	Steel wire	13%	*can be sold directly as steel or iron.
4	Waste gas	5%	* can be recycled to heat up the reactor

used car tire recycle to oil pyrolysis plant  Installation:  We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate the waste rubber recycle to fuel oil plant.



Oil recycling Land requirement:  300sq meters(10m*30m)



Pyrolysis Plant Exporting Experience:

America:	Brazil, Canada, Colombia, USA,
Middle East:	Dubai,  Jordan, Saudi Arabia, Turkey
Europe:	Albania , Bosnia and Herzegovina
Asia:	Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar
Africa:	Ghana, Mozambique, Zambia
