Внутренняя стеновая панель из сосновой древесины
US $2.71-$2.73
100 мм Толщина холодильная камера Монтажная пластина для пенополиуретан плиты холодное помещение хранения изоляции Многослойные панели
- Категория: Building Boards >>>
- Поставщик: Hangzhou,Sino-Cold,Sci-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.16 $* | 0.24 $* |
| Aug-18-2025 | 0.30 $* | 0.67 $* |
| Jul-18-2025 | 0.56 $* | 0.64 $* |
| Jun-18-2025 | 0.54 $* | 0.7 $* |
| May-18-2025 | 0.25 $* | 0.28 $* |
| Apr-18-2025 | 0.42 $* | 0.33 $* |
| Mar-18-2025 | 0.33 $* | 0.43 $* |
| Feb-18-2025 | 0.86 $* | 0.77 $* |
| Jan-18-2025 | 0.87 $* | 0.41 $* |
Характеристики
Heat insulation pu sandwich panel is fit for the projects which have serious require of keeping warm. Polyurethane core material is considered to the best material in keeping warm and thermal insulation.
The Polyurethane block material become steady after it froth, then combining with metal plates.
The characteristics of this technique are: the polyurethane froth, after this chemical reaction is stable, we cut the polyurethane into pieces which with different thickness. The polyurethane sheet material has stable physical performance, it can combine with pre-painted hot galvanized steel sheets or stainless steel sheet, the surface is smooth and the whole performance is excellent.
Polyurethane foam is been sandwiched between the two outer skins and hence is known as PU sandwich panels.

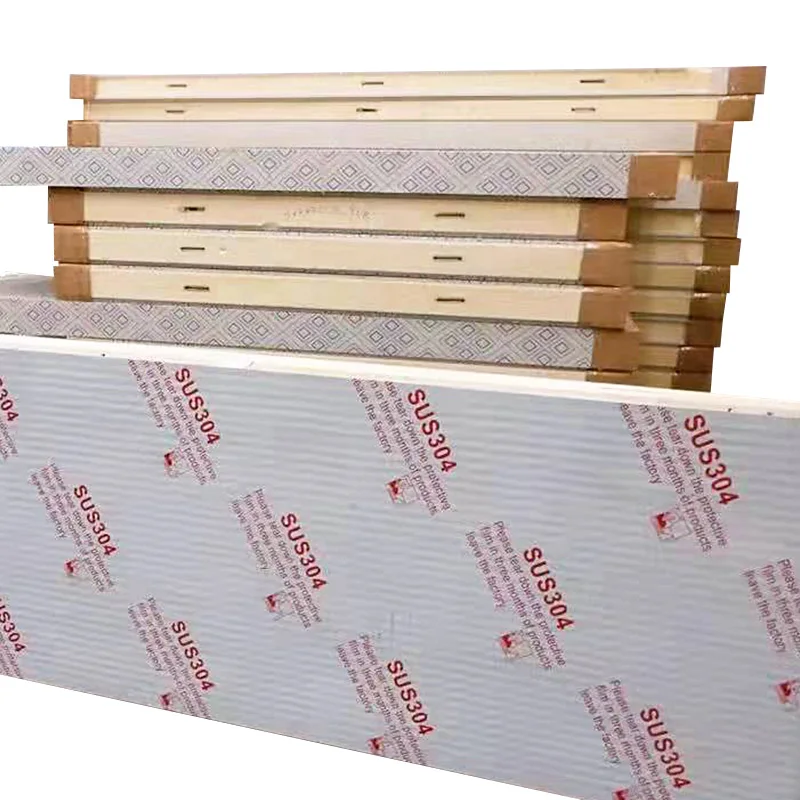

We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.Those two layers are available in profile with zinc coated, galvanized steel, embossed aluminum, stainless steel or other material sheets.
Product Name: | Cold room PU panel |
Density: | 40±2 kg/m3 |
Tempreature Range: | -50℃~+50℃ |
Heat Transfer： | 0.022W/(m·k) |
Compressive Strength: | 0.27Mpa |
Water Absorption: | 0.17 kg/m3 |
Bending Strength: | 0.41 Mpa |
Fireproofing: | B2 |
Surface Material: | Color Steel Sheet / Stainless Steel Sheet /Non-slip Aluminum Sheet |
Prepainted Galvanized Steel Sheet / Embossed Aluminum Sheet | |
Interior Material: | High quality polyurethane (PU) |

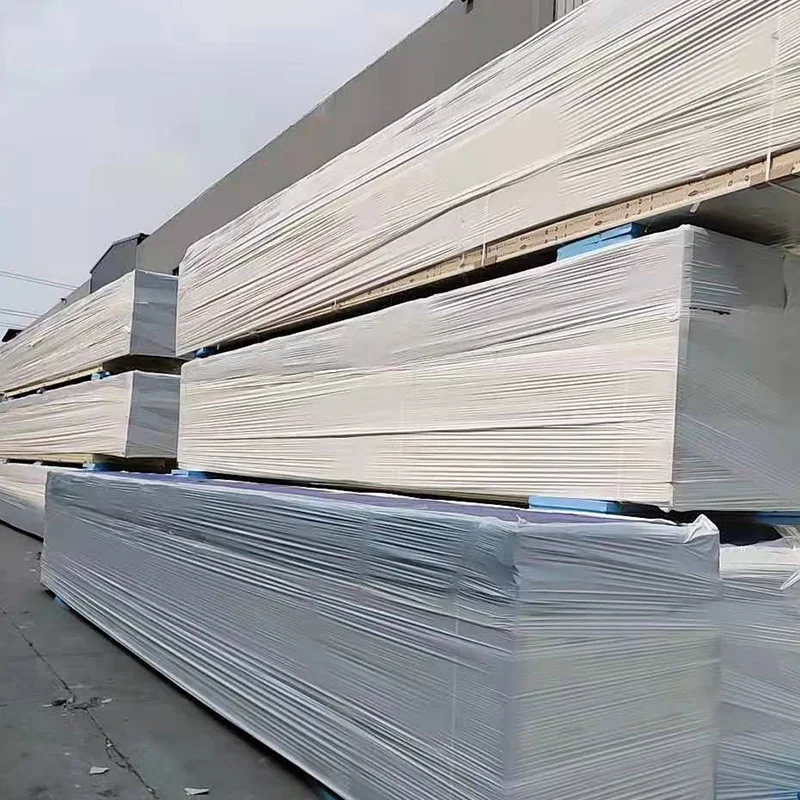

Package: | High quality plastic paper and wrap angle |
Thickness of polyurethane panel | Application temperature |
50mm | Temperature 5°C or above |
75mm | Temperature -5°C or above |
100mm | Temperature -15°C or above |
120mm | Temperature -25°C or above |
150mm | Temperature -35°C or above |
200mm | Temperature -45°C or above |
Sino-Cold is a professional refrigerator full supply chain solution provider, specializing in designing and producing refrigeration equipment. The main products include cold room solution, semi-hermetic, hermetically sealed refrigerant compressors and condenser units, various kinds of air-cooled condensers, air coolers and related accessories.
It is our consistent principles and pursuits to produce high quality products, provide excellent after-sale service and establish sincere credibility.
Our company has been awarded the ISO9001 International Quality Management System Certification.
All the products have obtained the production license of national refrigeration industry.
VR
1. Heat insulation pu sandwich panel (the abbreviation of Polyurethane is PU sandwich panel) have characteristics of high load intensity, small water-absorptive, and the stability in either low temperature or the high temperature is good, the service life is long, thermal insulation performance is outstanding and so on.
2. Good supporting, heat resistant, sound-insulated, sound absorption, light quality, non-toxic, odorless, green environmental protection.
3. PU freezer sandwich panels can cementation with the steel plates, the cements, the fiberboards, the bricks and many kinds of materials very strongly, in usual situation, it would not fall off and still strengthen its thermal insulation and waterproofing effects.
4. The unique produce foaming craft made the products have exquisite and even abscesses, the Thermal conductivity is low, the size stability is good, is very suitable for both of the low pressure and the high pressure construction.
2. Good supporting, heat resistant, sound-insulated, sound absorption, light quality, non-toxic, odorless, green environmental protection.
3. PU freezer sandwich panels can cementation with the steel plates, the cements, the fiberboards, the bricks and many kinds of materials very strongly, in usual situation, it would not fall off and still strengthen its thermal insulation and waterproofing effects.
4. The unique produce foaming craft made the products have exquisite and even abscesses, the Thermal conductivity is low, the size stability is good, is very suitable for both of the low pressure and the high pressure construction.
Why Choose Us
1.We are factory,100% dirct manufacture.
2.With quality guaranted and competitive price.
3.Strict quality control system to keep superior products.
4.We work with you and provide solutions that fit your budgenting requirements.
2.With quality guaranted and competitive price.
3.Strict quality control system to keep superior products.
4.We work with you and provide solutions that fit your budgenting requirements.
Applications

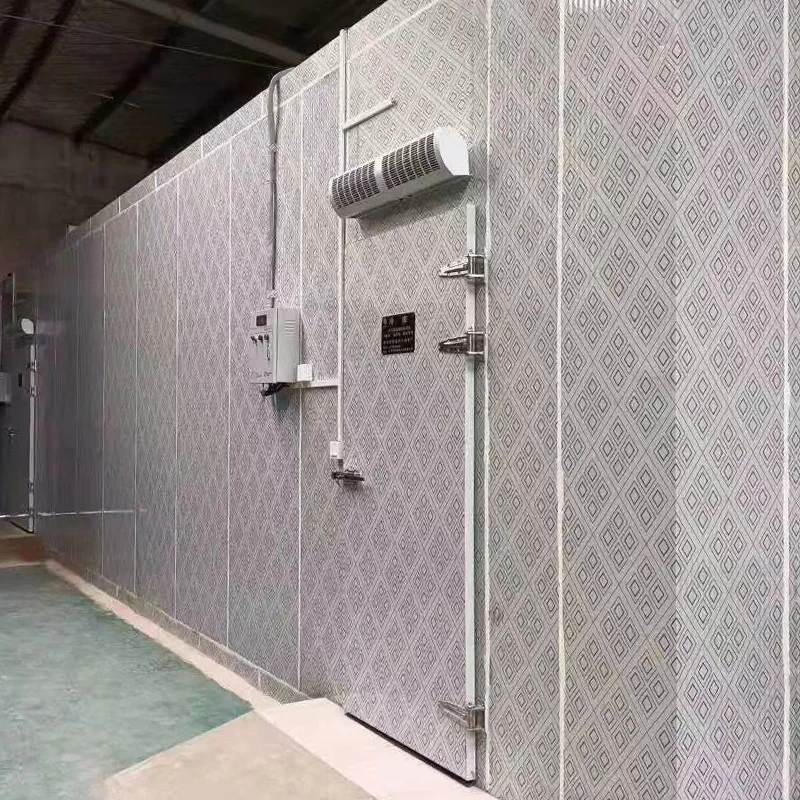

Heat insulation pu sandwich panel can be used in large industrial plants,warehouses supermarkets, hospitals,stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.
The temporary facilities in the construction site, such as office, warehouse.It is also widely used for cleaning workshops, industrial factory buildings, office buildings, stadiums, villas, and public buildings, etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Where is your factory located in?
A: In Changzhou, Jiangsu near Shanghai.
Q:How to visit your factory?
A; It will only take you one hour by high speed train from Shanghai to Changzhou. Or will take you 2.5 hours by plane from
Guangzhou Airport to Changzhou. Normally two flights per day.
Q:Could you send samples to us?
A:Our samples are free, but freight collect.
A: We are factory.
Q:Where is your factory located in?
A: In Changzhou, Jiangsu near Shanghai.
Q:How to visit your factory?
A; It will only take you one hour by high speed train from Shanghai to Changzhou. Or will take you 2.5 hours by plane from
Guangzhou Airport to Changzhou. Normally two flights per day.
Q:Could you send samples to us?
A:Our samples are free, but freight collect.
