Product Description
Specification
The ASA 5506-X, 5506W-X, and ASA 5506H-X have been validated for the following security standards certifications:
* Federal Information Processing Standards (FIPS) 140-2 for ASA 9.12.x
* Common Criteria (CC) certification for the Network Device Collaborative Protection Profile, (NDcPPv2.1), VPN Gateway Module(VPNGW_MOD_v1.0), and Firewall Module (FW_MOD_v1.3) for ASA 9.12.x
* Common Criteria (CC) certification for the Network Device Collaborative Protection Profile, (NDcPPv2.2E), the IPS Extended Profile (IPSEP 2.11), Firewall Collaborative Protection Profile Module (MOD_FW_v1.4e), and Virtual Private Network Gateway Protection Profile Module (MOD_VPNGW_v1.1) for FTD 6.4.x
ASA 5506W-X Wireless Features
* Federal Information Processing Standards (FIPS) 140-2 for ASA 9.12.x
* Common Criteria (CC) certification for the Network Device Collaborative Protection Profile, (NDcPPv2.1), VPN Gateway Module(VPNGW_MOD_v1.0), and Firewall Module (FW_MOD_v1.3) for ASA 9.12.x
* Common Criteria (CC) certification for the Network Device Collaborative Protection Profile, (NDcPPv2.2E), the IPS Extended Profile (IPSEP 2.11), Firewall Collaborative Protection Profile Module (MOD_FW_v1.4e), and Virtual Private Network Gateway Protection Profile Module (MOD_VPNGW_v1.1) for FTD 6.4.x
ASA 5506W-X Wireless Features
The ASA 5506W-X supports two high-performing spatial stream rates over a deployable distance with high reliability when serving clients. The ASA 5506W-X contains two simultaneous dual-band radios (2.4-GHz and 5-GHz 802.11n MIMO radios) in a controller-based mode or autonomous mode. It has integrated internal antennas that support full interoperability with leading 802.11n clients. The radio hardware supports Unified, FlexConnect, and Monitor-mode.
The ASA 5506W-X has the following processor features:
* 128 MB NAND flash size
* 1 MB NOR flash size
* 128 MB DDR2 memory bus, x32
The 2.4 GHz and 5 GHz 802.11n radios have the following features:
* 802.11n standard compliant
* A-MPDU TX
* HT Duplicate Mode
* 2TX x 2RX
* 2-spatial streams, 300 Mbps PHY rate
* Maximal ratio combining (MRC)
* Cyclic Shift Diversity (CSD)
* MCS0-MCS15; Short or Long Guard Intervals
* DFS for UNII-2 and UNII-2 Extended channels, including 0.5us radar pulse detection
The ASA 5506W-X is configured with four single-band, inverted-F antennas (two 2.4-GHz and two 5-GHz), which are evenly spaced inside the top of the chassis. Peak gains are approximately 3 dBi in the 2.4-GHz band and 5 dBi in the 5-GHz band.
The ASA 5506W-X has the following processor features:
* 128 MB NAND flash size
* 1 MB NOR flash size
* 128 MB DDR2 memory bus, x32
The 2.4 GHz and 5 GHz 802.11n radios have the following features:
* 802.11n standard compliant
* A-MPDU TX
* HT Duplicate Mode
* 2TX x 2RX
* 2-spatial streams, 300 Mbps PHY rate
* Maximal ratio combining (MRC)
* Cyclic Shift Diversity (CSD)
* MCS0-MCS15; Short or Long Guard Intervals
* DFS for UNII-2 and UNII-2 Extended channels, including 0.5us radar pulse detection
The ASA 5506W-X is configured with four single-band, inverted-F antennas (two 2.4-GHz and two 5-GHz), which are evenly spaced inside the top of the chassis. Peak gains are approximately 3 dBi in the 2.4-GHz band and 5 dBi in the 5-GHz band.
ASA 5506H-X Features
The ASA 5506H-X is a hardened version of the 5506-X with a ruggedized chassis, power supply, SSD, and four
ports instead of eight. It is ruggedized because it supports a much wider industrial operational temperature range (-20C to 60C), meets the harsh EMI and environmental criteria for the IEC1613 and IEC 61850-3 power substation standards, and meets IEC60529 IP40 for ingress protection.
The ASA 5506H-X ships with a ruggedized 5V-5.3V barrel power supply that provides 22 W. Or you can order an optional DC power supply that supplies 24V DC (part number PWR2-20W-24VDC) or 20W 20-60V DC (part number PWR2-22W-20-60VDC).
ports instead of eight. It is ruggedized because it supports a much wider industrial operational temperature range (-20C to 60C), meets the harsh EMI and environmental criteria for the IEC1613 and IEC 61850-3 power substation standards, and meets IEC60529 IP40 for ingress protection.
The ASA 5506H-X ships with a ruggedized 5V-5.3V barrel power supply that provides 22 W. Or you can order an optional DC power supply that supplies 24V DC (part number PWR2-20W-24VDC) or 20W 20-60V DC (part number PWR2-22W-20-60VDC).

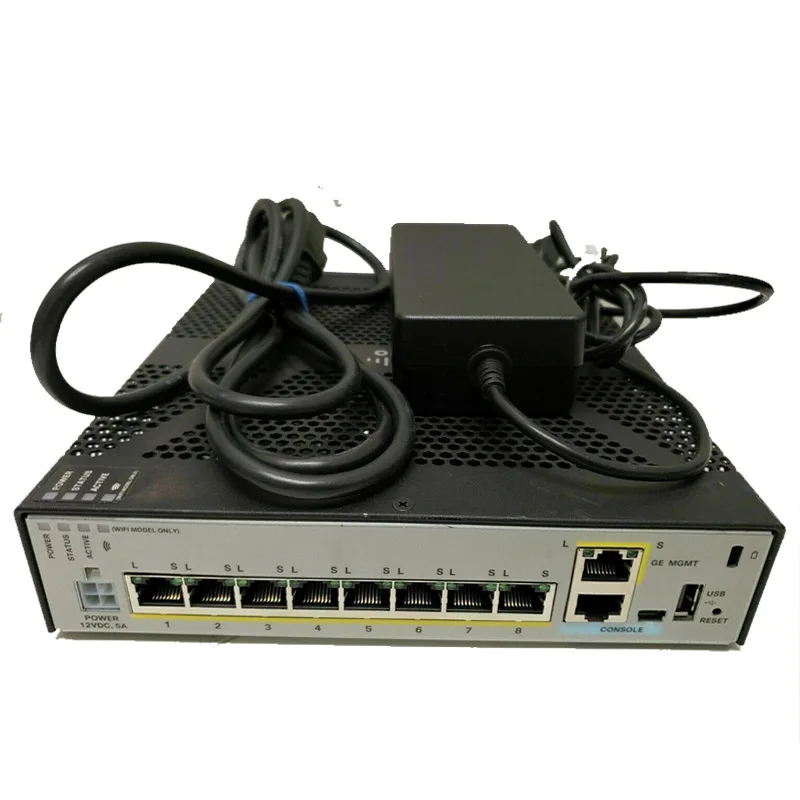

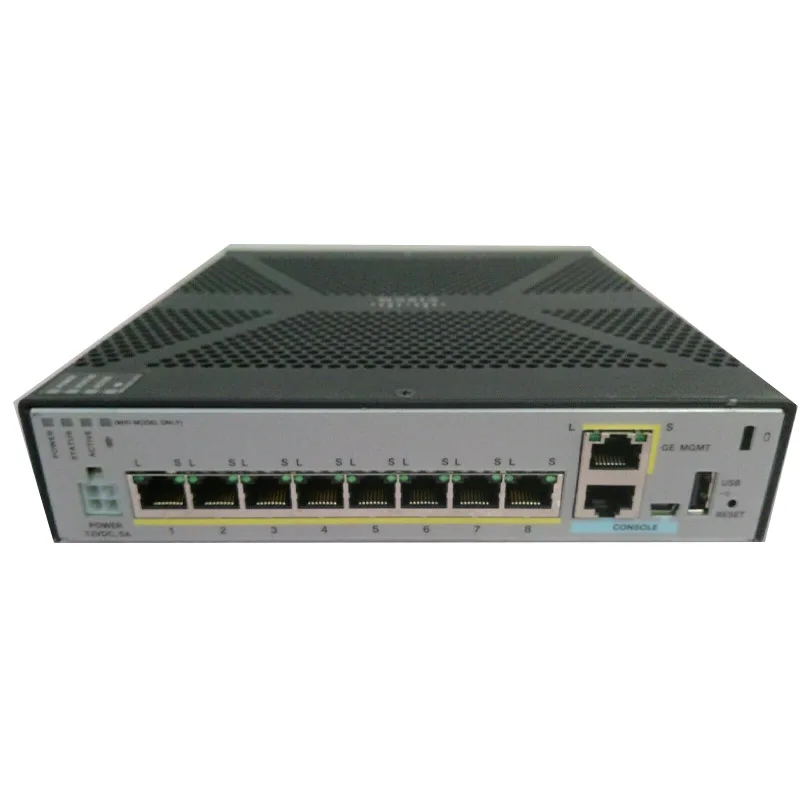

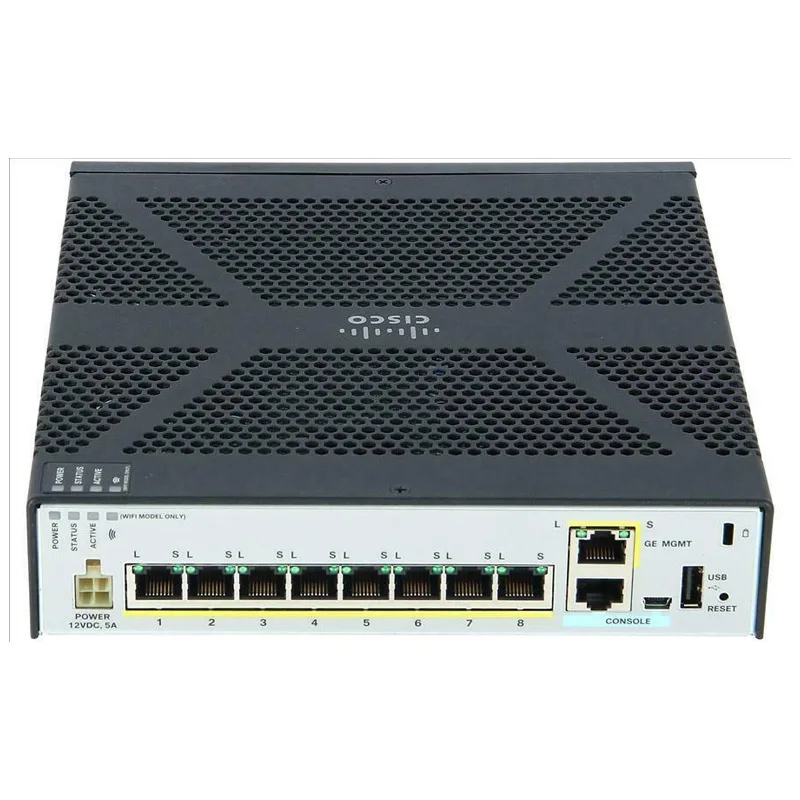

1 | Status LEDs The locations and meanings of the status LEDs are described in LEDs. | 2 | Power cord socket The chassis power-supply socket. See Power Supply Modules for more information about the chassis power supply. |
3 | Network data ports Eight Gigabit Ethernet RJ-45 (8P8C) network I/O interfaces. The ports are numbered (from left to right) 1, 2, 3, 4, 5, 6, 7, 8. Each port includes a pair of LEDs, one each for connection status and link status. The ports are named and numbered Gigabit Ethernet 1/1 through Gigabit Ethernet 1/8. See Network Ports for additional information. | 4 | Management port A Gigabit Ethernet interface restricted to network management access only. Connect with an RJ-45 cable. |
5 | Console ports Two serial ports, a mini USB Type B, and a standard RJ-45 (8P8C), are provided for management access via an external system. See Console Ports for additional information. | 6 | USB port A standard USB Type A port is provided that allows the attachment of an external device, such as mass storage. See Internal and External Flash Storage for additional information. |
7 | Reset button A small recessed button that if pressed for longer than three seconds resets the ASA to its default “as-shipped” state following the next reboot. Configuration variables are reset to factory default. However, the flash is not erased and no files are removed. | 8 | Lock slot The slot accepts a standard Kensington T-bar locking mechanism for securing the ASA. |
