Большой емкости цинобактерия трубопровод фотореактор 1000-5000
- Категория: Reactors >>>
- Поставщик: Liaoning,Koen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 38675.50 $* | 40609.93 $* |
| Aug-15-2025 | 38350.8 $* | 40268.77 $* |
| Jul-15-2025 | 32175.95 $* | 33784.92 $* |
| Jun-15-2025 | 37700.32 $* | 39585.25 $* |
| May-15-2025 | 32825.52 $* | 34466.10 $* |
| Apr-15-2025 | 37050.94 $* | 38903.46 $* |
| Mar-15-2025 | 36725.89 $* | 38561.63 $* |
| Feb-15-2025 | 36400.16 $* | 38220.56 $* |
| Jan-15-2025 | 36075.24 $* | 37879.31 $* |
Характеристики
Products Description

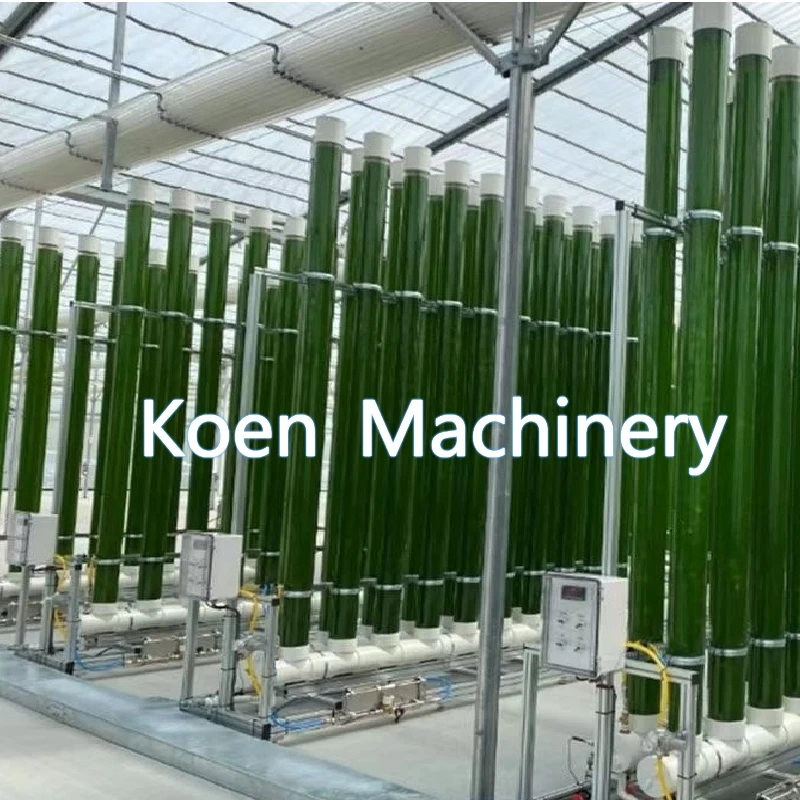

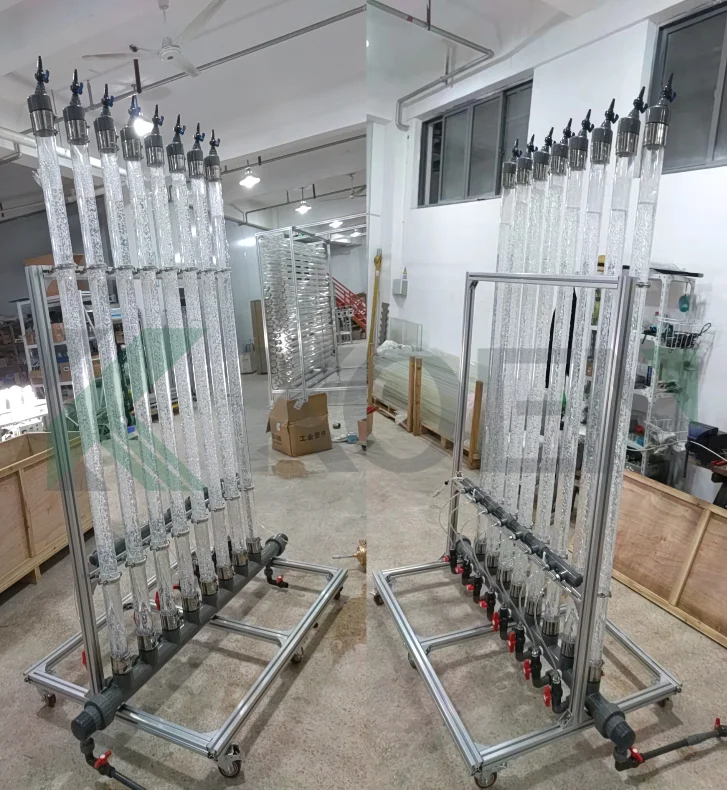

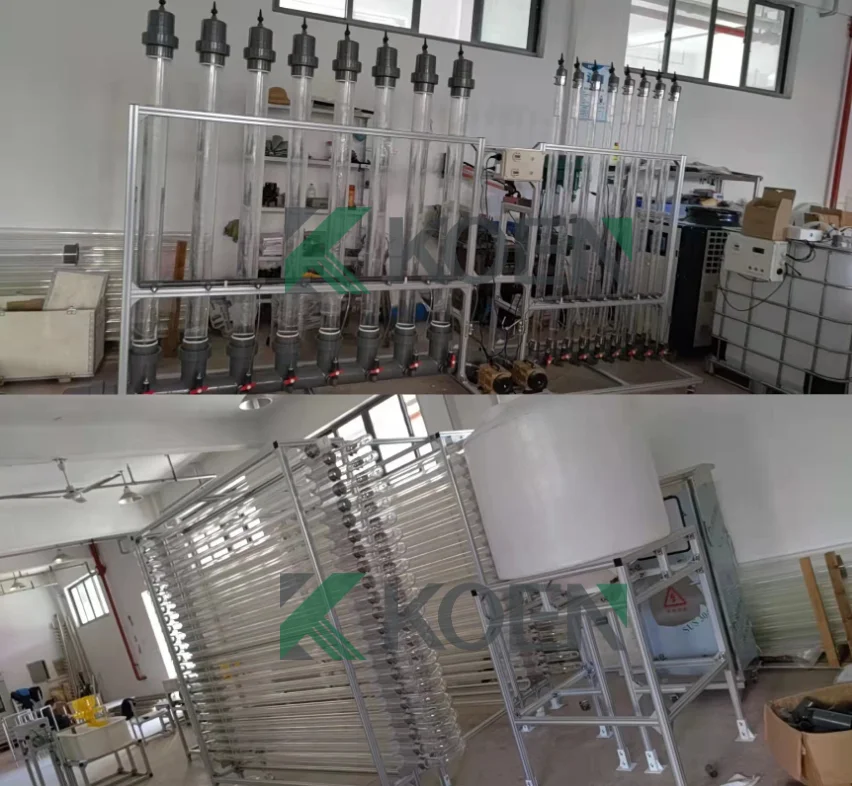

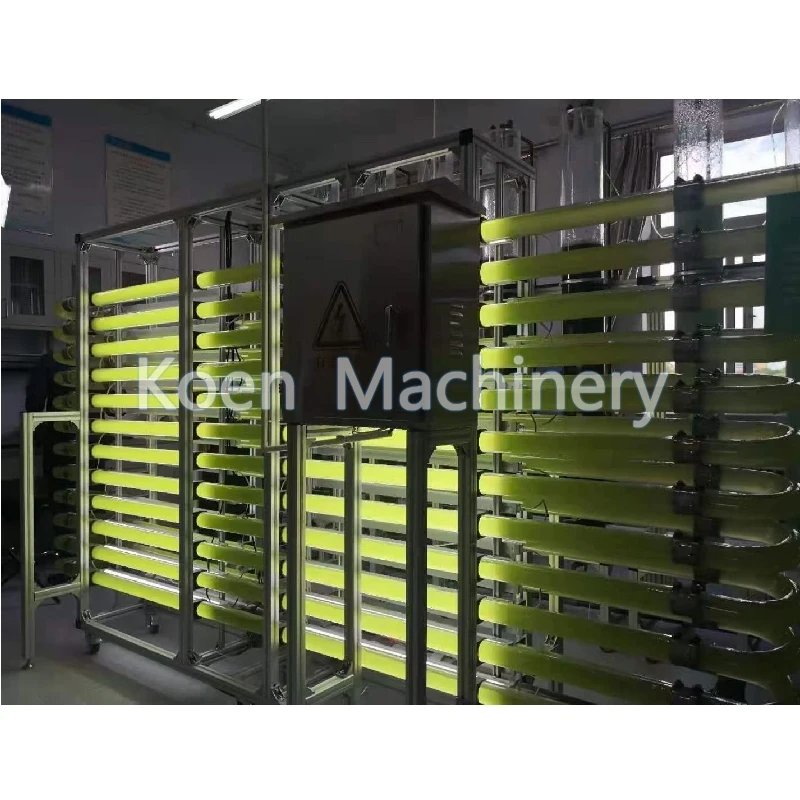

The algae PBR pipline bioreactor ,can make depend on customer 's requirements . from 5L-50000L.
For Chlorella, spirulina, Dunaliella salina,Schizosporophyta, all type algae culture .
After then ,can use tubular centrifuge/disc stack centrifuge for algae solid harvest .
GQ150 Tubular Centrifuge for Spirulina algae harvest
GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
GQ type two phase solid-liquid separator is suitable for solid content lower than 3% algae solution ,the batch capacity is about 100L/Batch . after separation , the algae solid collect in the tubular centrifuge drum
Model | GQ75 | GQ105 | GQ125 | GQ150 |
Drum Diameter | 75mm | 105mm | 125mm | 150mm |
Rotating Speed of Drum | 19000rpm | 16300rpm | 15000rpm | 14000rpm |
Centrifugal force | 15200G | 15620G | 15700G | 15600G |
Capacity | 20-50L/H | 50-200L/H | 100-300L/H | 100-500L/H |
Motor | 1.5kw | 2.2KW | 3.0KW | 3.0KW |
Weight | 300kg | 500kg | 550kg | 600kg |
Dimension | 760*450*1120mm | 840*500*1600mm | 900*550*1600mm | 950*600*1600mm |
Disc Stack Centrifuge with self cleaning
Introduction:
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying
operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying
operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
Model | Capacity (L/h) | Drum diameter (mm) | Drum speed (r/min) | Separation factor | Power (KW) | Weight (kg) | Dimension (mm X mm X mm) |
DHC230 | 1500 | 230 | 6930 | 6170 | 2.2 | 240 | 850X625X985 |
DHC300 | 2000 | 300 | 7200 | 6950 | 4 | 550 | 865X645X1100 |
DHC 360 | 3000 | 360 | 6500 | 7000 | 5.5 | 650 | 900X600X1150 |
DHC400 | 4000 | 400 | 6500 | 7500 | 7.5 | 750 | 1100X1050X1250 |
DHC500 | 8000 | 500 | 5800 | 8500 | 18.5 | 1200 | 1250X1000X1550 |
Packing
Company Profile
Koen Machinery Co.,Ltd, We are the professional manufacturer of pharmaceutical machinery, separation equipment,food machinery, liquid filling machine and packing machine. specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and pharmacy project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
