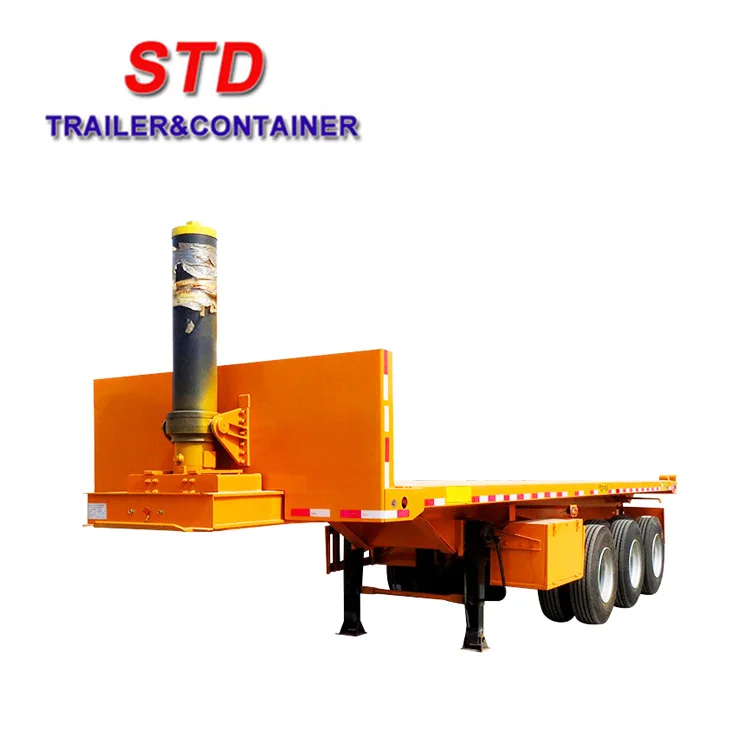

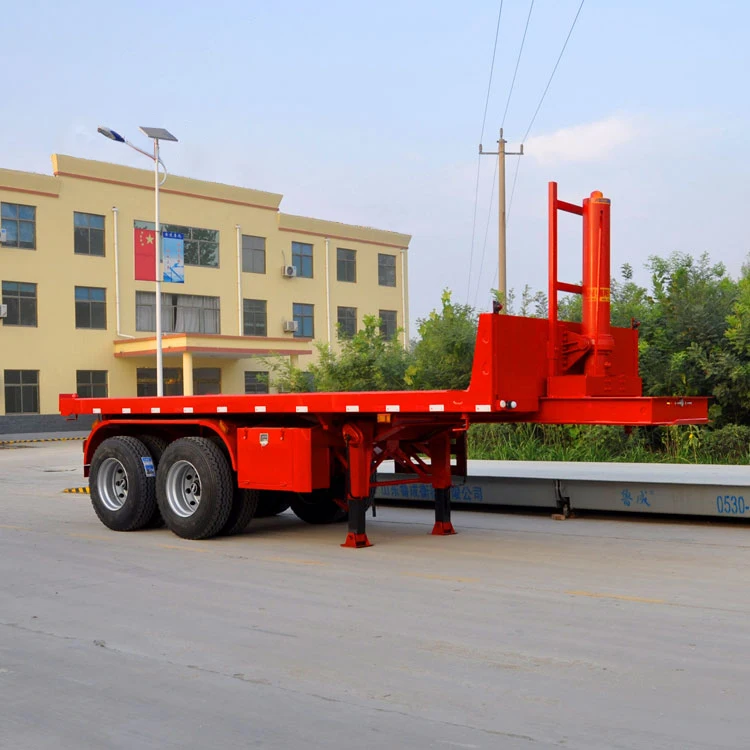

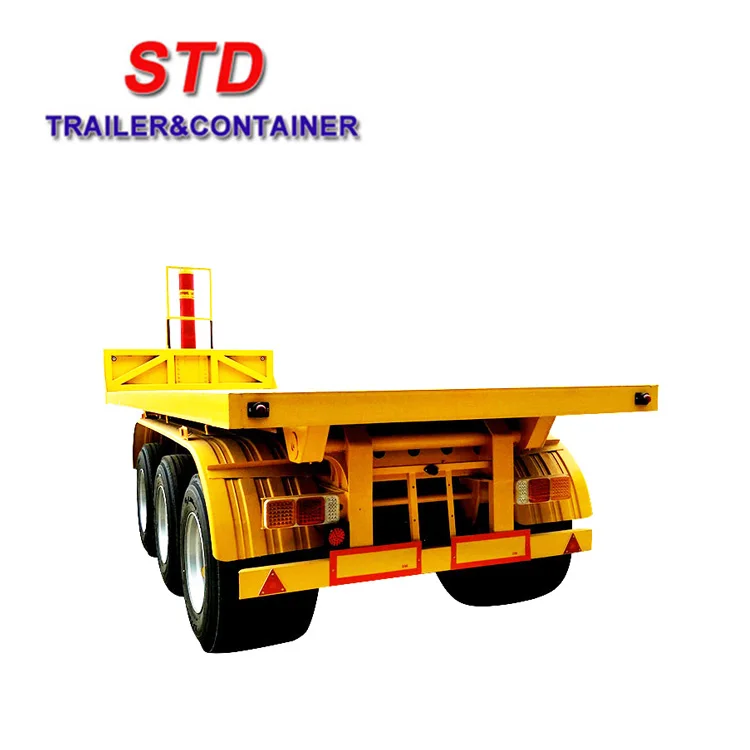

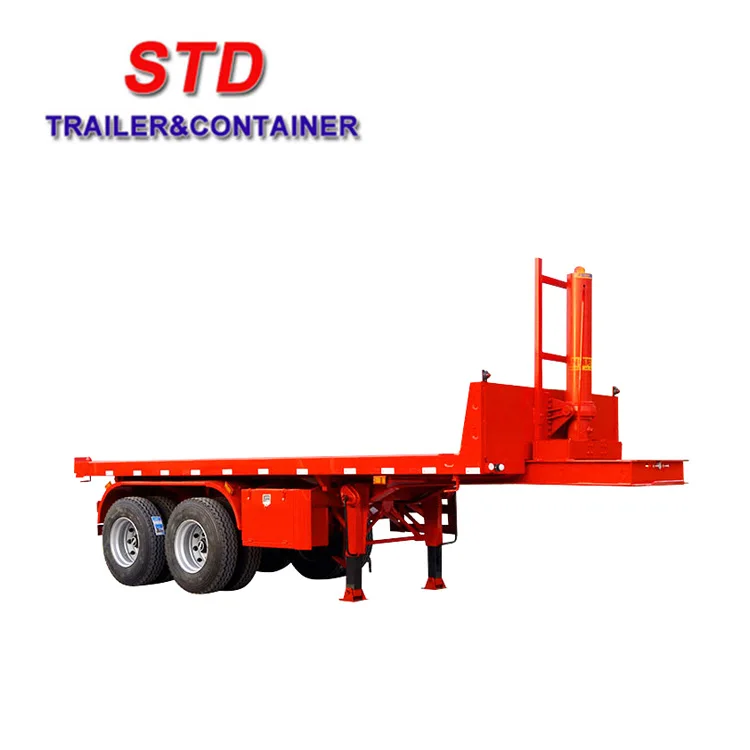

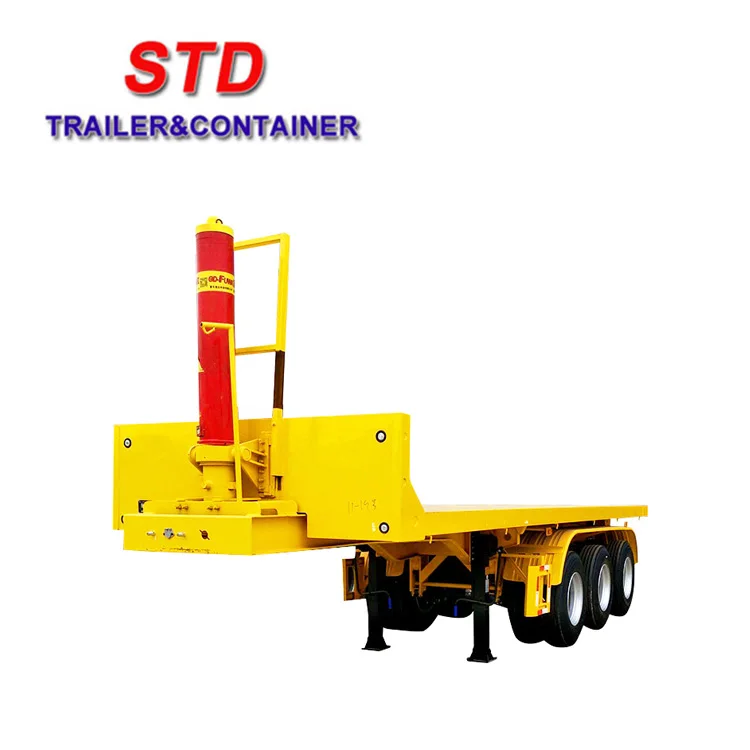

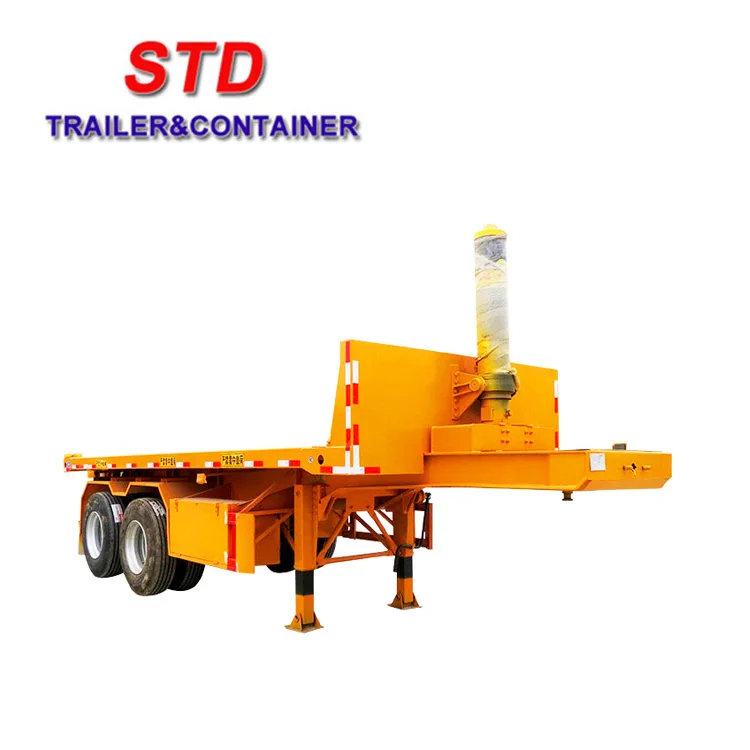

2021 г. новый самосъемный полуприцеп с платформой 7 м трейлер

Цена:*

Количество:

SPECIFICATION

Specification
1. Dimension	7700 x 2500 x 3500 mm (Two Axles, LxWxH) 9500 x 2500 x 3500 mm (Three Axles, LxWxH)
2. Tare weight	6100 kg (Two Axles); 7600 kg (Three Axles)
3. Payload	30 tons
4. Function	Self-unloading
5. Hydraulic system	Chinese brand
Standard Configuration
1. Axle	13 ton Fuwa brand, 150x150, 2/3 units
2. Suspension	Mechanical suspension
3. King pin	2", bolt on type
4. Landing gear	28 ton, two speeds
5. Tire	11R22.5, 8/12 units
6. Rim	8.25-22.5, 8/12 units
_{7. Braking system}	Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
8. Electrical system	Dual circuit, 7-way split pin receptacle plug, LED light
9. ABS	None
_{10. Painting}	Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
11. Mudguard	Plastic or steel
12. Others	1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Air suspension	Firestone, Goodyear or Chinese brand
2. Lift axle system
3. ABS system	Wabco or Chinese brand
4. Axle	BPW 12 ton
