Машина для литья под давлением пластиковых зеркальных рамок продажи специализированный производитель
- Категория: Injection Molding Machines >>>
- Поставщик: Guangdong,Min-Hui,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.13 $* | 0.51 $* |
| Aug-16-2025 | 0.92 $* | 0.56 $* |
| Jul-16-2025 | 0.30 $* | 0.65 $* |
| Jun-16-2025 | 0.40 $* | 0.25 $* |
| May-16-2025 | 0.64 $* | 0.67 $* |
| Apr-16-2025 | 0.90 $* | 0.13 $* |
| Mar-16-2025 | 0.7 $* | 0.62 $* |
| Feb-16-2025 | 0.23 $* | 0.87 $* |
| Jan-16-2025 | 0.72 $* | 0.82 $* |
Характеристики
Product Details

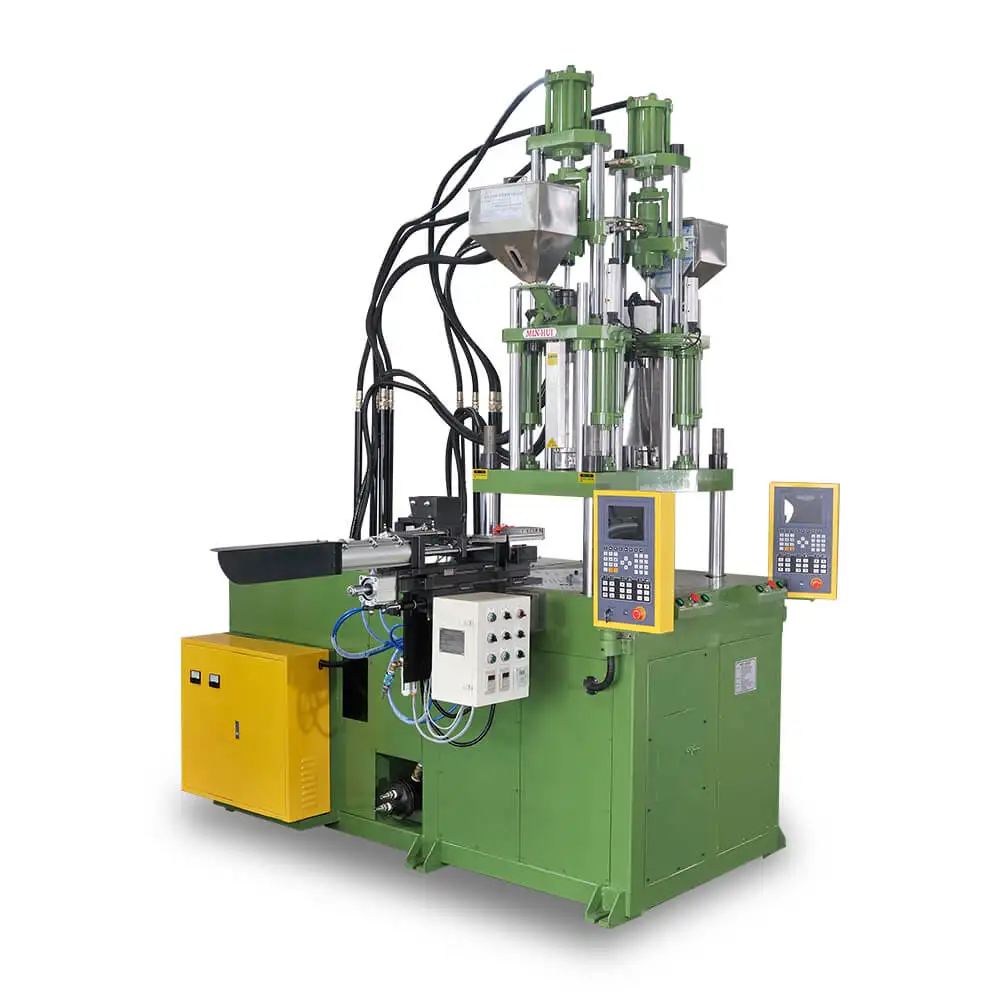

Glasses Specialized Machine 120T
Refine on R & Dand manufacturing of spirit,the courage to challenge the molding technology summit, to professional, efficient, stable industry based on.
Details Images
Product Paramenters
MODEL | UNIT | MH-120T-2C | ||||||
INJECTION UNIT | Screw Diameter | mm | 28 | 32 | 36 | |||
Injection Pressure | Kgf/cm2 | 2170 | 1661 | 1312 | ||||
Theoretical shot Volume | cm3 | 80 | 104 | 132 | ||||
Max.Shot Weight | g/oz | 74.4/2.6 | 96.7/3.4 | 122.9/3.6 | ||||
Injection Rate | cmls | 73 | 95 | 121 | ||||
Screw Stroke | mm | 118 | ||||||
Screw Rotation Speed | rpm | 0-240 | ||||||
Nozzle Contact Force | Tons | 3.5 | ||||||
Nozzle Retraction Stroke | mm | 150 | ||||||
Stages of temperature control | 3 | |||||||
CLAMPING UNIT | Clamping Force | Tons | 60 | |||||
Platen Size | mm | 440*400 | ||||||
Distance between columns | mm | 460*330 | ||||||
Min mould thickness | mm | 180/260 | ||||||
Opening Stroke | mm | 200 | ||||||
Max. mould Opening Distance | mm | 380/460 | ||||||
Ejector force | Tons | 2.65 | ||||||
Ejector stroke | mm | 40 | ||||||
HYDRAULIC SYSTEM | Max.Hydaulic Pressure | Kgf/cm2 | 140 | |||||
Oil Pump Outpet | cc/rec | 31 | ||||||
Cooling Water Consumption | Kw | 500-700 | ||||||
Motor Power | Kw | 11(15HP) | ||||||
Barrel Heating Power | Kw | 2.4 | ||||||
Total WattageNet | Kg | 6.4 | ||||||
OTHERS | Machine Dimension （L*W*H) | m | 2.3x2.1X3.6 | |||||
Machine Weight | Kg | 7000 | ||||||
Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?
Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
