Zple Реверсивный высокая точность низкий уровень шума прямой зуб планетарный редуктор с 3-я ступенями 120-L2 коробки передач редуктора скорости
- Категория: Speed Reducers >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.88 $* | 0.44 $* |
| Aug-18-2025 | 0.71 $* | 0.10 $* |
| Jul-18-2025 | 0.97 $* | 0.33 $* |
| Jun-18-2025 | 0.21 $* | 0.82 $* |
| May-18-2025 | 0.78 $* | 0.11 $* |
| Apr-18-2025 | 0.54 $* | 0.78 $* |
| Mar-18-2025 | 0.66 $* | 0.20 $* |
| Feb-18-2025 | 0.90 $* | 0.55 $* |
| Jan-18-2025 | 0.45 $* | 0.23 $* |
Характеристики

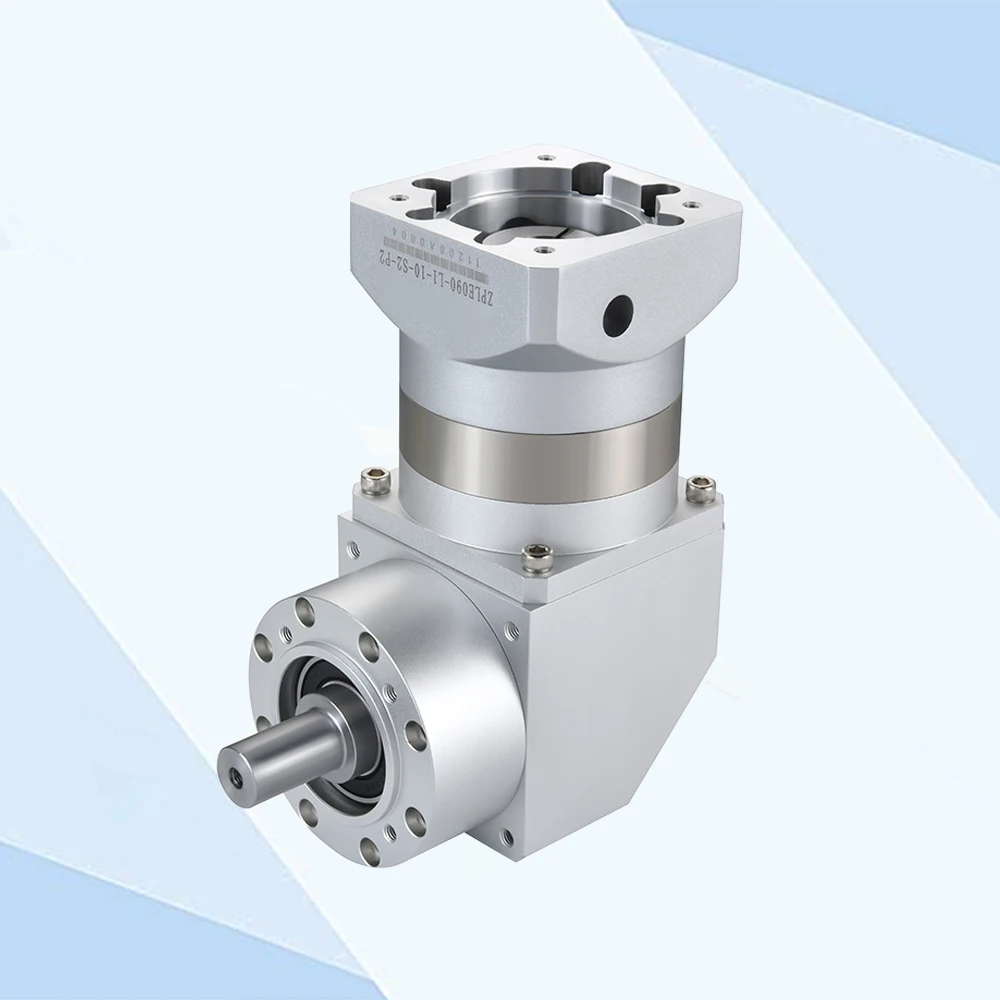

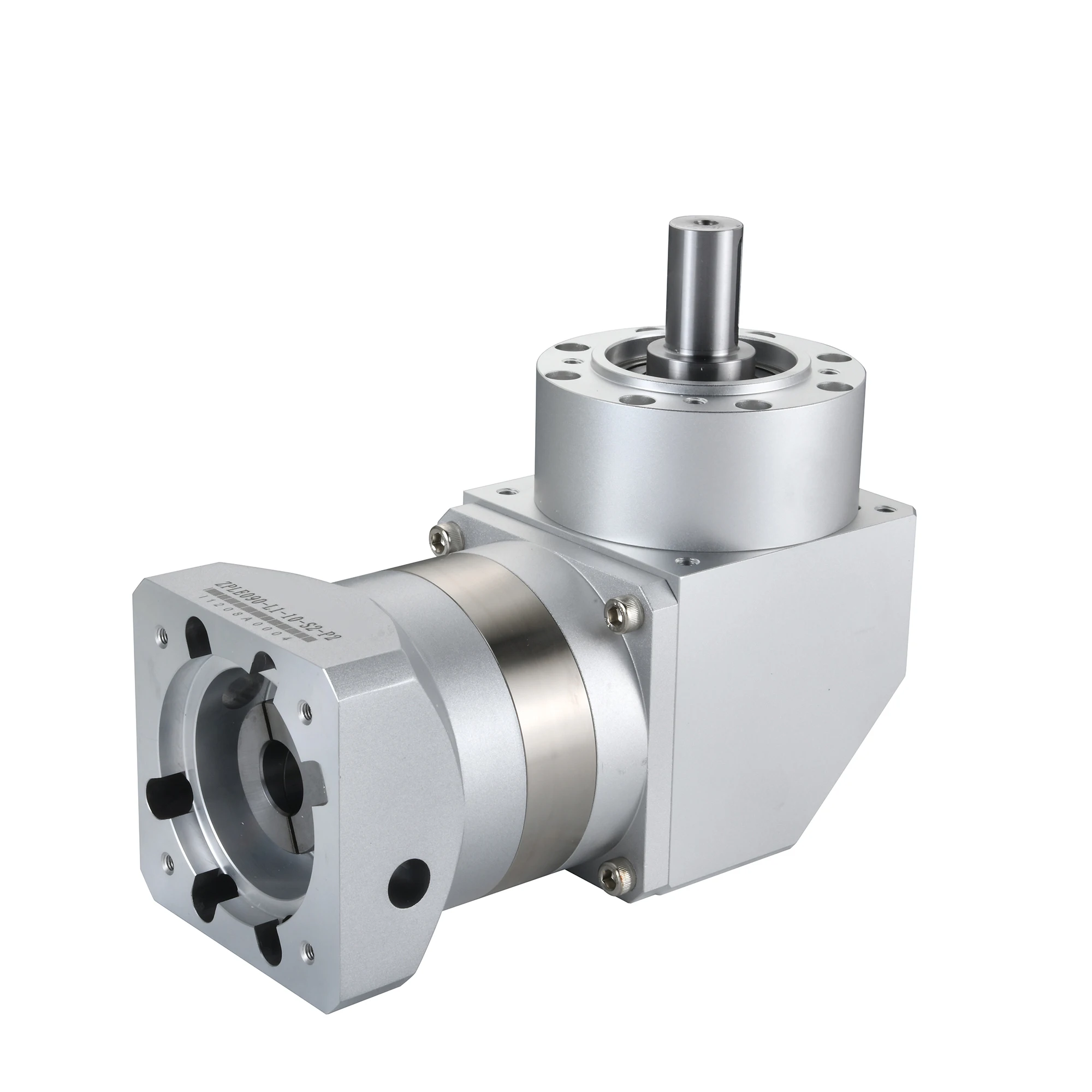

Product Picture
Type | ZPLE Series | ||||||
Emergency stop torque | 2 times rated output torque | ||||||
Norminal input speed | 2000-3000rmp | ||||||
Maximum input speed | 3500-6000rmp | ||||||
Maximum radial force | 170-2230N | ||||||
Maximum axial force | 120-1550N | ||||||
Average lifetime | 20000h | ||||||
Weight | 2.2-15.7kg | ||||||
Lubricating | Synthetic grease lubrication | ||||||
Levels of protection | IP65 | ||||||
Specification
Gear box performance information | ||||||||||||
Model | Unit | ZPLE060 | ZPLEO90 | ZPLE120 | Ratio | Stage | ||||||
Rated output torque | N·m | 16.5 | 60 | 148 | 3 | 1 | ||||||
27 | 86 | 222 | 4 | |||||||||
27 | 94.5 | 235 | 5 | |||||||||
19.5 | 64 | 158 | 7 | |||||||||
8.5 | 39.5 | 93 | 10 | |||||||||
96 | 250 | 12 | 2 | |||||||||
96 | 250 | 15 | ||||||||||
30 | 96 | 250 | 16 | |||||||||
30 | 96 | 250 | 20 | |||||||||
33 | 105.5 | 264 | 25 | |||||||||
30 | 96 | 250 | 28 | |||||||||
33 | 105.5 | 264 | 35 | |||||||||
30 | 96 | 250 | 40 | |||||||||
33 | 105.5 | 254 | 50 | |||||||||
21.5 | 71.5 | 177 | 70 | |||||||||
37.5 | 120 | 310 | 64 | 3 | ||||||||
37.5 | 120 | 310 | 80 | |||||||||
37.5 | 120 | 310 | 100 | |||||||||
41.0 | 132.5 | 329 | 125 | |||||||||
37.5 | 120 | 310 | 140 | |||||||||
41.0 | 132.5 | 329 | 175 | |||||||||
37.5 | 120 | 310 | 200 | |||||||||
41.0 | 132.5 | 329 | 250 | |||||||||
37.5 | 120 | 310 | 280 | |||||||||
41.0 | 132.5 | 329 | 350 | |||||||||
Emergency stop torque | N·m | 2 times Rated output torque | ||||||||||
Norminal input speed | rmp | 3000 | 3000 | 2000 | ||||||||
Maximum input speed | rmp | 6000 | 6000 | 3500 | ||||||||
Maximum radial force | N | 170 | 1020 | 2230 | ||||||||
Maximum axial force | N | 120 | 850 | 1550 | ||||||||
Efficiency | % | Single [97%] | Double [95%] | |||||||||
Average lifetime | h | 20000 | ||||||||||
Weight | kg | 2.2 | 4.7 | 11.5 | 1 | |||||||
2.5 | 5.3 | 13.5 | 2 | |||||||||
2.8 | 5.9 | 15.7 | 3 | |||||||||
Model | Unit | ZPLE060 | ZPLEO90 | ZPLE120 | Ratio | Stage | |||
Moment of inertia | kgcm² | 0.107 | 0.4 | 1.65 | 3 | 1 | |||
0.094 | 0.309 | 1.22 | 4 | ||||||
0.092 | 0.291 | 1.15 | 5 | ||||||
0.091 | 0.285 | 1.13 | 7 | ||||||
0.091 | 0.283 | 1.11 | 10 | ||||||
0.4 | 1.65 | 12 | 2 | ||||||
0.309 | 1.65 | 15 | |||||||
0.094 | 0.291 | 1.22 | 16 | ||||||
0.092 | 0.291 | 1.15 | 20 | ||||||
0.092 | 0.291 | 1.15 | 25 | ||||||
0.091 | 0.285 | 1.13 | 28 | ||||||
0.091 | 0.285 | 1.13 | 35 | ||||||
0.091 | 0.2835 | 1.11 | 40 | ||||||
0.091 | 0.283 | 1.11 | 50 | ||||||
0.091 | 0.283 | 1.11 | 70 | ||||||
0.092 | 0.291 | 1.15 | 64 | 3 | |||||
0.092 | 0.291 | 1.15 | 80 | ||||||
0.092 | 0.291 | 1.15 | 100 | ||||||
0.092 | 0.291 | 1.15 | 125 | ||||||
0.091 | 0.291 | 1.13 | 140 | ||||||
0.091 | 0.291 | 1.13 | 175 | ||||||
0.091 | 0.283 | 1.11 | 200 | ||||||
0.091 | 0.283 | 1.11 | 250 | ||||||
0.091 | 0.283 | 1.11 | 280 | ||||||
0.091 | 0.283 | 1.11 | 350 | ||||||
Noise | dB | 60 | 65 | 68 | |||||
Lubricating | Synthetic grease lubrication | ||||||||
Levels of protection | IP65 | ||||||||
Outline Dimensional

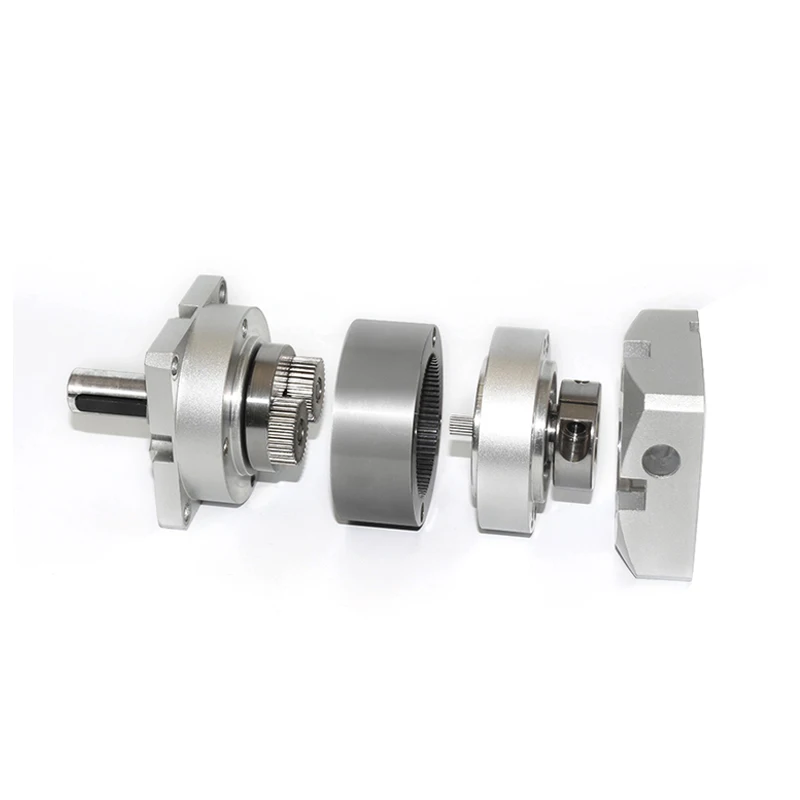

High stability Structure
Using high-strength steel alloy materal. Not just hardening on gear surface,but hardening entire gear to insure the gear life time
and maintain high accuracy.

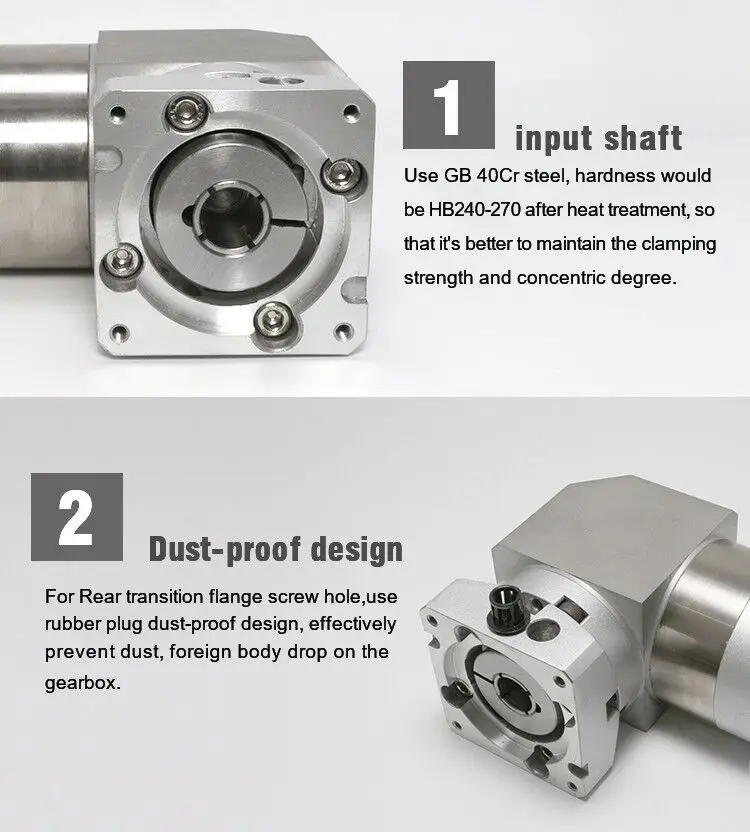

Dust-proof design
For Rear transition flange screw hole,use rubber plug dust-proof design,effectively prevent dust, foreign body drop on the
gearbox.
gearbox.

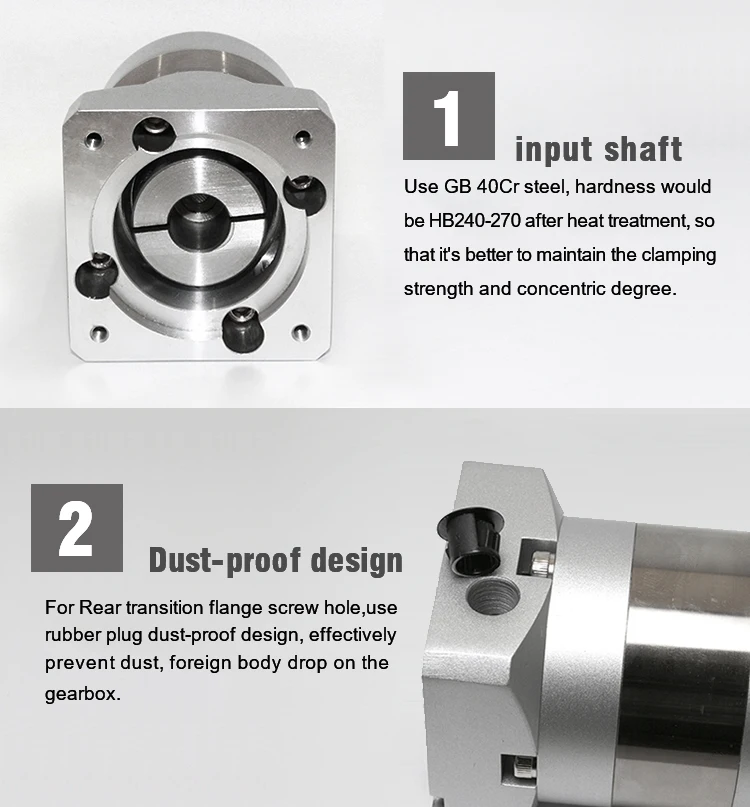

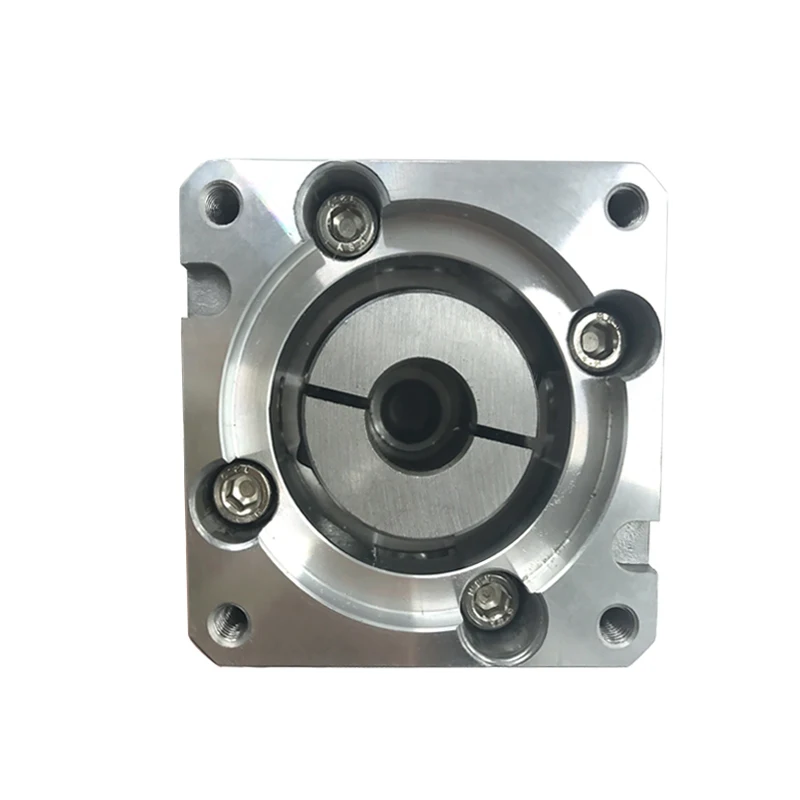

Input Shaft
Use GB40Cr steel, hardness would beHB240-270after heat treatment. So that it's better to maintain the clamping strength and
concentric degree.
Use GB40Cr steel, hardness would beHB240-270after heat treatment. So that it's better to maintain the clamping strength and
concentric degree.
High Torque,High efficiency
Higher than conventional planetary gearbox;One stage is exceed 97%,Two stage is exceed 95%.
Higher than conventional planetary gearbox;One stage is exceed 97%,Two stage is exceed 95%.
Product Applications
Our company
LUNYEE Group specializes in the design, development, production and sales of industrial factory automation system solutions. We are the leading and manufacturer for factory automation(FA) products! We are dedicated in power transmission and motion control solutions!
Our Products
We manufacture power transmission products like AC and DC(brush/brus hless) gear motor, high precision planetary gearbox (spur/helical gear) for servo motor and stepping motor, linear motion products like linear bushing, linear guide ball screw, locking nut and coupling and so on!
Our Service
A satisfying one-stop service comes from our continuous innovation team and our rigorously-inspected sub-contractors! Our products are widely applied to machine tools, industrial robot, textile machine, packing machine, food machine, medical appliance,CNC system and air condition and so on!
Our Products
We manufacture power transmission products like AC and DC(brush/brus hless) gear motor, high precision planetary gearbox (spur/helical gear) for servo motor and stepping motor, linear motion products like linear bushing, linear guide ball screw, locking nut and coupling and so on!
Our Service
A satisfying one-stop service comes from our continuous innovation team and our rigorously-inspected sub-contractors! Our products are widely applied to machine tools, industrial robot, textile machine, packing machine, food machine, medical appliance,CNC system and air condition and so on!
Our Quality
We recognize ourselves as eyes and ears for our customers! One pro essional QC department is built up to inspect all the manufacture process according to international quality standard and our customers' special requirement! Our factory and our sub-contractors are all qualified ISO9001,3C,CE, UL,ROHS and other related certification! All products from Lunyee can enjoy a warranty rom us!
We recognize ourselves as eyes and ears for our customers! One pro essional QC department is built up to inspect all the manufacture process according to international quality standard and our customers' special requirement! Our factory and our sub-contractors are all qualified ISO9001,3C,CE, UL,ROHS and other related certification! All products from Lunyee can enjoy a warranty rom us!
Packing&Delivery
FAQ
Q1: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping. If you have another question, pls feel free to contact us.
Q2: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.
Q3: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q4: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q5: How long is the deliver Producing and Shipping?
A: Deliver time depends on the quantity you order. Usually it takes 15-25 working days.
Q6: Are you trading company or manufacturer ?
A: We are motor manufacturer for 15 years in China.
Q7: What's the gear box's lifetime?
A: The laser module have over 20,000 hours lifetime.
Q8: How long can the machine work continuously?
A: It can work work continuously.
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping. If you have another question, pls feel free to contact us.
Q2: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.
Q3: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q4: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q5: How long is the deliver Producing and Shipping?
A: Deliver time depends on the quantity you order. Usually it takes 15-25 working days.
Q6: Are you trading company or manufacturer ?
A: We are motor manufacturer for 15 years in China.
Q7: What's the gear box's lifetime?
A: The laser module have over 20,000 hours lifetime.
Q8: How long can the machine work continuously?
A: It can work work continuously.
