High quality automatic carbon steel rectangular round tube mill line

This mill is intended to manufacture round pipe,square pipe, rectangle pipe, structure pipe as customer advise.



The production pipe is straight welding pipe,welding by High frequence Solid state Welder (for example Thermatool welder).Material is Steel strip,Steel Coil.



Pipe Production Range  from φ8~ φ630, Thickness from 0.3mm~19mm.Pipe standard: AIP,ASTM,BS,GB .



The mill is not standard products, can design and produce as customer requirement.

Finished product will be of round pipe, square and rectangle pipe.



The technical flow of the production line:

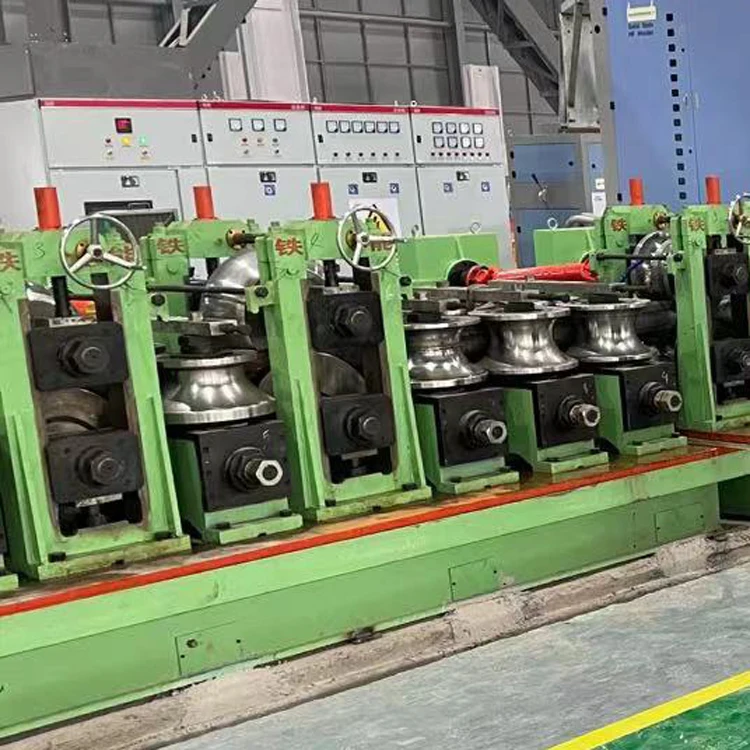

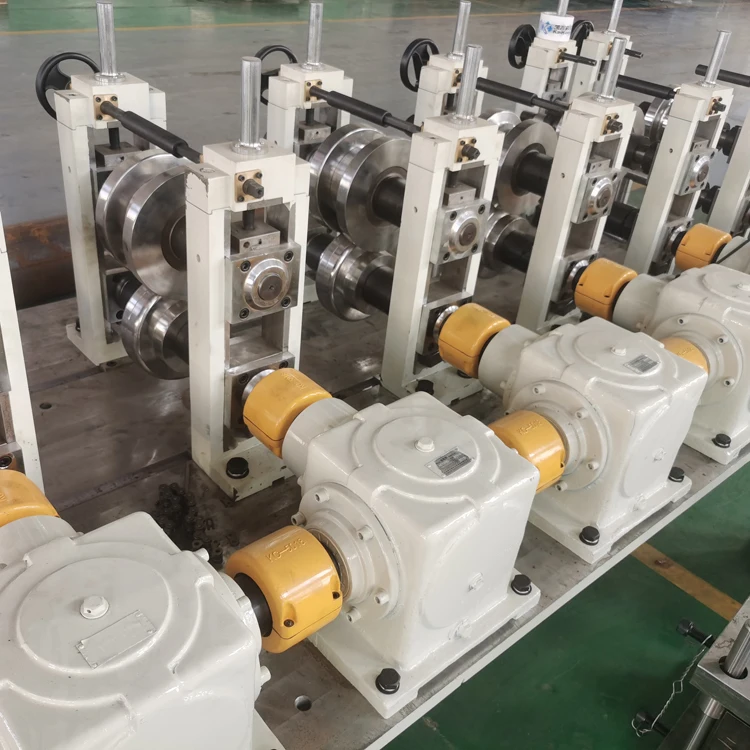

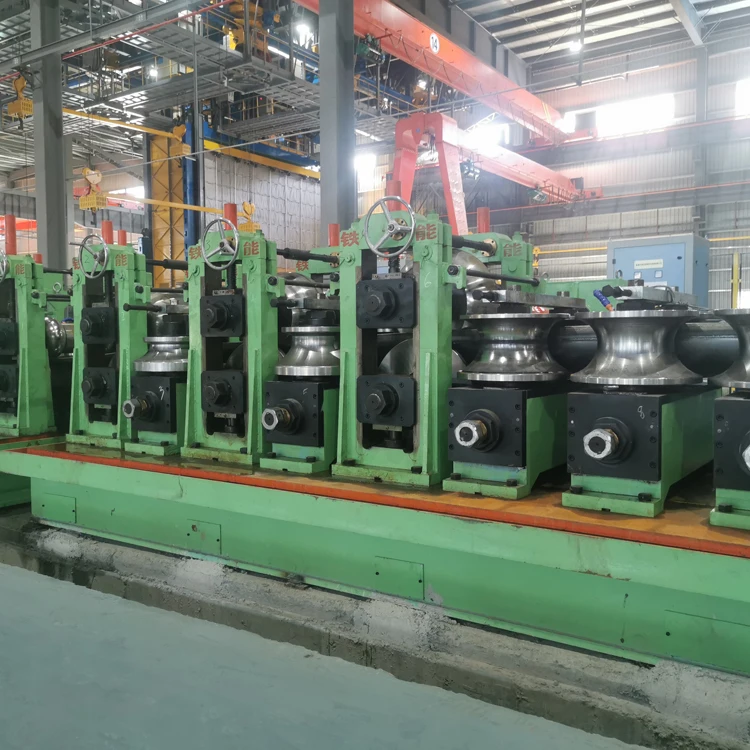

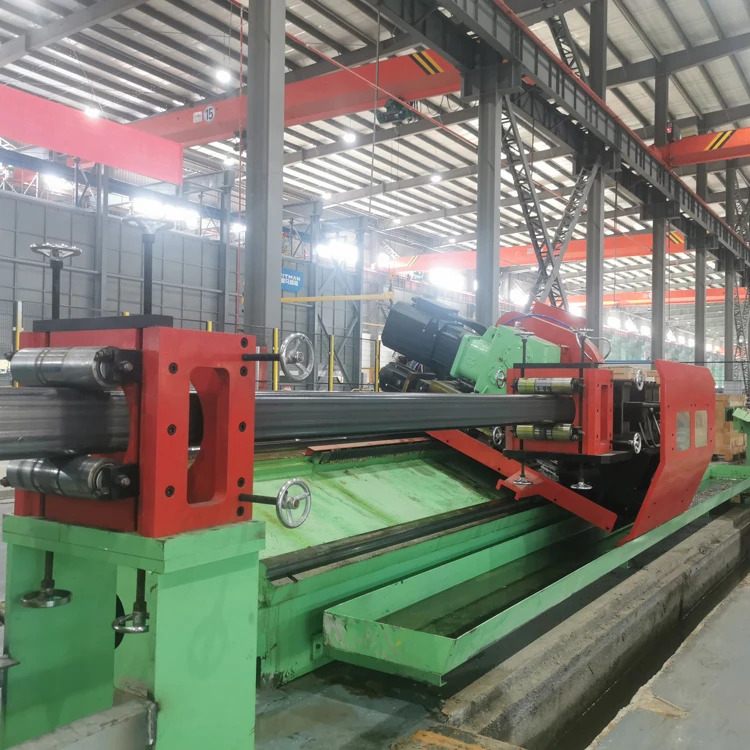

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine



Steel Pipe Specification
Round Pipe diameter	12-50mm
Pipe Thickness	0.5 – 2.0mm
Square and rectangle pipe	10X15-30X50mm
Pipe Thickness	0.5 – 1.5mm
Pipe Length	6-12m
Length Tolerance	0-6mm



Steel Tape Specification
Material	Carbon steel (δb≤500Mpa, δs≤235Mpa)
Inner diameter	Φ470-Φ510mm
Outer diameter	Φmax=1500mm
Strip steel width	140mm-4000mm
Strip steel thickness	1.2mm-4.0mm
The maximum weight	1.5.0 tons
Electric installed capacity	appro.250KW
Line Speed	30-90m/min
