Высокоскоростной медицинский ткацкий станок с воздушной струей/медицинская линия по производству рулонов марли/ткацкий

Высокоскоростной медицинский ткацкий станок с воздушной струей/медицинская линия по производству рулонов марли/ткацкий

Категория: Textile Dyeing Machines >>>
Поставщик: Hefei,Kerrian,Machinery,Co.,Ltd.

Цена:12 000,00 $ - 12 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	14280.17 $*	14994.12 $*
Aug-16-2025	14160.85 $*	14868.8 $*
Jul-16-2025	11880.40 $*	12474.8 $*
Jun-16-2025	13920.17 $*	14616.38 $*
May-16-2025	12120.34 $*	12726.10 $*
Apr-16-2025	13680.24 $*	14364.34 $*
Mar-16-2025	13560.20 $*	14238.79 $*
Feb-16-2025	13440.22 $*	14112.98 $*
Jan-16-2025	13320.41 $*	13986.63 $*

Характеристики

Product Description

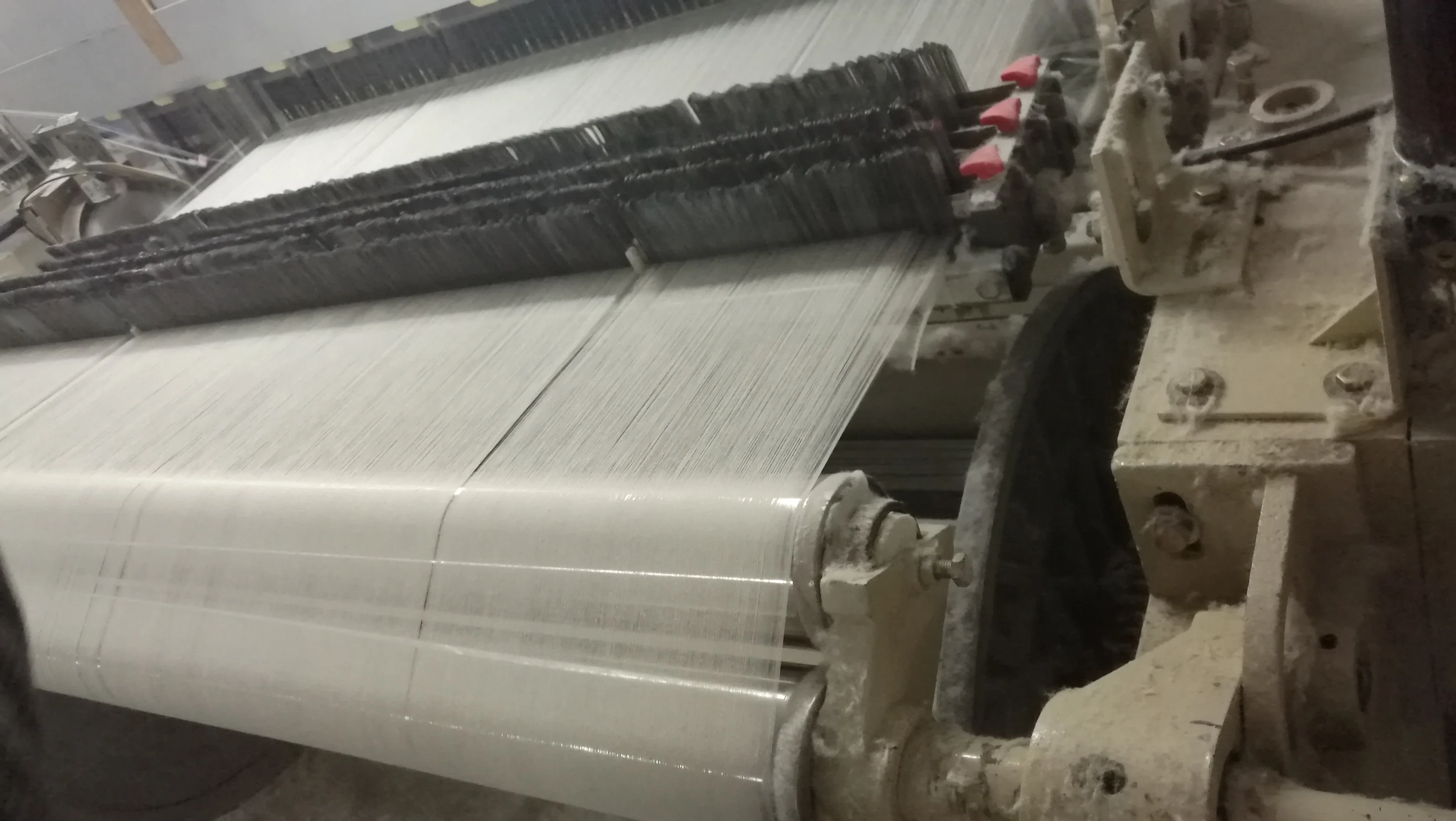

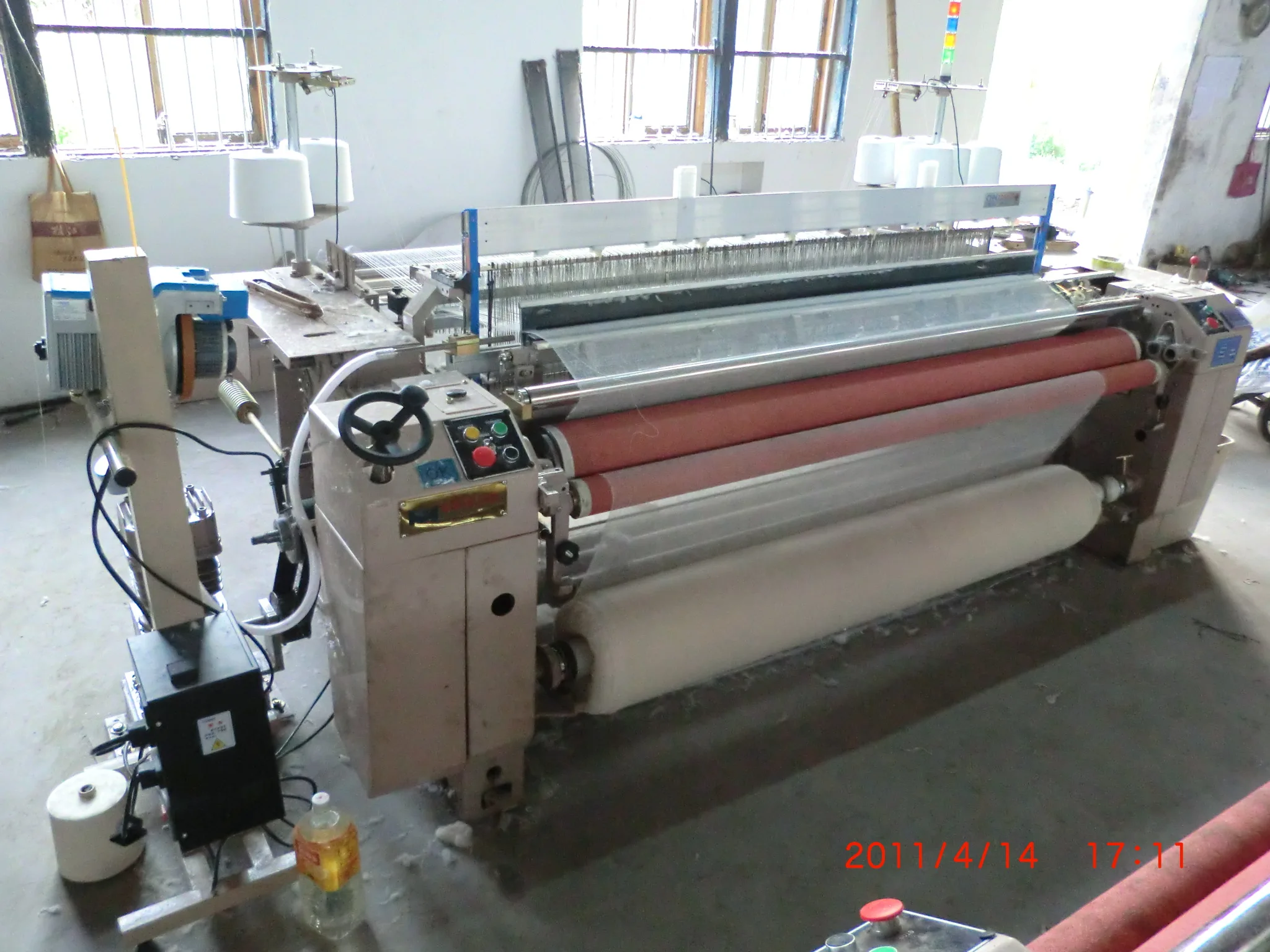

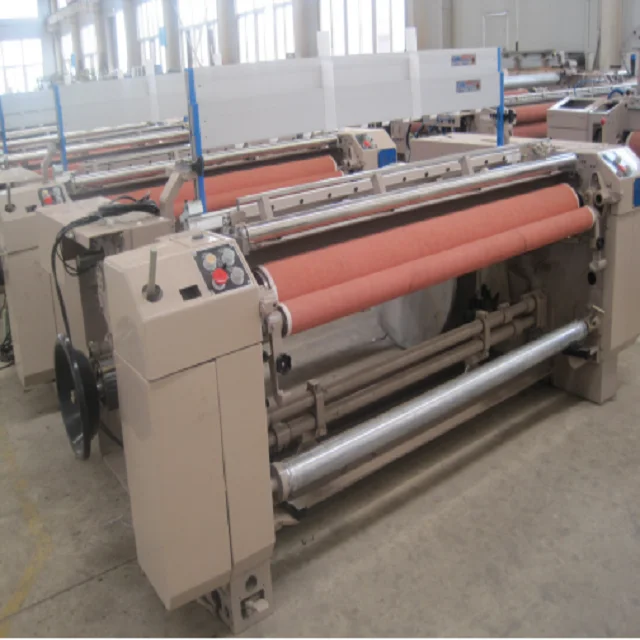

This medical gauze air jet loom machine is used to weave medical use jumbo gauze roll.
Technique and Specification:
1. Fabric type: plain, twill or satin
2. Machine working width:150cm
3. fabric width:142cm
4. fabric width:60cm
5. P.M/Speed:450-550
6. Thread count:12-48 pick per inch
7. Cotton yarn:16s-40s
8. Raw material requirement :non-sizing cotton yarn
9. Warp beam diameter:800mm
10. Cloth roller diameter will be ≤600mm
11. Production capacity: depends on thread count and R.P.M
12. Loom motor power:1.8KW
13. Electricity consumption:1.8kw/hour
14. Air consumption:0
15. One air pump is installed in the machine
16. Productionfor example:

120cm x 1000m
yarn 40`s or 32`s mesh 26*18
800m per day-24 hours
Above record is for your reference. The actual production maybe higher or lower, but almost correct record.
17.Machine size :3000 x 1800 x 1700mm (L x W x H)
18.Machine weight: 1500kg

Technique advantage
1) Low investment. this machine can run without air compressor, save much cost for electricity charge. And no need to make air
tunnel.
2) Can use non-sizing yarn to produce fabric by this machine, save the sizing cost also.
3) The production is much higher than shuttle loom and rapier loom.
4) This is the latest model machine, easy to operate, and low maintenance charge.

Specification

item	value
Applicable Industries	Manufacturing Plant
Showroom Location	China
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Engine, Motor
Condition	New
Automatic Grade	Automatic
Place of Origin	China
	Hubei
Brand Name	KERRIAN
Voltage	380V
Power	1.8kw
Dimension(LWH)	3000x1800x1700mm
Weight	1000KG
Warranty	1 Year
Production Capacity	450-550rpm
Used for	air jet loom for medical gauze roll
Machine Type	automatic
Product name	medical gauze weaving machine

Packing & Delivery

wooden box packing is made on request

Company Profile

As a mainstay subsidiary of China Kerrian Medical Technology Group, our company is engaged in producing and delivering medical dressing making and packing machines to worldwide with good quality, these machines have been delivered to more than thirty countries and won very good reputation. The machines can be designed and produced on users' different requests, and we always provide the best solution for our clients.

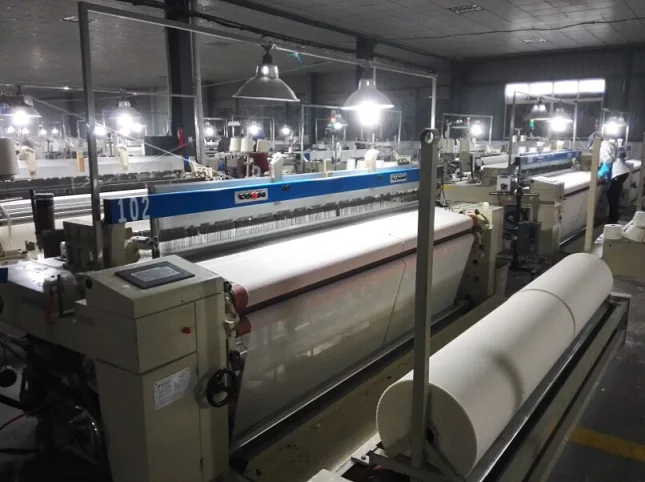

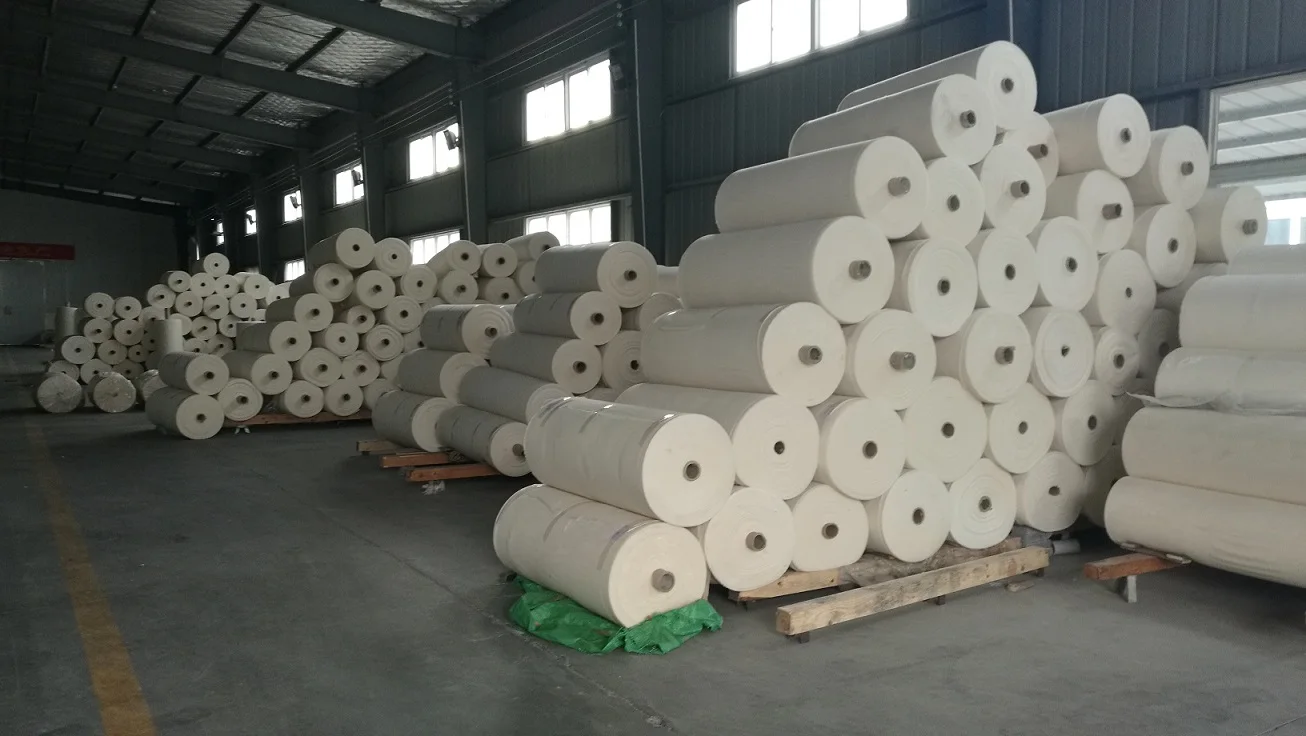

Besides machine production plant, we also have built a gauze weaving plant, for supplying raw material of jumbo gauze fabric roll, and medical gauze dressings, we have passed ISO13485 certificate already.

For further info, please feel free to contact us.

Thank you.

FAQ

1. who are we?
We are based in Anhui, China, start from 2016,sell to Eastern Asia(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
medical gauze folding machine,cotton pad machine,gauze packing machine,medical bandage machine,gauze swab folding machine

4. why should you buy from us not from other suppliers?
with more than 20years experience in the production of medical dressings making and packing machines, we always provide machines with good quality by our advanced technology, we have delivered the machines to more than 40 countries and won good reputation

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
