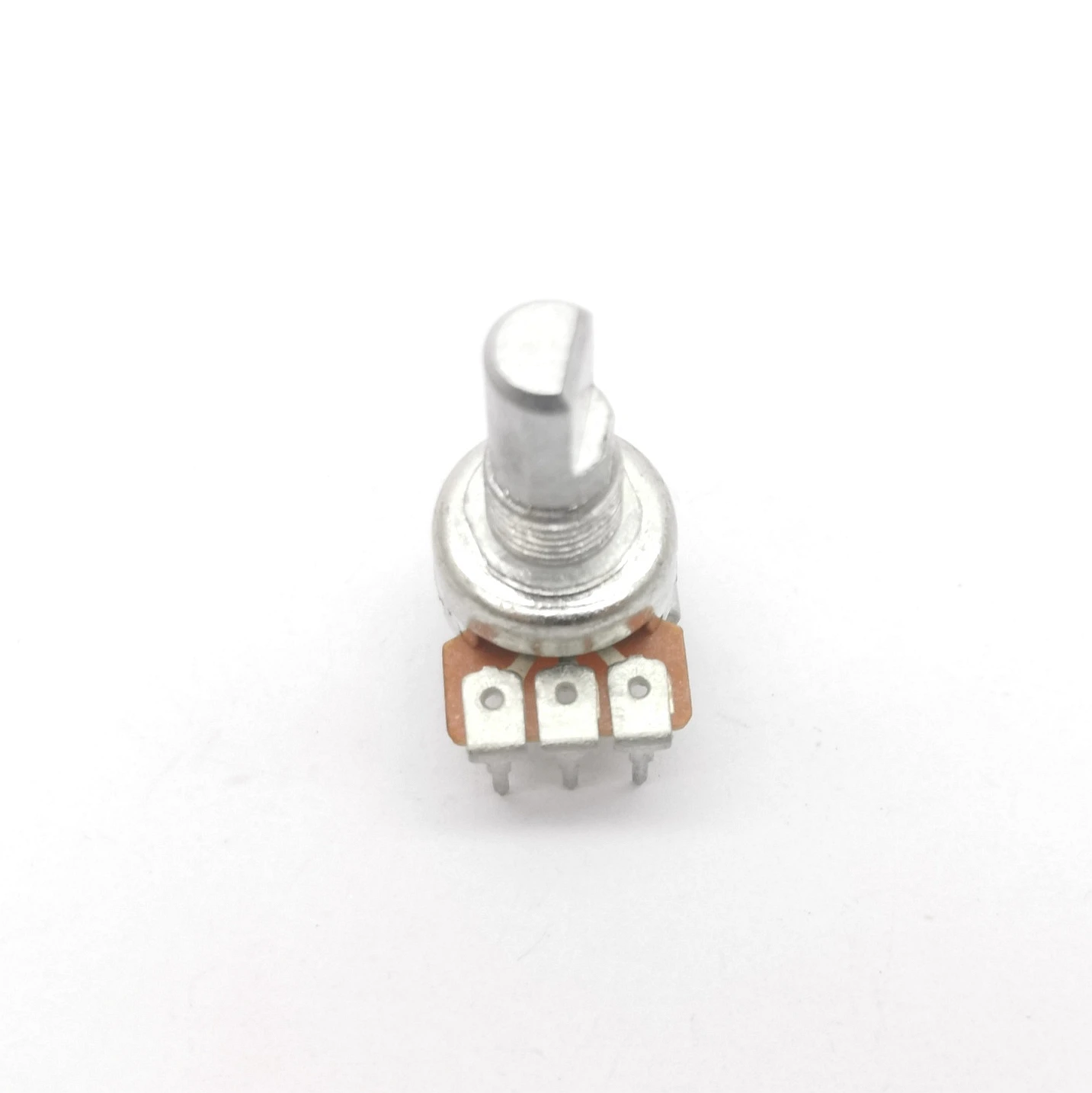

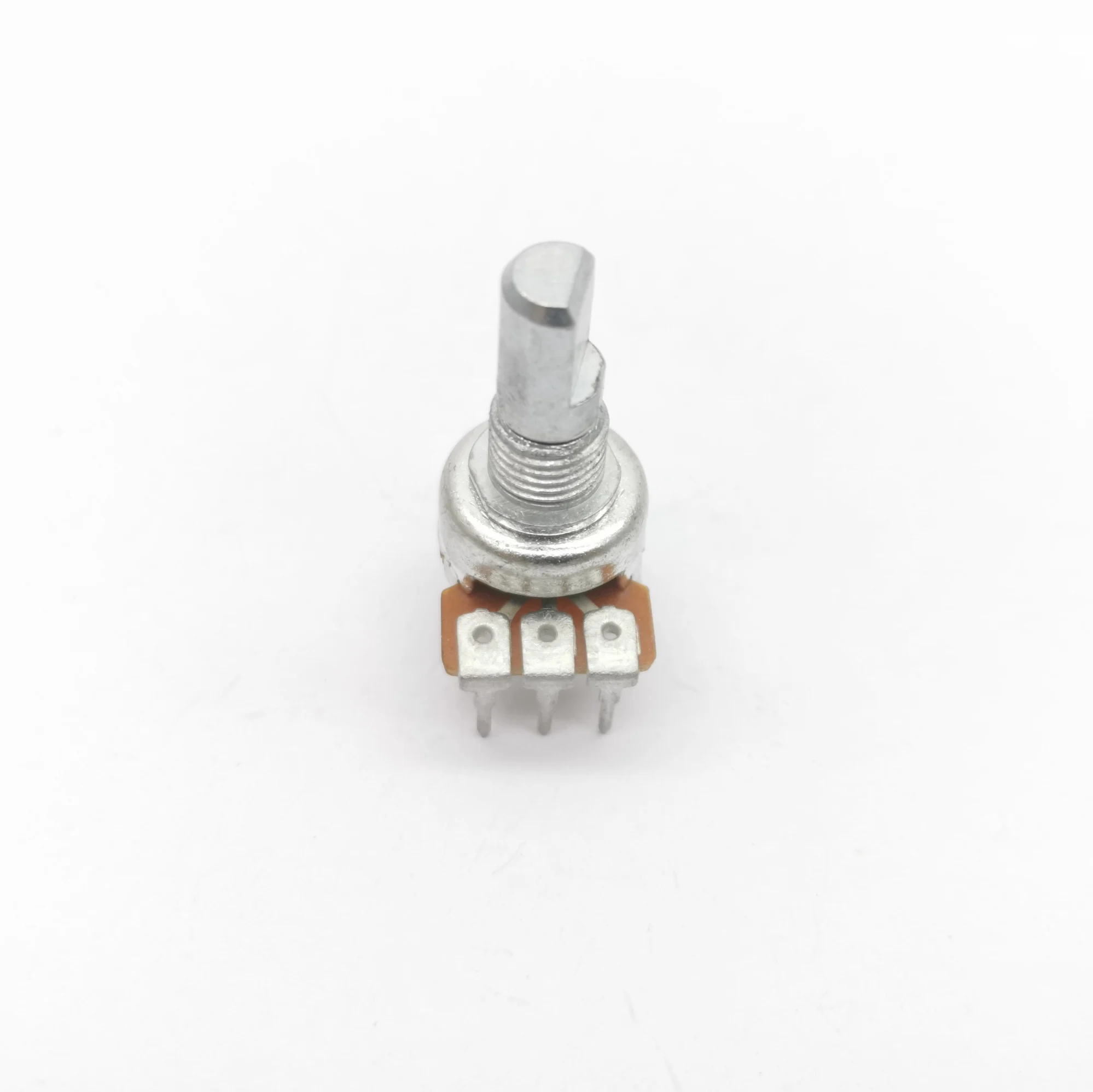

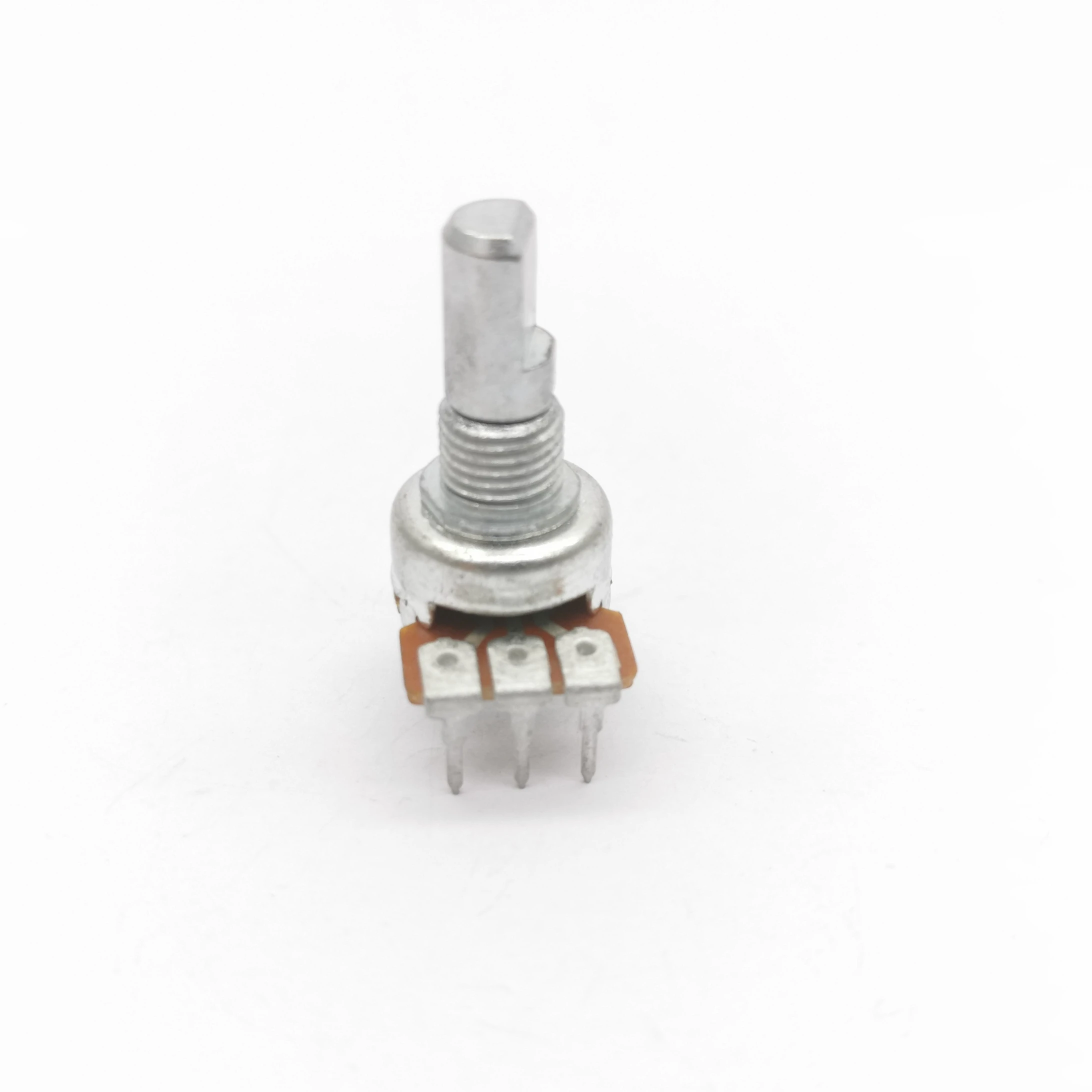

Лидер продаж R1212N 3 pin одиночный металлический вал 12 мм диаметр поворотный
- Категория: Potentiometers >>>
- Поставщик: Dongguan,Tianqian,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.2 $* | 0.57 $* |
| Aug-16-2025 | 0.99 $* | 0.98 $* |
| Jul-16-2025 | 0.2 $* | 0.4 $* |
| Jun-16-2025 | 0.6 $* | 0.31 $* |
| May-16-2025 | 0.54 $* | 0.41 $* |
| Apr-16-2025 | 0.59 $* | 0.80 $* |
| Mar-16-2025 | 0.18 $* | 0.27 $* |
| Feb-16-2025 | 0.51 $* | 0.49 $* |
| Jan-16-2025 | 0.80 $* | 0.98 $* |
Характеристики

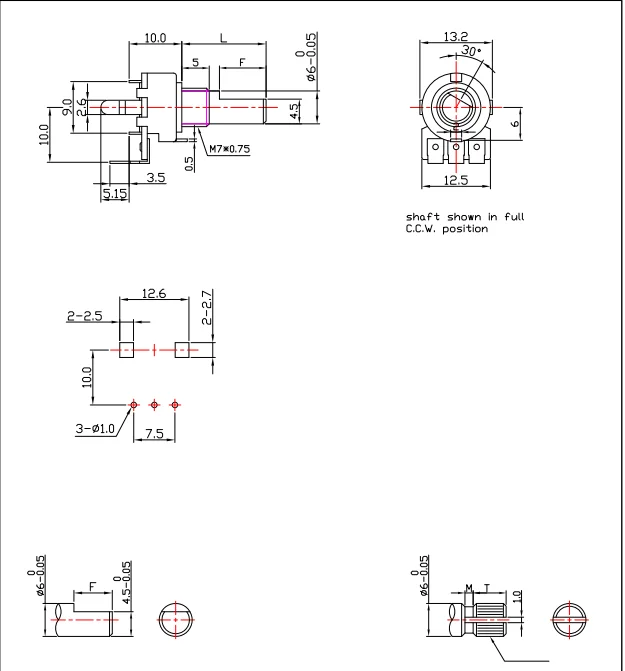

Product Description
Specification
item | value |
Model Number | R1212N |
Type | Rotary Potentiometer |
Place of Origin | China |
Guangdong | |
Brand Name | TQ |
Technology | Carbon Film |
Resistance | 5KΩ-2MΩ |
Resistance Tolerance | ±20%(more than 1MΩ±30% ) |
Rated Power | B:0.08W other than B:0.04W |
Max. Operating Voltage | B:100V AC other than B:50V AC |
Operating Temperature | -20~70 |
Brand | R1212N |
Power (Watts) | B:0.08W other than B:0.04W |
Tolerance | ±20% |
Diameter | 12mm |
Built in Switch | None |
Rotation | 300°±5° |
Resistive Material | Carbon |
Termination Style | PC Pin |
Bushing Thread | M7 x 0.75 |
Shaft Size | 0.236" (6.00mm) |
Total rotational angle | 300°±5° |
Total resistance | 5KΩ-2MΩ |
Rated resistance tolerance | ±20%(more than 1MΩ±30% ) |
Rated power | B:0.08W other than B:0.04W |
Max.operating voltage | B:100V AC other than B:50V AC |
Resistance taper | A,B,C |
Residual resistance | 250KΩ>R>10KΩ 20Ω max. 10KΩ≥ R 10Ωmax. |
Insulation resistance | more than 50MΩ at DC 250V |
Rotational life | 15000 cycles |
Withstand voltage | for 1 min or more at AC500V |
Packing & Delivery
Carton with blister box inside
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments.
We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Workshop
Certifications&Exhibition
Application
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,IKEA,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,IKEA,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
