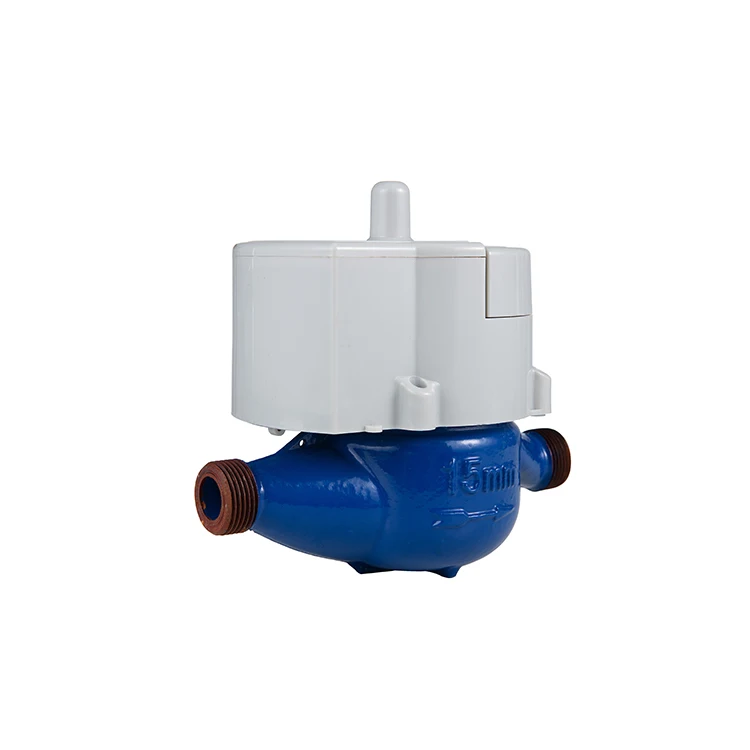

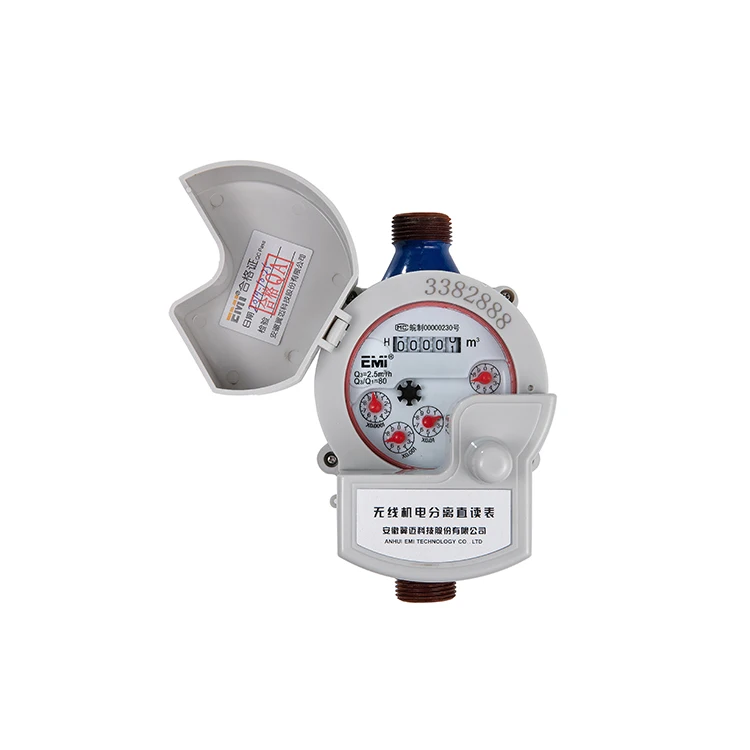

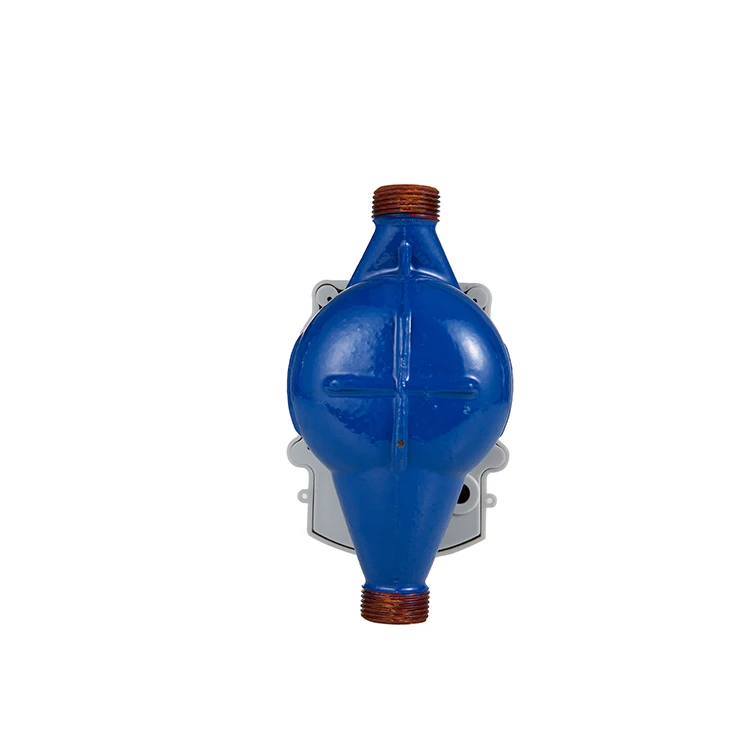

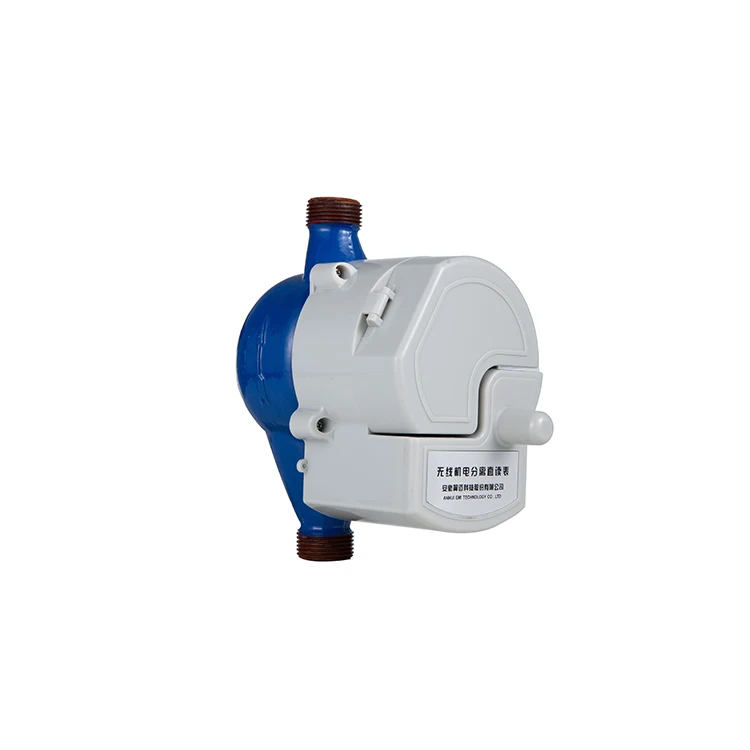

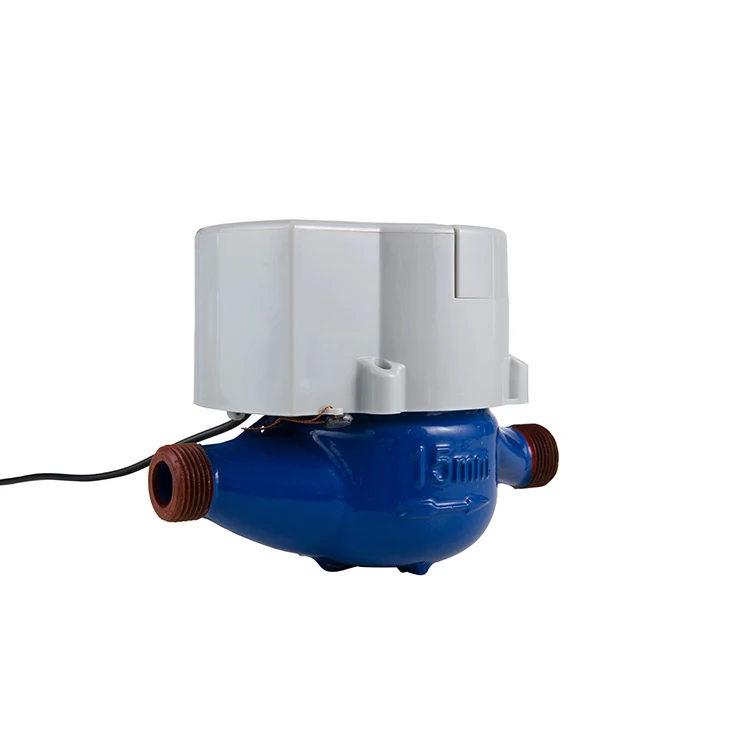

Wireless Multi-Jet Wet Dial AMR Water Meter For Cold Water

Performance characteristics

 Electro-mechanical Separate Technique
 Wet dial register construction
 Specially protected encapsulated digit rollers
 High-quality mineral glass inspection window
 Optional: UV-resistant plastic
 With Internal strainer, inlet strainer
 No magnetic effect
 Mechanical display (Max: 99999), NOT digital display
Hand-held device could be a option
 The battery life span over 6 years at data transmission once a day
Display range from 0.1 L to 99999 cubic meters
 No battery consumption at daily work except for meter reading moment
 Transparent transmission, high real-time performance
Transmission rate adaptive, no manual setting required
 Strong driving capability, drive current up to 500mA
 Automatic cut power , with isolation, wide voltage
 With transceiver indicator and overload alarm indicator

Technology advantage:

Decimal code disc decoding technology, there is no carry between 0 and 9.
The fully sealed structure is protected from the external humid environment
and has a waterproof performance of Ip68.
Split design, installation and maintenance are simpler and convenient. It is only necessary to replace the water meter base table after the water meter verification period.

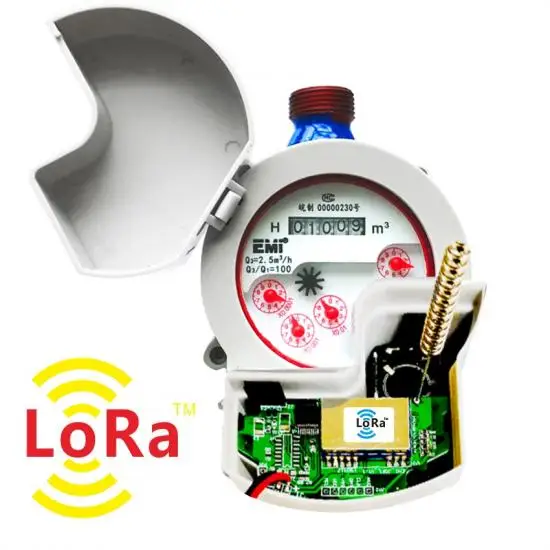

AMR transmission method Special for ROWL

 Radio Frequency free private protocol (Lora frequency channel should beconfirmed as to different countries)
 Signal coverage can be 1000m ,the farthest distance may be 3000m withhelp of repeaters

AMR transmission method Special for ROWM

Mbus protocol ,wired layout

Accessories

2pcs couplings, 2pcs coupling nuts and 2pcs washers

Applications

 For the consumption measuring of cold potable water up to 40° C
 Water meter for horizontal and vertical installation

 Operating pressure 1 Mpa

Meter Module device features

 Frequency:According to buyer's country
 Lithium battery powered:3.6 V
 Communication range:1000 -1500m
 Static current:uA<10
 Transmit Power:50mW
 Battery life: 6-8 years (read data once da
