Оцинкованные фиксированные регулируемые ножки тяжелые оборудование нивелирующие M12 с базовым диаметром 40 мм
- Категория: Furniture Legs >>>
- Поставщик: Wuxi,Laojiu,Hardware,Electromechanical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.65 $* | 0.30 $* |
| Aug-16-2025 | 0.98 $* | 0.36 $* |
| Jul-16-2025 | 0.75 $* | 0.64 $* |
| Jun-16-2025 | 0.17 $* | 0.45 $* |
| May-16-2025 | 0.11 $* | 0.77 $* |
| Apr-16-2025 | 0.56 $* | 0.95 $* |
| Mar-16-2025 | 0.37 $* | 0.33 $* |
| Feb-16-2025 | 0.80 $* | 0.86 $* |
| Jan-16-2025 | 0.84 $* | 0.50 $* |
Характеристики
Heavy equipment leveling feet galvanized fixed adjustable feet heavy duty leveling feet M12 with base dia 40mm with rubber pads
Product Paramenters

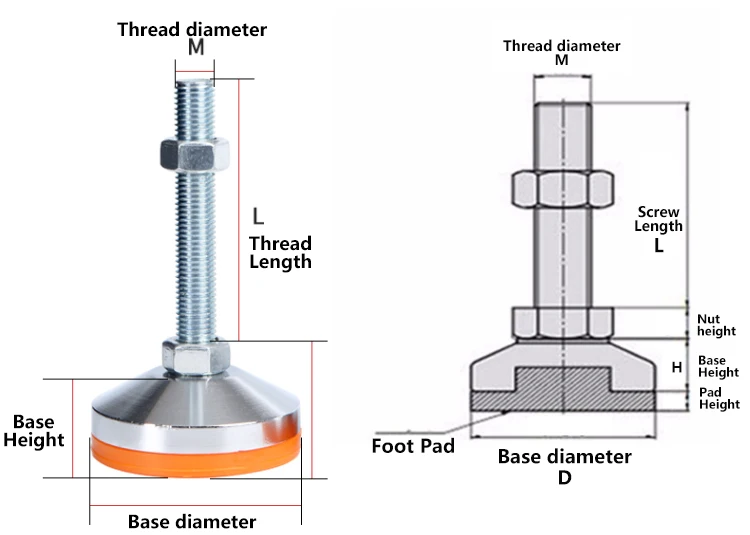

Model | Base Diameter (mm) A | Thread Diameter (mm) M | Thread Length (mm) L | |||
D40*M8 | 40 | M8 | 50 | |||
D40*M10 | 40 | M10 | 50 | |||
D40*M12 | 40 | M12 | 50 | |||
D50*M8 | 50 | M8 | 50 | |||
D50*M10 | 50 | M10 | 50 | |||
D50*M12 | 50 | M12 | 50/100 | |||
D60*M12 | 60 | M12 | 50/100/150 | |||
D60*M16 | 60 | M16 | 100/150 | |||
D60*M20 | 60 | M20 | 100 | |||
D80*M12 | 80 | M12 | 100/150 | |||
D80*M14 | 80 | M14 | 100 | |||
D80*M16 | 80 | M16 | 100/150/200 | |||
D80*M18 | 80 | M18 | 100 | |||
D80*M20 | 80 | M20 | 100/150/200 | |||
D80*M24 | 80 | M24 | 100/150 | |||
1.Single static load 400-2200kg;2.Environmental class: EZ-E3;3.Pad thickness 8-12mm,can be customized | ||||||
Products Description
Product Name | Material | Surface Treatment | Product Features | Base |
Heavy-duty Leveling Feet | Zinc-plated | Galvanizing process or other | Fixed | Black rubber/TPU orange anti-slip mat |
Leveling Feet
Foot cup, also known as a flat bottom machine foot or leveling feet is a component that uses threads for height adjustment. It is used to adjust the height, level and tilt of the equipment.
In addition, the foot cups also include galvanized foot plates,stainless steel adjustment feet, nylon foot cups, shock absorbing feet, etc.
Material: base selected reinforced nylon (PA6), screw selected carbon steel (Q235) or stainless steel 304/316/201, screw surface treatment galvanized (optional nickel / chrome, etc.)

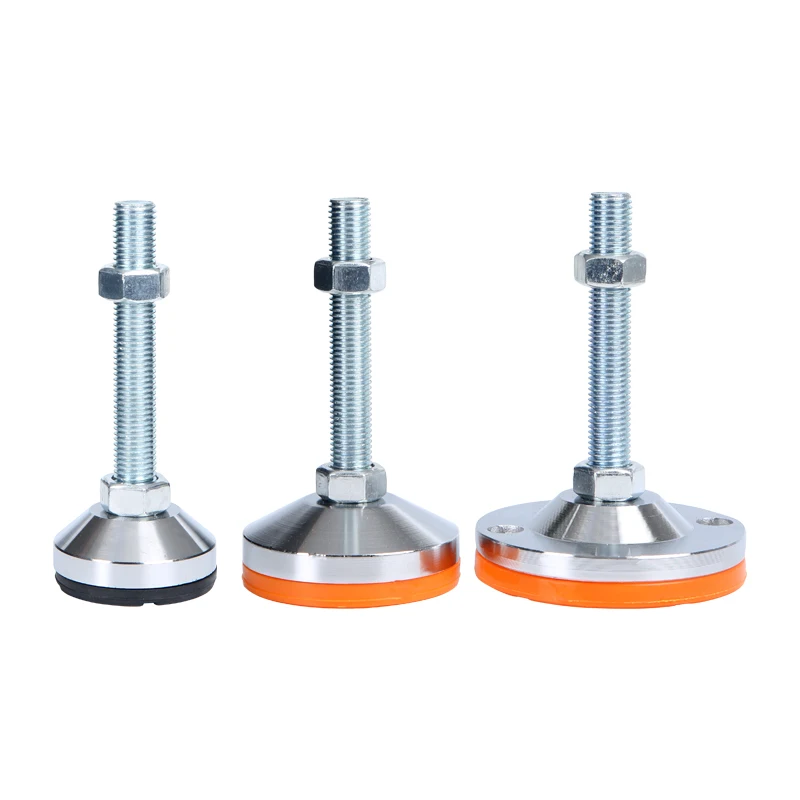

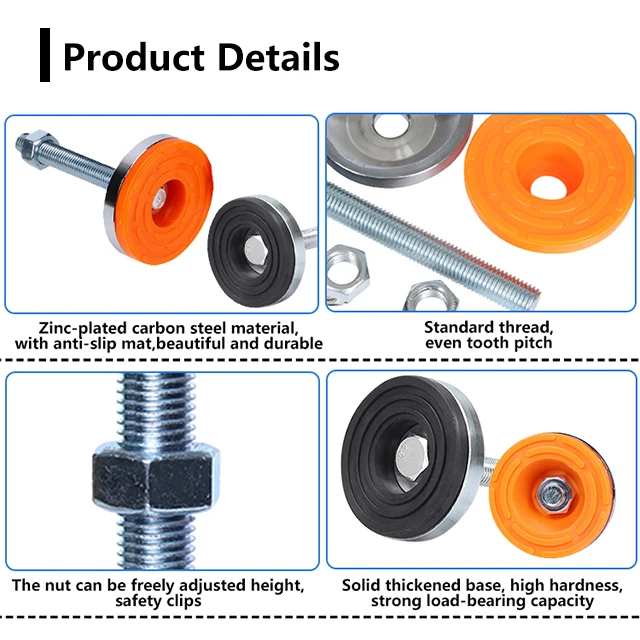

Galvanized Heavy-duty Fixed Leveling Feet
1.screw material:galvanized carbon steel,electroplating treatment, corrosion and wear resistance
2.Except for the dimensions in the table, the other lengths of the screw can be customized
3.thread diameter can be done in imperial standard
4.The product load-bearing capacity is not only by the screw or chassis, but two components grouped together

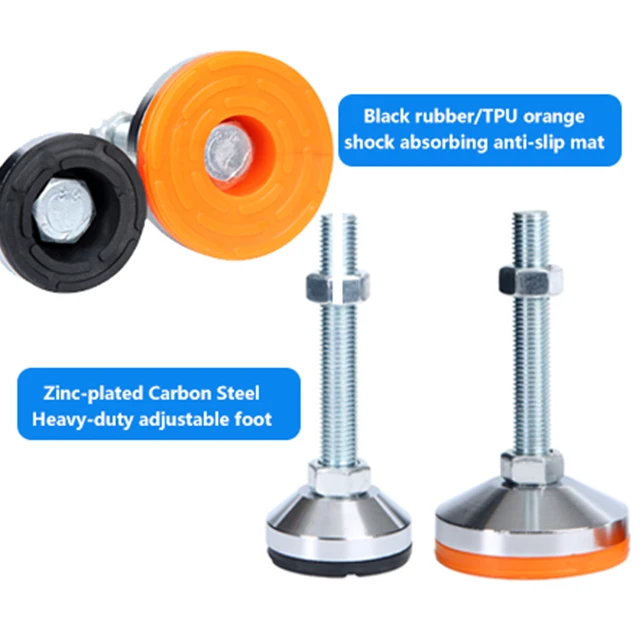

5.Solid base, strong load-bearing force,with Black rubber/TPU orange shock absorbing anti-slip mats.
6.National standard screw, uniform tooth pitch, even force when using
7.The nut can be freely adjusted, the snap is not easy to fall off
Details Images
Recommend Products

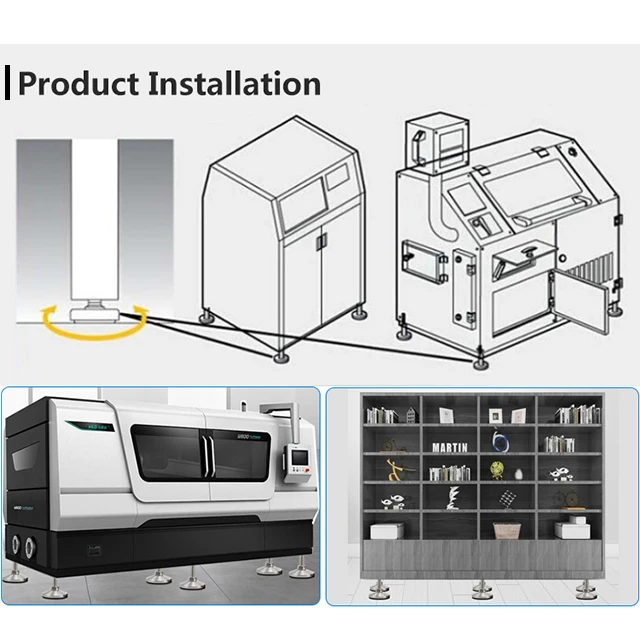

Applications
Field of application of Heavy-duty leveling feet with Anti-slip shock-absorbing rubber /TPU mats
Our company products are widely used in general /Machine tool equipment/Furniture home / warehouse shelves / medical equipment,automobile, building, communication, electron, energy, printing machinery, textile machinery, packaging machinery, medical equipment, petroleum and petrochemical equipment,electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.
