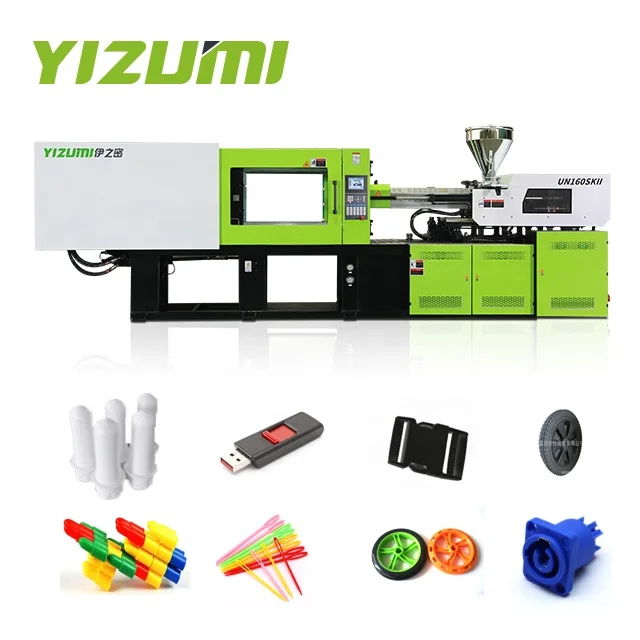

Машина для литья под давлением серводвигателя UN160SKII машина производства
- Категория: Injection Molding Machine >>>
- Поставщик: Guangdong,Yizumi,Precision,Injection,Molding,and,Die,Casting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.10 $* | 0.49 $* |
| Aug-19-2025 | 0.74 $* | 0.0 $* |
| Jul-19-2025 | 0.75 $* | 0.66 $* |
| Jun-19-2025 | 0.15 $* | 0.58 $* |
| May-19-2025 | 0.70 $* | 0.21 $* |
| Apr-19-2025 | 0.24 $* | 0.45 $* |
| Mar-19-2025 | 0.90 $* | 0.38 $* |
| Feb-19-2025 | 0.31 $* | 0.68 $* |
| Jan-19-2025 | 0.83 $* | 0.95 $* |
Характеристики
Specification
DESCRIPTION | UNIT | DATA | |
Injection unit | Shot volume | cm3 | 371 |
Shot weight (PS) | g | 341.3 | |
oz | 12 | ||
Screw diameter | mm | 48 | |
Injection pressure | Mpa | 162.9 | |
Injection rate | g/s | 134.8 | |
Screw L:D ratio | 20:1 | ||
Max. injection speed | mm/s | 81 | |
Screw stroke | mm | 205 | |
Screw speed(stepless) | r/min | 0-204 | |
Clamping unit | Clamping force | kN | 1600 |
Opening stroke | mm | 410 | |
Space between bars | mm*mm | 360×360 | |
Max. Daylight | mm | 870 | |
mold thickness(Min.Max) | mm | 160-460 | |
Hydraulic ejection storke | mm | 140 | |
Ejector number | 5 | ||
Hydraulic ejection force | kN | 42 | |
Power unit | Hydraulic system pressure | Mpa | 17.5 |
Pump motor | kw | 16 | |
Heating capacity | kw | 10.9 | |
Number of temp control zones | 4 | ||
General | Dry cycle time | s | 2.4 |
Oil tank capacity | L | 200 | |
Machine dimensions(LxWxH) | m*m*m | 5.25×1.25×1.73 | |
Machine weight | kg | 4500 |
NOTE: The listed machine price is for standard machine only, any extra requirement (e.g. CE/UL/KCS safety standard and so on) will be subject to extra charge.
Main Parts
Injection Unit
Stable, efficient, high accuracy
Based on optimized injection mechanism design, the injection unit of SKII series has higher
rigidity. The design of barrel assembly is enhanced to reduce the frictional resistance during the
injection process, increase the injection accuracy and ensure the stability of injection.
rigidity. The design of barrel assembly is enhanced to reduce the frictional resistance during the
injection process, increase the injection accuracy and ensure the stability of injection.

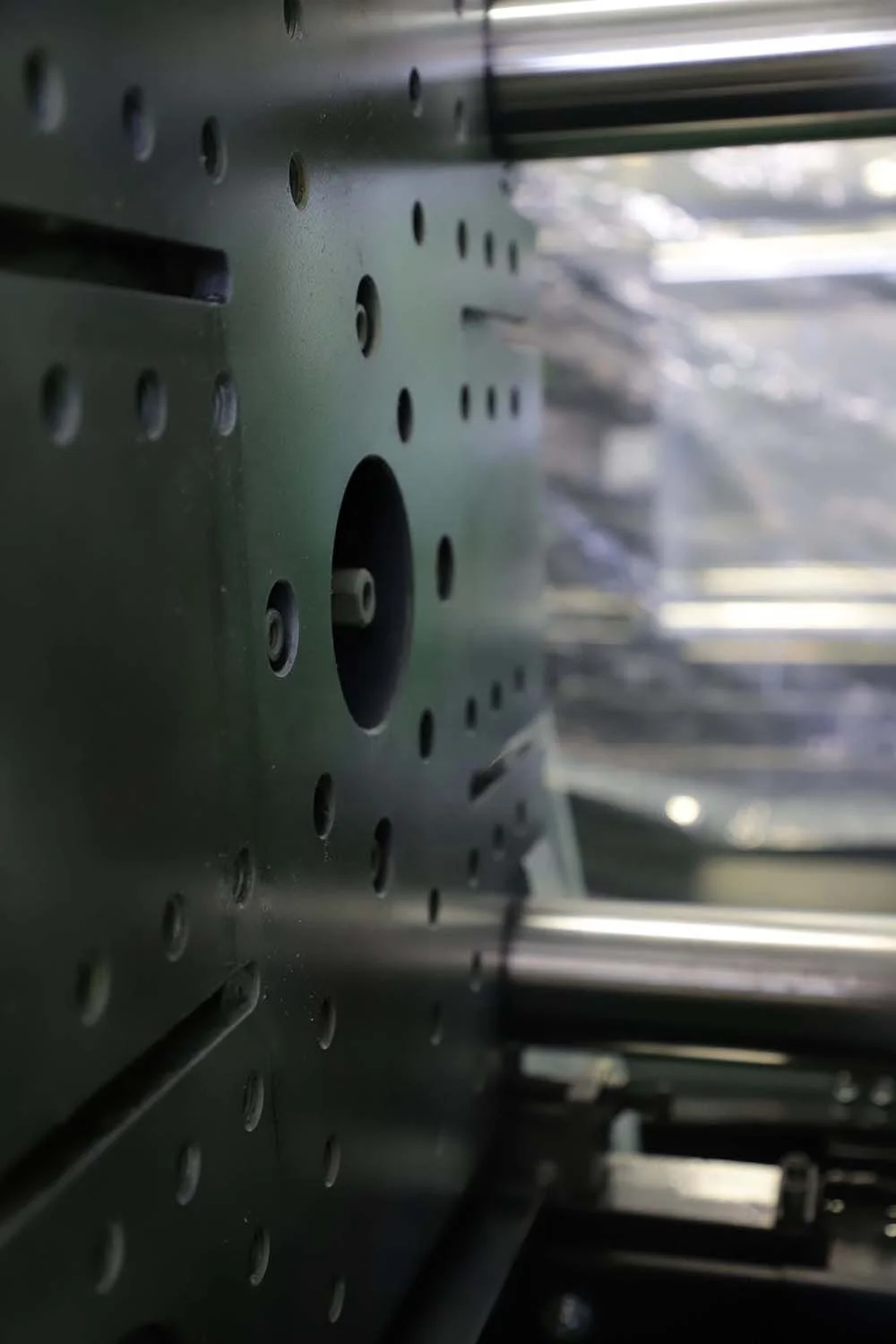

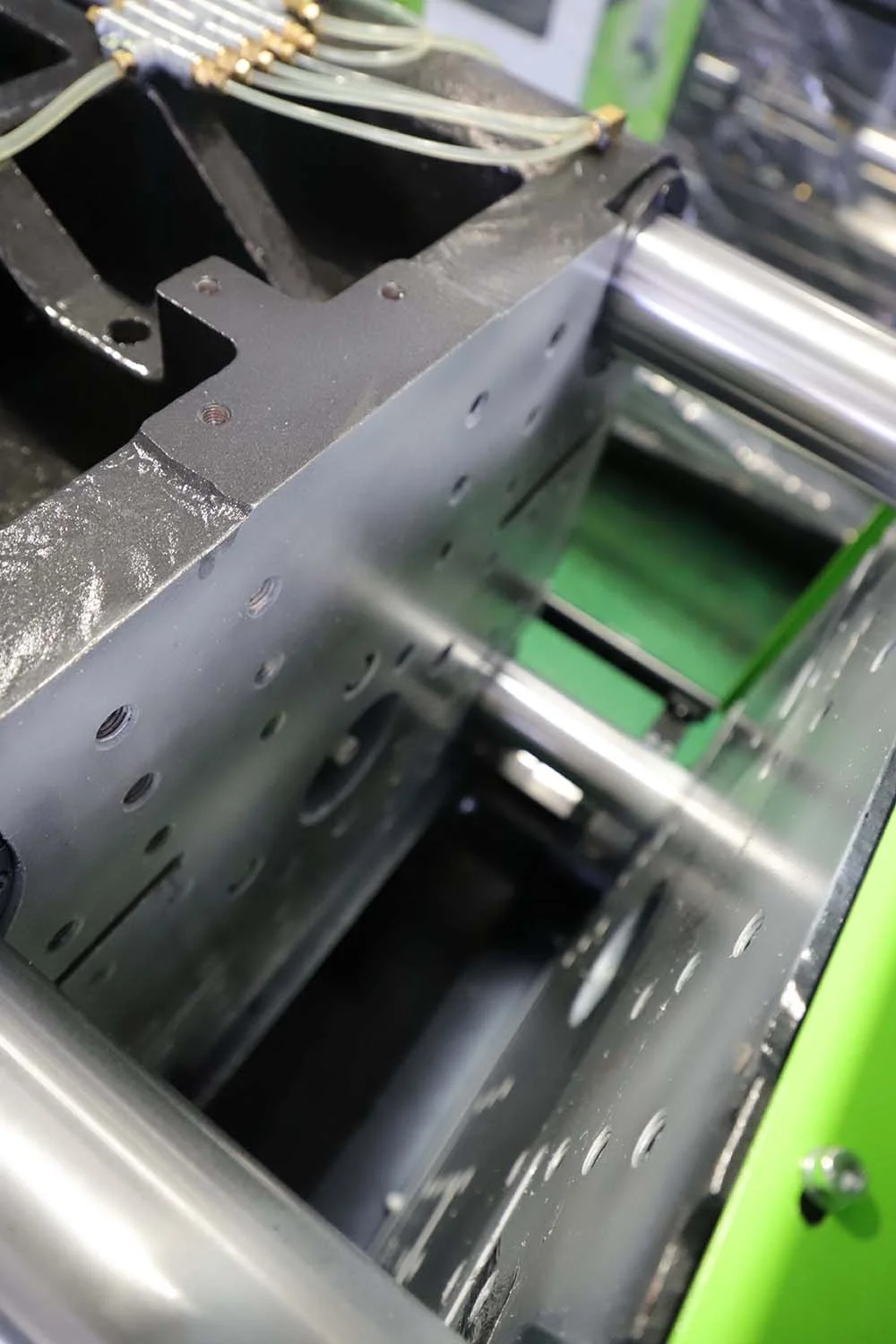

Clamping Unit
Platen center clamping
Combination of T slots and bolt holes

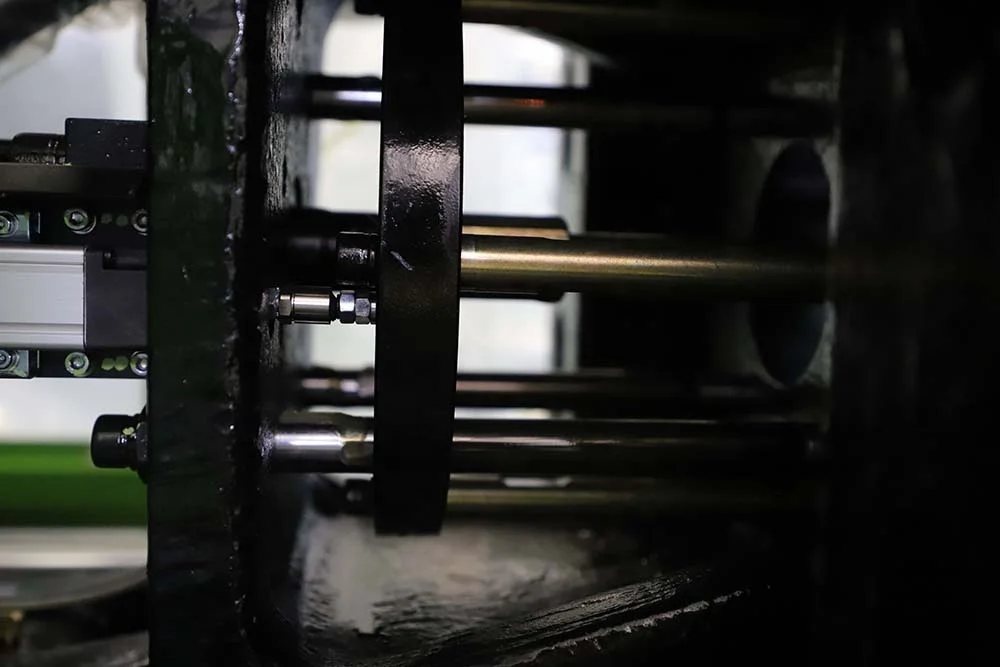

Optimized ejection mechanism
Enhanced load relief groove design
Adjustment-free mechanical safety lock
User-friendly

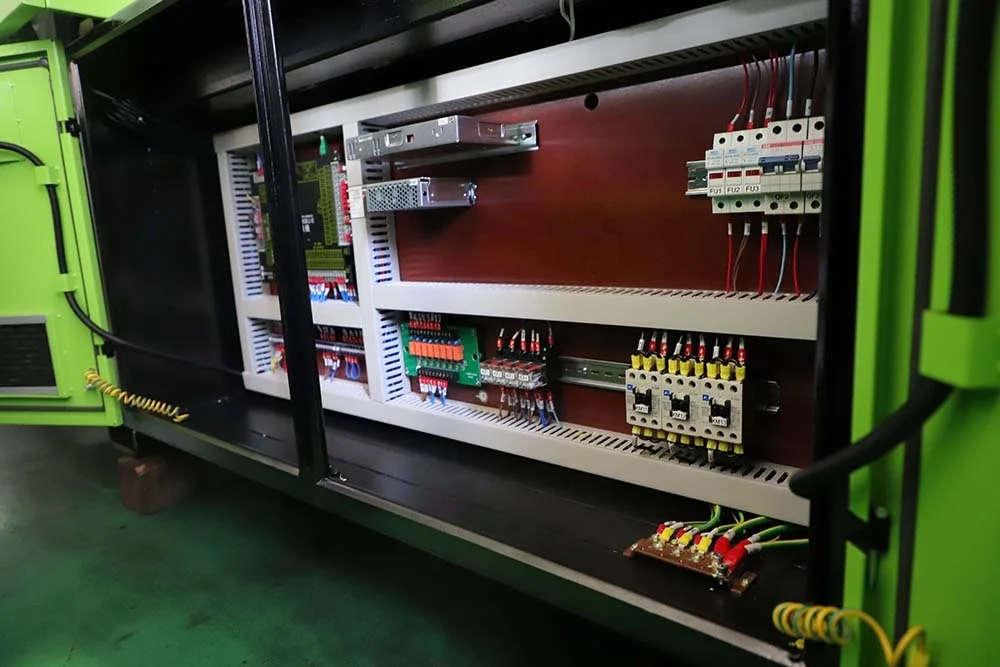

Control System
MH9118 Controller:
fast speed, accurate control, easy operation,
program for multiple processes, powerful
program for multiple processes, powerful
MH9118 controller which runs fast and clock rate up to 140MHZ
8＂TFT 256-color LCD with independent CPU control
Machine control frequency of 140MHZ, scanning time of 1ms, fast
response and accurate control
response and accurate control
100 sets of molding data storage with USB port
Production quality control with main process parameter statistics
Automatic tuning of PID settings for barrel temperature control
Product Details
Production Process
Production Video
Packing & Delivery
Company Profile
Exhibition
Why Choose Us
Certifications
FAQ
Q1 : What is the warranty of the machine ?
A1: The whole machine’s warranty period is 12 months and key parts will be depended.
A1: The whole machine’s warranty period is 12 months and key parts will be depended.
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month
Q7 : Mold trial will be available in Yizumi factory ?
A7： Yes, Customer can send the mold to Yizumi factory and test.
Q8 . Do you provide any spare parts with machine?
A8: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
