Оборудование для химического смешивания лосьон тела крем лица гель волос машина душа косметический вакуумный
- Категория: Cosmetics Production Equipment >>>
- Поставщик: Liaoyang,Xianglong,Pharmaceutical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 19040.96 $* | 19992.4 $* |
| Aug-16-2025 | 18880.33 $* | 19824.10 $* |
| Jul-16-2025 | 15840.64 $* | 16632.93 $* |
| Jun-16-2025 | 18560.72 $* | 19488.64 $* |
| May-16-2025 | 16160.26 $* | 16968.91 $* |
| Apr-16-2025 | 18240.92 $* | 19152.1 $* |
| Mar-16-2025 | 18080.24 $* | 18984.22 $* |
| Feb-16-2025 | 17920.71 $* | 18816.66 $* |
| Jan-16-2025 | 17760.18 $* | 18648.80 $* |
Характеристики
Product Description

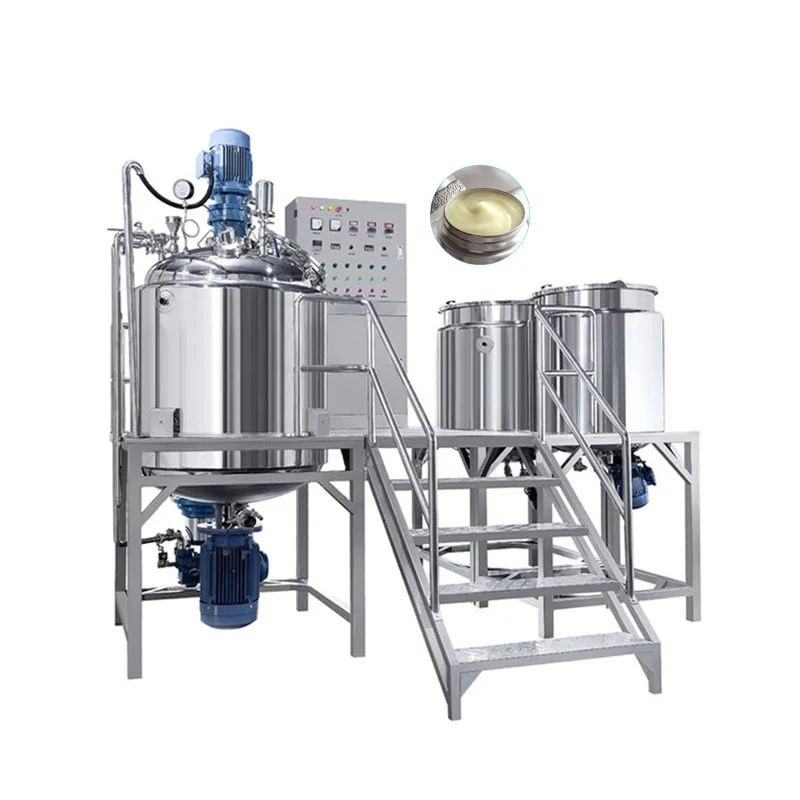

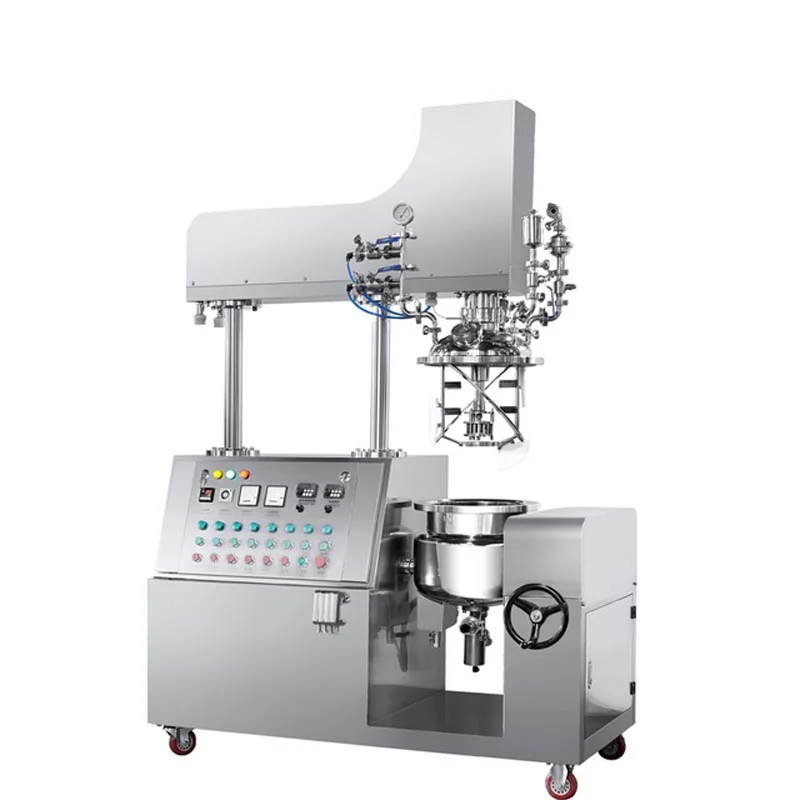

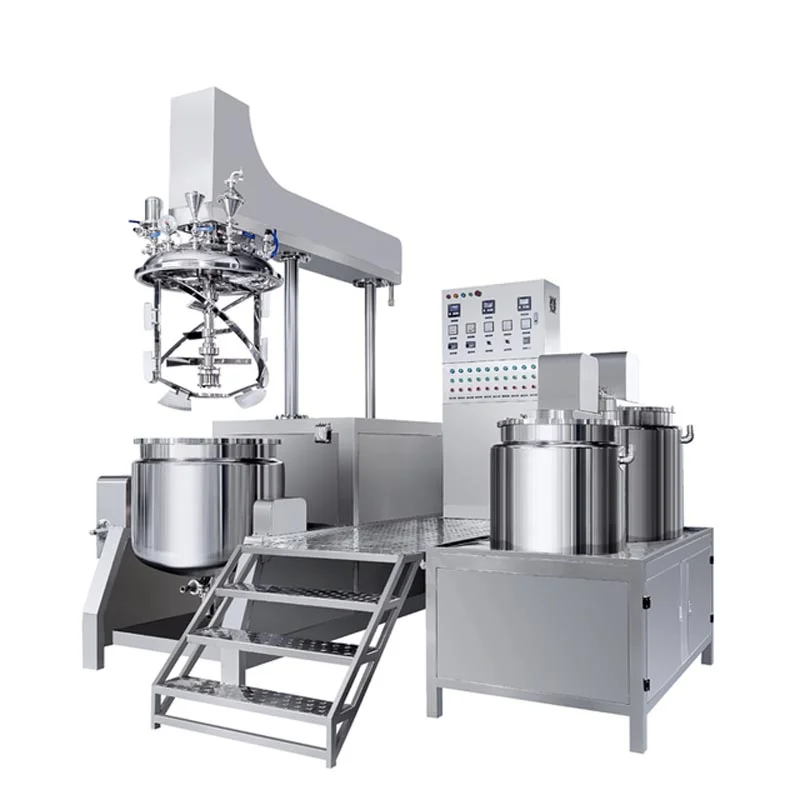

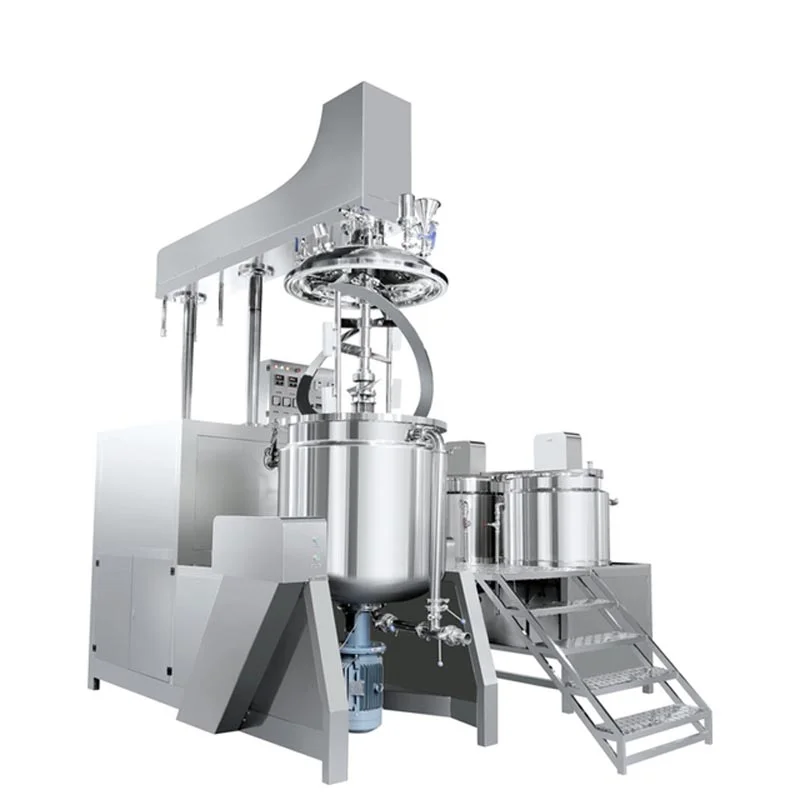

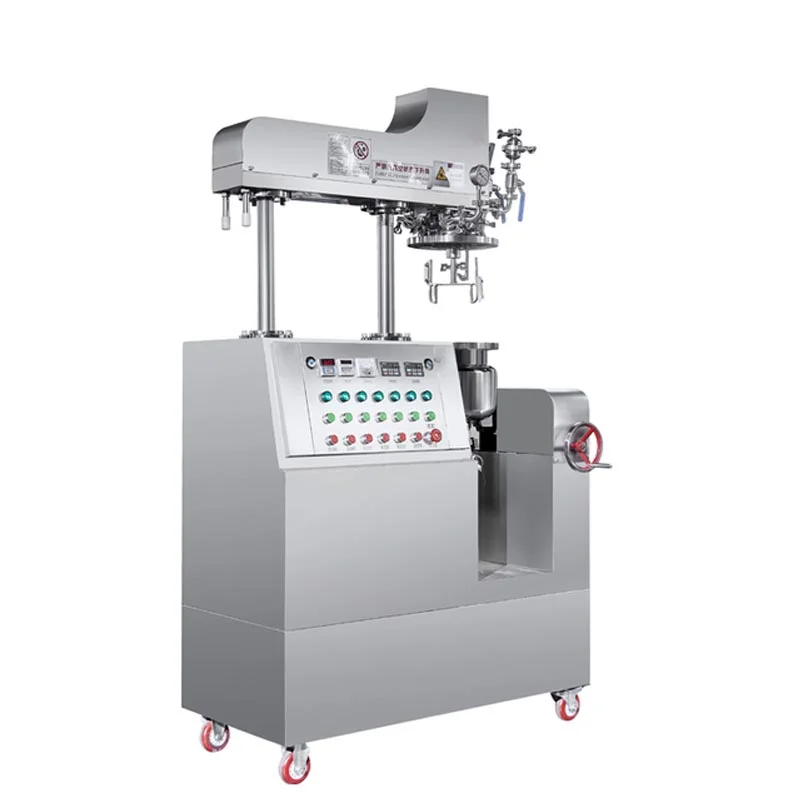

5l-1000l Cosmetic Vacuum Emulsion Homogenizer Mixer Machine
Working principle of emulsification and homogenization
1. The head of vacuum emulsifier adopts the claw type bidirectional suction structure, which avoids the dead Angle and eddy current phenomenon caused by the difficulty of feeding.The high speed rotating rotor produces a strong shear force, resulting in a higher shear rate and a stronger shear force.Under the action of centrifugal force produced by the rotor, the material is thrown into the narrow and precise gap between the stator and rotor from the radial direction. It is affected by centrifugal extrusion, impact and other forces, so that the material is fully dispersed, mixed and emulsified.
2.If used in Vacuum homogenizer or pressure vessel, the motor bracket of the shearing machine shall be equipped with the corresponding mechanical seal device.
Details Images
Vacuum emulsifier emulsifying and homogenizing three parts:
1.Hydraulic end of vacuum emulsifier:
--The structure design, strength and service life of the whole pump body of the vacuum emulsifier are reliably guaranteed.
--The vacuum emulsifier clearly shows the disassembly design and disassembly party of the valve core and valve seat.
--The valve seat adopts double-sided design to double the service life.
--Sanitary diaphragm pressure gauges are used to show pressure, reliable performance from world brand pressure gauge manufacturers.
2.Transmission parts:
--The transmission part adopts the combination of splash lubrication and forced pressure lubrication to lubricate, which greatly improves the safety and reliability.
--The crankshaft is made of alloy steel forgings with strong strength and long life.
--The design, reliable performance and simple maintenance of the outer gear box of the hard tooth surface of the vacuum emulsifier.
--The vacuum emulsifier is equipped with a separate forced cooling system to ensure the operation requirements of the oil
temperature of the system and to meet the long-term requirements of the equipment
temperature of the system and to meet the long-term requirements of the equipment
3.Vacuum emulsifier: emulsifying homogenization is mainly used to produce high viscosity emulsions, especially creams, ointments and emulsions.Use emulsifier to complete heating, cooling, dissolution, emulsification and vacuum defoaming functions at a time;The raw materials can be fully crushed, mixed, emulsified and homogenized to increase the gloss and stability of the products.
Technical parameters
Model | Effective | Emulsifying Motor | Agitator | Vacuum pump | electirc Heating power/kw | Steam heating pressure /Mpa | ||||||||||||
Capcity/L | KW | RPM | KW | RPM | KW | Limit Vacuum | ||||||||||||
VME-5L | 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 | |||||||||
VME-10L | 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 | |||||||||
VME-20L | 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 | |||||||||
VME-50L | 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 | |||||||||
VME-100L | 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 | |||||||||
VME-200L | 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 | |||||||||
VME-300L | 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 | |||||||||
VME-500L | 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 | |||||||||
VME-1000L | 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 | |||||||||
VME-2000L | 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam hetaing | 0.2 | |||||||||
VME-5000L | 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | ||||||||||
The parameters for reference ONLY, all the machines can be customized accordingly. | ||||||||||||||||||
