GTMEDIA V8 Finder Pro DVB-S2X/S2/S/T2/T/C комбинированный измеритель MPEG-2/4 H.264/H.265 (10 бит) отвечающих требованиям портативный спутниковый
- Категория: Satellite TV Receivers >>>
- Поставщик: Shenzhen,Winsat,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.44 $* | 0.92 $* |
| Aug-15-2025 | 0.33 $* | 0.30 $* |
| Jul-15-2025 | 0.92 $* | 0.65 $* |
| Jun-15-2025 | 0.75 $* | 0.70 $* |
| May-15-2025 | 0.99 $* | 0.54 $* |
| Apr-15-2025 | 0.18 $* | 0.52 $* |
| Mar-15-2025 | 0.41 $* | 0.25 $* |
| Feb-15-2025 | 0.41 $* | 0.7 $* |
| Jan-15-2025 | 0.80 $* | 0.72 $* |
Характеристики
Product Description
GTMEDIA V8 Finder Pro (DVB-S2X/S2/S/T2/T/C) | ||

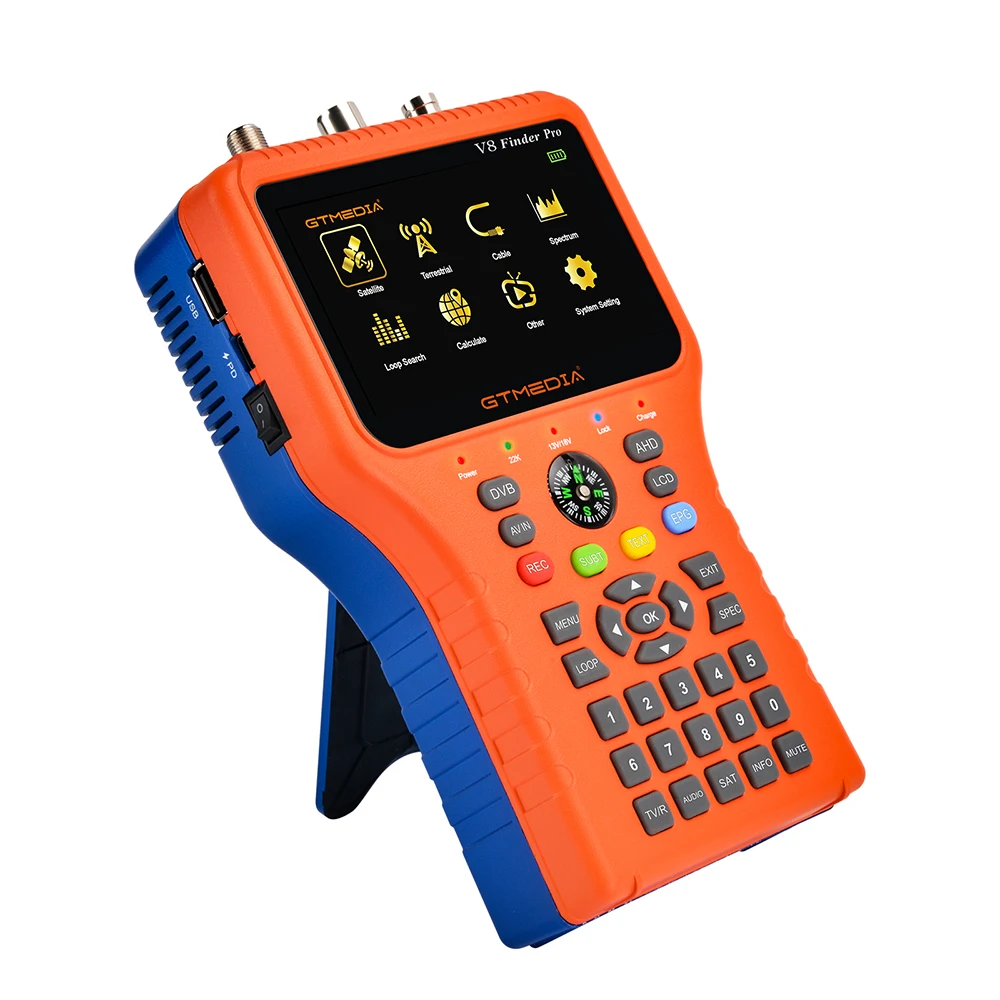

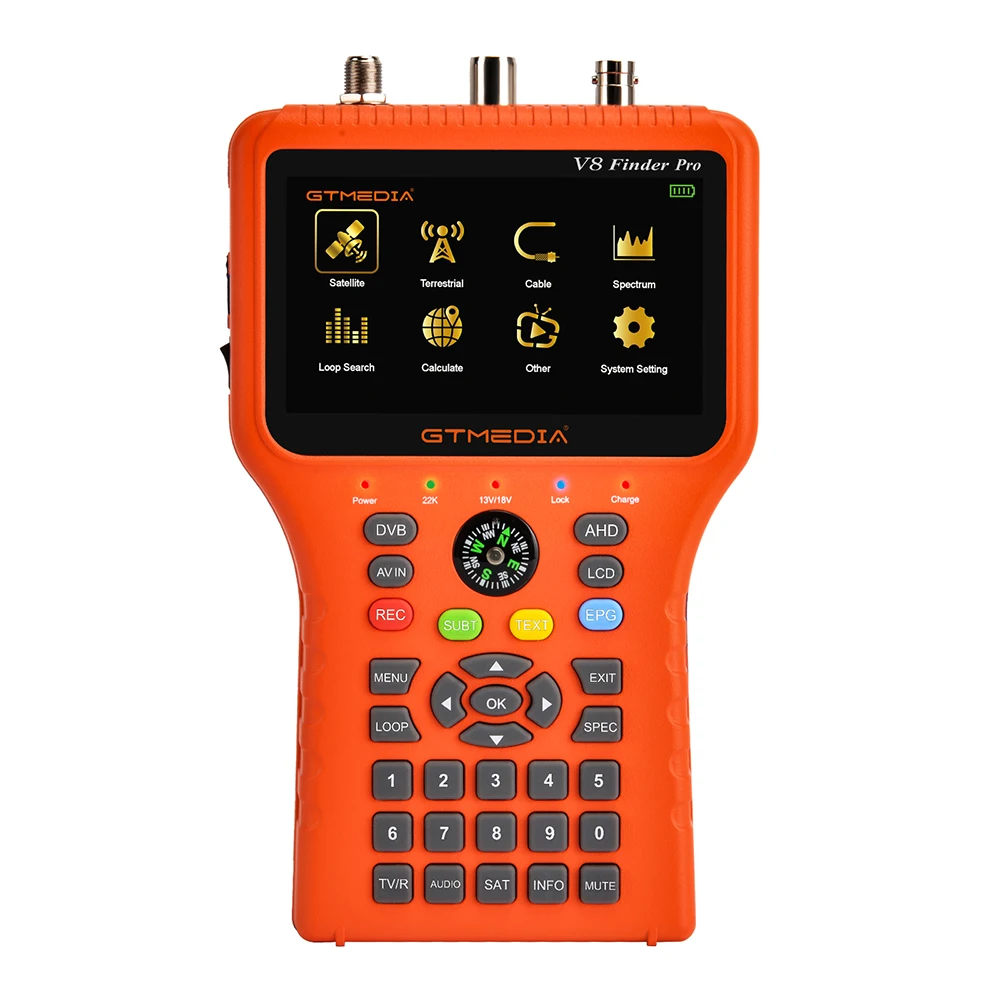

GTMEDIA V8 Finder Pro is a DVB-S2X/S2/S/T2/T/C and MPEG-2/4 H.264/H.265 (10 bit) compliant handheld combo meter, With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling units. | ||
● 4.3 Inch High Definition TFT LCD Screen | ||
● Fully DVB-S2X/S2/S/T2/T/C, MPEG-2/MPEG-4 compliant | ||
● Support H.264/H.265(10 Bit) Hardware decoding | ||
● Digital measuring device for signal strength and quality.Supports presetting all satellite information | ||
● Support Loop Search | ||
● Spectrum analyzer | ||
● Supports scan of Auto, Blind, Manual or NIT | ||
● Sound for Locking Signal | ||
● Auto Calculate Angle of AZ,EL | ||
● Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone | ||
● Speaker Integrated | ||
● Support both AV out and AV in, both HDMI out, AHD camera input | ||
● Support compass function | ||
● Supports Youtube for USB wifi 2.4G | ||
● LNB short protect | ||
● 7.4V/4000mAh Li-ion Battery Included | ||
● Software upgrade via USB port | ||
● Easy to carry | ||
Details Images
Certifications
DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264(8 Bit) | |
Supports softcam: Fastest BISS auto roll, PowerVu auto roll | |
Support CCM,VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP |
SATELLITE INPUT DEMODULATION | Connector Type | F Type |
Input Frequency | 950 to 2150 MHz | |
Signal Input Level | ‐65 to ‐25 dBm | |
Band Switch Control | 22KHz | |
LNB Supply | 13V/18V, Max 350mA | |
Demodulation Type | DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | |
Symbol Rate | 2 < Rs < 45Mband( SCPC/MCPC) |
LCD Type | TFT Transmissive | |
Number of Dots | 320 RGB*240 | |
Active area (W*H) | 70.08(H)*52.56(V)MM | |
AV output interface | Connector Type | 3.5 mm jack |
Video Output | CVBS | |
Audio Output | Stereo Audio L/R output | |
HDMI output connecter | Format | HDMI 1.3a |
Connector Type | 3.5 mm jack | |
Video Input | CVBS | |
Audio Input | Stereo Audio L/R input | |
Conector | USB | |
Data Protocol | USB 2.0 interface | |
File Management System | NTFS, FAT32, FAT16 | |
Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Audio: wma,mp3 Photo: jpg,jpeg,bmp,img | ||
PVR Option | Support recording TS files | |
WIFI Option | Support networking via USB WIFI | |
Li-Lon Battery | 3.7V/5000mAh(The machine behind labeling shall prevail) | |
Adapter (Optional) | Support QC/PD3.0 fast charge, MAX 18W | |
Power Consumption | Rated 8W (No external equipment) |

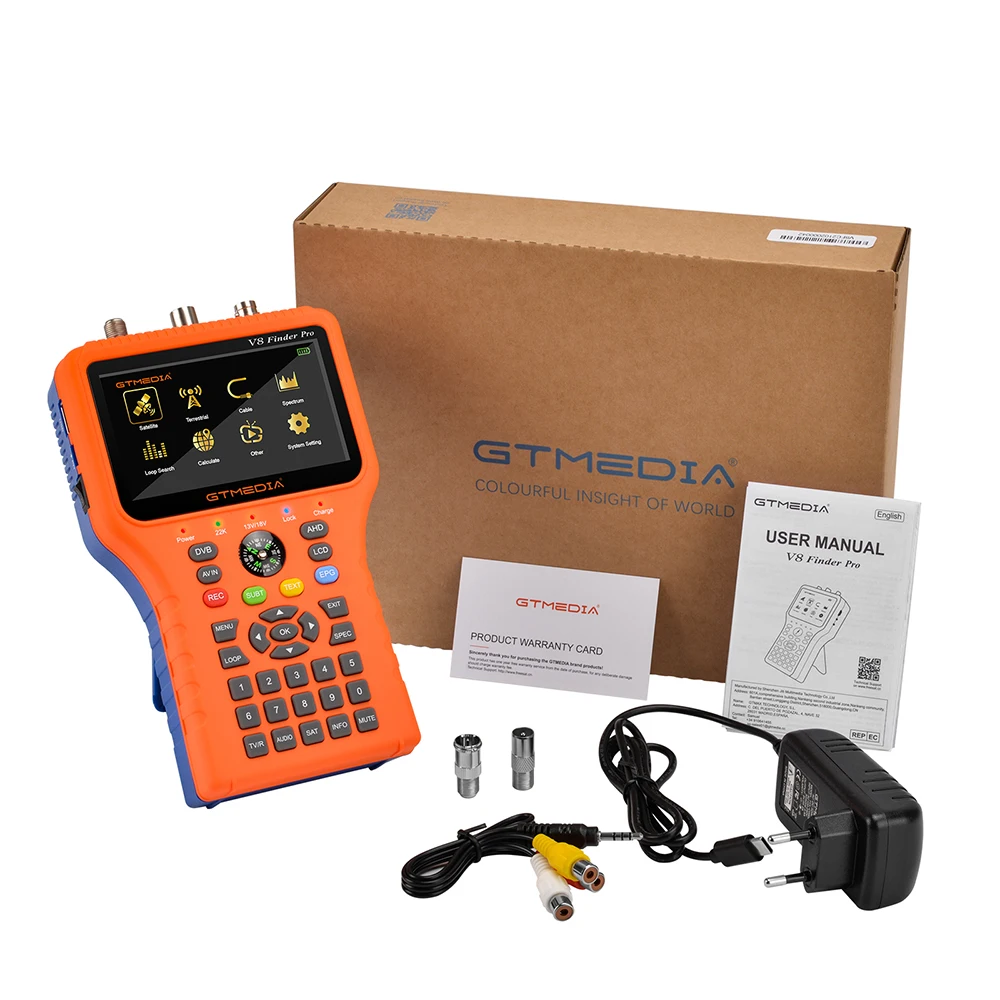

Package and Delivery
Packing Information:
Product Dimension Size: 123*204*45(mm) (W*D*H)
Product Net Weight: 0.6kg
Packing box size: 260*200*57(mm)(W*D*H)
Package weight: 0.85kg
Product Net Weight: 0.6kg
Packing box size: 260*200*57(mm)(W*D*H)
Package weight: 0.85kg
Multiple shipping ways:
By sea/ air/ express...
Company Introduction
Shenzhen Winsat Technology Development Co., Ltd. was established in 2008, we focus on the research and development and sales of home multimedia terminals.
For more than a decade, we have successfully transformed from a professional manufacturer of OEMs and ODM satellite receivers to a manufacturer of home multimedia product brands, and through our cooperation with many internationally renowned brands, we have enhanced our brand reputation.
We have experienced engineers (10 senior software engineers and 4 senior hardware engineers) and more than 99% of our employees have university degrees. In the future, we will continue to expand the R&D team. In 2018, in order to meet the company's product strategy requirements, we launched a new brand: GTMEDIA. Now we have two internationally renowned brands: FREESAT and GTMEDIA.
Our products include: Satellite Receiver (DVB-S/S2, DVB-C, DVB-T/T2, ATSC), DVB+Android Bos, Android TV Box, DAB+ Radio, Satellite Finder, etc. Artificial intelligence is currently being developed ( AI) series of home multimedia terminal products.
In the future, we will continue to provide better products and services in multimedia products and artificial intelligence
products. We are professional and dedicated!
For more than a decade, we have successfully transformed from a professional manufacturer of OEMs and ODM satellite receivers to a manufacturer of home multimedia product brands, and through our cooperation with many internationally renowned brands, we have enhanced our brand reputation.
We have experienced engineers (10 senior software engineers and 4 senior hardware engineers) and more than 99% of our employees have university degrees. In the future, we will continue to expand the R&D team. In 2018, in order to meet the company's product strategy requirements, we launched a new brand: GTMEDIA. Now we have two internationally renowned brands: FREESAT and GTMEDIA.
Our products include: Satellite Receiver (DVB-S/S2, DVB-C, DVB-T/T2, ATSC), DVB+Android Bos, Android TV Box, DAB+ Radio, Satellite Finder, etc. Artificial intelligence is currently being developed ( AI) series of home multimedia terminal products.
In the future, we will continue to provide better products and services in multimedia products and artificial intelligence
products. We are professional and dedicated!
Our Service
Our Services & Strength
1) We have professional research team. All products are designed buy ourself, so we are experiened in any doubts you have on theproduct.
2) As a manufacturer, we have our own factory, so we definitely have price advantage on our models!
3) All products are 100% tested before sent to you.
4) All products one year warranty, especially accept FREE SHIPPING to refund and exchange in 3 months.
5) We have professional sales team, so please do not hesitate to contact us if you have any question!
Technical support website: www.freesat.cn
2) As a manufacturer, we have our own factory, so we definitely have price advantage on our models!
3) All products are 100% tested before sent to you.
4) All products one year warranty, especially accept FREE SHIPPING to refund and exchange in 3 months.
5) We have professional sales team, so please do not hesitate to contact us if you have any question!
Technical support website: www.freesat.cn
