2 ton three wheel electric forklifts cpd2030 telescopic 3 M lift height

Parameter for 2 ton three wheel electric forklifts cpd2030 telescopic 3 M lift height

Model Parameter	CPD1030	CPD1530	CPD2030
Load Capacity(Kg)	1000	1500	2000
Lift Height(m)	3000	3000	3000
Load Center (mm)	500	500	500
Fork Length (mm)	1070	1070	1070
Lowest height(mm)	100	100	100
Manipulation Way	Steering Wheel	Steering Wheel	Steering Wheel
Tyres	Solid Tyre	Solid Tyre	Solid Tyre
Dimension of Driving Wheel	350*100	350*100	250*80
Speed at Full Load km/h	8	8	5
Lifting Speed at full Load mm/sec	80	80	80
Speed Control Way	Stepless Speed Regulation	Stepless Speed Regulation	Stepless Speed Regulation
Door Frame Tilt Angle °	3~6	3~6	3~6
Gradient at full Load °	10	8	8
Battery V/Ah	48/120	48/120	24/240
Working Time(for reference) (h)	4	3.5	3
Driving Motor (kw)	2.2	2.2	1.5
Lifting Motor (kw)	3	3	3
The Min. Turning Inner Radius (mm)	1750	1800	1800
L X W X H Dimension (mm)	3100*1050*2080	3100*1050*2080	3100*930*2080
weight(kg)	1600	1700	1800
lifting Height at each weight (mm)	1600/2000/2500/3000/3500
Height of Door Frame (mm)	2080/1600/1850/2080/2350

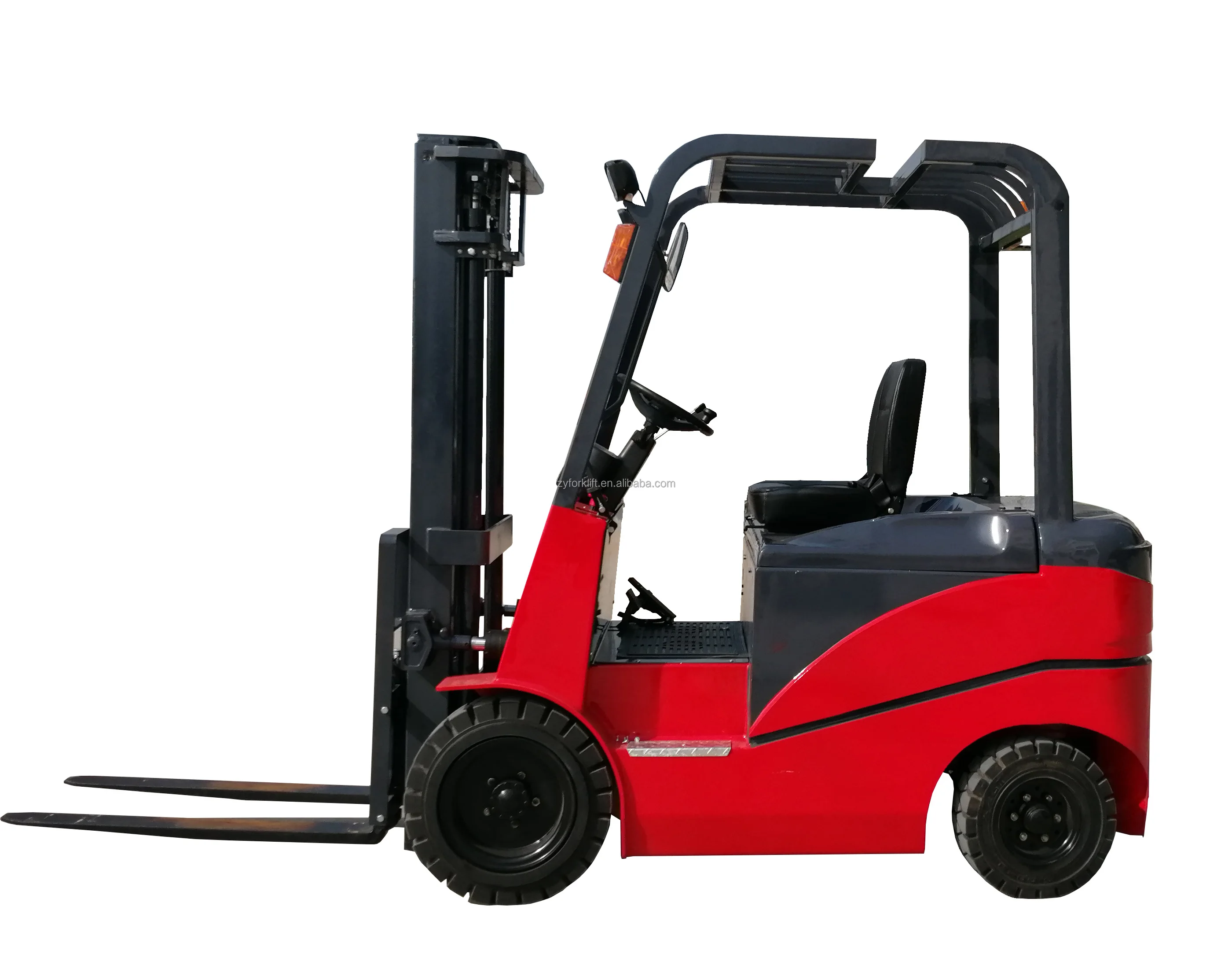

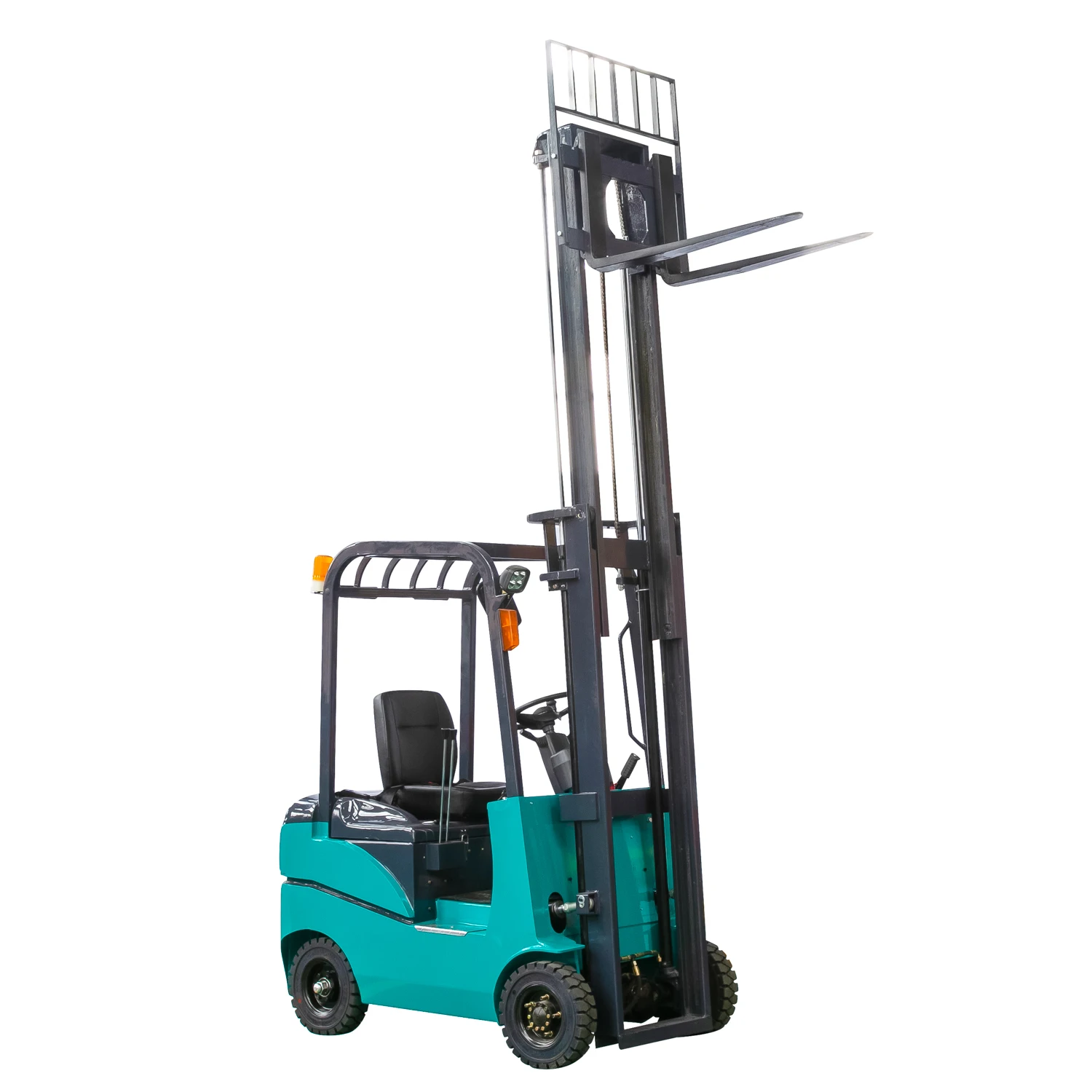

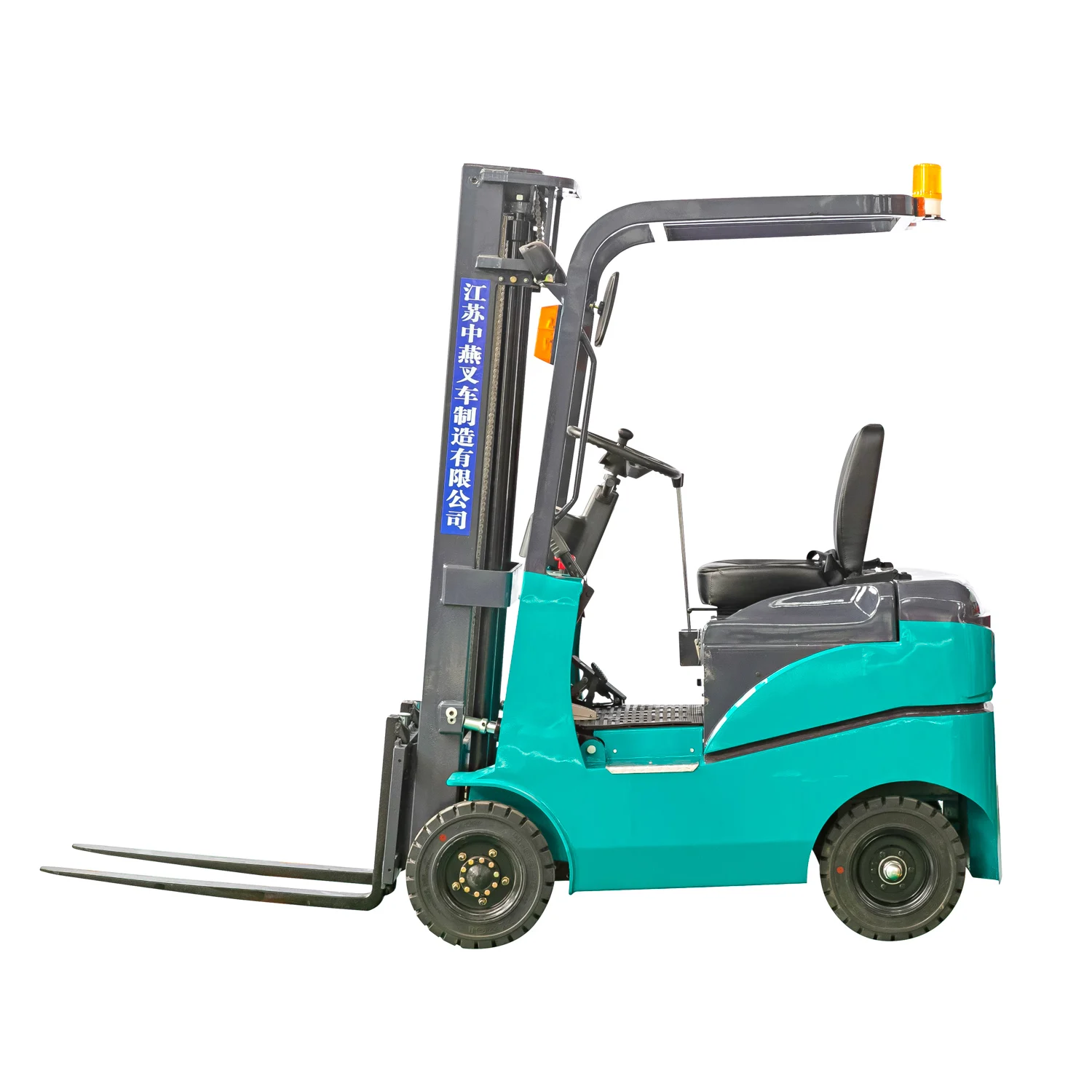

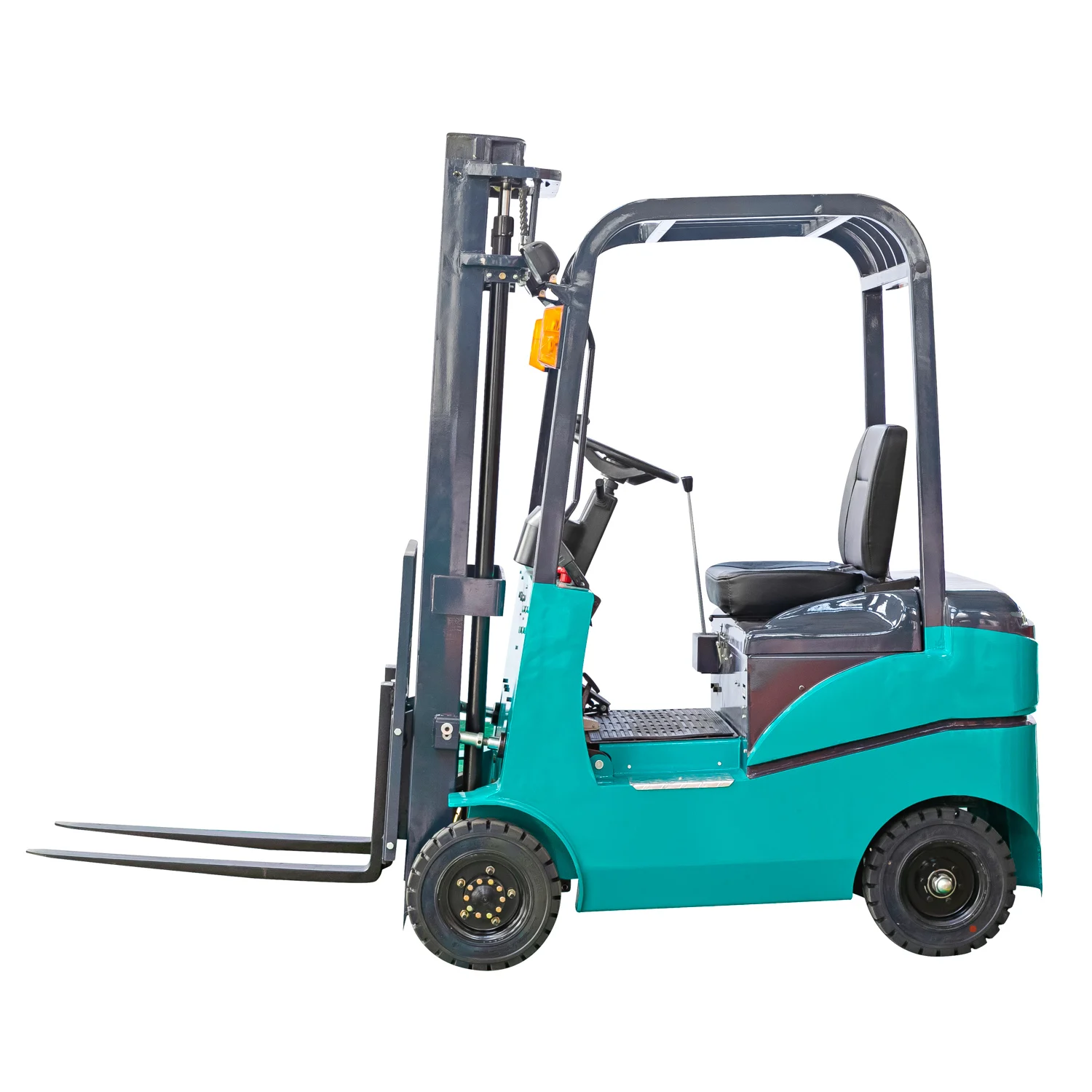

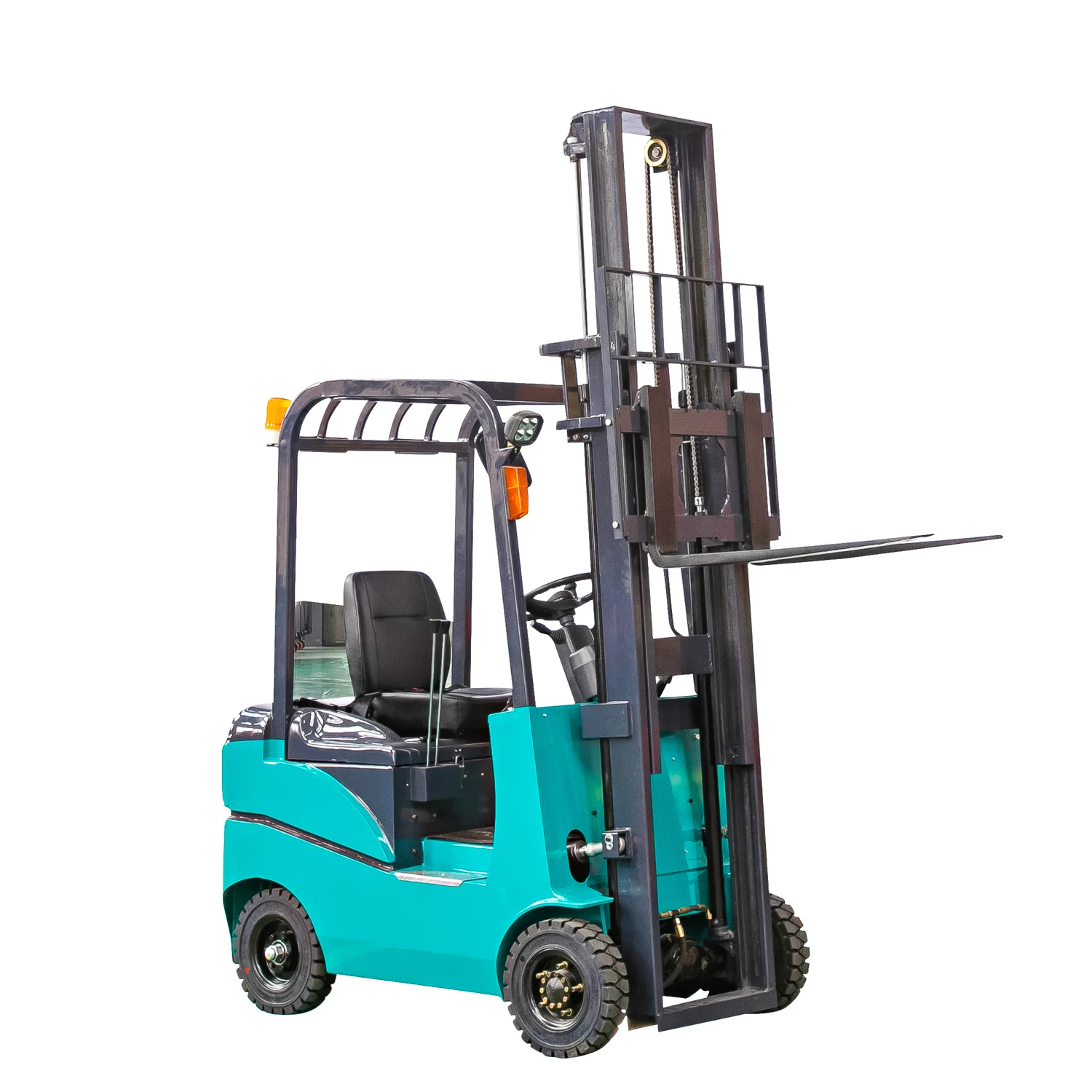

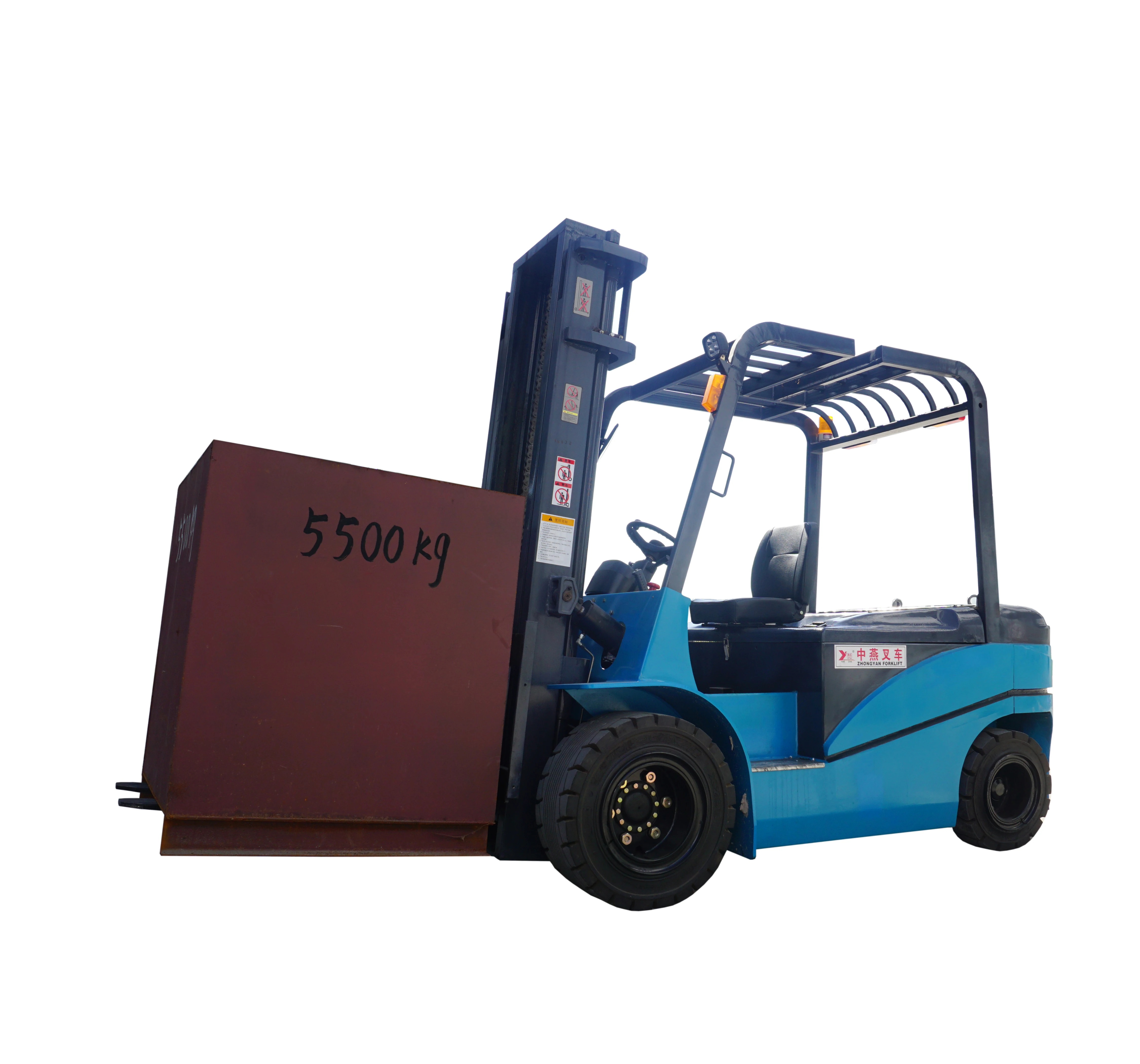

Product Show

·Load, discharge, move and stack moderate strength material;

·It is designed for narrow aisle;

·with single-double-side plate;

·Adopt special parallel-shaft gears between driving motor and axle, which greatly improve transmission efficiency and reduce noises.

·Safe mode for the switch on the seat;

·Adopt imported electrically controlled and hydraulic parts with high storage battery as the core components to ensure stability and liability for long-time use.

                                Production Process



1. Located in Taixing Jiangsu province, with a 10+ years' professional experiences in forklift field
2. covering an area of 21,800 centiare.
3. Supply standard & customized design and manufacture for electric forklift, semi-electric forklift, reach forklift, manual forklift, electric stacker, hand pallet truck etc.
4. A complete set of quality control measures before delivery
5. Great after-sale services



Presale Service: We provide professional suggestions for different type of cargos and different apllication places;

After-sale services: We supply technical support via video and free accessories damaged during delivery.

Warranty Time: 1 YEAR, SIX Months for battery.
