Легкий индивидуальный Автомобильный видеорегистратор 1080P mdvr 8ch ahd 1080p 4g / gps


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.34 $* 0.53 $*
Aug-19-2025 0.60 $* 0.51 $*
Jul-19-2025 0.42 $* 0.66 $*
Jun-19-2025 0.46 $* 0.89 $*
May-19-2025 0.9 $* 0.84 $*
Apr-19-2025 0.17 $* 0.78 $*
Mar-19-2025 0.24 $* 0.97 $*
Feb-19-2025 0.38 $* 0.10 $*
Jan-19-2025 0.14 $* 0.83 $*

Характеристики



Product Shows




Product Paramenters


Item
Device Parameter
Performance
System
Main processor
Hi3521D
Operating system
Embedded Linux OS
Operating language
Chinese/English
Operating interface
GUI, support mouse
Password security
User password/Admin password
Audio
&
Video
Video standard
PAL/NTSC
Video compression
H.265/H.264
Image resolution
1080N/720P/960H/D1/CIF
Playback quality
1080N/720P/960H/D1/CIF
Compound mode
A variety of ways
Decoding ability
8ch 1080N real time
Recording quality
Class 1-6 optional
Image display
Single/QUAD/Multi display optional
Audio Compression
G.726/G.711 etc
Audio recording
Audio & Video synchronized recording
Recording & Playback
Recording mode
Manual/Alarm
Video bit rate
Full frame 4096Mbps,6 classes image quality optional
Audio bit rate
8KB/s
Storage media
SD card + HDD/SSD storage
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Firmware Upgrading
Upgrading mode
Manual/Automatically/Remote/Emergency Recovery
Upgrading method
USB disk/Wireless network/SD card

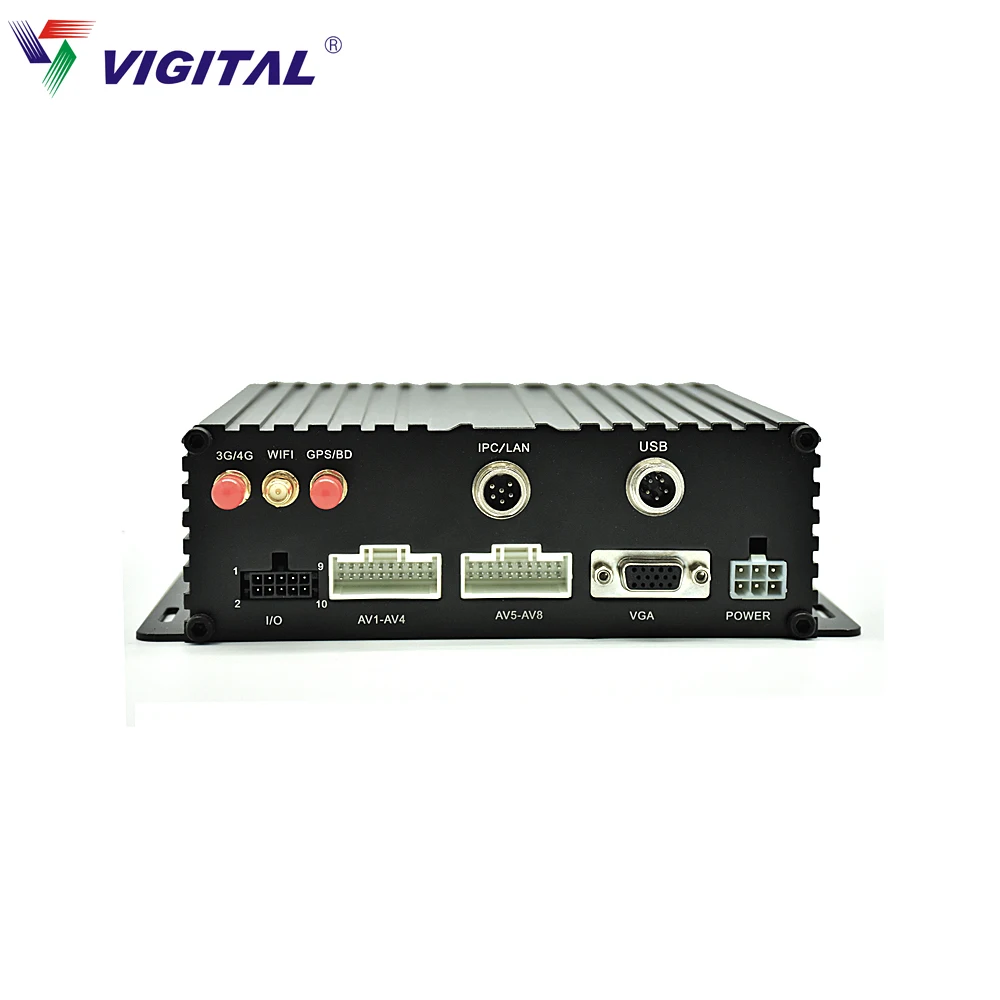

Interface
AV input
8ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (4 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 256GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level
LED Indication
PWR/RUN
Disk lock
1
Debug port
1
Function
Extention
GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI
802.11b/g/n, 2.4GHz
Others
Power input
8~32V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature
-20 --- 70℃
Storage
1080N 1.2G/h/channel
720P 1G/h/channel
960H 750M/h/channel
Dimension
162mm*180mm*50.5mm


FEATURES:
1.Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image quality
2. 8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
3. 8CH local recording with 1080N resolution in real time
4. Built in G-Sensor
5. Support cameras set in normal view or mirror
Power:
1.Professional In-Vehicle power design, 8-36V DC Wide Voltage Range
2. Multi protection circuits like under-voltage, short, reversed plug-in
3. Smart power management system, shutdown under low voltage, low consumption
Data Storage:
1.Special file management system to encrypt and protect the data
2. Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
3. Built-in ultracapacitor, avoid data loss and SD card damage caused by sudden outage
4.Support 2.5 inch HDD/SSD, maximum 2TB
5. Support SD card storage, maximum 256GB
6. Support hard disk heating
Transmission Interface:
1. Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
2.Support GPS/BD optional, high sensitivity, fast positioning
3. Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
