Керамические соединители для проводов керамические гайки электрические разъемы винтовые клеммы высокотемпературные фарфоровые поворотные
- Категория: Terminals >>>
- Поставщик: Jiangsu,Fist,Special,Ceramic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.74 $* |
| Aug-16-2025 | 0.80 $* | 0.44 $* |
| Jul-16-2025 | 0.34 $* | 0.43 $* |
| Jun-16-2025 | 0.81 $* | 0.45 $* |
| May-16-2025 | 0.72 $* | 0.19 $* |
| Apr-16-2025 | 0.33 $* | 0.45 $* |
| Mar-16-2025 | 0.86 $* | 0.85 $* |
| Feb-16-2025 | 0.18 $* | 0.83 $* |
| Jan-16-2025 | 0.69 $* | 0.7 $* |
Характеристики
Products Description
Introduction：

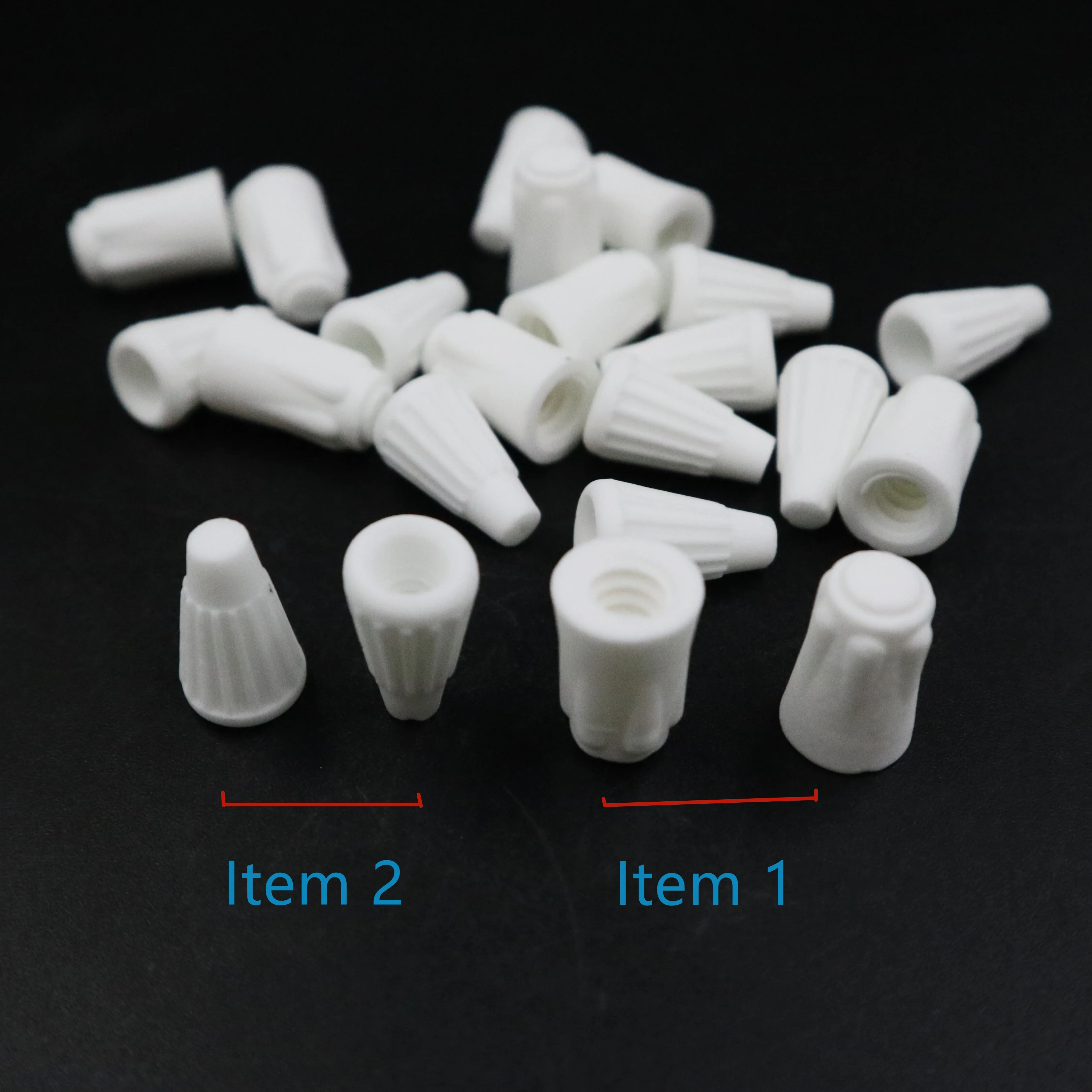

Product name：Ceramic Wire Screw Terminals
Material: High quality 95% Alumina ceramic
Color：White

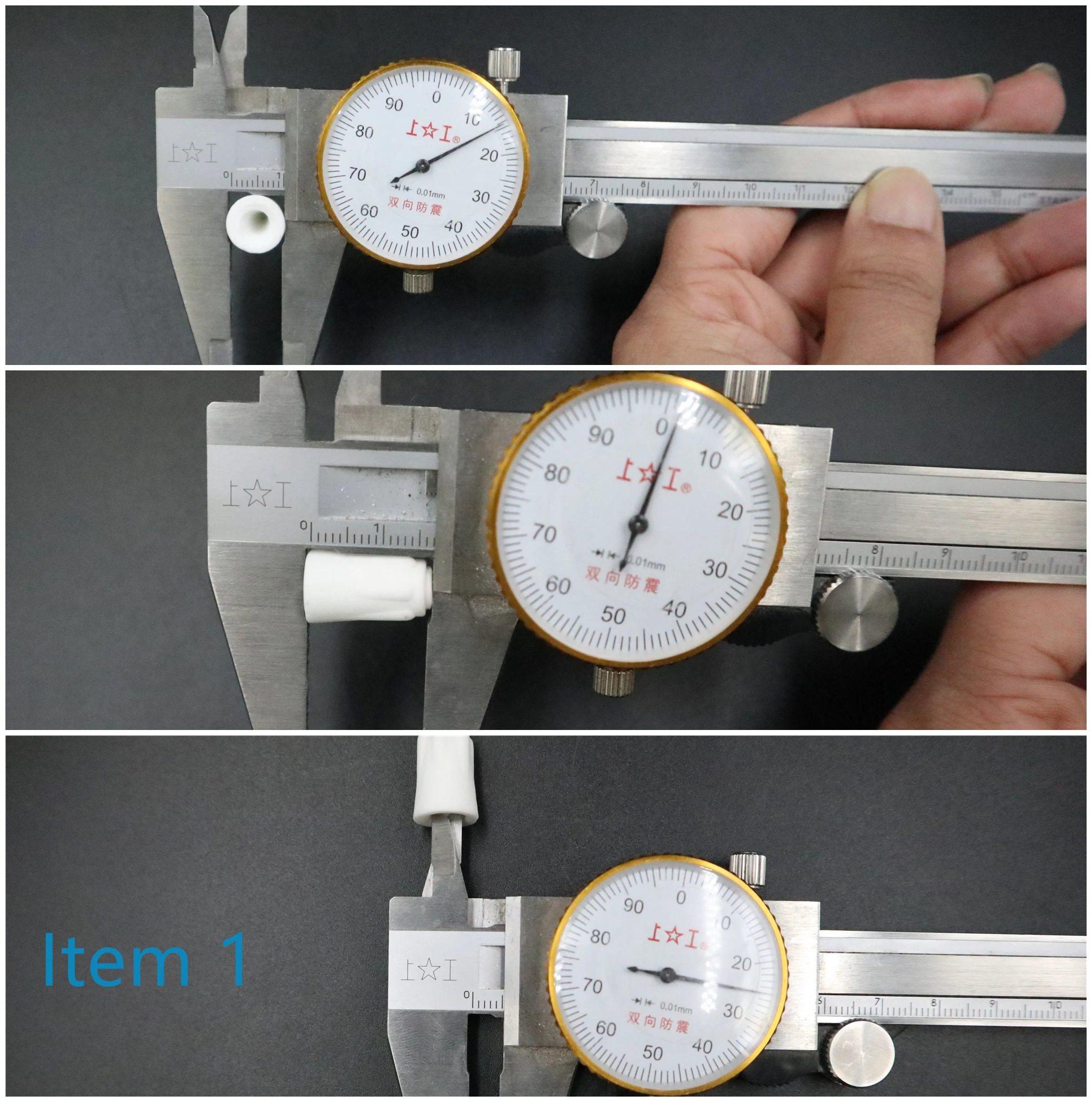

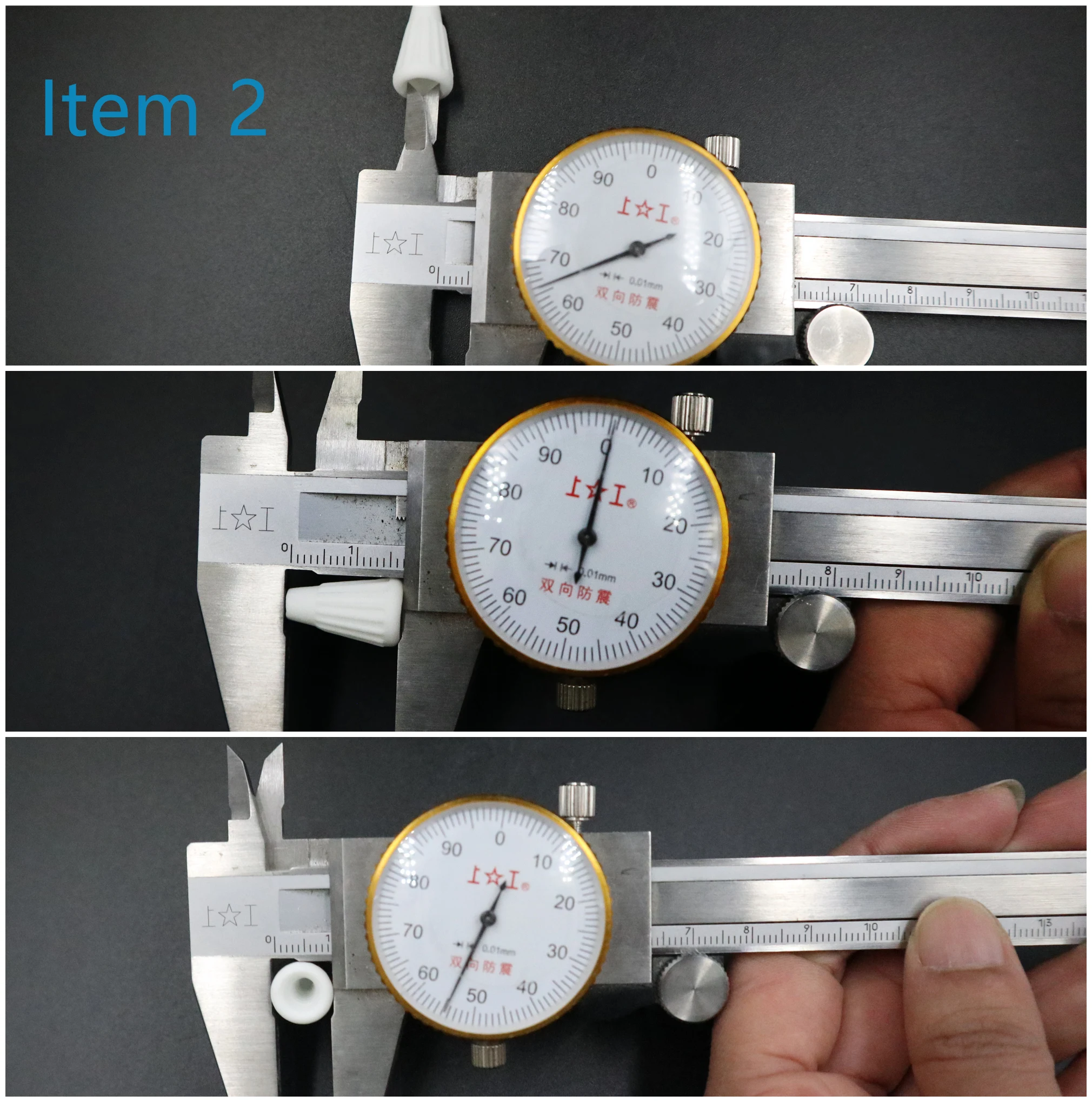

Size：Item 1=17.02*10.14*5.25mm; Item 2=17*10.55*6.66mm

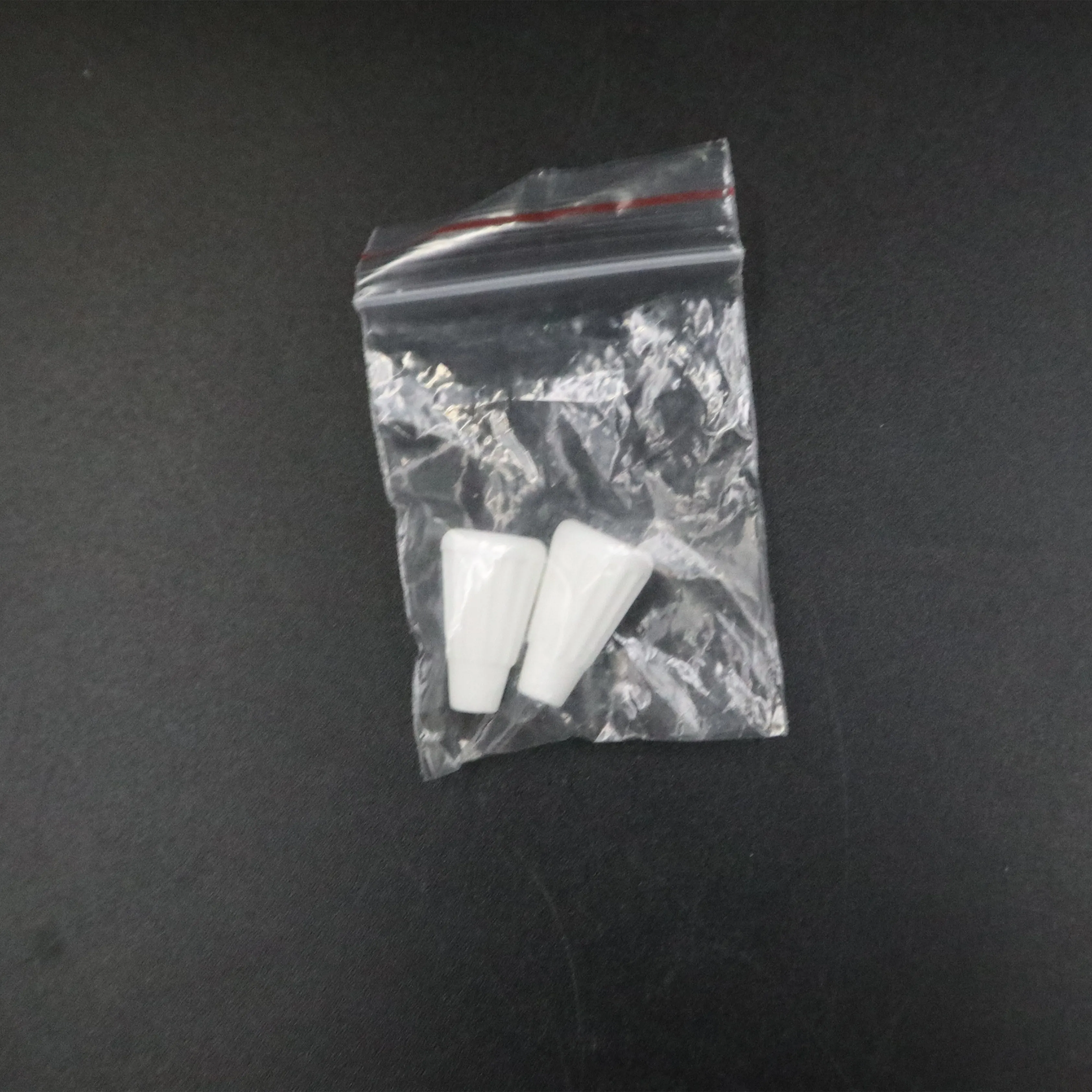

Package: Normally 1000pcs in a OPP bag, or 2 pieces in a small OPP bag, then the price will be different.
Features：
1) High temperature resistance from 200 to 1,000 degrees Fahrenheit
2) Convenient to use: unlike other ordinary connectors, there is a sturdy tapered thread in the ceramic
3) Excellent insulation
4) Durable, not easy to break
Product name：Ceramic Wire Screw Terminals
Material: High quality 95% Alumina ceramic
Color：White
Size：Item 1=17.02*10.14*5.25mm; Item 2=17*10.55*6.66mm
Package: Normally 1000pcs in a OPP bag, or 2 pieces in a small OPP bag, then the price will be different.
Features：
1) High temperature resistance from 200 to 1,000 degrees Fahrenheit
2) Convenient to use: unlike other ordinary connectors, there is a sturdy tapered thread in the ceramic
3) Excellent insulation
4) Durable, not easy to break
Notice:
Please check the size before purchasing.
Small items, please keep away from kids to avoid choking risk
Please check the size before purchasing.
Small items, please keep away from kids to avoid choking risk

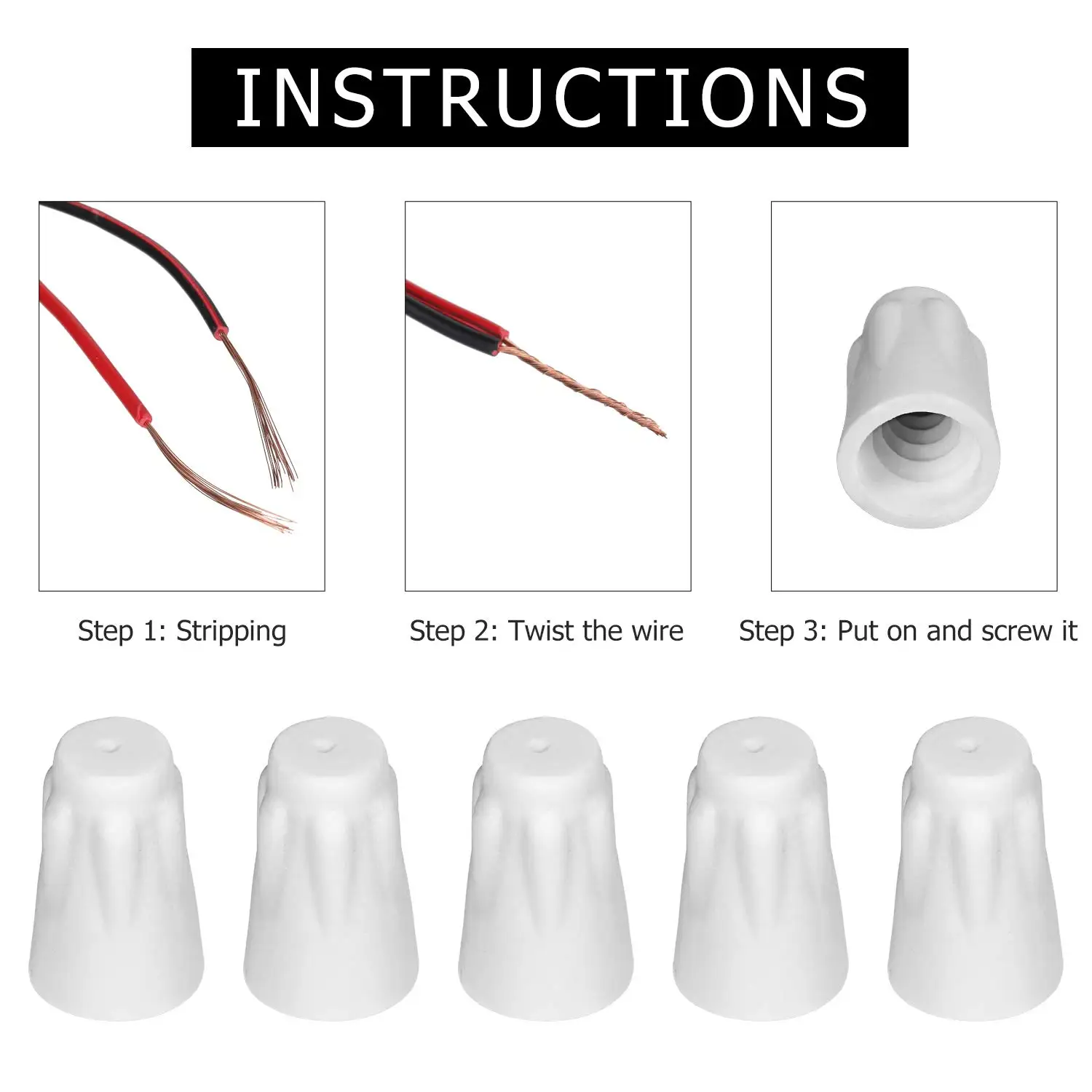

Usage:

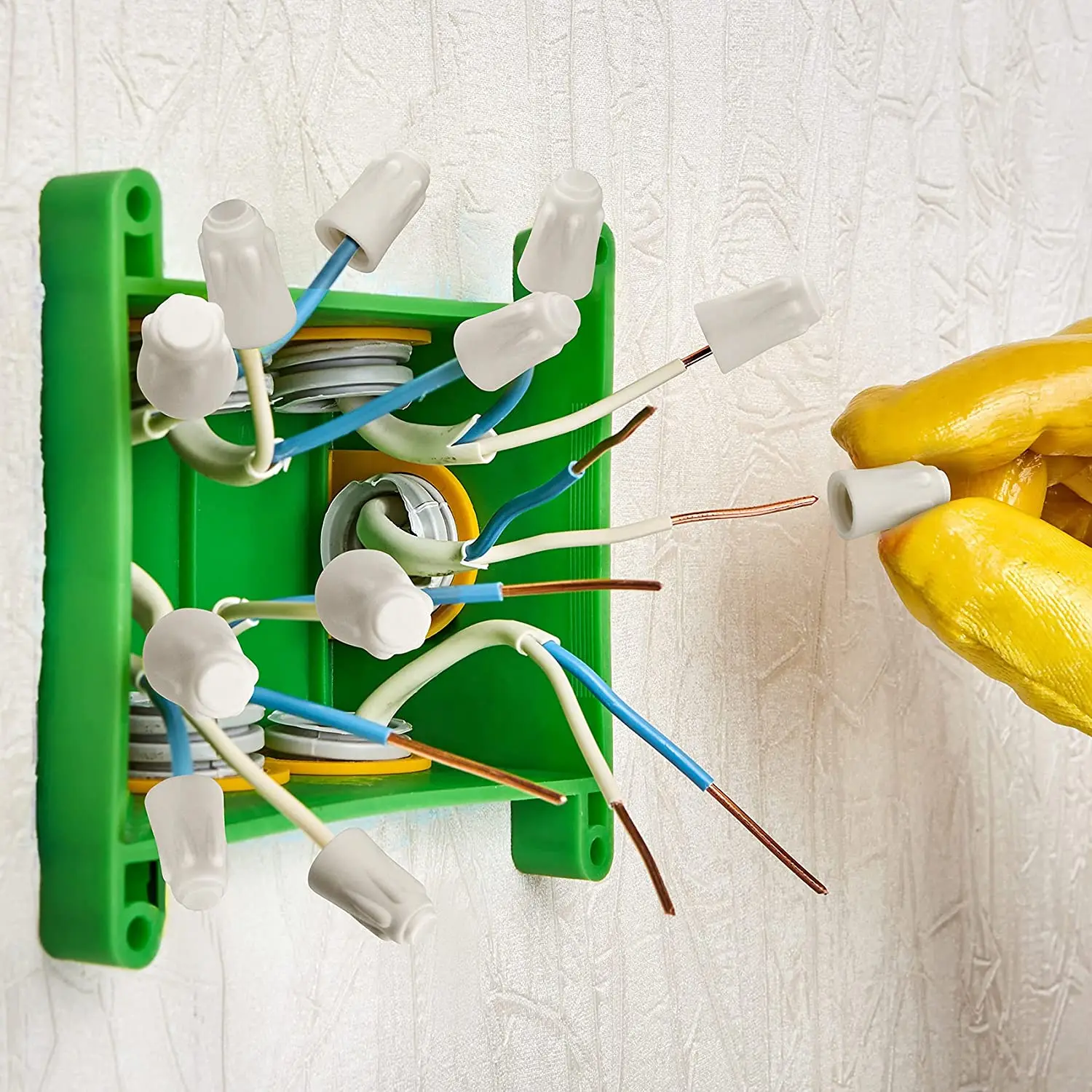

This ceramic wire connector is suitable for connecting wires 18-8 from American Wire Gauge (AWG). These ceramic wire connectors are widely applicable for high-temperature electrical applications such as high-powered lighting fixtures, ceiling fans, heaters, etc.
Properties | Units | Steatite Ceramic | Cordierite Ceramic | Mullite Ceramic | 95% Al₂O₃ | 99% Al₂O₃ | Zirconia Ceramic | Silicon Nitride |
Colour | White | Yellow | White | White | Ivory | White | Grey | |
Density | g/cm3 | 2.7 | 1.9 | 2.6 | 3.5 | 3.85 | 6 | 3.2 |
Flexural Strength | Mpa | 140 | 30 | 120 | 280 | 340 | 1150 | 600 |
Compressive Strength | MPa | 900 | 350 | 500 | 2100 | 2200 | 2500 | 2500 |
Max Use Temperature | °C | 1000 | 1200 | 1300 | 1400 | 1650 | 1500 | 1800 |
Thermal Condutivity | W(m.K) | 2~3 | 1.3~1.8 | 2~6 | 16~28 | 19~30 | 2.5 | 20 |
Thermal Expansion Cofficient | 10-6/°C | 7 ~ 9 | 1.5~3.5 | 5~6 | 6.5~7.5 | 6~8 | 8~10 | 3~4 |
ThermalShock Resistance | △TC | 100 | 300 | 150 | 140 | 150 | 250 | 600 |
Specific Heat | J/kg.K | 850 | 800 | 900 | 950 | 950 | 500 | 500 |
Dielectric Strength | KV/mm | 20 | — | 30 | 12 | 10 | 5 | 20 |
Dielectric Constant | Er | 6 | — | 8 | 9 | 9 | 12 | 6 |
Production Flow
Raw material
Pressing
Sintering
Polishing
QC/Inspecting
Packing
Company Introduction
Yixing City is the famous pottery capital in China. Most of Chinese ceramic industry is in Yixing. Jiangsu Fist Special Ceramic Co., Ltd is located in Yixing, established in 2016. We are also one of Alibaba's certified high-quality suppliers.
Superiorgeographical location and mature industrial chain of ceramic, we are a manufacturer specialized in developing, producing and selling ceramic materials and products which meet the market demand. We can provide professional OEM & ODM service. Our main products are alumina ceramic, zirconia ceramic, steatite ceramic, cordierite ceramic, mullite ceramic, electronic ceramic, industrial ceramic, daily ceramics, etc. With good quality, reasonable prices and stylish designs, our products are extensively used in machinery, textiles, electronics, automotive, plumbing, seal, humidification, new light source, household appliances, electric heating, solar power and other industries. Good quality and experience service win many customers including domestic and foreign. We warmly welcome new and old customers from all walks of life in the whole world to contact us for future business relationships to achieve mutual success!
Certifications
Our Service
1. We support OEM and ODM； |
2. We have professional R & D team and technical support； |
3. We provide real-time logistics update information； |
4. We have professional QC team to check the quality before delivery; |
5. Our customer service will be online 24 hours a day. |
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
Q: How about the shipping&package?
A: The package usually includes bubble wrap, carton, pallent, wooden case, etc. The shipping mode includes express, air and sea transportation. Both we can negotiate and choose the best way.
