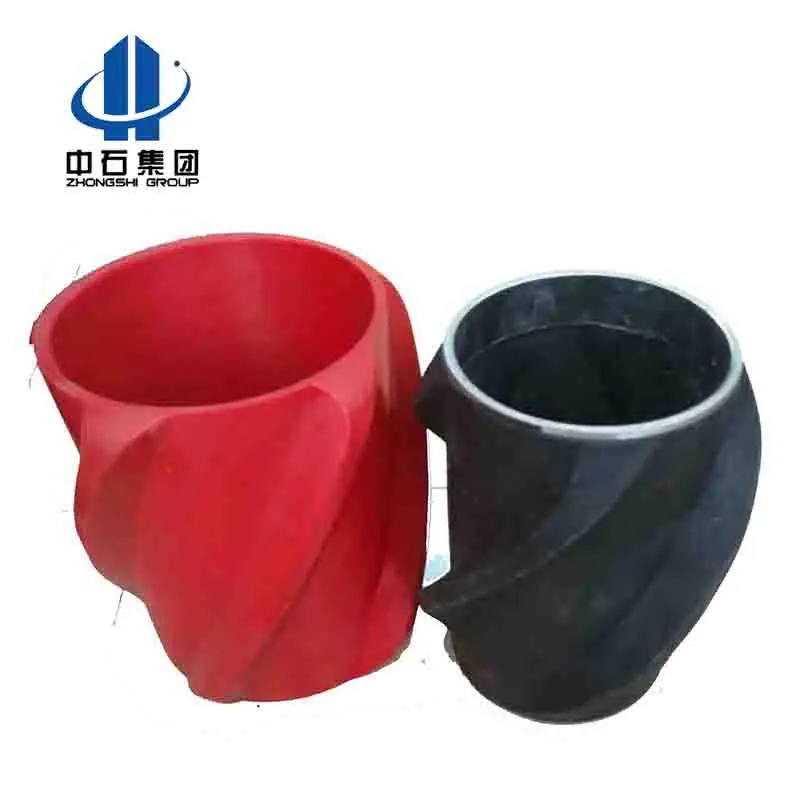

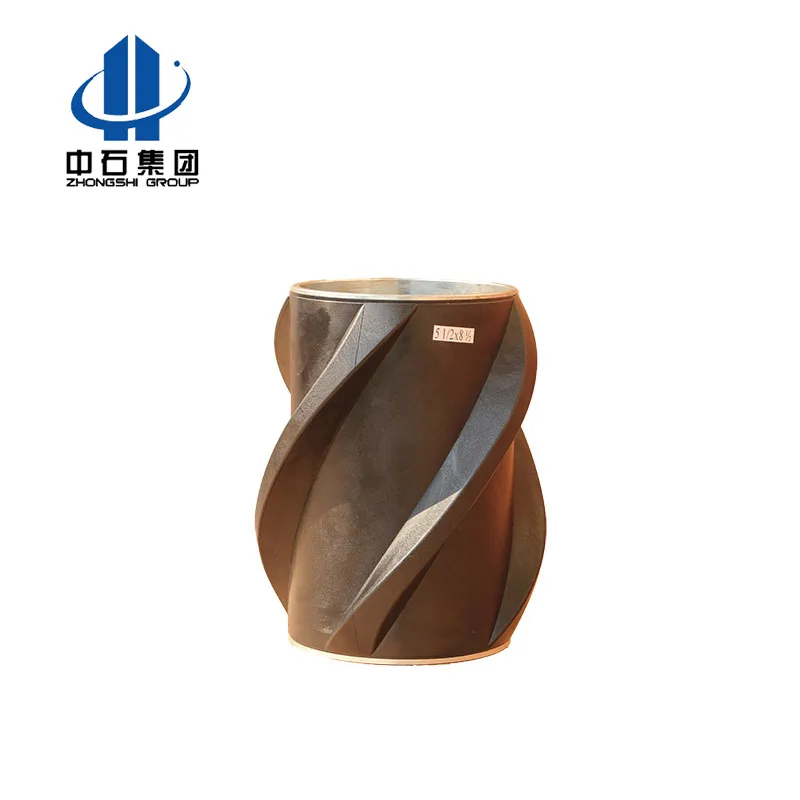

Тепловые пластиковые спиральные лопасти оболочки

Тепловые пластиковые спиральные лопасти оболочки

Категория: Centralizer >>>
Поставщик: Puyang,Zhongshi,Group,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.68 $*	0.37 $*
Aug-20-2025	0.77 $*	0.24 $*
Jul-20-2025	0.85 $*	0.60 $*
Jun-20-2025	0.99 $*	0.92 $*
May-20-2025	0.43 $*	0.4 $*
Apr-20-2025	0.22 $*	0.49 $*
Mar-20-2025	0.78 $*	0.16 $*
Feb-20-2025	0.34 $*	0.17 $*
Jan-20-2025	0.70 $*	0.28 $*

Характеристики

Product Overview

Cementing tools supplier PC Polymer Centralizer

1.Shuttle bow spring
2.Higher restoring force than API standard
3.Integrate steel plate to process
4. Paint baking
5.Any size available

FEATURES AT A GLANCE

Features
• Rating—API Specification Standard
•Design features
– Smooth bow profile overall
–Non-welded
–Made to gauge
– Integral bow design for increased strength and performance
– Zero weak points, such as hinges, welds, or mechanical interlocks
– Flexible to absorb both axial and radial loading
– Powder coated red finish
•Performance
– Zero start and running force with exceptional restoring force
– Improved flow by area and improved pipe rotation
– Low torque and low drag units
– Improved zonal isolation
• Applications
– Used in most well applications and geometries for vertical, horizontal extended reach drilling, close tolerance, or underreamed
well conditions
– Specialized in centralization for underreamed sections
• Recommended to be run between limit clamps
• Sizes available—4-1/2 to 20 in.; custom sizes available

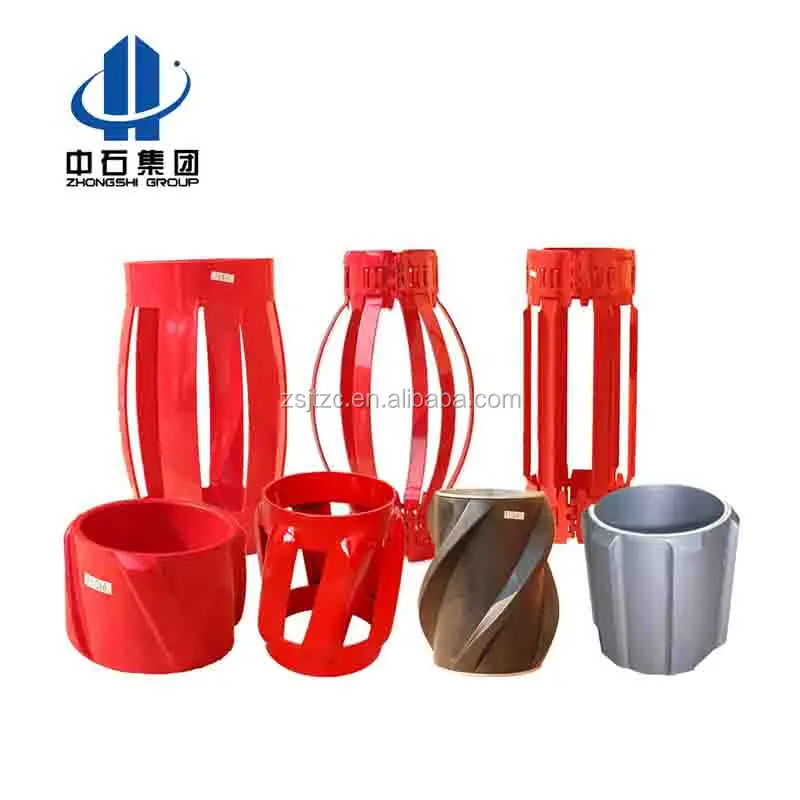

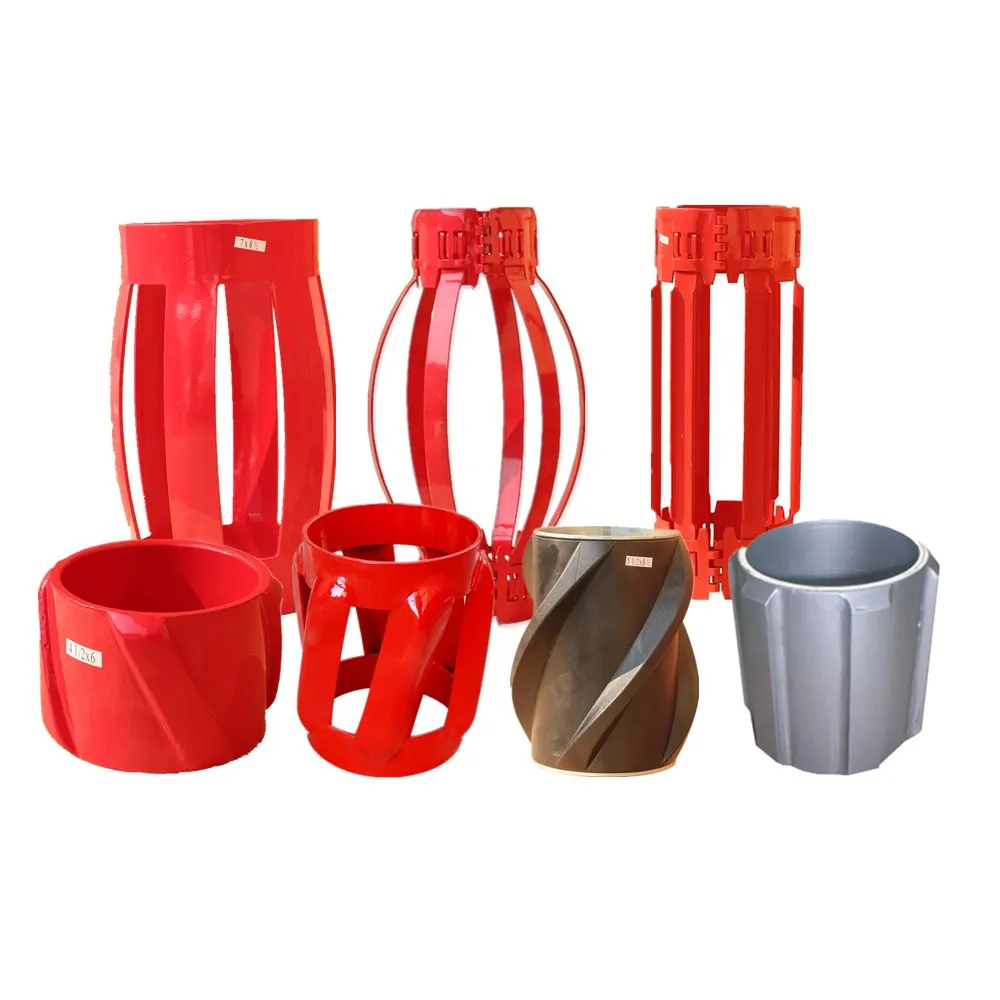

Single Piece Centralizer Product Show

Shuttle bow spring

Single Piece Centralizer Coating

Higher restoring force than API standard

Single Piece Centralizer :Shuttle Bow Spring increases restoring force

Integrate steel plate to process，Paint baking

PRODUCT SPECIFICATIONS

Model (in)	Hooping In-Dia. (mm)	Hooping Thickness (mm)	Hooping Height (mm)	Total Length (mm)	Max. Out-Dia. (mm)	Spring Pieces
5-1/2*8-1/2	142-148	5-7	50-60	650±50	225±5	5
6*8-1/2	154-158	5-7	50-60	650±50	255±5	5
13-3/8*17-1/2	342-349	8	50-60	580	450±5	6
20*26	510-518	8	50-60	650±50	670±5	10

PRODUCT CONFIGURATION

Single Piece Centralizer Production(Raw Material from 65Mn Steel Plate)

Processing

Single Piece Centralizer Production From Laser Cutting Machine(Raw Material from Spring Steel Pipe)

Single Piece Centralizer Package：

fumigation-free wooden case

Restoring Force Data

7*8-1/2 Single Piece Centralizer Restoring Force Data

Wearable and stable API casing centralizer

Centralizer cementing tools, it makes simple, and beautiful structure, durable, strong centering force, prone to overcome the
original welded lifter desoldering , is a kind of centralizer can ensure quality of drilling cementing. The sort is various,
according to the structure can be divided into the roller type, the sliding block type, automatic reversing type, etc. Different
structure and material of centralizer, applies to different types of eccentric wear oil well. On the part of eccentric wear
prevention, the most critical is installation location, spacing, and number.

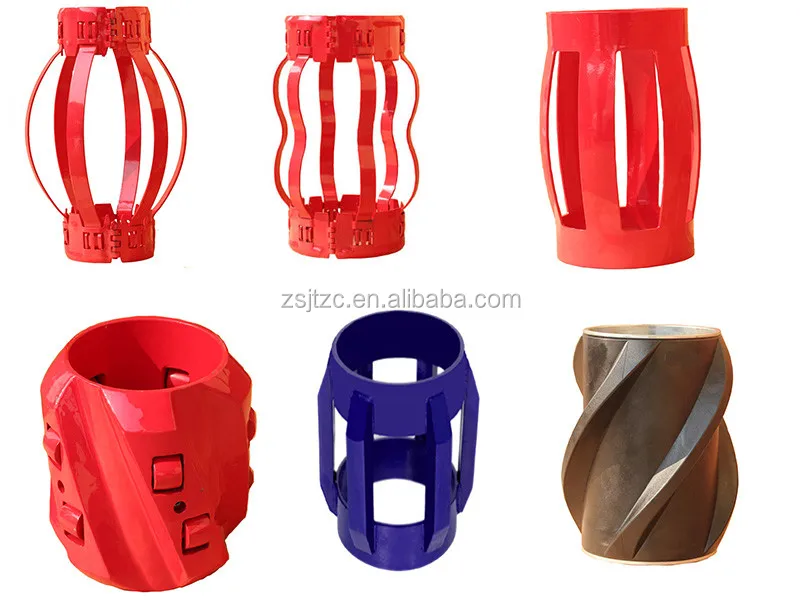

Bow Spring Centralizer:
Hinged Non Welded Bow Spring Centralizer
Hinged Non-Welded Stainless Steel Centralizer
Slip On Welded Single Piece Bow Spring Centralizer
Slip On Welded Bow Spring Centralizer
Hinged Welded Bow Spring Centralizer
Hinged Non-Welded Bow Spring Turbolizer
Hinged Welded Bow Spring Turbolizer
Slip On Welded Bow Spring Turbolizer
Hinged Non Welded Positive Bow Centralizer
Hinged Semi-Rigid Non Welded Bow Spring Centralizer
Hinged Semi-Rigid Welded Bow Spring Centralizer
Rotating Welded Centralizer

Bow Spring Centralizer packaging

Slip on Single Piece Bow Spring Centralizer with bubble between the parts, and fumigation-free wooden case outside packaging with forklift feet, which is convenient fot forklift transport to loading.
