Характеристики



Product Description


 gooxi company



Spec









































































































Specification



Chassis



Rackmount



Form Factor



1U



Serverboard



EEB(12"x13"), CEB(12"x10.5"), ATX (12"x9.6") and micro ATX (9.6"x9.6")



PSU Form Factor



1U Single or 1+1 Redundant



Backplane SGPIO



Supports



HDD Backplane



4-port 12Gb/s SAS passive backplane



HDD Hot-swap



Supports SAS and SATA HDD



Hot-swap Fans



N/A



HDD Drive



Front 4x3.5" Hot-swap HDDs (2.5" HDD compatible); Internal 2x2.5" HDDs



Other Drive Bay



N/A



Cooling Fans



Default 4x4028 middle fans (Max. 6x4056 by option)



Temperature Control



Supports system smart fan control by Serverboard



Air Duct



Optional



Expansion Slots



Default 1x full-height PCIe cards support



Slide Rail



Optional



Indicators



2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators



Tool-less



N/A



Metal Thickness



1mm SGCC



Chassis Dimensions



670*433*43.5mm (DxWxH)



Net Weight



7.3KG



Carton Dimensions



902*591*183mm (DxWxH)



Gross Weight



9.7KG



Certification



CE FCC RoHS












Packaging & Shipping

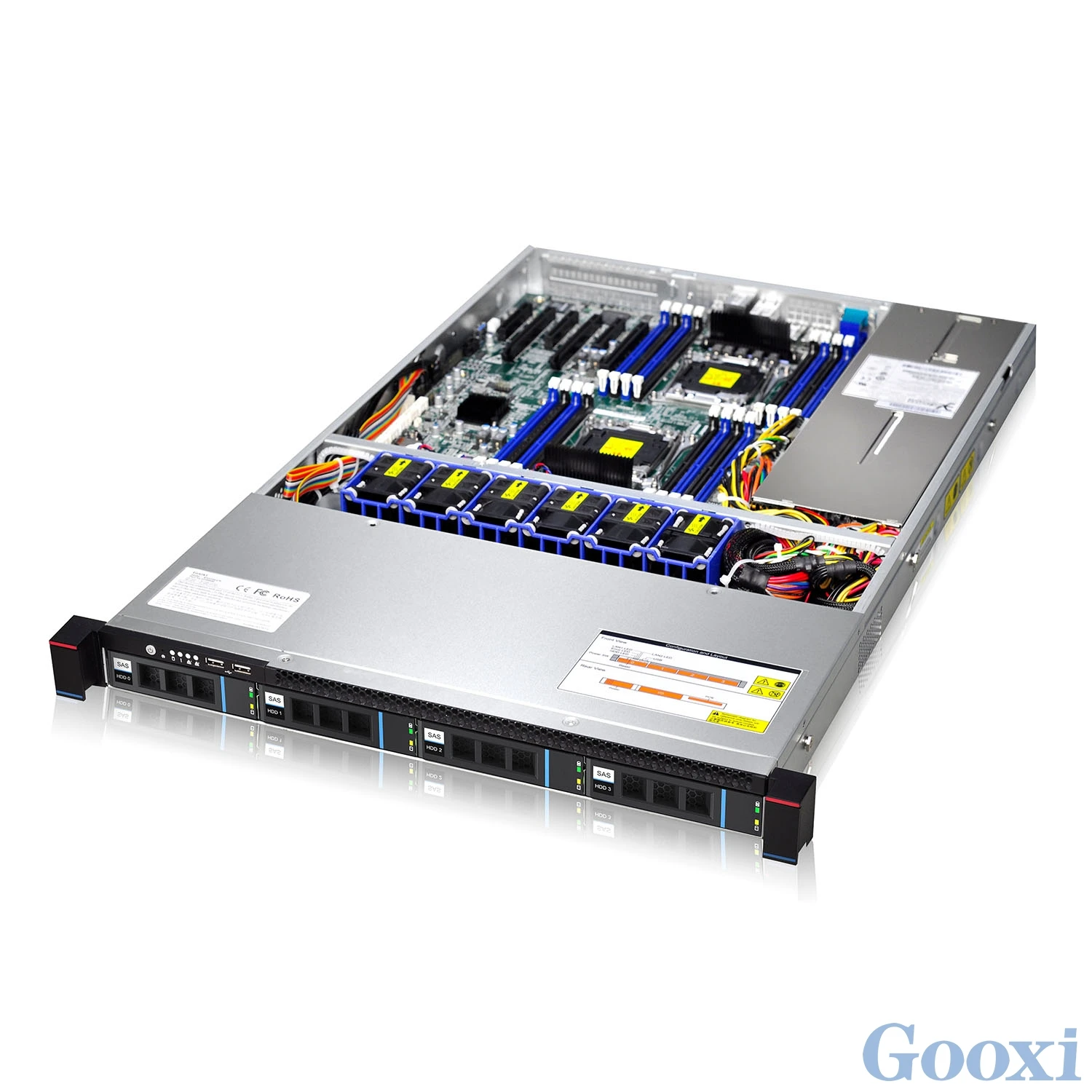

1U Rackmount server chassis series with 670mm depth





Serverboard support up to standard EEB 12"x13", backward supports to CEB and below





Supports 1x full-height full-length PCIe cards





Front 4x3.5" hot-swap HDDs (2.5" HDD compatible) and 2x2.5" internal HDDs





High-performance 4x 4028 cooling fans with anti-vibration mechanism and optional up to 6x 4056 middle fans





Smart system fan controlled by intelligent temperature management





Supports 1U Single PSU or 1+1 Redundant PSU





12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs


Barebone Workshop5Chassis Assemble Workshop1Barebone Workshop2











Our Services





Customer service range:


All the products purchased from GOOXI and all the GOOXI products purchased from GOOXI approved distributors or integrators





Customer service content:


3 months replacement: in accordance with the GOOXI warranty service agreement


3 year free warranty: according to GOOXI warranty service agreement


Product training and market training services


Technical remote support, including but not limited to 400 phone support, mail support, remote support


Accessories replacement service (free or charged costs by GOOXI professional engineers according to the actual situation)


Customized services (only for customized products and customers)


on-site tracking service and on-site maintenance services (for the needs of customers)
