Барьерный датчик радара для парковочных ворот запчасти
- Категория: Traffic Cones(Old) >>>
- Поставщик: Hangzhou,Changye,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 119.18 $* | 125.8 $* |
| Aug-16-2025 | 118.20 $* | 124.13 $* |
| Jul-16-2025 | 99.61 $* | 104.37 $* |
| Jun-16-2025 | 116.71 $* | 122.35 $* |
| May-16-2025 | 101.17 $* | 106.11 $* |
| Apr-16-2025 | 114.73 $* | 120.69 $* |
| Mar-16-2025 | 113.73 $* | 119.46 $* |
| Feb-16-2025 | 112.8 $* | 118.72 $* |
| Jan-16-2025 | 111.33 $* | 117.40 $* |
Характеристики
Product Description
Radar features:
*Stably detect human and vehicles
*Integrated design, compact
*Easy installation and low maintenance cost
*All-weather & All day operation
*Long lifespan
*Strong environmental adaptability
*With multiple communication protocol interfaces
*Stably detect human and vehicles
*Integrated design, compact
*Easy installation and low maintenance cost
*All-weather & All day operation
*Long lifespan
*Strong environmental adaptability
*With multiple communication protocol interfaces
Specification
Technical parameters | ||||||
Transmission frequency(GHZ) | Seventy-nine | Online debugging | Serial port WIFI debugging | |||
Transmit power(MW) | ≤10 | Online upgrade | Serial port ungrade | |||
Beam wisth | Pitch±10°，horizontal ±38° | Operating voltage(VDC) | 9~12 | |||
Response time（MS） | 50ms | Operating current(a) | ＜0.25 | |||
Anti smashing width（m) | Transverse width 05~2m adjus table | Power consumption(w) | ＜3 | |||
Lane width(m) | 0~6m（adjus table ） | Temperature(℃） | -40~+85 | |||

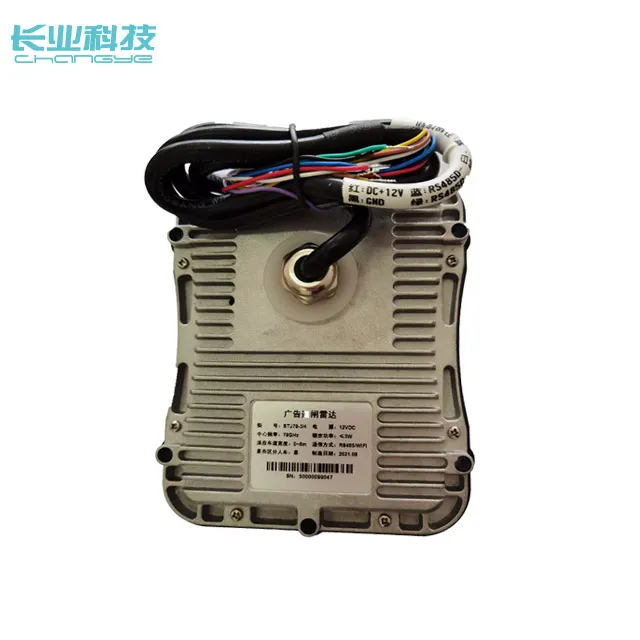

Detection target | Person/vehicle optional | Overall dimension(mm2) | 112.4*136.9*29 | |||
1, Advanced signal processing technology can be used to detect pedestrians & vehicles stably, and effectively prevent "smashing
vehicles and people".
2, Simple installation, no need to destroy the ground, greatly reducing the difficulty of construction and maintenance costs.
3, It has communication function of RS485 and WIFI , equipped with Web interface and APP of mobile phone , which is convenient and
quick for parameter configuration.
4, Radar detection distance and area can be adjusted, and it can effectively prevent escape incidents.

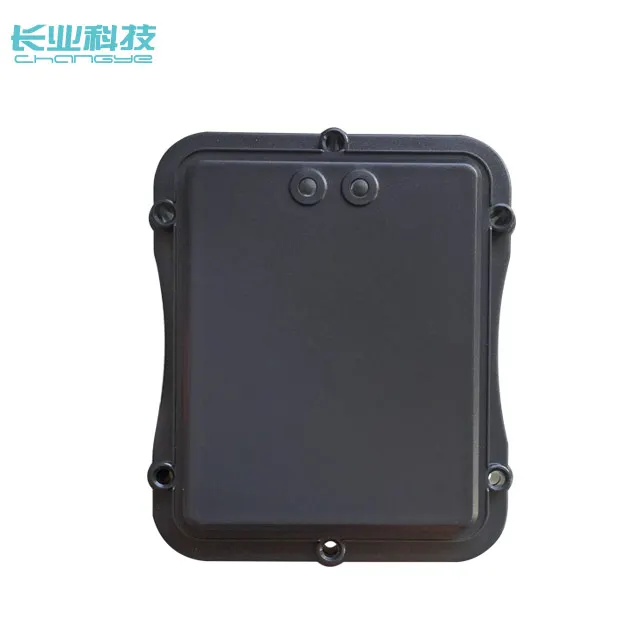

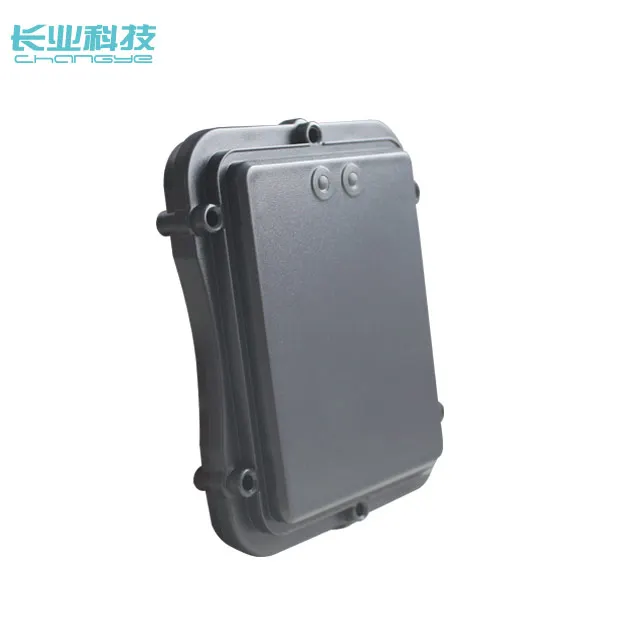

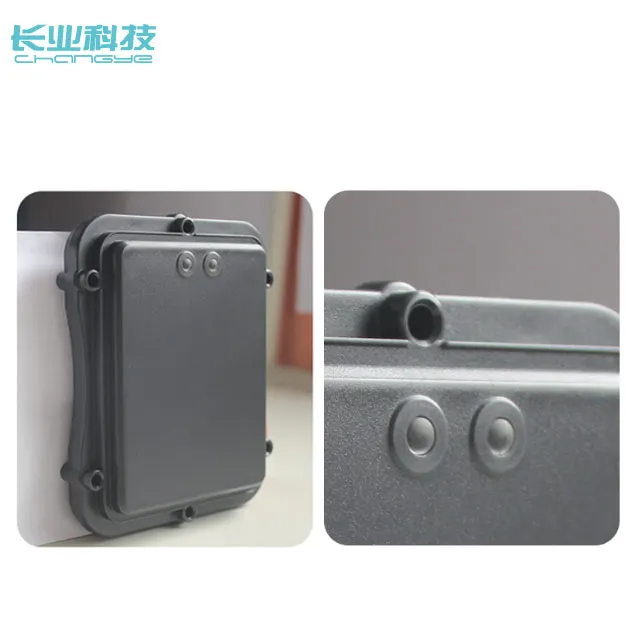

5, Integrated design, small and beautiful, easy to integrate inside & outside.
6, Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh
environment.
7, Long service life: The life of the ground coil is generally 1~2 years, but the radar can reach 5~10 years.
vehicles and people".
2, Simple installation, no need to destroy the ground, greatly reducing the difficulty of construction and maintenance costs.
3, It has communication function of RS485 and WIFI , equipped with Web interface and APP of mobile phone , which is convenient and
quick for parameter configuration.
4, Radar detection distance and area can be adjusted, and it can effectively prevent escape incidents.
5, Integrated design, small and beautiful, easy to integrate inside & outside.
6, Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh
environment.
7, Long service life: The life of the ground coil is generally 1~2 years, but the radar can reach 5~10 years.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. The test management software can’t be connected
Check whether the power supply is connected properly, whether the serial port is connected correct, and whether the line sequence is correct. Check whether the serial cable and converter is damage.
2. Can’t detect the object
Open the test management software to read the configuration information and check whether the parameters are read correctly: if there is no change, there is a problem with the serial connection. Please make sure the serial connection is normal and the serial parameters are configured correctly.
If the detection state remains unchanged, the radar needs to be re-calibrated and please ensure that there are no targets within the radar detection area.
3. Radar is unresponsive when human passes
Open the test management software to read the radar configuration information and check whether the human and vehicles distinction function is on, if YES, change it to NO and save the parameters.
4. The barrier gate arm can’t down after the vehicle is pass
Open the test management software to read the radar configuration information and check whether the detection distance setting exceeds the actual lane width. If so, it is required to change according to the detection distance setting table and save the parameters.
(Notice:the detection distance has to be set less than the actual lane width)

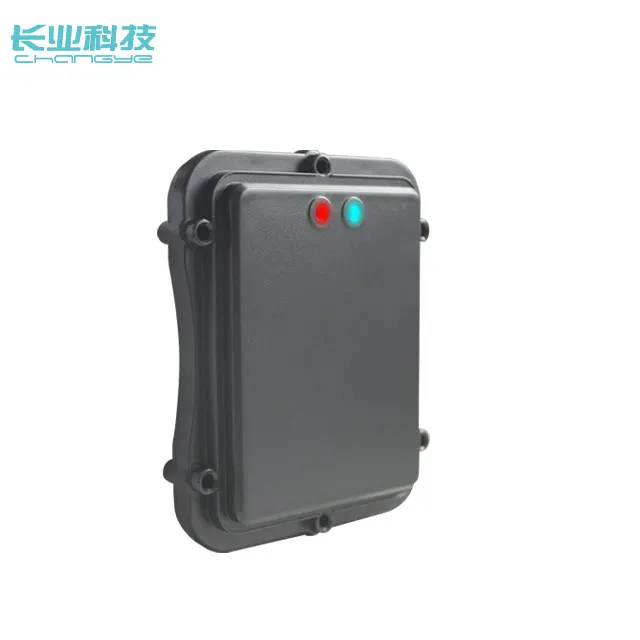

5. Radar sensor green light always ON
Check whether there is any change in the surrounding environment background.
For example, if the position of the surrounding lane fence changes, the background threshold should be updated.
(Notice:don’t update background threshold in snow and rain condition).
Check whether the power supply is connected properly, whether the serial port is connected correct, and whether the line sequence is correct. Check whether the serial cable and converter is damage.
2. Can’t detect the object
Open the test management software to read the configuration information and check whether the parameters are read correctly: if there is no change, there is a problem with the serial connection. Please make sure the serial connection is normal and the serial parameters are configured correctly.
If the detection state remains unchanged, the radar needs to be re-calibrated and please ensure that there are no targets within the radar detection area.
3. Radar is unresponsive when human passes
Open the test management software to read the radar configuration information and check whether the human and vehicles distinction function is on, if YES, change it to NO and save the parameters.
4. The barrier gate arm can’t down after the vehicle is pass
Open the test management software to read the radar configuration information and check whether the detection distance setting exceeds the actual lane width. If so, it is required to change according to the detection distance setting table and save the parameters.
(Notice:the detection distance has to be set less than the actual lane width)
5. Radar sensor green light always ON
Check whether there is any change in the surrounding environment background.
For example, if the position of the surrounding lane fence changes, the background threshold should be updated.
(Notice:don’t update background threshold in snow and rain condition).
