factory hot sale Galvanized Razor Wire BTO 22 CBT 65

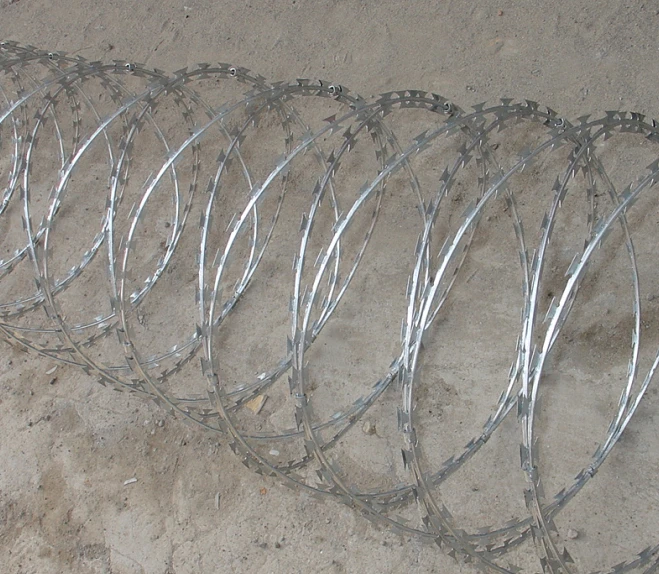

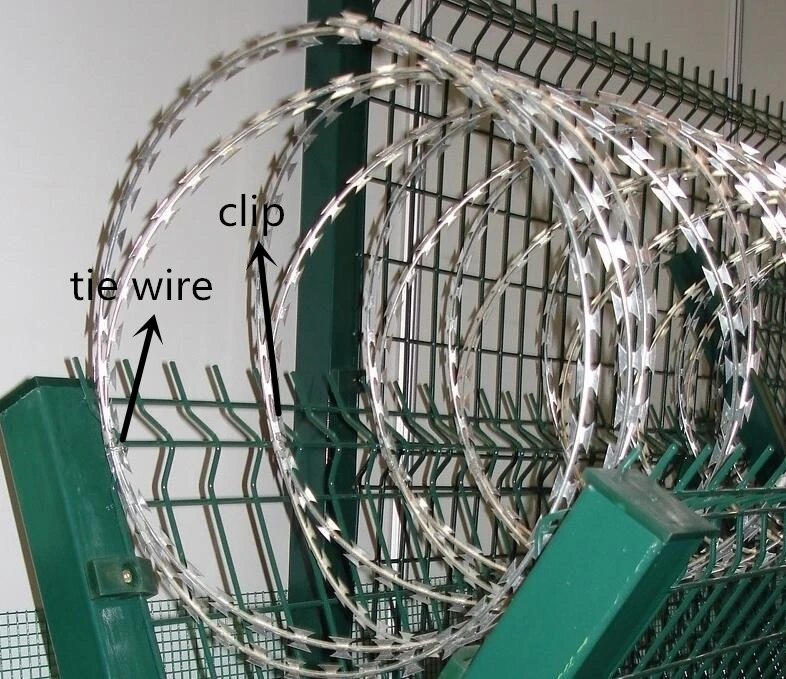

The razor barbed wire is also named tape wire, razor tape wire, barbed tape. It is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders. The special designs which piecing and cutting razor blade mount at the top of the wall or fence make climbing and touching extremely difficult. Recently years, razor barbed wire has become the most popular high-class fencing wire for not only military and national security facility, but also for private buildings.



Product description

1.materials: electro galvanized core wire and blade, hot-dipped galvanized core wire and blade, stainless steel core wire and blade.

2.surface treatment: galvanized, PVC coated

3.out diameter:450-980mm

4.cover length:7-15m/roll

5.size: BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65

6.types:single loop razor barbed wire; cross type razor barbed wire; flat warp razor barbed wire.

7.  Core Wire Diameter: 2.5±0.1mm

8.  Razor Barbed sheet thickness: 0.5±0.05mm



Product feature

1.high security: sharp blade guarantees high security.

2.long life: the surface material of zinc or stainless steel can prevent razor barbed wire rust, that make sure long life.

3.easy installation.

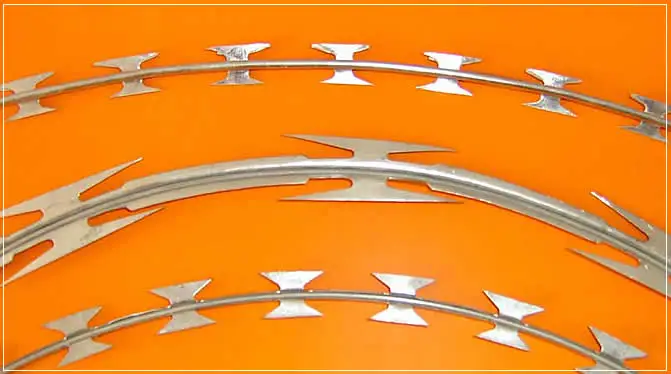

Razor blade specification



Reference number	Thickness	Wire diameter	Barb length	Barb width	Barb spacing
BTO-10	0.5±0.005	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.005	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.005	2.5±0.1	18±1	15±1	38±1
BTO-22	0.5±0.005	2.5±0.1	22±1	15±1	38±1
BTO-28	0.5±0.005	2.5±0.1	28±1	15±1	58±1
BTO-30	0.5±0.005	2.5±0.1	30±1	21±1	54±1
CBT-60	0.5±0.005	2.5±0.1	60±1	32±1	102±1
CBT-65	0.5±0.005	2.5±0.1	65±1	21±1	102±1





Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Singlecoil
450mm	56	8-9M(3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M(3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M(5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M(5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M(5 CLIPS)	BTO-10.12.18.22.28.30	Cross type







OUR FACTORY





Certification

Customer visiting



 Contact information:





Our Services

 • 24 hours on-line service
• Excellent service for pre-sale,on-sale and after-sale
• Expert at our products
• Competitive price with superior higher quality products
• Factory with its own workshop
• Strict test before its delivery



FAQ



Q: Are you a manufacturer?

A: Yes,we have specialized in this field for OVER 20 years experience.

Q: Could you provide sample?

A: Yes, we provide sample together with our catalogue.

But the courier charge will on your side.

We'll send back the courier charge if you make an order.

Q: What information should I provide, if I want a lowest quotation?

A: The specification of wire mesh. Such as material, surface treatment, mesh size, wire diameter, length x width, order quantity.

Q: How is your delivery time?

A: We always prepare enough stock material for your urgent requirement. the delivery time is 7 days for all the stock material.

We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Q: How do you ship the finished wire mesh?

A:Usually by sea, also could sent by air, by express.

Q: What is the payment?

A:We usually use the T/T,L/C,D/P,Western Union.



Our Advantage:

1. fast responsibility for your request

2. we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c) stack ability d)operation environment e)what kind of stuff will be loaded in etc.

3. high quality material and competitive price



Our company information:



We are the professional manufacturer of wire mesh products. We have more than 18 years experience in producing the items.



Based on our excellent quality products, considerate service and reasonable price, our products enjoy high reputation at home and abroad.



------------FOR ANY OTHER INFORMATION, PLS DO NOT HESITATE TO CONTACT ME. WE ARE HERE 24HRS FOR YOU.
