Products Description
DESCRIPTION

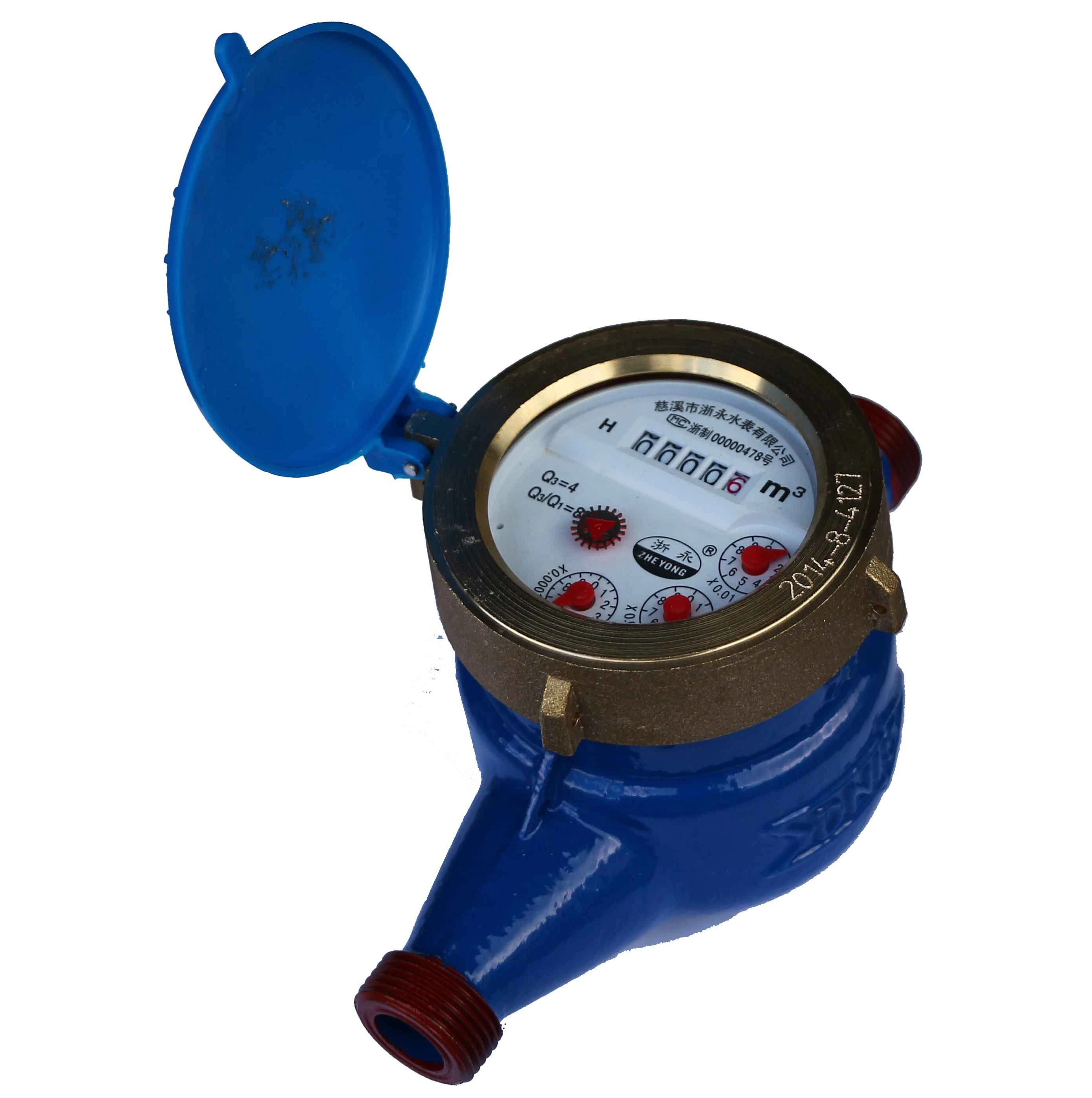

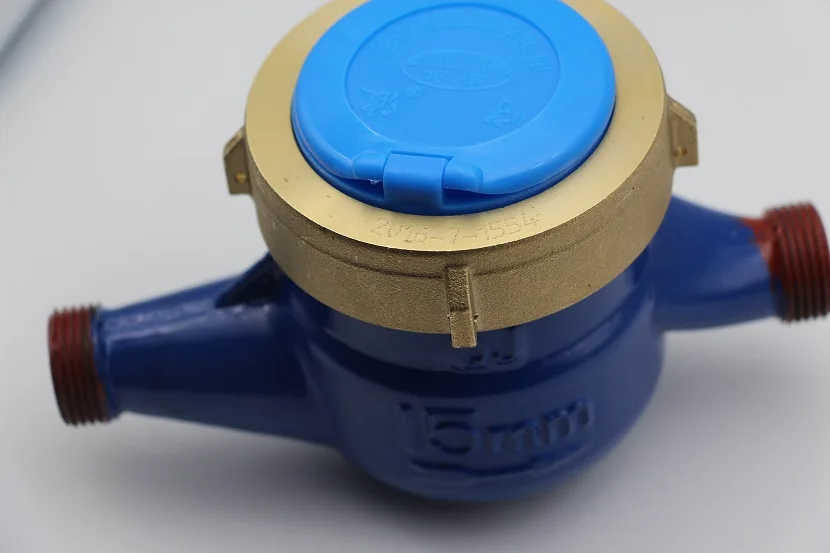

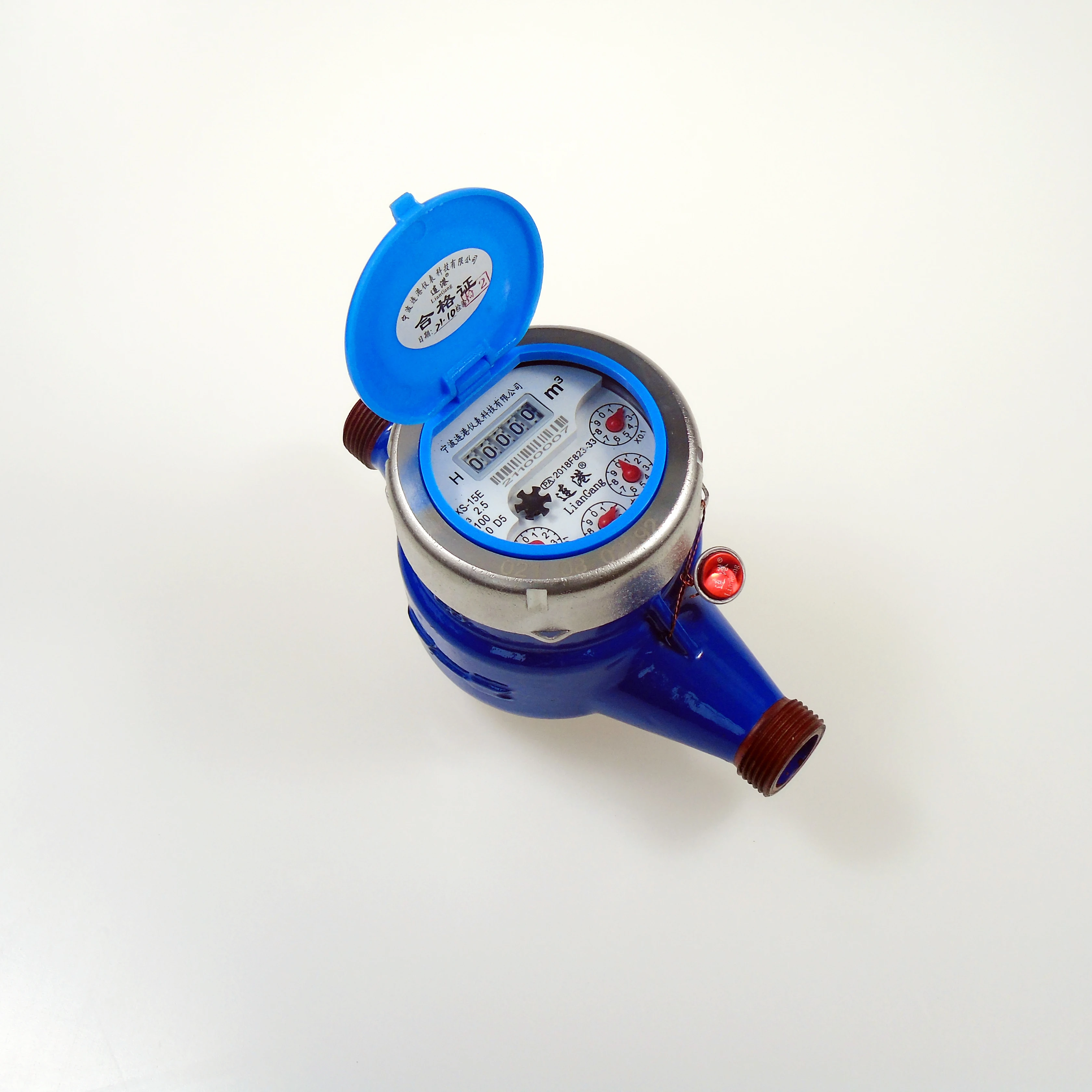

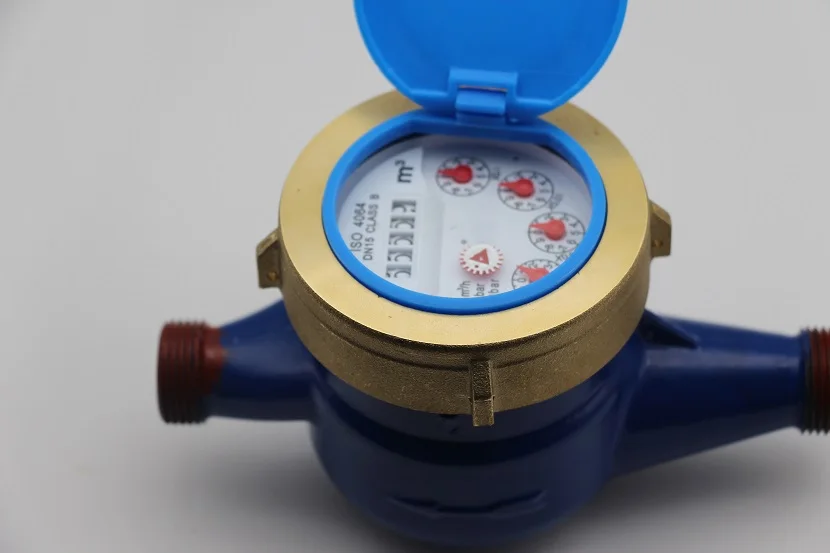

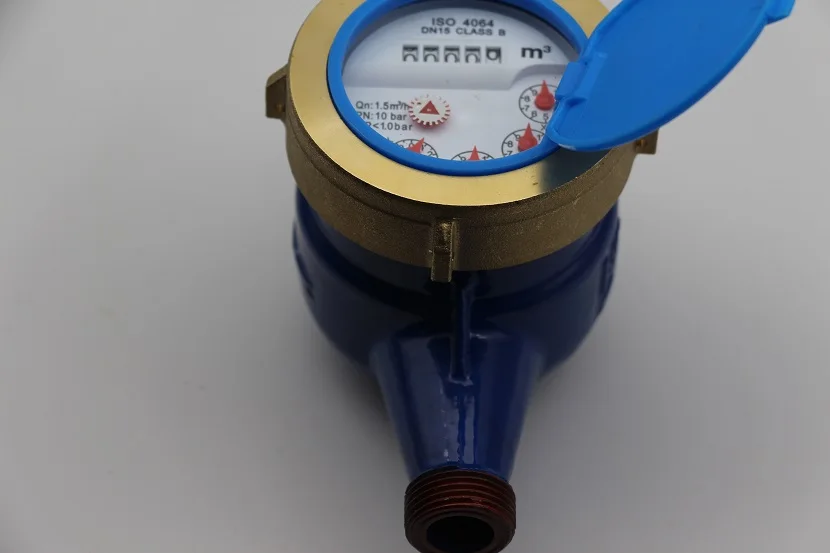

R160 multi jet water meter.
Compliance with standard: ISO 4064 Class C
FEATURE
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Brass body，Cast iron body，Plastic body
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class C Standard
•universal Use. Easy For Interchange&maintenance
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤1.0Mpa
R160 multi jet water meter.
Compliance with standard: ISO 4064 Class C
FEATURE
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Brass body，Cast iron body，Plastic body
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class C Standard
•universal Use. Easy For Interchange&maintenance
INDICATING ERROR
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤1.0Mpa
MAIN TECHNICAL DATA
DN | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Min | Max | |||
mm | —— | m3/h | L/h | m3 | ||||||
15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99999 | |||
160 | 25 | 15.625 | ||||||||
20 | 80 | 5 | 4 | 80 | 50 | |||||
160 | 40 | 25 | ||||||||
DIMENSIONS AND WEIGHT
Meter size Dia DN (mm) | L length | B Width | H Height | Connecting Thread D | Weight kg | ||
mm | |||||||
15 | 165 | 99 | 104 | G3/4"B | 1.5 | ||
20 | 190 | 99 | 106 | G1"B | 1.7 | ||
