Высокоточный угловой измерительный прибор может echo к тонущему количеству а ручной инструмент перезаряжается

Описание и отзывы

Трекер стоимости

Характеристики

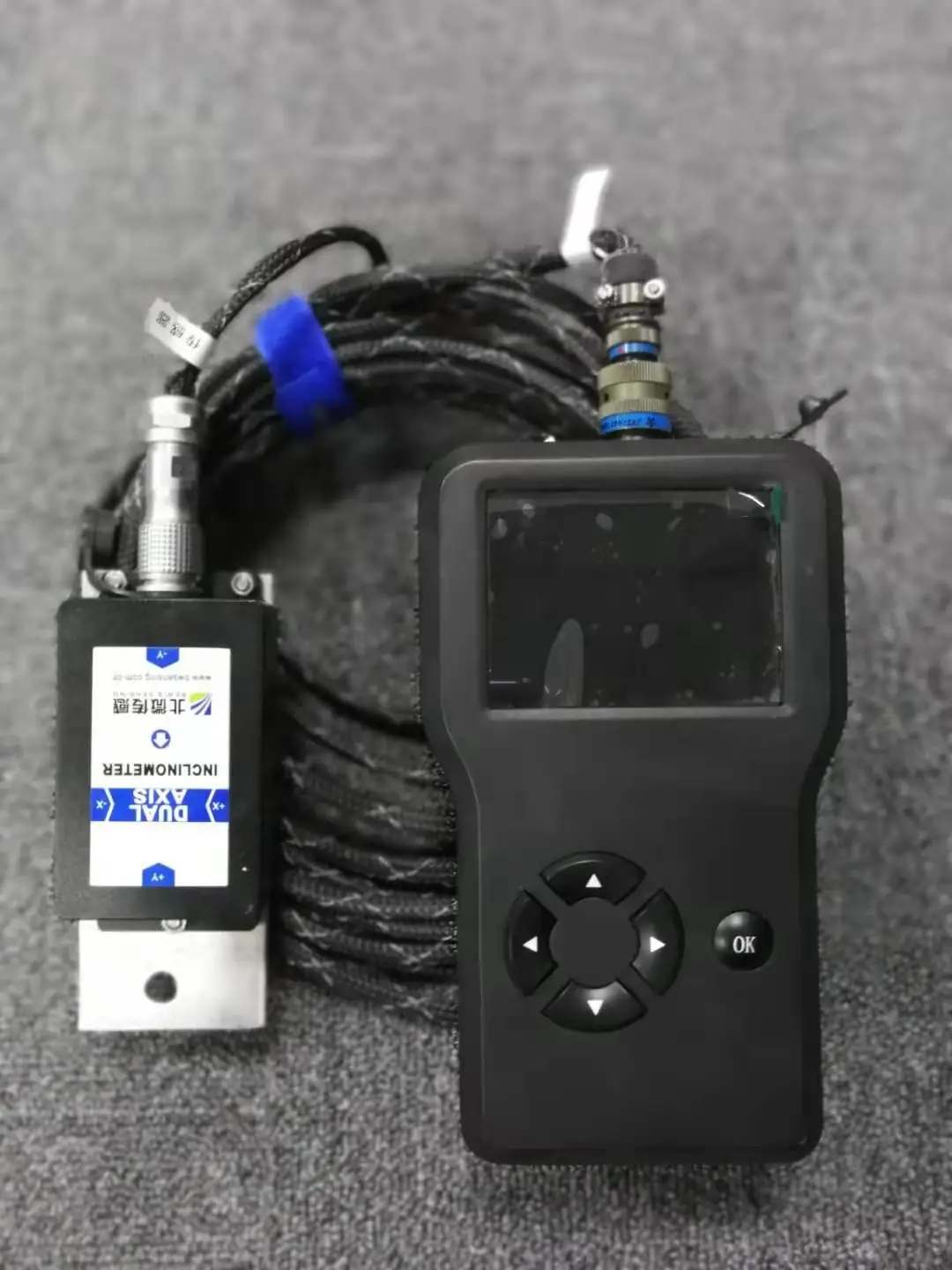

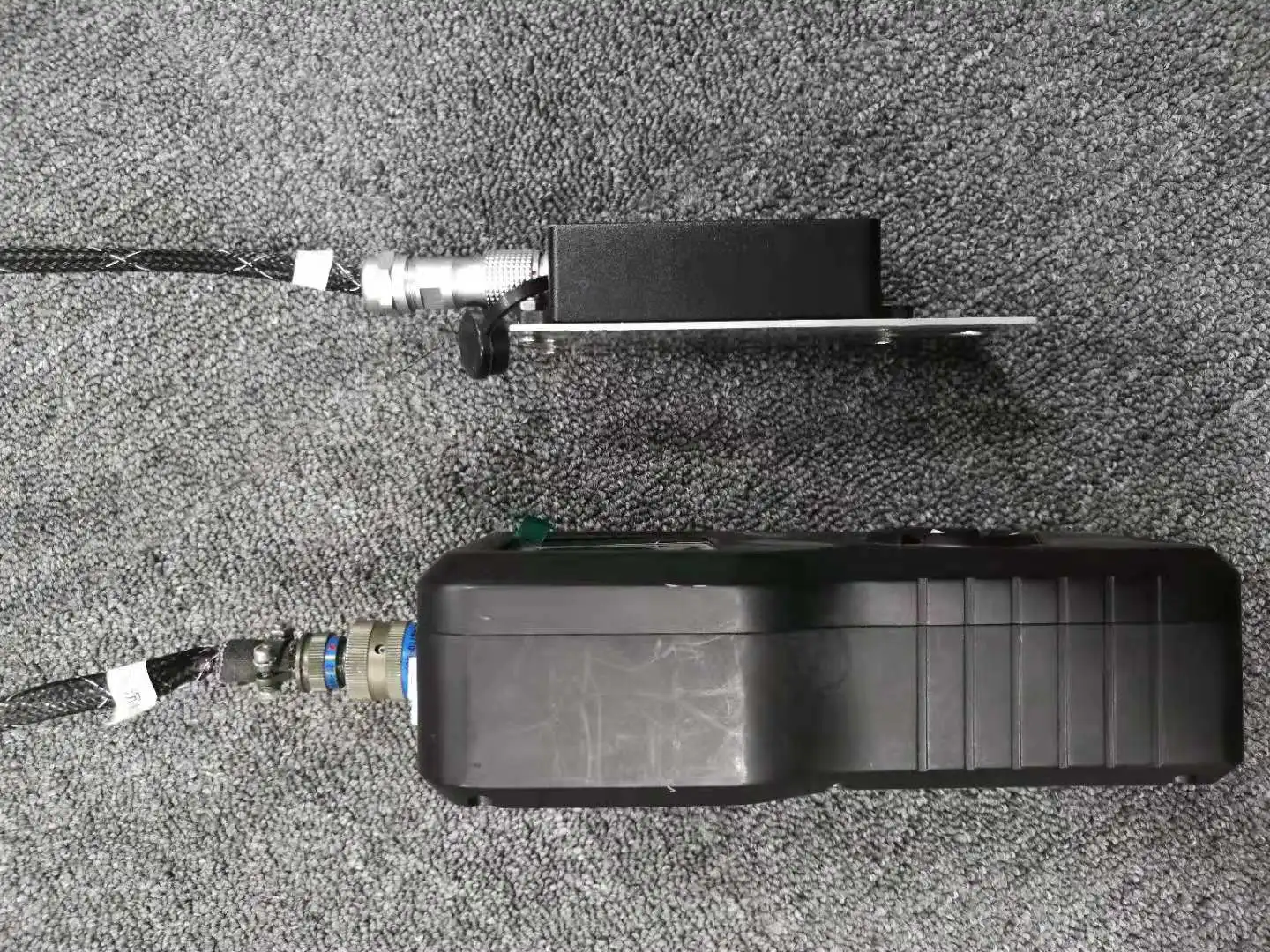

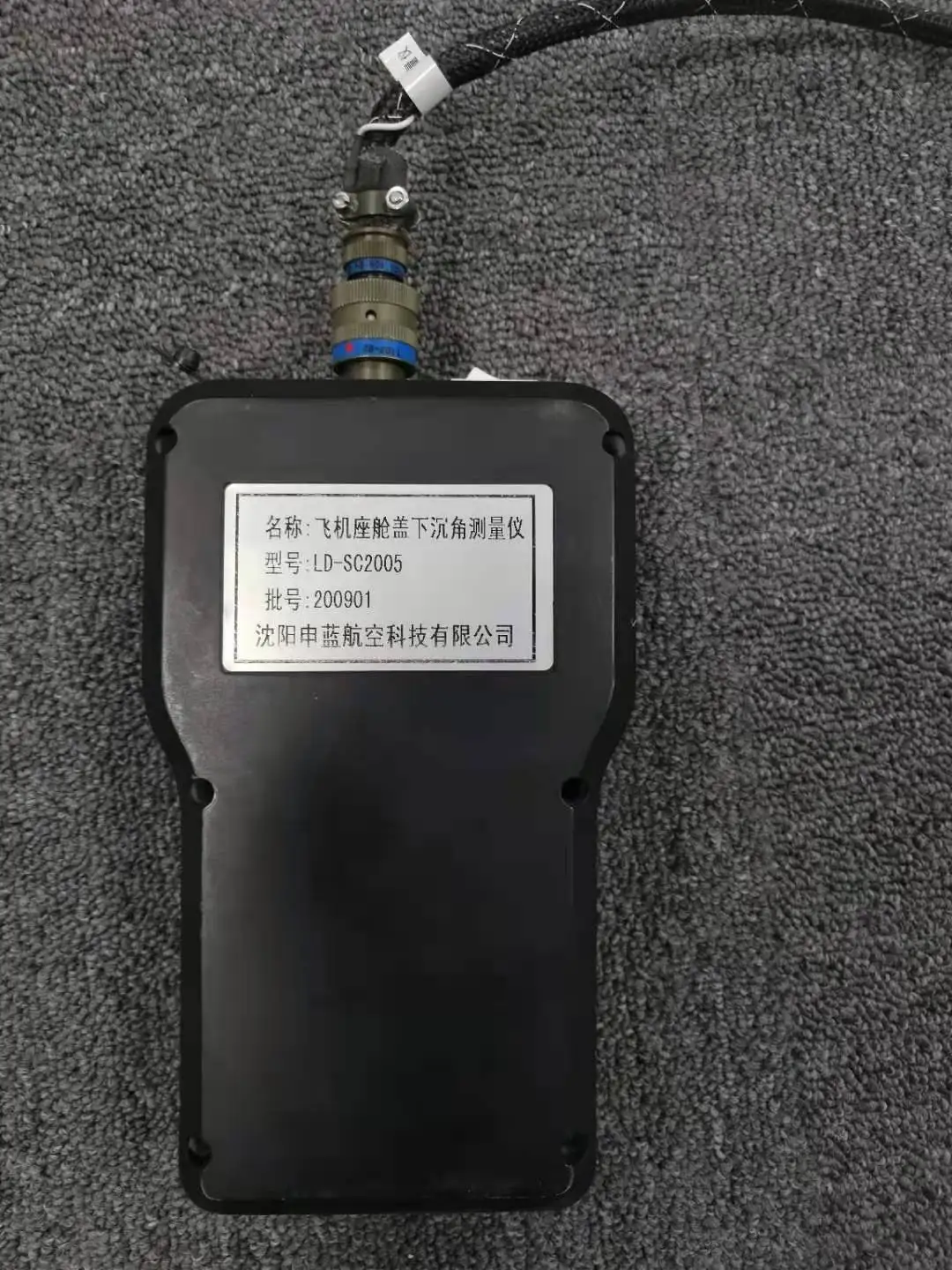

model:LD-SC2005

a) Cortex-A7 processor

b) Millimeter accuracy: the angle measurement sensor can reach up to 0.008 °, which is the sensor with high measurement accuracy in China.

c) Lithium battery charging, lasting life --- hours, cyclic charge and discharge --- times.

d) 3.5-inch large screen display, high-definition backlight and clear interface.

e) Model setting: it can be customized according to user needs.

f) Angle display: display angle data and change curve.

g) Qualification judgment: give the error judgment result according to the reasonable index defined by the user.

h) Historical data query: automatically save the test model and results and view them at any time.

range	±90°	material	Plastic grease
General error	±0.69mm (Installation position 5000mm)	Installation mode	Screw hole fixing
Working distance	≤10m	working temperature	-30~85℃
Display Size	3.5 inches	Storage temperature	-40~85℃
Screen brightness	880~920(cd/m²)	size	104×55×26(sensor) 191×110×45(Handheld machine)
Battery	12V,5600mAH	Supporting equipment	1. One handset 2. One sensor 3. Cable 10m





Boot interface                                                                                    Pass muste





Non conformance                                                   Historical data query
