5-осевой Автоматический робот машина для окраски

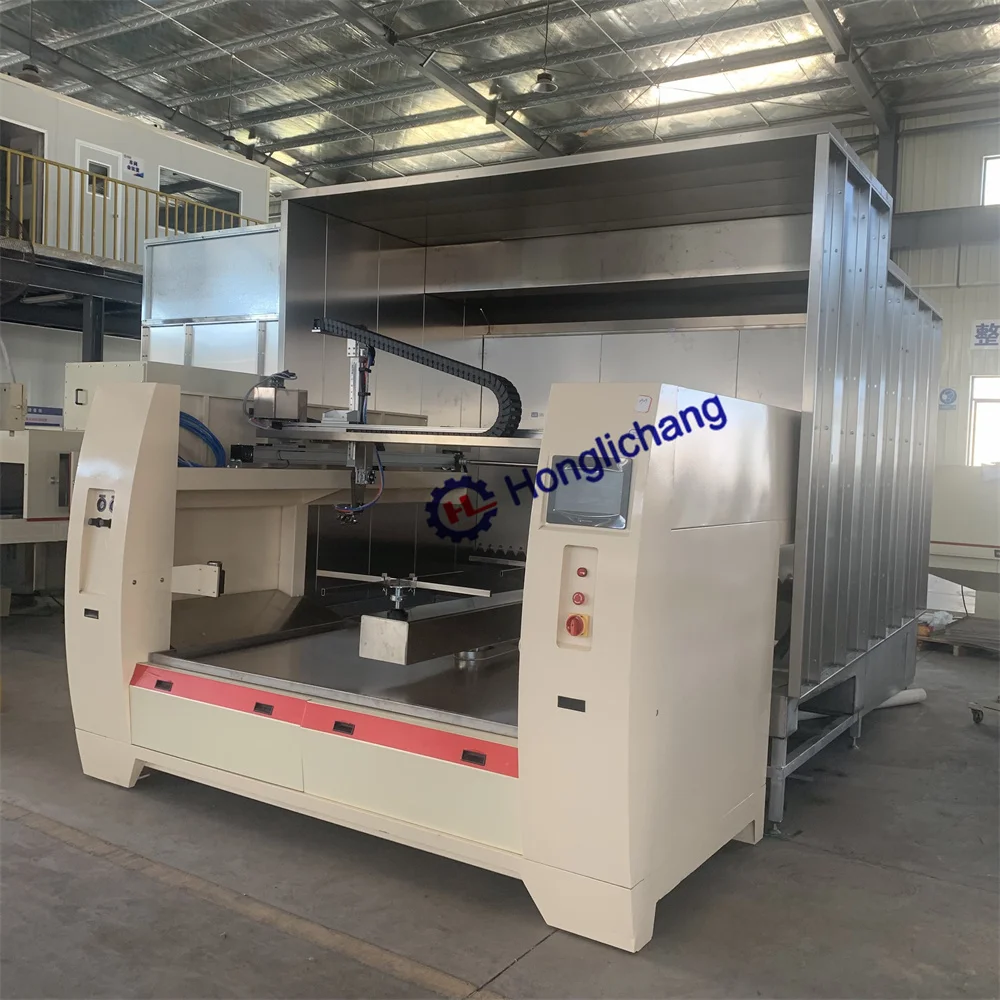

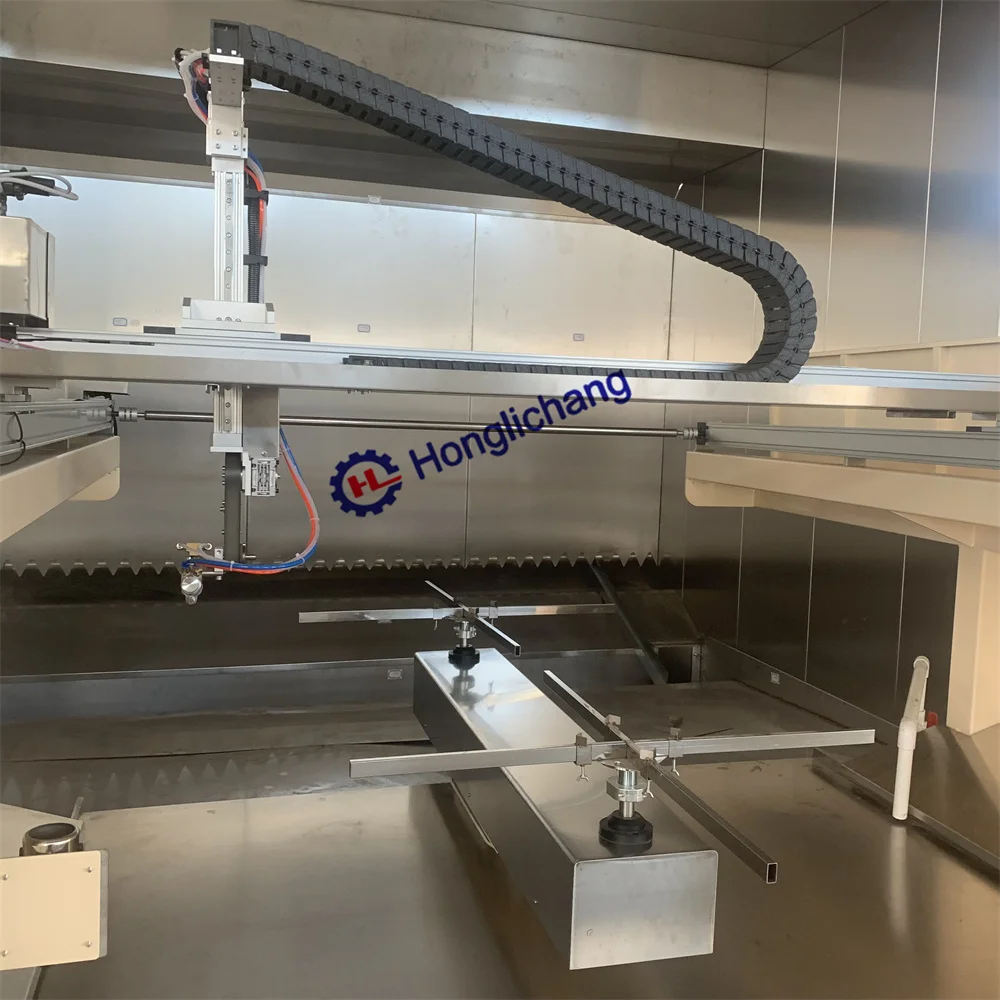

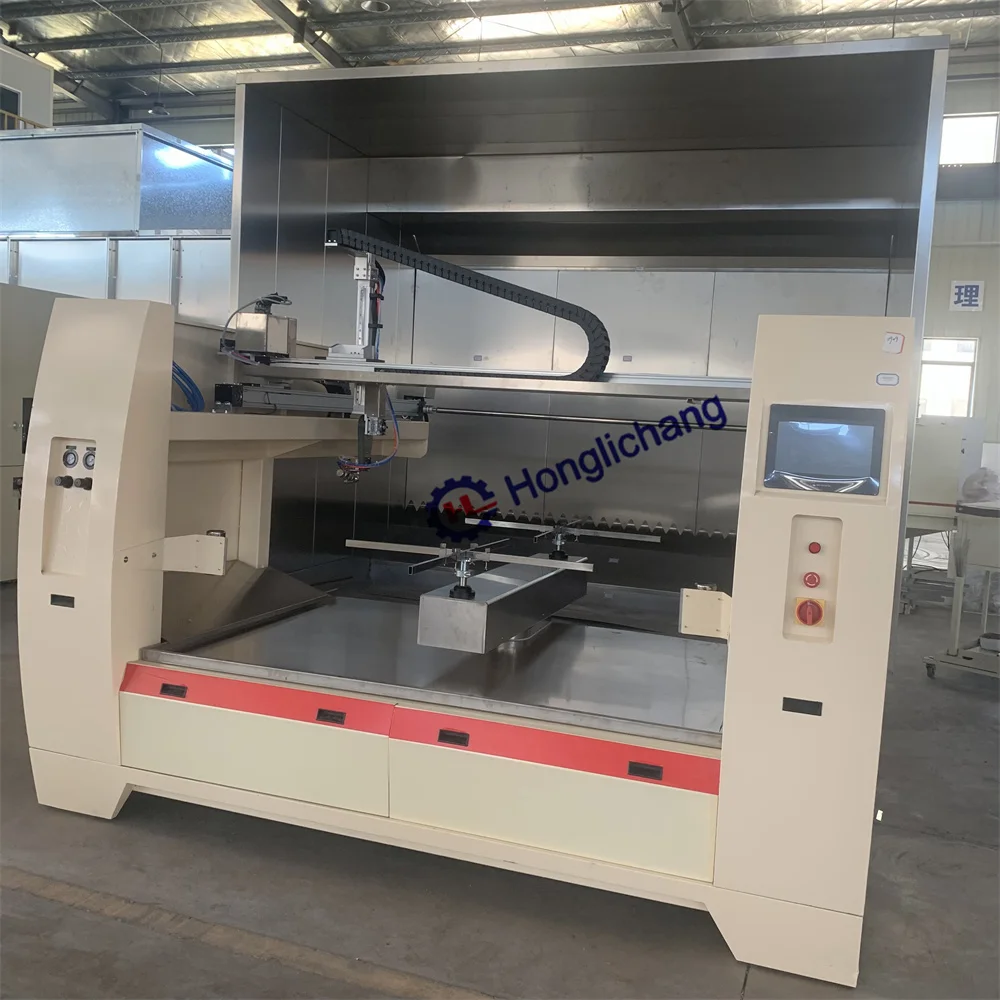

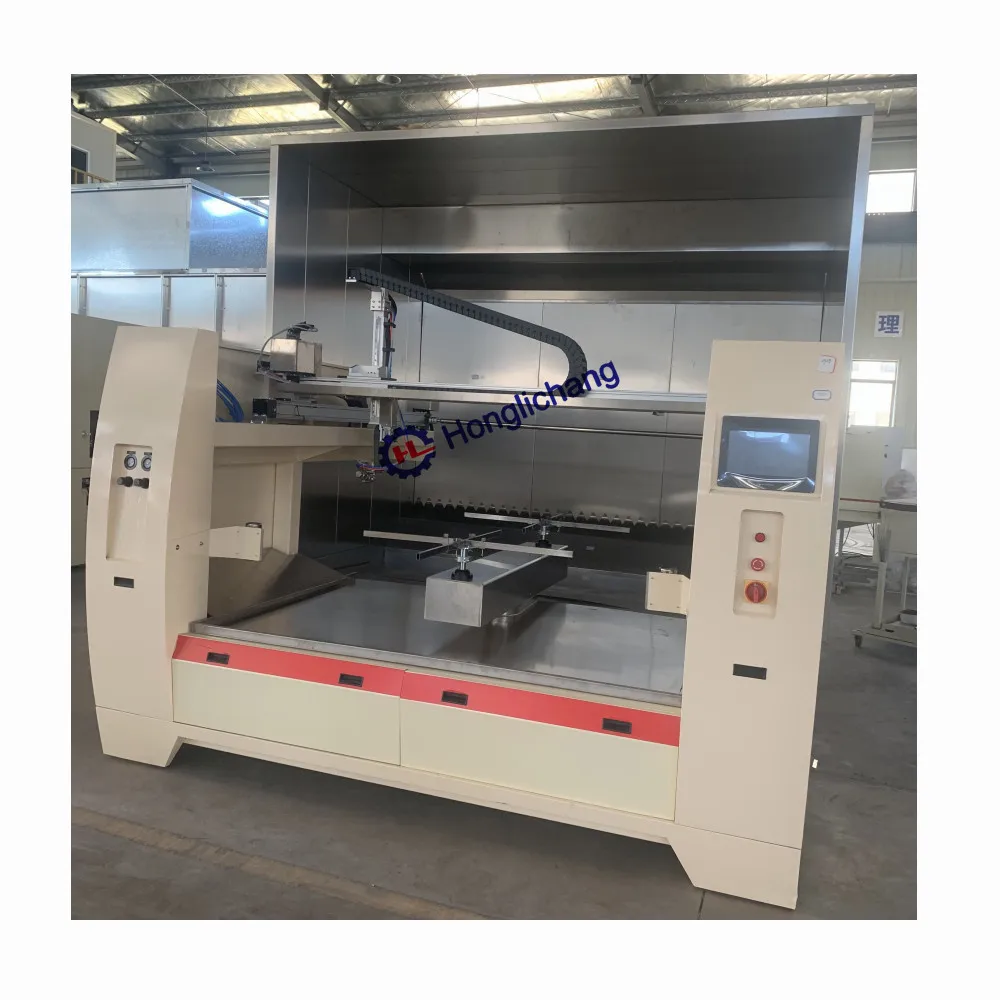

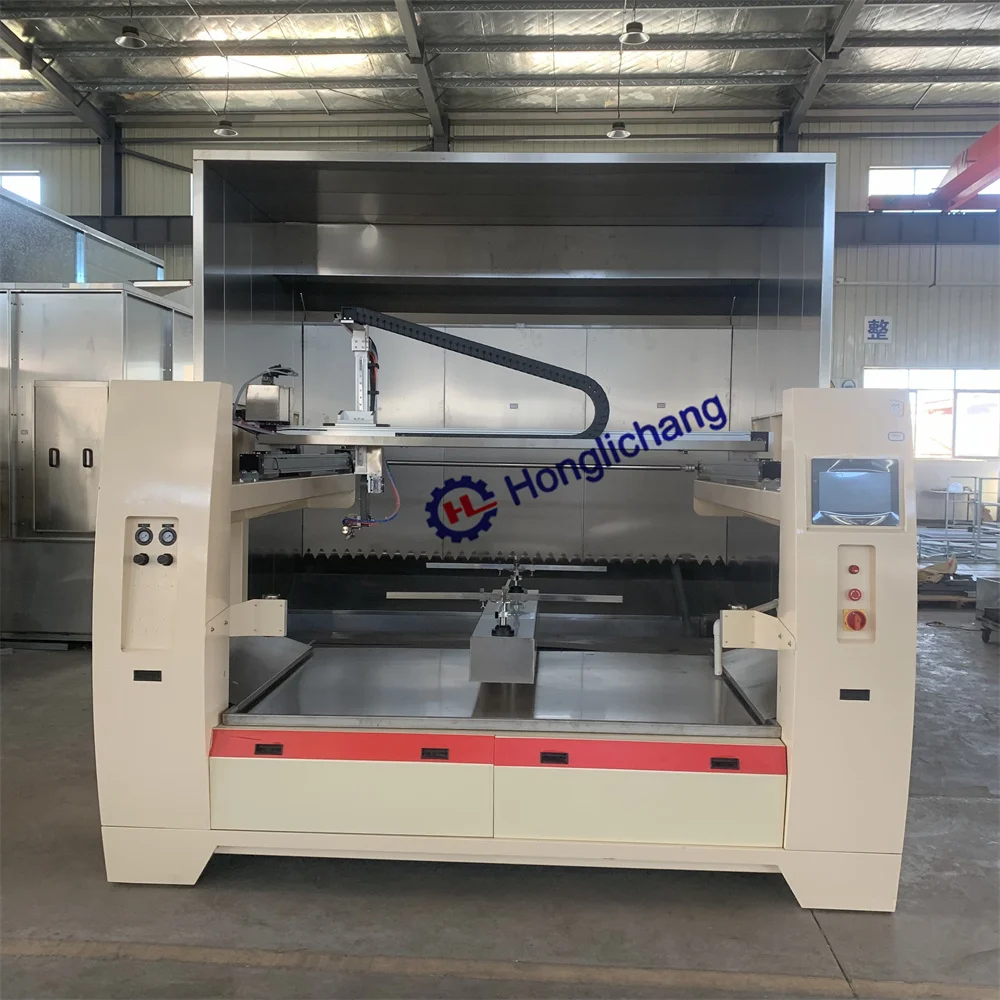

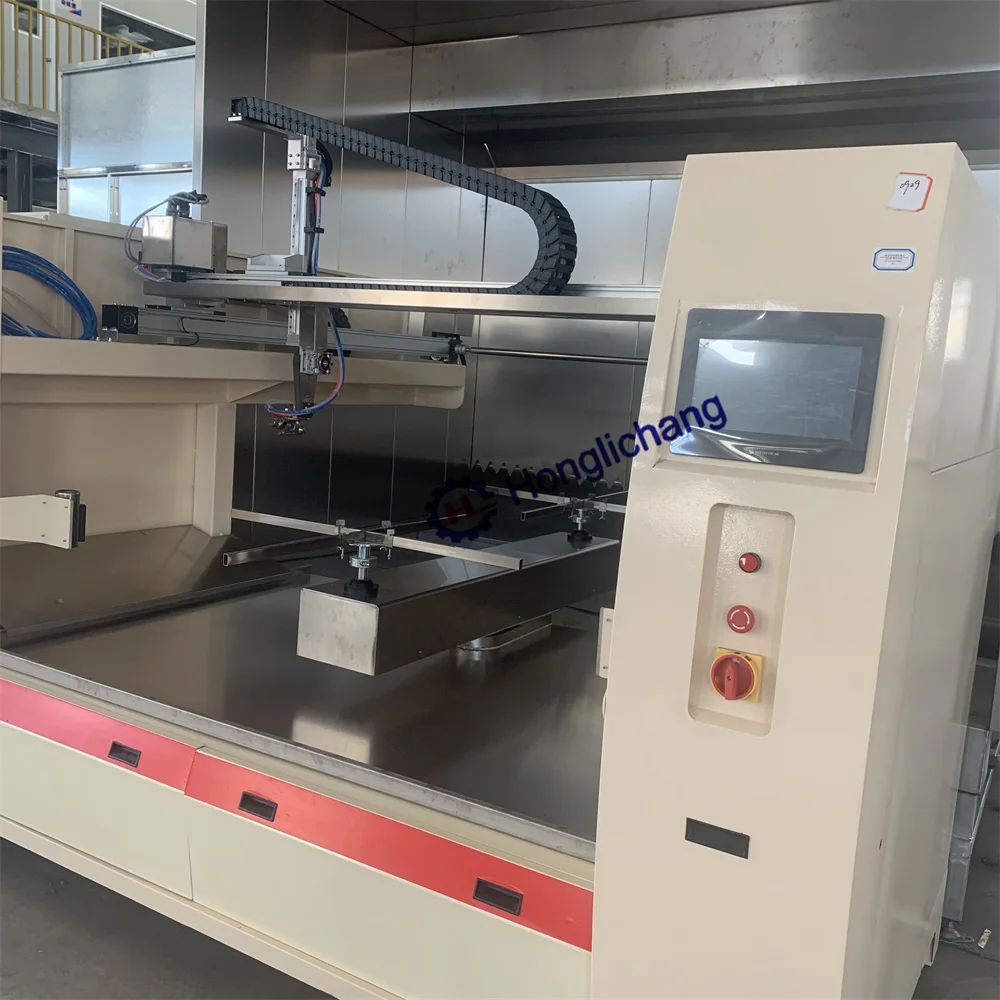

 Features of Touch Screen Control Panel 5-axis Automatic Reciprocating Painting Machine with Rotation Table for Car Exterior Parts:

1. Machinery: W2300*L2100*H2300mm
2. Axis X: 1-1.5mtrs motion for slide; working speed: 1.5m/s; synchronous belt: MEGADYNE brand, Italy Make;
   Servo Motor: Panasonic, ±0.5mm
3. Axis Y: 1-1.0mtrs motion for slide; working speed: 1-1.5m/s; synchronous belt: MEGADYNE brand, Italy Make;
   Servo Motor: Panasonic, ±0.5mm
4. Axis Z: screw rod structure, 200W Panasonic motor, 0.3m/s, H300mm
5. Axis R: for spray gun angle change 0-90°, horzontal rotation, step motor
6. Turn Table & Tray:
6.1. 2 trays, Tray size: 600mmx600mm, weight load 5kg;
6.2. Tray Revolution: 2-4sec, graduator+chain transimission+gear motor+VFD
6.3. Tray Rotation: servo motor+gear box, 0-360° continuous rotation"
7. Structure Material: 100x100 square pipe, paint finish
8. Electrical & Pneumatic Controllers
8.1. MCCB: OMRON, with outlet for input and output
8.2. Touch Panel: Taiwan make, model 6070
8.3. Emergency Switch: Schneider
8.4. Sensor: Taiwan Yangming
8.5. Cable: China make in control panel & Germany make
8.6. Software: digital system; motion & speed adjustable"
9. robot control system

 FAQ

 Q1:Are you trading company or manufacturer?

  A1:We are 100% manufacturer,professional supplier of spray painting line for over 15 years.

Q2:How long is your delivery time?

 A2:Generally it is 40-45 workdays,it is according to the layout.

Q3:What is your terms of payment?

 A3:Multiple,we can disscuss.

 Q4:What is your Pre-sales service?

 A4: *Inquiry and consulting support.

        *Technology solution and quotation.

        *Customer visit our factory and check our production.

Q5:Where is factory? Can visit?

A5:  Most welcome.!

Office: A901, Building No.2, Tianan Digital Park, Longgang, Shenzhen, China - 518172

Factory: 11, Phase-2, Butterfly Ridge Industrial Park, Heyuan, Guangdong, China - 517583

Q6:Could you provide the design for me?

  A6:Absolutely,we can.We are a manufacturer and designer.Just let me know your product informations and requirements like product sizes,pictures,material,output,field map,technological process,or price budget and so on.We will make a layout according to your requirments.
