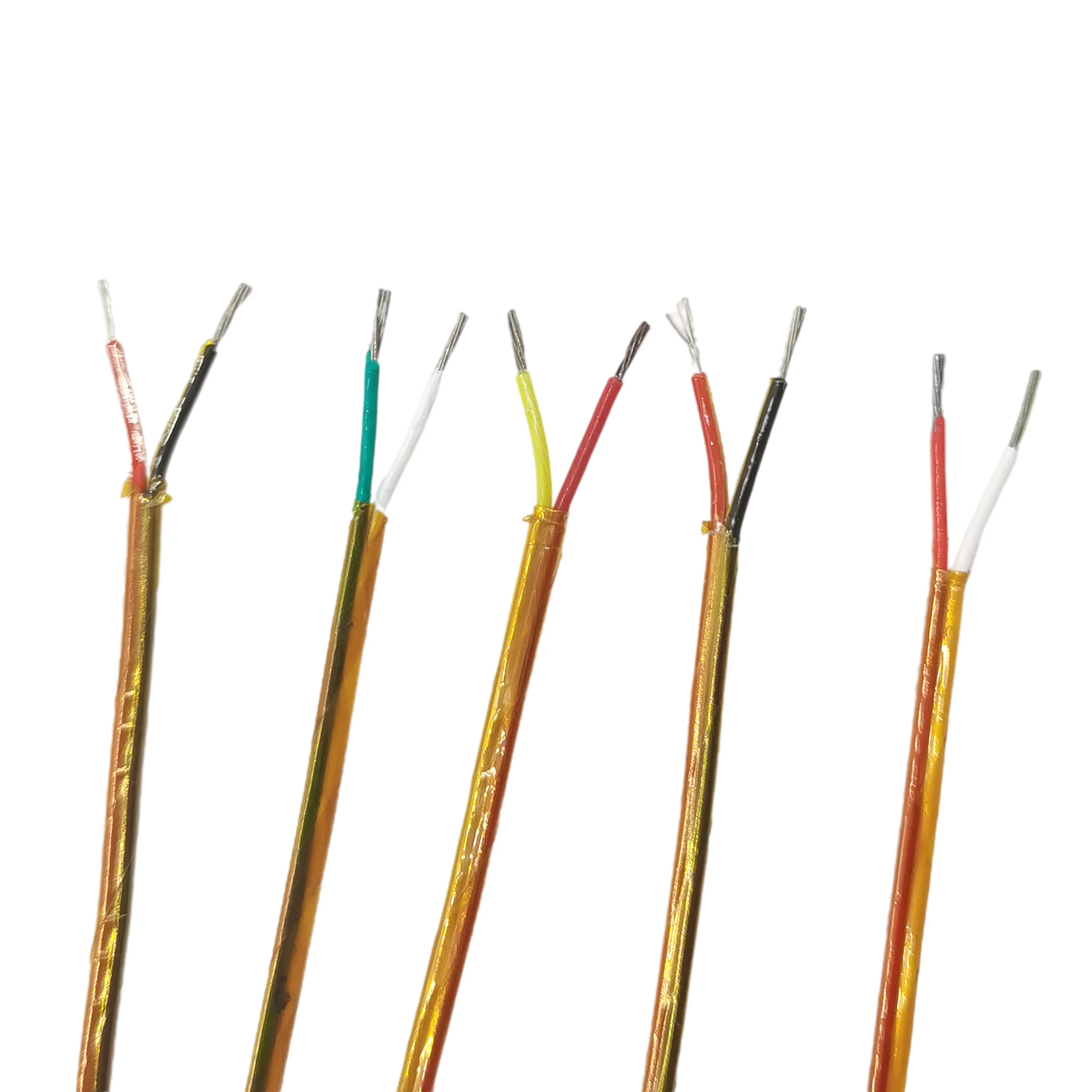

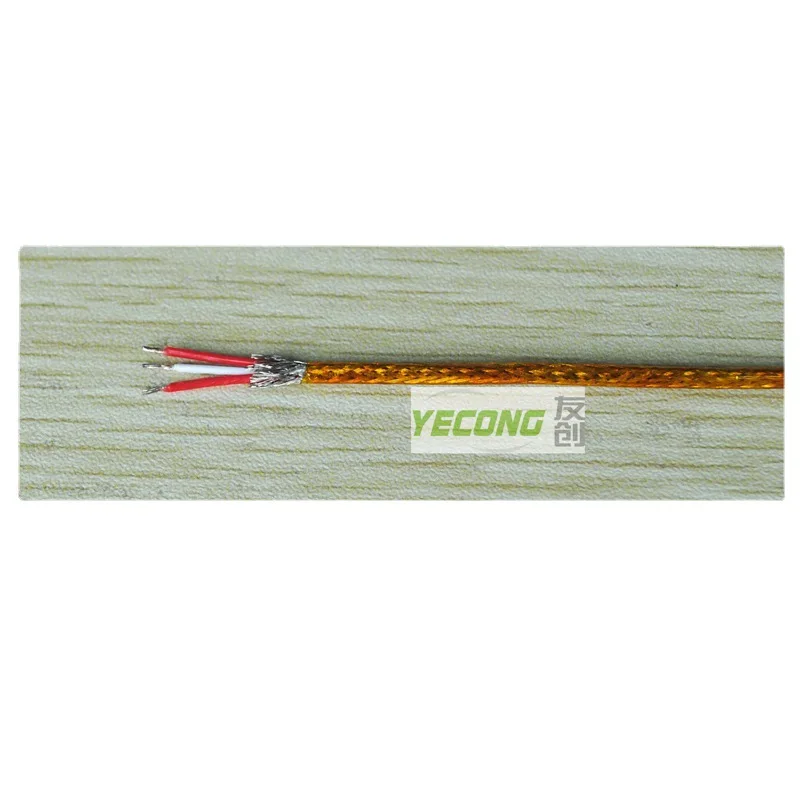

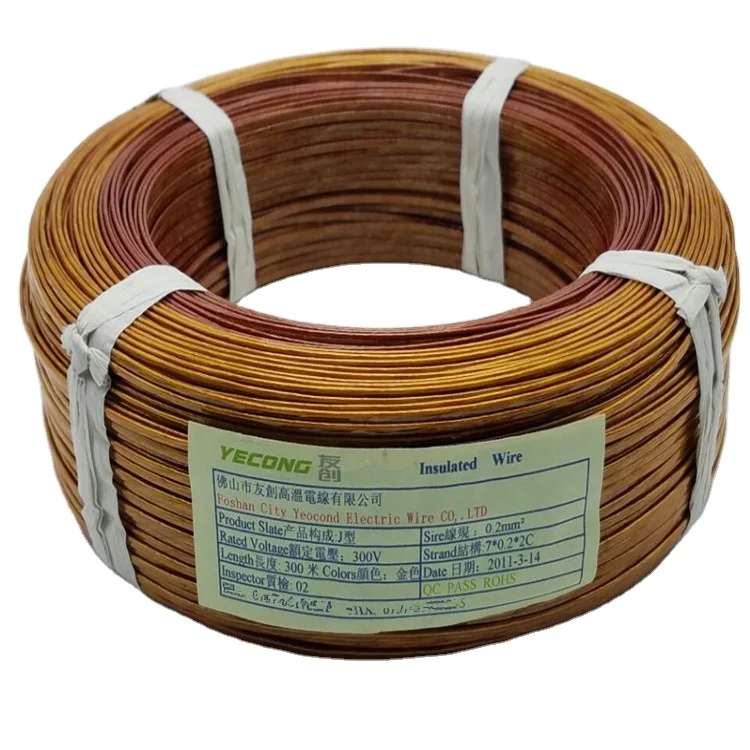

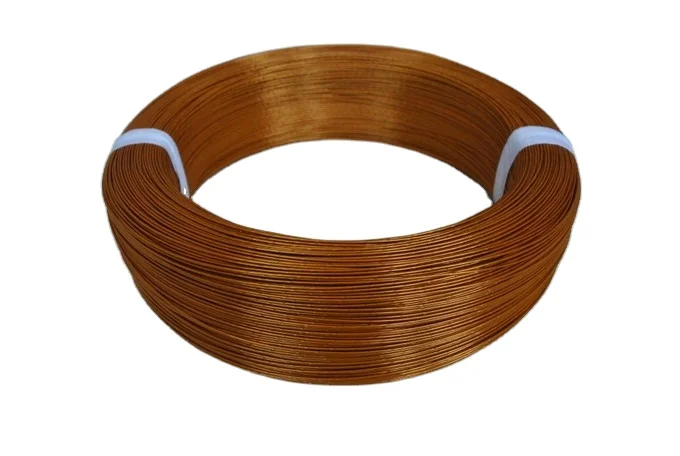

Изолированный провод с компенсацией термопары и удлинителем провода для измерения

Type

Temperature Range (°C) (conductor only)

Limits of Error Standard (°C)

Jacket Color

Insulation Color Code

Conductor Identification

Positive ( + )

Negative ( - )

Positive ( + )

Negative ( - )

E

0 to 340, 340 to 540

±1.7°C ±0.50%

Brown

Purple

Red

Chromel Non-magnetic

Constantan Silver Color

J

0 to 293, 293 to 480

±2.2°C ±0.75%

Brown

White

Red

Iron Magnetic

Constantan Non-magnetic

K

0 to 340, 340 to 540

±1.7°C ±0.50%

Brown

Yellow

Red

Chromel Non-magnetic

Alumel Magnetic

T

0 to 340, 340 to 540

±1.7°C ±0.50%

Brown

Blue

Red

Copper Copper Color

Constantan Non-magnetic

EX

0 to 200

±1.7°C

Purple

Purple

Red

Chromel

Constantan

JX

0 to 200

±2.2°C

Black

White

Red

Iron

Constantan

KX

0 to 200

±2.2°C

Yellow

Yellow

Red

Chromel

Alumel

TX

0 to 200

±1.0°C

Blue

Blue

Red

Copper

Constantan
