Оригинальный Новый Supermicro PWS-563-1H блок питания 560 Вт 24pin 80 Plus Gold для 1U
- Категория: PC Power Supplies >>>
- Поставщик: Beijing,Xinqidian,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 161.79 $* | 164.95 $* |
| Jul-16-2025 | 131.42 $* | 134.78 $* |
| Jun-16-2025 | 159.73 $* | 162.68 $* |
| May-16-2025 | 157.11 $* | 160.9 $* |
| Apr-16-2025 | 126.1 $* | 129.2 $* |
| Mar-16-2025 | 155.81 $* | 158.1 $* |
| Feb-16-2025 | 154.92 $* | 157.94 $* |
| Jan-16-2025 | 152.24 $* | 155.68 $* |
Характеристики
Products Description

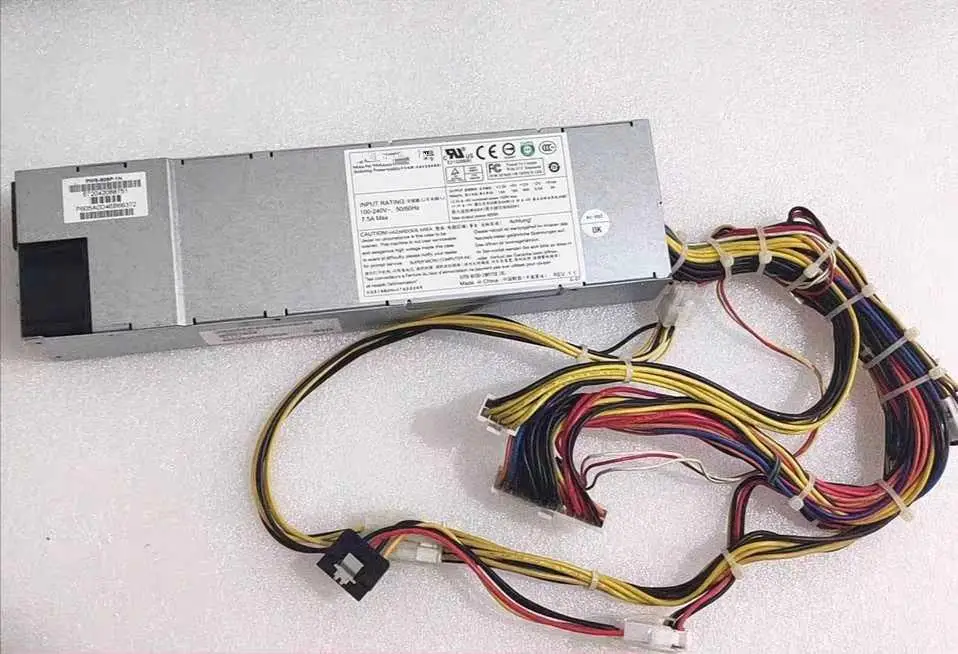

Supermicro 560W PWS-563-1H
The Supermicro PWS-563-1H is an 80 Plus Gold level power supply capable of supplying 560W low-line and 600W high-line output power at 90% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit.
Features and Benefits:
* High Efficiency with 80Plus Gold Certified
* 18ms Hold up time
* Optimized for Datacenter Application * Dimension (W x L x H): 76 x 279.4 x 40.4 mm
* Maximum Output Power: 560/600W
* High Efficiency with 80Plus Gold Certified
* 18ms Hold up time
* Optimized for Datacenter Application * Dimension (W x L x H): 76 x 279.4 x 40.4 mm
* Maximum Output Power: 560/600W

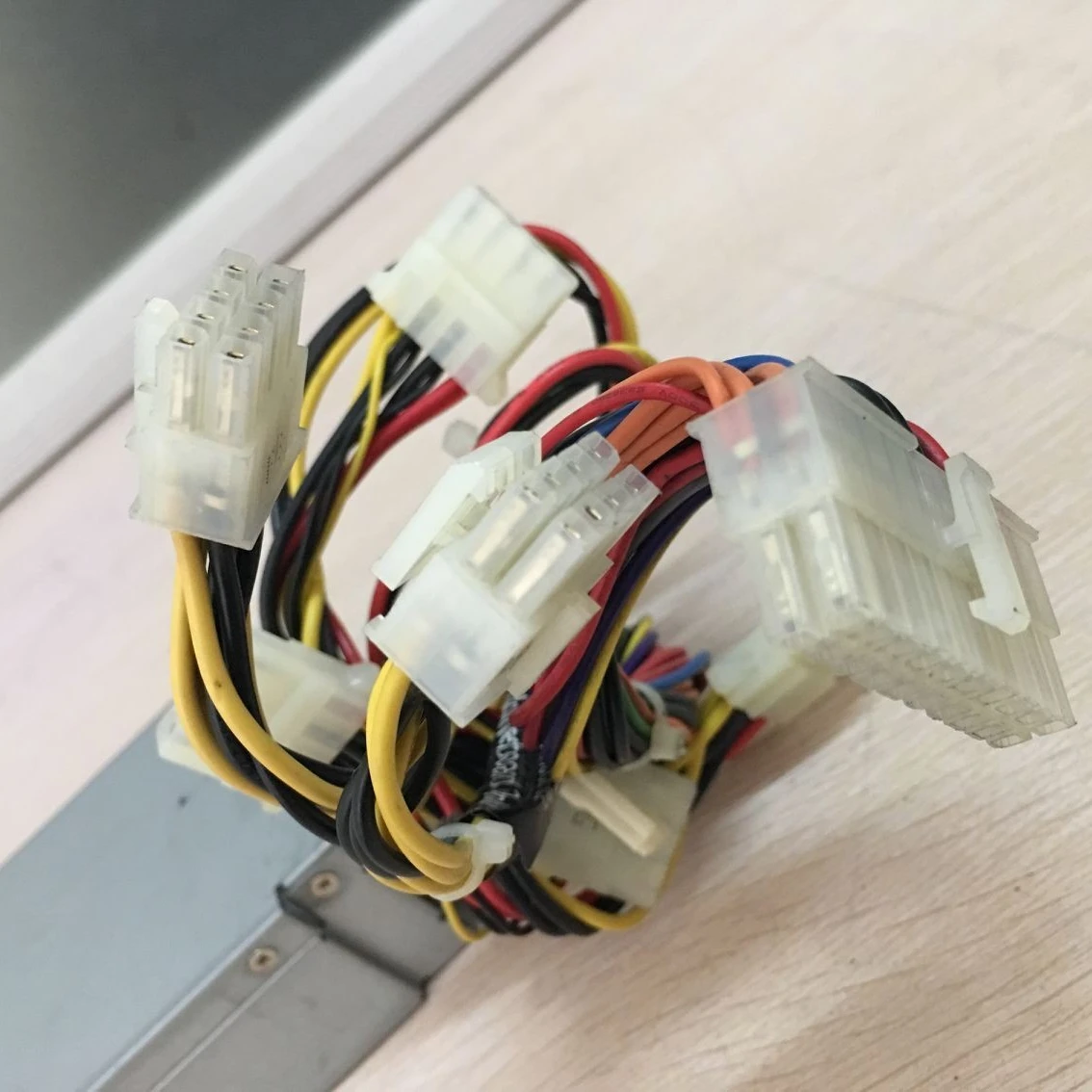

Cables Included:
* 1x 24 Pin ATX (Motherboard)
* 2x 8 Pin 12V (CPU)
* 1x 4 Pin 12V (CPU)
* 2x 4 Pin Legacy HDD
* 2x 4 Pin Floppy/DVD Drive
* 2x 8 Pin 12V (CPU)
* 1x 4 Pin 12V (CPU)
* 2x 4 Pin Legacy HDD
* 2x 4 Pin Floppy/DVD Drive

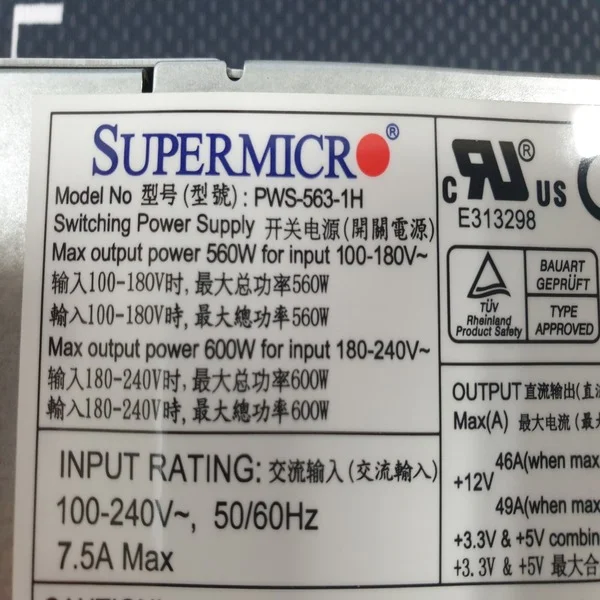

Product Specification
INPUT CHARACTERISTICS | ||
RATED VOLTAGE / CURRENT | 100-240Vac / 7.5A Max | |
RATED FREQUENCY | 50-60HZ | |
INRUSH CURRENT | Less than 25A | |
POWER FACTOR | 0.99 (Typical) | |
DC OUTPUT CHARACTERISTICS OUTPUT VOLTAGE | ||
AND MAXIMUM OUTPUT CURRENT | +12V: 46A (100-180Vac) +12V: 49A (180-240Vac) +5V: 18A +3.3V: 15A -12V: 0.5A +5Vsb: 3A Note: +5V and +3.3V Combined power is 130W max. | |
EFFICIENCY | 80Plus Gold Level Certificated | |
REGULATION | +3.3V/+5V/+12V/+5Vsb: +/-5% -12V: +/-10% | |
RIPPLE & NOISE | +3.3V/+5V/+5Vsb: 50mV +12V/-12V: 120mV | |
OUTPUT CONNECTOR | 24pin/8pin/4pin/4Pin Peripheral/4Pin Floppy | |
HOLD UP TIME | PWOK 17ms at 75% of max Loading Vout 18ms at 75% of max loading | |
