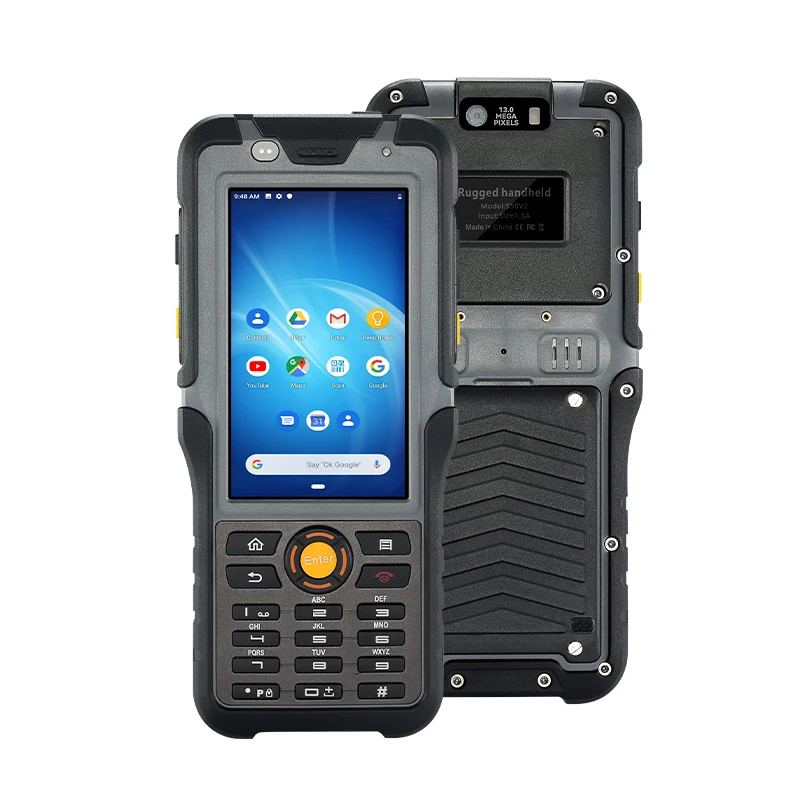

HUGEROCK R50 R5012 большой радиус действия 134k модуль для животных rfid кардридер usb android прочный КПК сканер штрих-кода
- Категория: Access Control Card Readers >>>
- Поставщик: Shenzhen,Soten,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 298.44 $* | 304.2 $* |
| Jul-20-2025 | 242.10 $* | 247.96 $* |
| Jun-20-2025 | 294.38 $* | 300.21 $* |
| May-20-2025 | 291.21 $* | 297.89 $* |
| Apr-20-2025 | 233.42 $* | 238.15 $* |
| Mar-20-2025 | 287.8 $* | 293.73 $* |
| Feb-20-2025 | 284.70 $* | 290.8 $* |
| Jan-20-2025 | 282.80 $* | 288.90 $* |
Характеристики
Hardware | ||||||||
CPU | MTK P60（ARM A73 2.0GHz Octa-core） | |||||||
GPU | Mali-g72mp3 | |||||||
RAM | 4GB | |||||||
Internal Memory | 32GB | |||||||
External Memory | Micro SD card ( T-FLASH card), max 128GB | |||||||
Main Camera | 13.0MP(AF) with flash led | |||||||
Sub Camera | N/A | |||||||
Battery | 5000mAh（Replaceable battery） | |||||||
Display | 4.5 inch IPS/AFFS 960*540 QHD industrial 550nit Sunlight Readable | |||||||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||||||
IO/Sensor/Navigation | ||||||||
SIM Card | 1.8/3.3V SIM card | |||||||
TF Card | Micro SD card ( T-FLASH card) ;max 128GB | |||||||
Headphone | 3.5mm (CTIA） | |||||||
Data interface | USB Type-c 24pin support OTG | |||||||
Gravity sensor | support | |||||||
Motion sensor | support | |||||||
Direction Sensor | support | |||||||
Magnetic Field | support | |||||||
Gyro sensor | support | |||||||
Rotation Vector | support | |||||||
Light-sensor | support | |||||||
Acceleration sensor | support | |||||||
Charger | 5.0V 2A-10W | |||||||
Navigation | Integrated GPS + GLONASS + Beidou positioning, support APGS | |||||||
Appearance | ||||||||
Size | 197*92*26.5mm（L×W×H） | |||||||
Weight | 460g | |||||||
Color & Material | Black&Gray | |||||||
Communications & Networking | ||||||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||||||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||||||
2G Band | GSM（B2/3/5/8） | |||||||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||||||
3G Band | WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 | |||||||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink | |||||||
4G Band | TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28） | |||||||
WI-FI | Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||||||
BT | 4.2 Low Energy (LE) | |||||||
Industrial & Reliability Design | ||||||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||||||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||||||
Waterproof | Class 5 ( IEC 60529 ) | |||||||
Dustproof | Class 6 ( IEC 60529 ) | |||||||
Reliability | MTBF>5000h；MTTR<0.5h | |||||||
Operating temperature | -20°C to 55°C | |||||||
Storage Temperature | -40°C to 80°C | |||||||
RH | 5% to 95% (No condensation) | |||||||
Operating Altitude | Max: 4,500 m（15,000 feet） | |||||||
Certification/OS/Software | ||||||||
Certification | 3C /FCC/CE/ROHS/IP65（IEC 60529） | |||||||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |||||||
OS | Andriod 10.0 | |||||||
Package/Warranty terms/OEM | ||||||||
Warranty | 24 months | |||||||
OEM/ODM | Support | |||||||

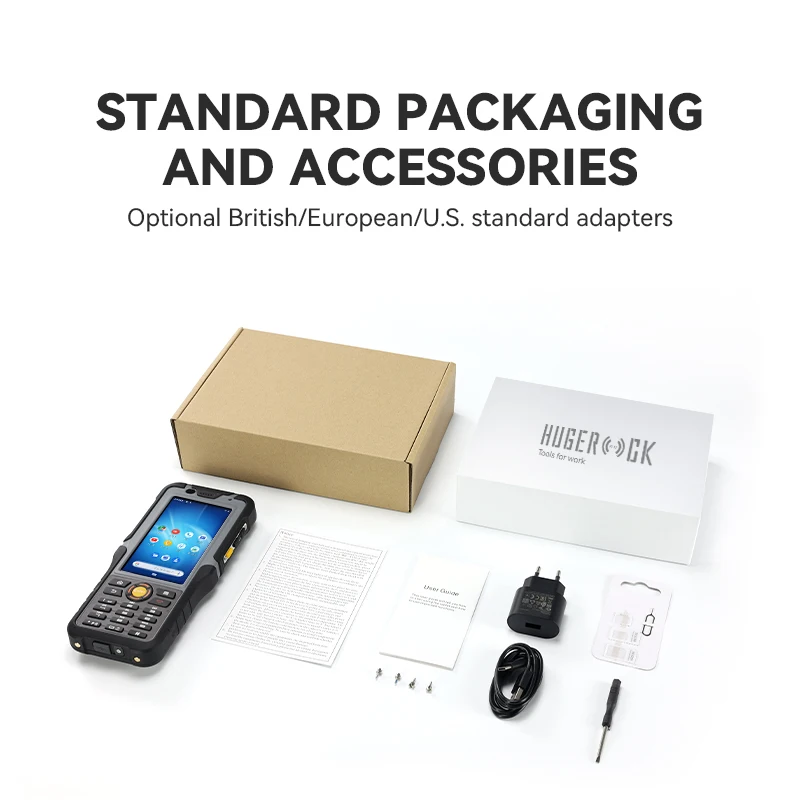

Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box | |||||||
LF RFID data collection | ||||||||
125K LF ID Module | LF RFID，125K | |||||||
134 LF RFID Module | LF RFID，134k Animal module | |||||||
HF RFID/NFC | ||||||||
Frequency | 13.56MHz | |||||||
Protocol standard | ISO14443A/B,ISO15693，NFC | |||||||
Label standard | M1(S50、S70)、CPU、NFC | |||||||
Read-write distance | 2-5cm | |||||||
Data Collection | ||||||||
Scanning engine | Newland N1 / Uode U3020 / Hobeywell N3680 | |||||||
1D | UPC/EAN,Code128，Code39，Code93，Code11，Interleaved 2 of 5，Discrete 2 of 5，Chinese 2 of 5，Codabar，MSI，RSS,ETC | |||||||
2D | Code39，Code128，PDF417，MicroPDF417，DataMatrix，Composite，RSS,TLC-39，QR code，Micro QR code，Aztec，MaxiCode，Postal Code；US PostNet，US Planet，UK Postal，Australian Postal，Japan Postal,etc. | |||||||
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Does the handheld can read QR code and common 1d bar codes?
A: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
