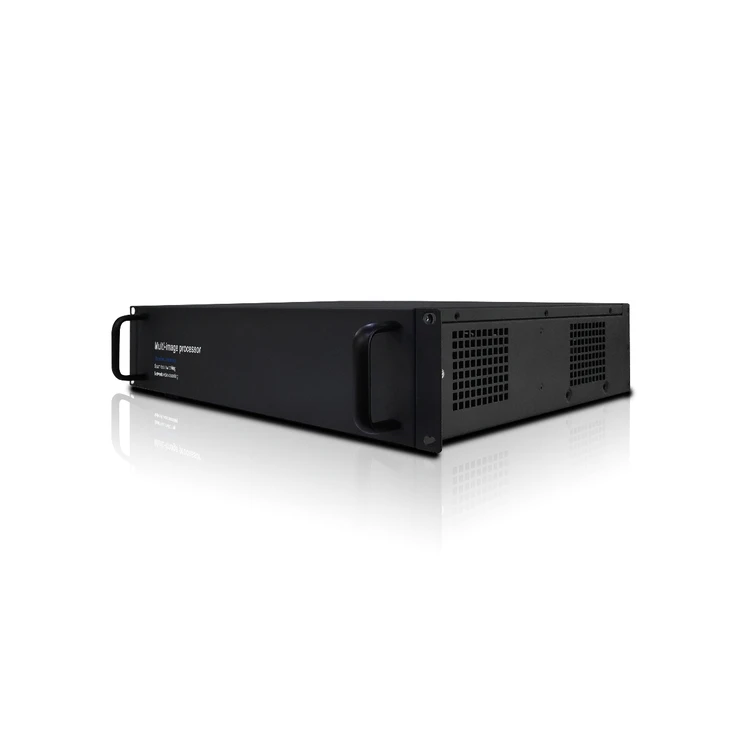

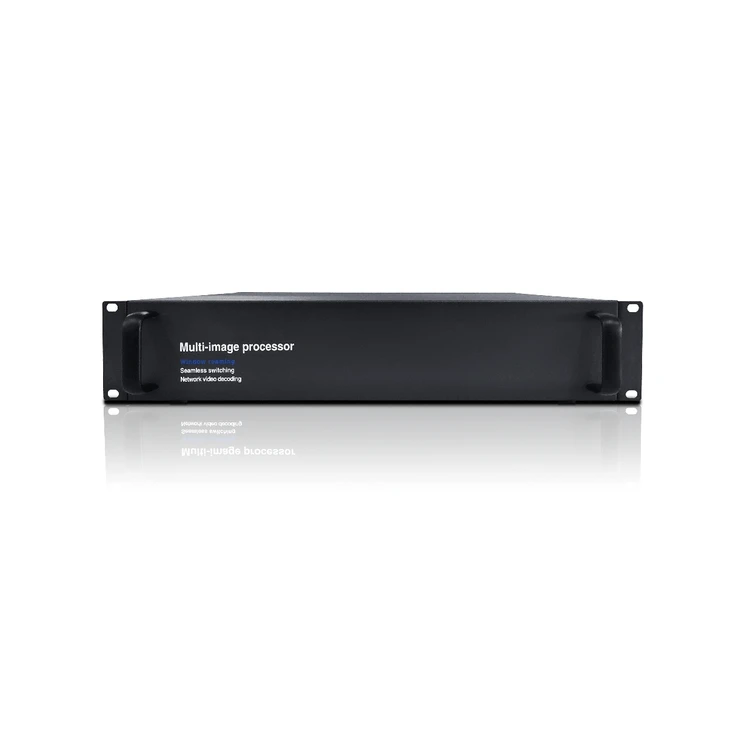

MA4000-04HX02DLJ 4 слойные бесплатная доставка светодиодный видео процессор 4k 4x2 RS232 порт Wall Art
MA4000-04HX02DLJ 4 слойные бесплатная доставка светодиодный видео процессор 4k 4x2 RS232 порт Wall Art
MA4000-04HX02DLJ 4 слойные бесплатная доставка светодиодный видео процессор 4k 4x2 RS232 порт Wall Art
MA4000-04HX02DLJ 4 слойные бесплатная доставка светодиодный видео процессор 4k 4x2 RS232 порт Wall Art

MA4000-04HX02DLJ 4 слойные бесплатная доставка светодиодный видео процессор 4k 4x2 RS232 порт Wall Art


Поделиться:


Цена:885,00 $ - 910,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-17-2025 1124.95 $* 1146.69 $*
Jul-17-2025 912.79 $* 930.49 $*
Jun-17-2025 1106.37 $* 1128.95 $*
May-17-2025 1097.25 $* 1119.14 $*
Apr-17-2025 876.3 $* 894.71 $*
Mar-17-2025 1080.33 $* 1102.62 $*
Feb-17-2025 1071.62 $* 1092.60 $*
Jan-17-2025 1062.93 $* 1083.63 $*

Характеристики



Feature Of Tv Wall Controller



●Various case size such as 2U, 3U, 6U, 12U, 24U. Maximum input at 144 and output at 144. The plug-in card design is adopted to facilitate the safe expansion and upgrading structure of the system.
●With a pure hardware FPGA array floor operation switching technology, no operating system support is required.
●Intelligent scaling technology: intelligent multi-phase filtering algorithm is adopted to automatically select the optimal filtering coefficient according to the characteristics of the image, and the image is close to the vector level.
●Ultimate zoom effect: guarantees more details, such as no sawtooth and good sharpness.
●It can work when powered on, with fast starting speed (less than 5S) and high stability, and there will be no crash and black screen.
●Modular structure: Input module, output module and control module all support hot-pluggable.
●A single signal can be spliced on any display M×N(>0) units.
●Input signal could be free splicing / picture in picture / windowing / roaming / overlay / zoom / cross screen, etc., and supports the superposition of 2 layers.
●Input interface: VGA、DVI、SDI、BNC、IPC、Ypbpr（adapter）、DP（adapter）、mini DP（adapter）、CVBS（adapter）
●Output interface: DVI、VGA（adapter），BNC(adapter)，DP（adapter），preview and echo
●Built-in wireless transmitter and receiver, the images of computer and mobile phone can be pushed to the display with one click, and can be displayed in one screen separated at the same time.
●Visible preview and echo
●Support ultra-HD dot-to-dot vector dynamic subtitles and static subtitles, and can edit display content, fonts, colors and other parameters at will.
●128* invocation scenario modes，support automatic polling, and customize the polling time.
●C/S control structure，based on TCP / IP networks and multi-user real-time operations for serial ports, multiple signal source definitions, scheduling, and management can be implemented.
●Support multiple control methods: such as RS232, TCP / IP networks, Android Pad & phone, provide SDK docking central control, etc..
●Real-time detect all inserted boards inserted in the current device.
●Support power-off recovery function and scene memory function.
●Support hardware one click Reset.
●Mean time between failure no less than 50000h.



Product Description






Specification


TV wall controller specification
Product
TV wall controller
Brand
Micagent


Case size
Chassis height
2U
3U
6U
12U
24U
Input slot
2
4
9
18
36
Output slot
3
5
9
18
36
Control slot
1
1
1
1
1

Maximum input and output
8*input & 12*output
16*input & 20*output
36*input & 36*output
72*input & 72*output
144*input & 144*output

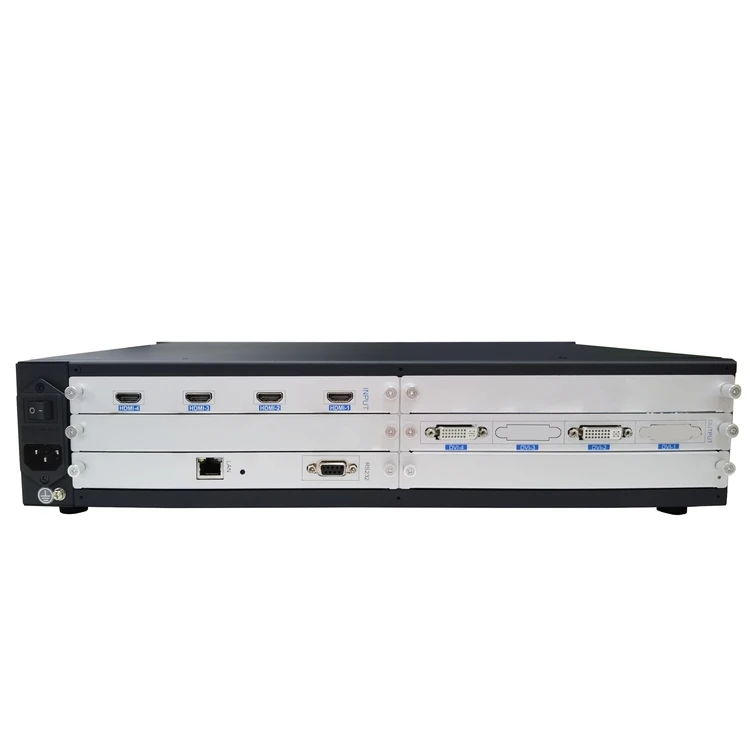

Input/ Output card
Input card
Interface
VGA/DVI/SDI/BNC (can be adapted to DP/miniDP/Ypbpr/CVBS)
Max resolution
4K（Optional）
Output card
Interface
DVI （can be adapted to VGA/DP/miniDP /BNC/Ypbpr）
Max resolution
4K（Optional）




Hardware information
Hardware type
Pure hardware structure
Processing technology
FPGA real time processing technology
Startup speed
＜5S
Card type
Modular hot plug structure
Security feature
Virus-free，no system halted













Video processing
Display mode
Any splicing / picture in picture / windowing / roaming / overlay / zoom / cross screen, etc., and supports the superposition of 2 layers.
Invocation scenario
128 scenario modes
Preview and echo（Optional）
Hardware preview / echo
Real time switching with short black field
No blurred screen and short black field when switching signal.
Automatic detection of I / O board
Real-time detect all inserted boards inserted in the current device.
Automatic detection of input signal
Real-time detection whether there is signal access in the input interface, and reflect the status on the input board and client
software.
Wireless transmitter and receiver（Optional）
The computer and mobile phone images can be pushed to the display with one click, and can be displayed in one screen separated at
the same time.
Virtual LED scrolling subtitles
Support ultra HD dot-to-dot vector dynamic subtitles and static subtitles, and can edit display content, fonts, colors and other
parameters at will.




Control mode



IP control
Control protocol
TCP/IP
Control interface
RJ45
Control rate
10M/100M adaptive
Serial port
Control interface
RS232×1，9 pins D type male
control
Baud rate
115200



Working environment
Working temperature（℃）
-15-60 ℃
Working humidity（RH）
10-90% non-condensing






Electrical properties
Output voltage
100-220V,AC
Frequency
50-60HZ
Size
484*365*95
484*365*165
484*390*305
 440*359*580
518*359*1005
Weight
<=20KG (Full configuration)
Redundant power supplier (Optional)
Redundant power supplier available
Mean time between failure
>50000 H
