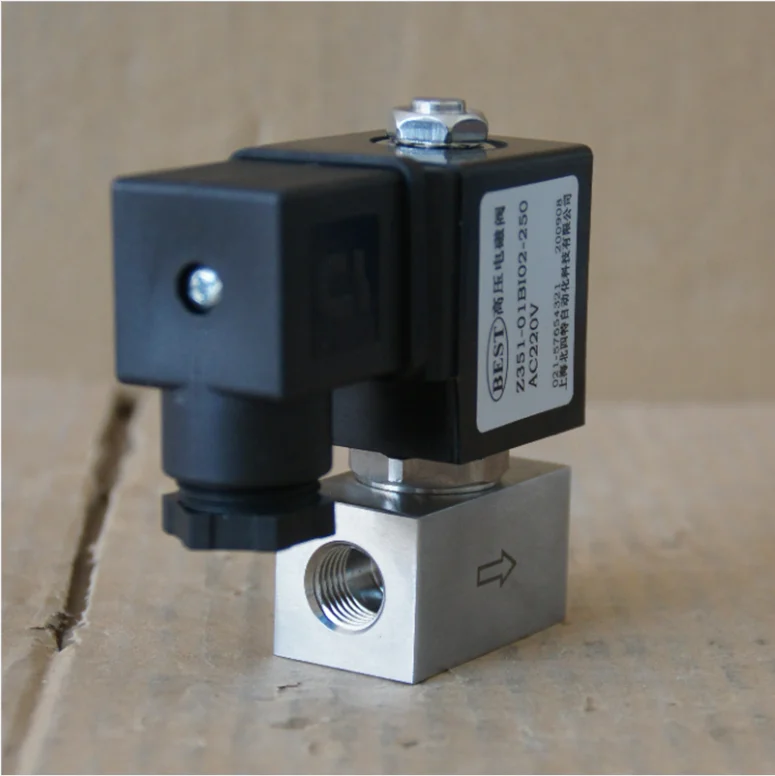

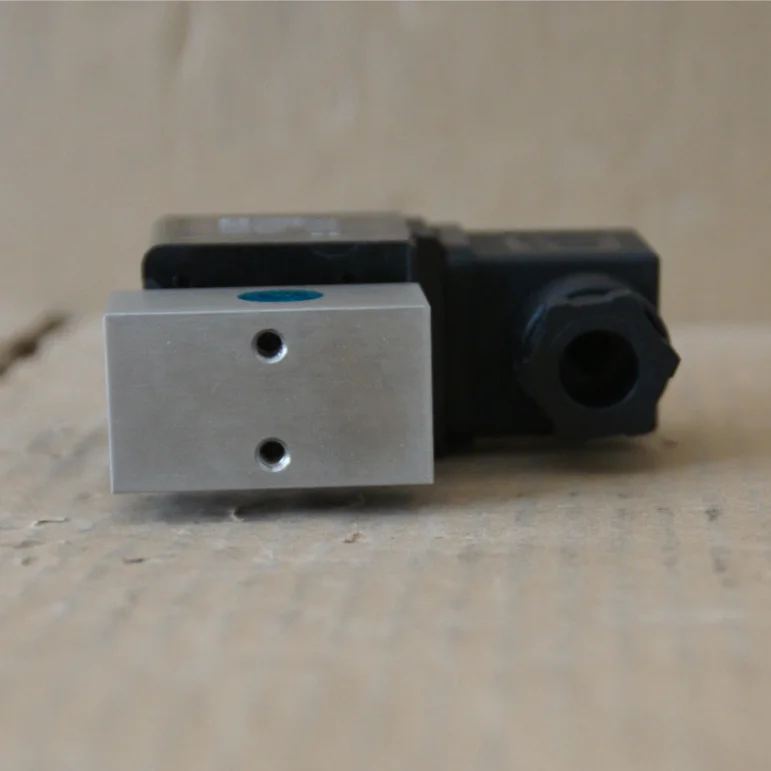

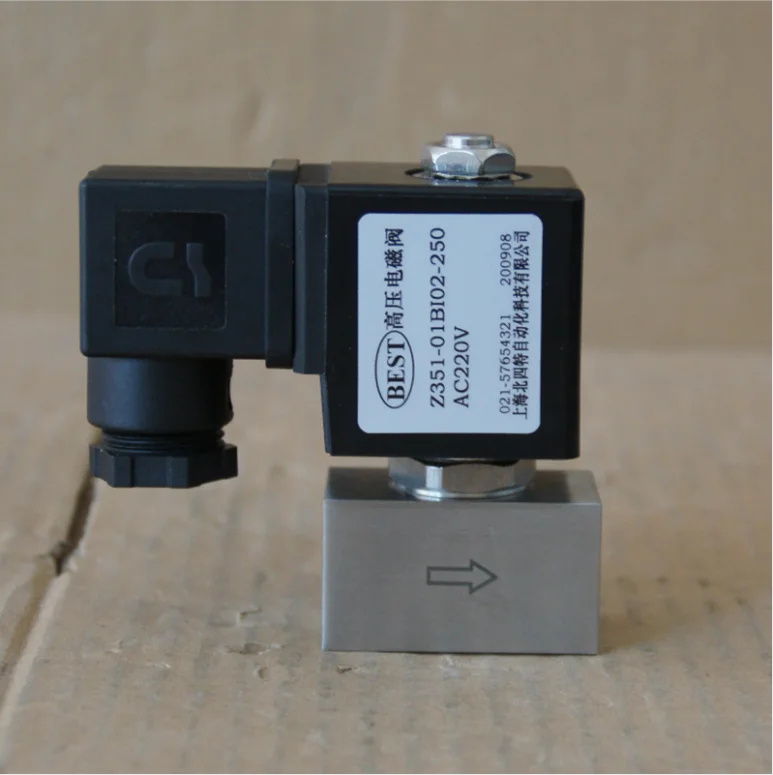

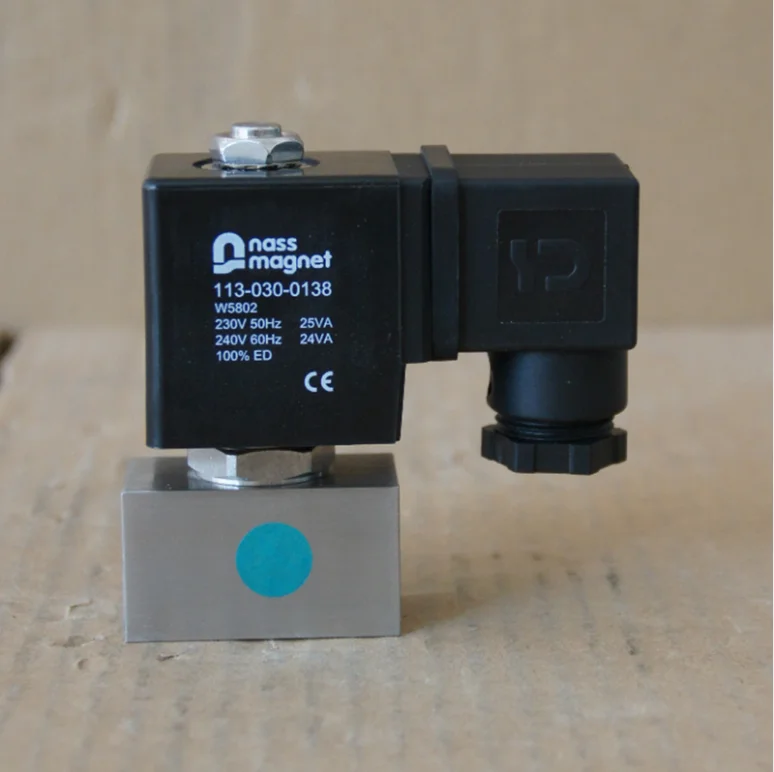

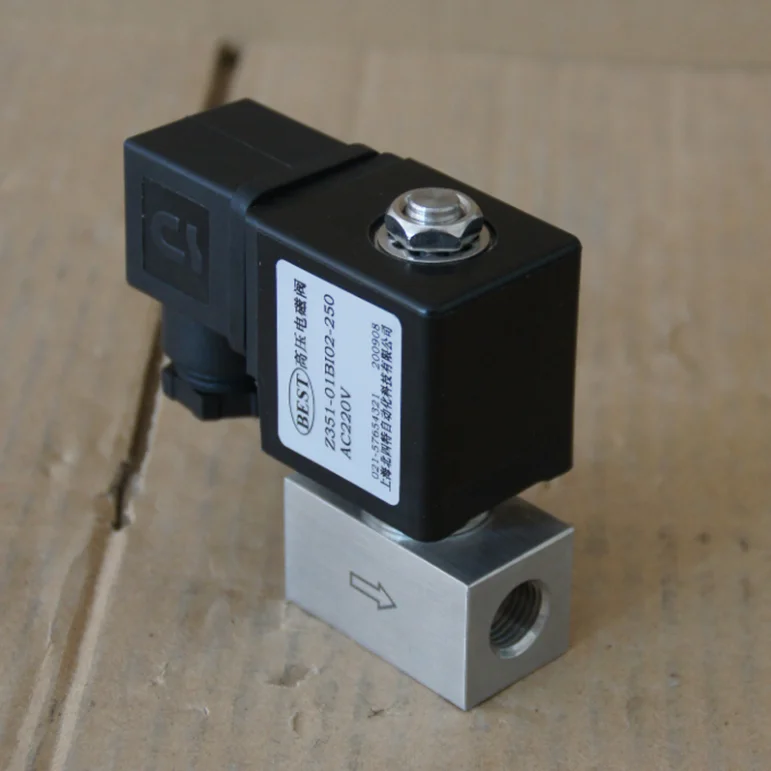

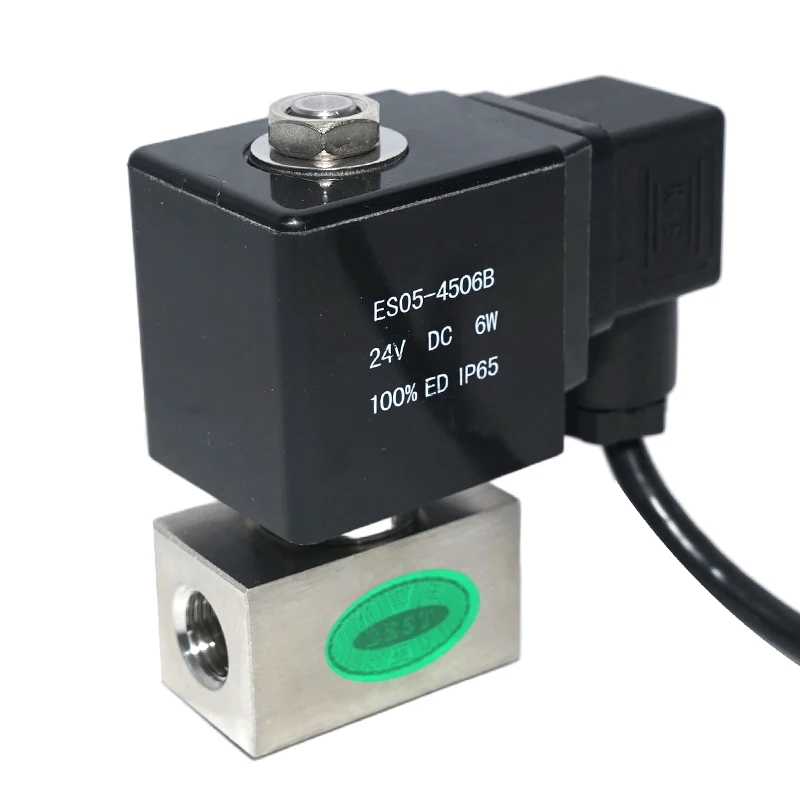

Z351-B SS серии 2/2 способ ходовые непосредственные действующие/управляемый поршень высокого давления Электромагнитный
- Категория: Valves >>>
- Поставщик: Shanghai,Best,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 102.10 $* | 107.56 $* |
| Aug-16-2025 | 101.27 $* | 106.5 $* |
| Jul-16-2025 | 85.81 $* | 89.86 $* |
| Jun-16-2025 | 100.10 $* | 105.96 $* |
| May-16-2025 | 87.7 $* | 91.45 $* |
| Apr-16-2025 | 98.96 $* | 103.30 $* |
| Mar-16-2025 | 97.50 $* | 102.64 $* |
| Feb-16-2025 | 96.72 $* | 101.41 $* |
| Jan-16-2025 | 95.70 $* | 100.27 $* |
Характеристики
VR
Product Overview
Key Specifications/Special Features:
01.Exported type
02.Leakage:0ml/min
03.Max. action frequency:5times/s
04.Max. pressure tolerance:250kgf/cm2
05.Ambient temperature:-15~75℃
06.Kinematic viscosity value of applicable medium:≤50CSt(mm2/s)
07.Plastic encapsulated coil is adopted, which is reliable, waterproof and dustproof
08.Mounted at any angle, keep coil vertically upward＆installed horizontally which may extend life span
09.Pilot operated structure, operated pressure differential is required(Z351-01~03B has direct acting structure, reliably operated under zero pressure differential)
10.Sealing material:normal Ib---VITON(code:V)
special Ⅱe---PTFE(code:P)
11.Valve body material:normal---SS304(code:B), special--- SS316(code:R)
12.Normal voltage:AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
02.Leakage:0ml/min
03.Max. action frequency:5times/s
04.Max. pressure tolerance:250kgf/cm2
05.Ambient temperature:-15~75℃
06.Kinematic viscosity value of applicable medium:≤50CSt(mm2/s)
07.Plastic encapsulated coil is adopted, which is reliable, waterproof and dustproof
08.Mounted at any angle, keep coil vertically upward＆installed horizontally which may extend life span
09.Pilot operated structure, operated pressure differential is required(Z351-01~03B has direct acting structure, reliably operated under zero pressure differential)
10.Sealing material:normal Ib---VITON(code:V)
special Ⅱe---PTFE(code:P)
11.Valve body material:normal---SS304(code:B), special--- SS316(code:R)
12.Normal voltage:AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
FEATURES AT A GLANCE
Products Description
Company Profile
Company Introduction
Year of Incorporation: 2003
BEST’s Market: Overseas and domestic
BEST’s Sales Methods: ODM, OEM, through licensed agents
Research and Development Team: 15 Research and design specialists
Sales Network: More than 20 countries including the US, CanadaGermany, the UK, the Netherlands, Italy, Ukraine, Dubai, and Japan
Certificates: IS09001-2015 certified
Company Strength
With the concept of ‘be humane first; win the war by comprehensive strength’, BEST people put pioneered technology, elaborate crafts, product quality and customers' benefit first, and it develops during practice to be better, more professional and more economic!
Customer case
Our products are widely used in all walks of life and have been unanimously recognized by customers
World Expo 2010 Shanghai
High-speed rail application
Ship and warship application
Powder tanker/vehicle
New type fuel boiler
Textile machinery industry
Conveying equipment/automatic storage industry
Office automation industry
Medical chemical industry
Rubber machinery/machine tool industry
Solar industry
Other equipment manufacturing industries
Honors and Qualifications
In 2020, our company was rated as one of the top ten honest enterprises by the government
CE Certificate
CE Certificate
CE Certificate
Business License
Certificate of Honor
Trademark Registration Certificate
Certification of ISO9001
Quality Management System
Quality Management System
Production License of Special
Equipment for Safety Valve
Equipment for Safety Valve
Production License of Special
Equipment for Ordinary Valve
Equipment for Ordinary Valve
Product packaging
Packing size | ||||||
size | long(cm) | wide(cm) | high(cm) | |||
1 | 50 | 40 | 30 | |||
2 | 46 | 35 | 24 | |||
3 | 26 | 24 | 20 | |||
Shipping
Big warehouse
Forklift and Support
Method of payment
FAQ
• Standard payment terms:pay50% deposit in advance. 50% balance before shipment.
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
We are manufacturer, we have produced valves for more than 20 years. So we have competitive price. OEM ODM OBM are optional.
2. What's your payment terms?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3. What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece. We also can provide the samples.
4. What about the delivery time?
Sample needs about 3 working days, for large order, delivery time will be according to your quantity.
5. Would you have a discount if l have a large order?
A:Yes. We could offer different discount according to your order quantity.
6. Where is the factory located?
Welcome to visit our factory in Shanghai.
