Подземный силовой кабель TDR 0-35 кВ система определения местоположения неисправности оборудование тестер
- Категория: >>>
- Поставщик: Xianheng,International,Science&Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 8449.37 $* | 8871.10 $* |
| Aug-20-2025 | 8378.58 $* | 8797.85 $* |
| Jul-20-2025 | 7029.47 $* | 7380.29 $* |
| Jun-20-2025 | 8236.23 $* | 8648.37 $* |
| May-20-2025 | 7171.10 $* | 7530.55 $* |
| Apr-20-2025 | 8094.59 $* | 8499.39 $* |
| Mar-20-2025 | 8023.60 $* | 8424.42 $* |
| Feb-20-2025 | 7952.84 $* | 8350.36 $* |
| Jan-20-2025 | 7881.95 $* | 8275.0 $* |
Характеристики
Introduction:
Introduction: T20 cable fault location system is the first system in the world that uses innovative remote location technology to locate power cable faults. It is mainly suitable for the accurate search of various main insulation faults of 0-35kv power cables. Under the control of the remote service center, it can break through geographical restrictions and locate fault points remotely and in real time. Fault location is more convenient, faster, safer and more effective. Its unique intelligent time difference fixed-point
technology and cable path indication technology make the fault point determination faster and more accurate
technology and cable path indication technology make the fault point determination faster and more accurate

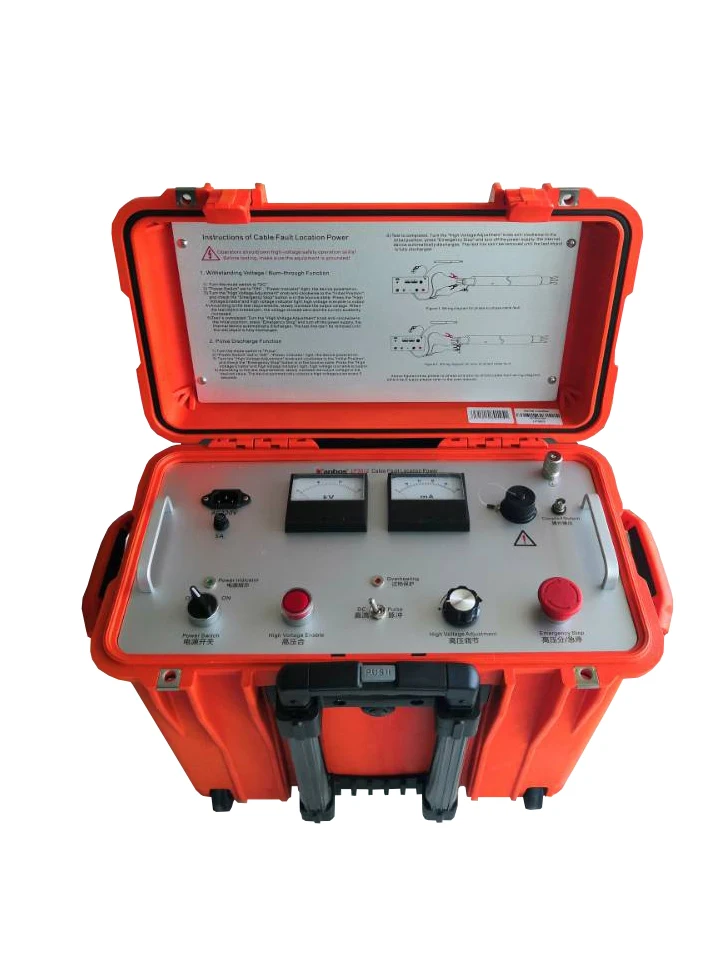

Fault location power LP30/2 | ||
DC voltage output | 0-35 kV continuously adjustable | |
Max charging current | 30mA | |
Max discharge energy | 900J | |
Polarity of output voltage | Negative polarity | |
Power supply | Lithium battery | |
Capacity | 1kVA | |
Volume | 500×305×457(mm) | |
Net weight | 28kg | |

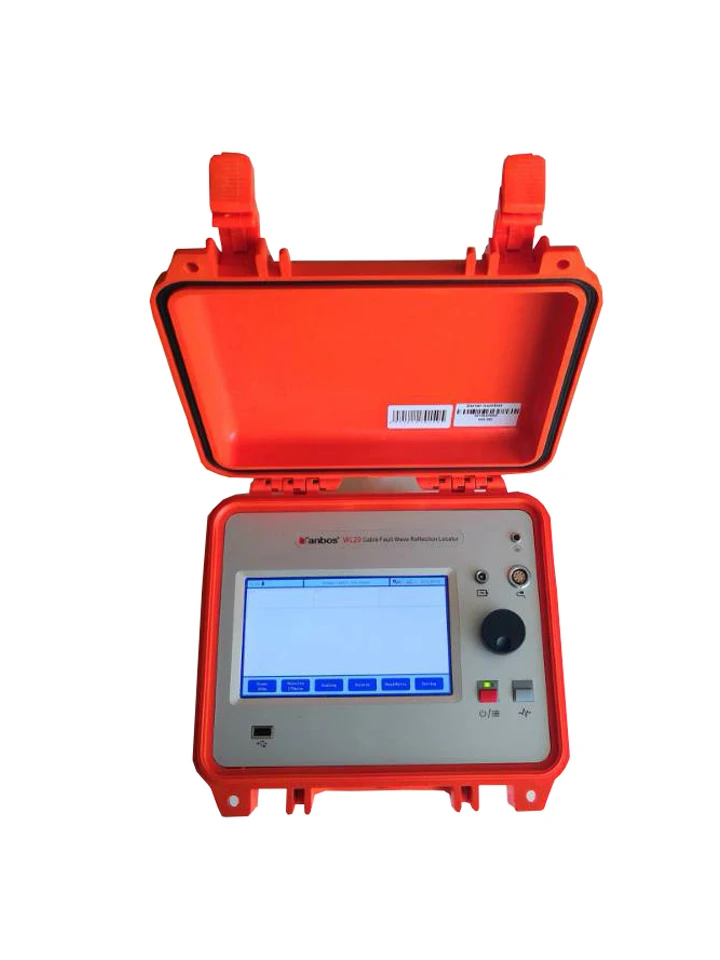

Cable fault pre-locator (TDR)WL20 | ||
Low voltage impulse launching voltage | 30V | |
Sampling frequency | 200MHz | |
Max ranging scope | 100km | |
Dead zone | 2m | |
Max resolution | 0.4m | |
Power supply | Polymer Li-ion battery pack, for Min 5 hours continuous usage. | |
AC220V, 50Hz | ||
Size | 274×218×81(mm) | |
Weight | 3.5kg | |

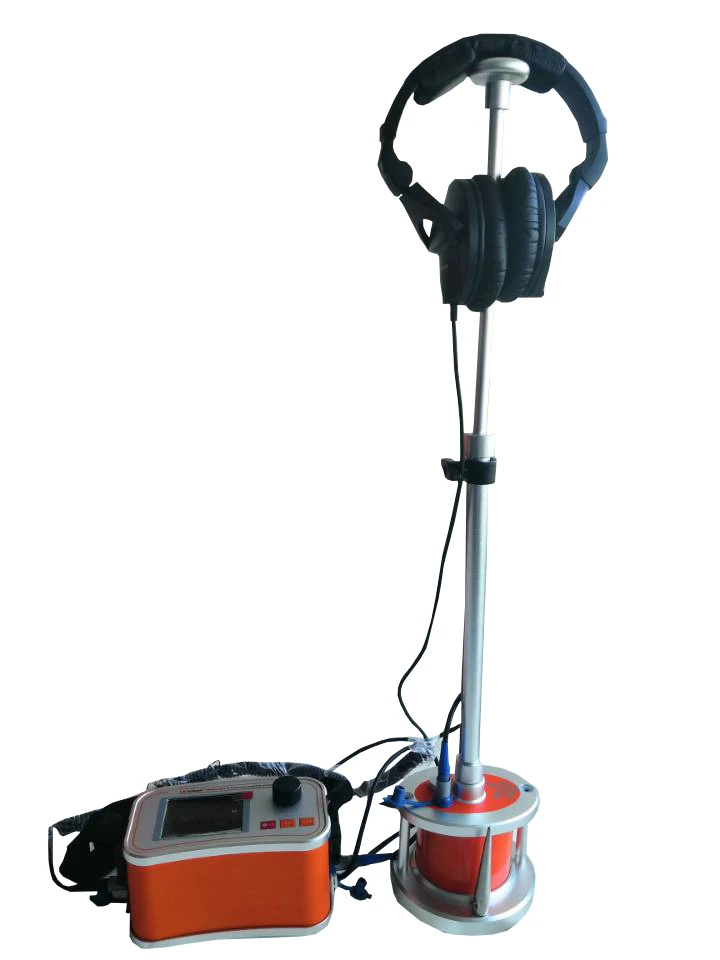

Cable fault pin-pointer PP20 | ||
Precision of point positioning | 0.1m | |
Precision of path location | 0.1m | |
Precision of step voltage method | 0.1m | |
Work mode | Anti-noise mode: Strong noise reduction mode Background suppression noise reduction mode Point location mode: Intelligent Acousto-Magnetic Time Difference Mode | |
Display mode | Color LCD | |
Power | Li-battery, 12h standby | |
